AOC GK500 Mechanical Gaming Keyboard
USER'S GUIDE
Ver.:1.00
CAUTION: To use this product properly, please read the user's guide before installing.
Contents
1. PACKAGE CONTENTS/SYSTEM REQUIREMENTS 1
2. SPECIFICATIONS 1
3. DEVICE LAYOUT AND FUNCTIONAL INTRODUCTION 2
4. AOC G-TOOLS INSTALLATION 3
5. AOC G-TOOLS INTRODUCTION 4
6. SAFETY GUIDE AND MAINTENANCE 13
1
PACKAGE CONTENTS/SYSTEM REQUIREMENTS
Package Contents
AOC GK500 Mechanical Gaming Keyboard
Quick Setup Guide
Wrist Rest
Gaming Keycap Kit
Product System Requirements
Windows® 7/8/8.1/10
MAC OS X (V10.7 to 10.9)
Available USB port
160MB free hard disk space
Internet connection
AOC G-Tools System Requirements
Windows® 7 or above
160MB free hard disk space
Internet connection
Technical Support
2 years limited warranty
Free online technical support at www.aoc.com
SPECIFICATIONS
Technical Specifications
50 Million keystroke lifespan with Outemu blue mechanical switches.
All key programmable
All key roll-over anti-ghosting
Up to 1000Hz/ms report rate
Customizable RGB lighting effect syncing with other AOC gaming devices
1.8M Braided cable
Approximate Size & Weight
Length: 433 mm/ 190.5 in
Width: 191.6 mm/ 75.4 in
Height: 36.94 mm/ 14.5 in
Weight: 875 g/1.9 lbs
Cable Length: 1.8 m/ 5.9 ft
Operating Environment
Operating Temperature: 0 ° C - 40 ° C
Operating Humidity: 10% - 85%
2
DEVICE LAYOUT AND FUNCTIONAL INTRODUCTION

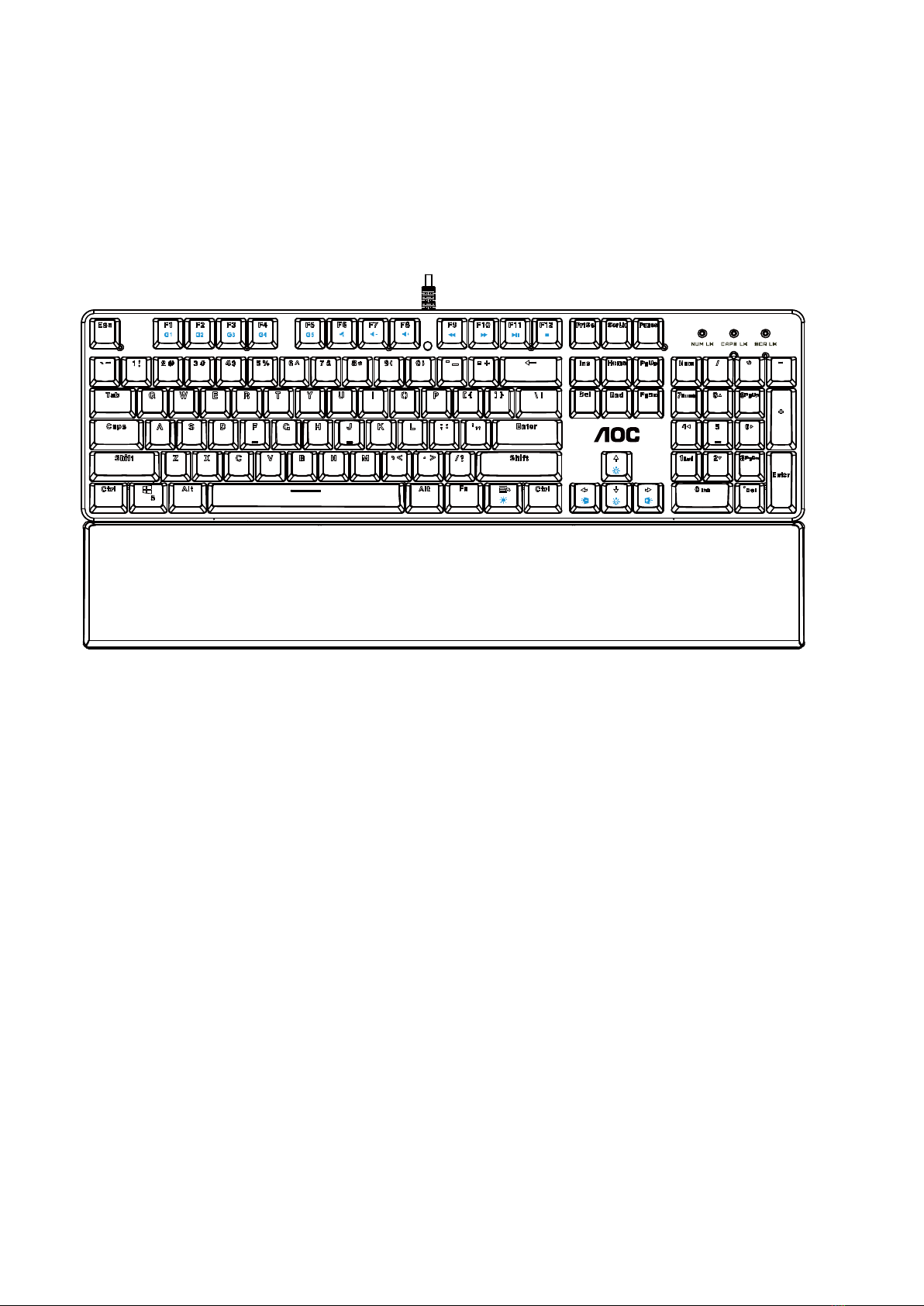

Device Layout
Key Function (* compound key, press together with Fn key to operate)
Ctrl+G Switching Key Mode Switch to All Keys
Ctrl+N Switching Key Mode Switch to Standard
F6- Mute Turn off computer sound
F7- Volume down(Voice-) Decrease computer sound volume
F8- Volume up(Voice+) Increase computer sound volume
F9- Previous Switch to previous media track
F10- Next Switch to next media track
F11- Play/Pause Switch between playing and pausing media
F12- Stop media Stop playing the media
W Switch WASD keys
with arrow
keys. Switch back by pressing again.
Switch Win Lock Turn on/off the function of the Win Key
Increase
backlight brightness/
lower
backlight
brightness
Up for brighter/ Down for darker
Go to previous lighting effect/
go to next lighting effect
Switch between the lighting effects of Light FX
cycle
Turn on/off backlight Switch between turning on/off the backlight
Customized G Keys Multimedia Keys
LED Indicator
Wrist Rest
3
AOC G-TOOLS INSTALLATION
Step 1: Plug the device into a USB port on your computer.
Step 2: The computer operating system will automatically detect the device.
Step 3: For more information on programming the device, go to http://www.aoc.com and follow the
instruction to find the AOC G-Tools.
Step 4: Download AOC G-Tools.
Step 5: Start the installation by clicking on the file “Setup.exe”.
Step 6: Windows® will prompt you if installation should continue; install the driver despite this.
Note:
The driver will automatically uninstall its last version; for this reason, it may take a while for the
driver to install before you can start to program the device.
Step 7: When the installation process is completed, please reboot your computer system to
assure the smooth running of the program.
Step 8: The AOC G-Tools icon is displayed in the Windows® taskbar while it is running. Access the
configuration menu by right clicking the icon.
4
AOC G-TOOLS INSTRUCTION

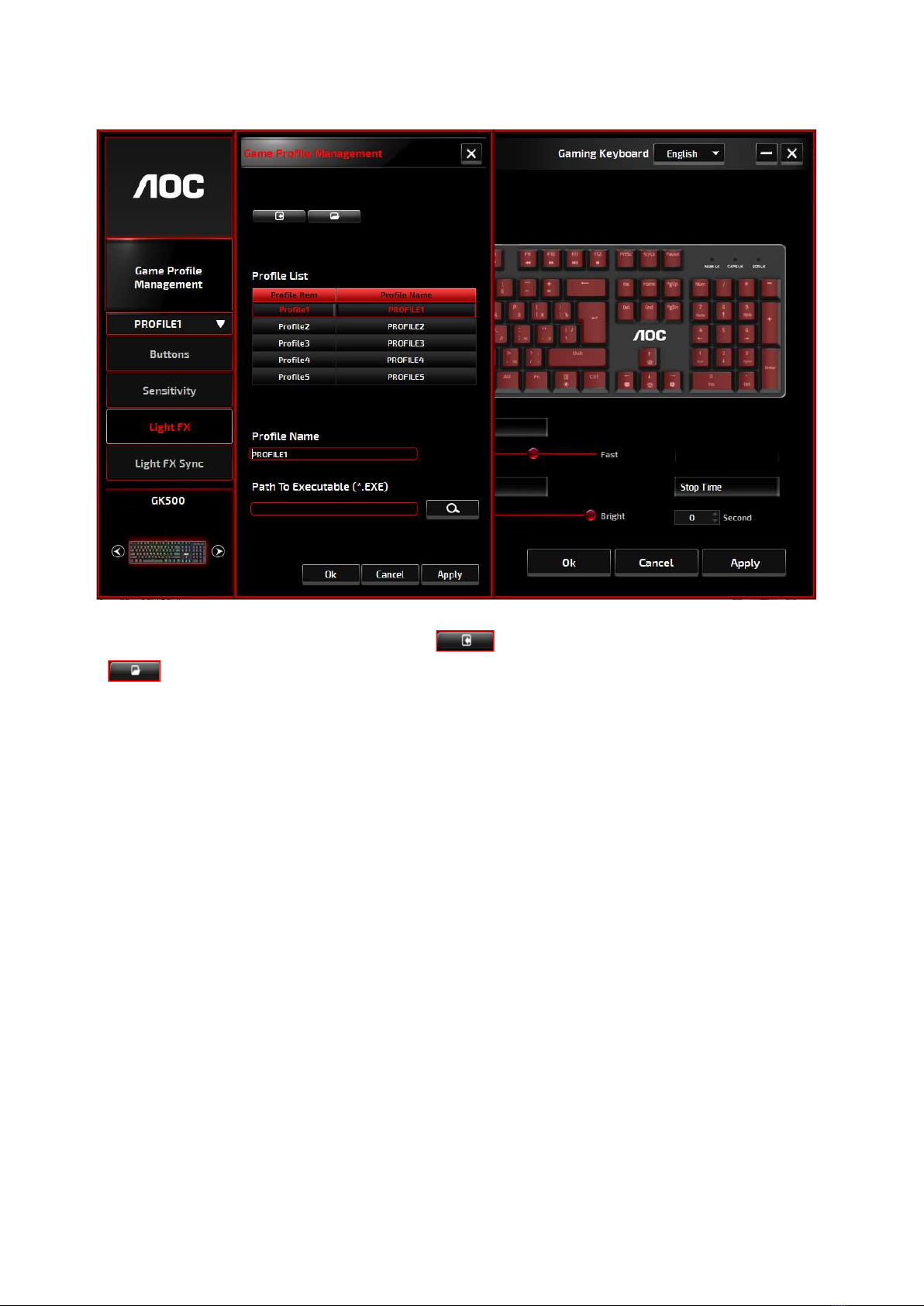

Game Profile Management
You can export a profile customized by clicking or import a profile from your computer by
clicking .
The default profile names are Profile 1 to Profile 5. You can rename your profiles by typing on the text
field below Profile Name.
Each profile can be activated along with a linked program. To do so, put the executable path of the
program you want to link in the text field of Path To Executable (*EXE).
Buttons
Button Assignment
For each key other than Fn, Win, ESC, and Shift keys, you could assign an action from the menu,
which will be shown when you left-click on the key. Options available from the menu include
Macro Manager, Multimedia, Window Management, Text Editor, etc. Options listed are explained
in the following.
5
Macro Manager
When choose this option from the menu, the Macro Manager window will pop-up; you could
select an existing macro as the assignment of the button, or start to record a new macro and
assign it to the button. For more info on Macro Manager, please refer to the Macro Manager
section.
Multimedia
Open Player: Start media player.
Pre Track: Toggle to the previous media track.
Next Track: Toggle to the next media track.
Play/Pause: Toggle between playing and pausing media.
Stop: Stop playing the media.
Mute: Turn off the computer sound.
Volume +: Increase the computer sound volume.
Volume -: Decrease the computer sound volume.
Window Management
Calculator: Start Microsoft Calculator.
Email: Start the default mail program.
WWW Favorites: Open the Internet Explorer Favorites.
WWW Forward: Go to the next webpage.
WWW Back: Go to the previous webpage.
WWW Stop: Stop loading webpage.
My Computer: Open the My Computer window ( or This PC for Win10).
WWW Refresh: Refresh the current webpage.
WWW Home: Start the default web browser and load the homepage.
6
WWW Search: Go to web browser’s search bar or Search Windows.
Show Desktop: Switch between desktop and the current view.
Text Editor
9 text commands available: Cut, Copy, Paste, Undo, Select All, Find, New, Safe, and Open.
Left Click
Perform a left-click.
Right Click
Perform a right-click and quick function menu.
Middle Click
Activate the universal scrolling function.
Browser Backward
Perform "Backward" command for most internet browsers.
Browser Forward
Perform a "Forward" command for most internet browsers.
Double Click
Perform a double-click.
Fire Button
Perform a fire button until release.
Assign a Shortcut
Assign a shortcut combination.
Windows Key
Start Windows menu.
Preset Button
Remove the assigned action and restore the original one.
Macro Manager
A macro is a prerecorded sequence of keystrokes and button presses executed with precise
timing. By assigning a macro to a button, you can execute complex combinations with ease.
The device allows you to create, delete, import, and export your customized macros. Click the
Macro Manager button, and a pop-up box will show for further operations.
7
1. Create a Macro
(1) Click and name the macro you are about to record. Confirm the name by hitting the enter key
on your keyboard.
(2) Set the delay time between events:
-Recording: The delay between events are registered as they are recorded.
-Fixed: Use a predefined time (shown in millisecond) for the delay.
-Ignore: Omit all the pauses between keystrokes and button presses.
(3) Click Start to record all your keystrokes and mouse button commands into the macro. When
done, click Stop to complete this recording.
(4) Click Cancel if you want to discard this recording, or Ok to confirm this recording. Successfully
recorded macros can be found from the drop-down list of the Macro Select.
(5) For any recorded macro, you could later delete or adjust its event sequences, or add new events
by initiating another recording session.
2. Delete a Macro
Select the macro to be deleted and click on the trash bin button down
below. A message window will pop up to confirm your decision. Click
Ok to delete the macro.
3. Edit Delay
To adjust the delay time, double-click the field to be revised and enter the new value. Some
games may not be able to detect short delays.
4. Delete Recorded Actions
To delete a single or multiple actions or delay time of the macro, click the trash bin button.
8
5. Insert Macro Item
Click to start inserting another macro to an existing macro. Choose to record this new macro
before or after the existing one; then click Start to start the recording. When done, click Stop to
complete the session and Save to keep the recording. You can also insert delay time before/after
the selected event. After entering the desired time value, click Save.

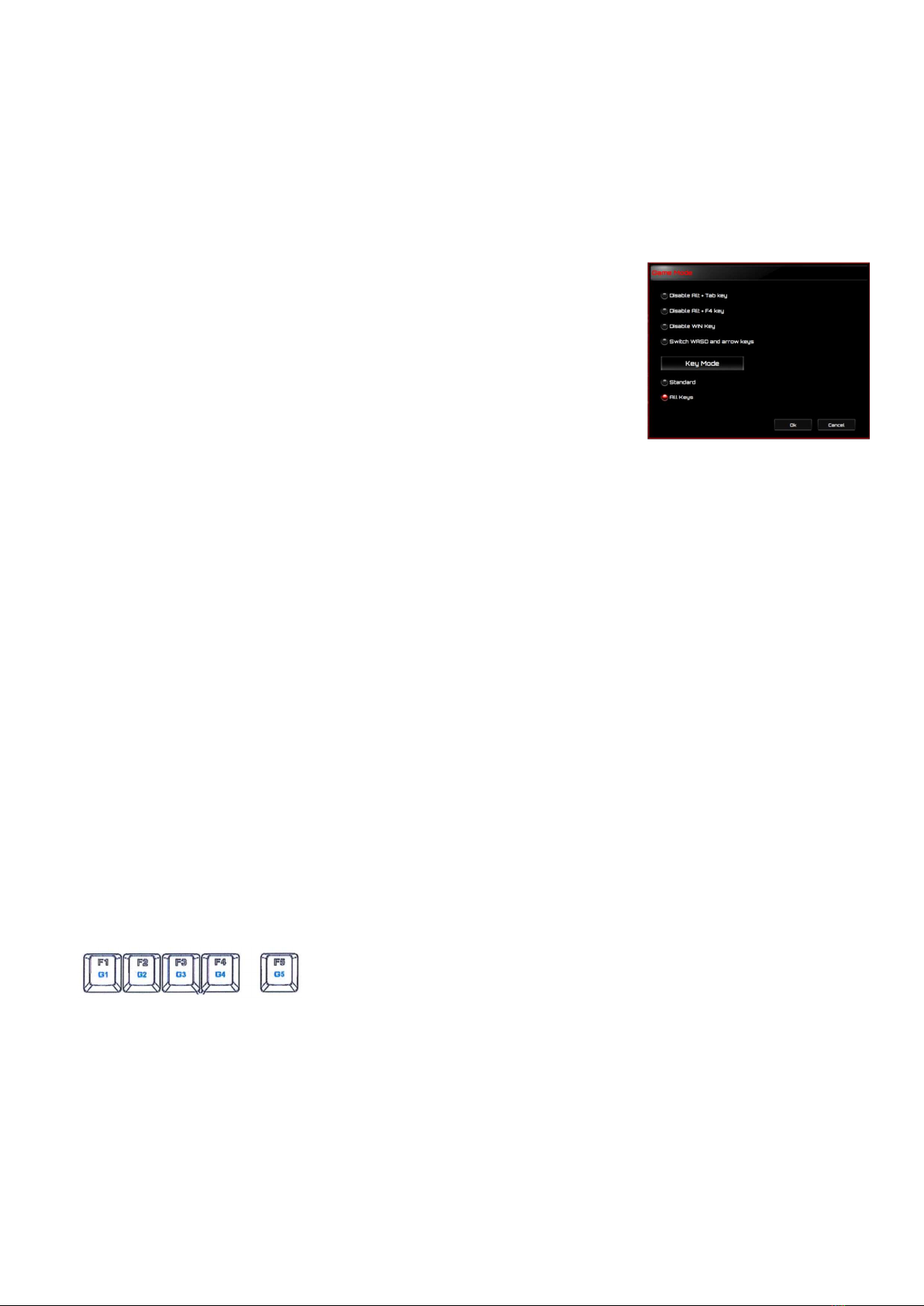

Game Mode
Disable Alt + Tab
Alt + Tab switches between application-level windows. Click on this
option to turn off this keyboard shortcut; click again to turn it on.
Disable Alt + F4
Alt + F4 most often used to close the current active window. If no
programs are open or you are at the desktop, Alt+F4 opens the
Shutdown window. Click on this option to turn off this keyboard
shortcut; click again to turn it on.
Disable Windows Key
Windows key opens the Start menu. Click on this option to turn off this keyboard shortcut; click
again to turn it on.
Switch WASD and Arrow Key
Option to switch the function of WASD keys and arrow keys. Click to make the switch; click again
to switch back.
Key Mode
1.Standard: Standard 6 buttons anti-ghosting.
2.All Keys: N-key rollover anti-ghosting.
G1-G5 Key
G1-G5 keys are designed at the spots of F1~F5 for your easy and intuitive access. Assign your
favorite gaming commands here and remember them with ease.
9
Sensitivity
Polling Rate
Choose from 4 options of polling rate: 125Hz/8ms, 250Hz/4ms, 500Hz/2ms,
1000Hz/1ms(default).
Repeat Delay
Drag the slider bar knob toward left or right to set the Repeat Delay; 4 options available from
Long to Short.
Repeat Rate
Drag the slider bar knob toward left or right to adjust the Repeat Rate, set the speed at any point
of the slider.
Repeat Rate Test
For speed test of Repeat Rate & Repeat Delay, hold down a key to type in this text field and check
how the setting works.
