INSTALL GUIDE

Model#

SP-AZ077

SP-AZ8106

PERFECTION IS OUR TRADITION™

v2.0516

Parts List Pg. 1

Before You Start Pg. 2

Spec Drawing Pg. 3

Installation Pg. 4

Care & Maintenance Pg. 12

Warranty Pg. 13

Registration Final Page

TABLE OF CONTENTS

YOUR REVIEWS MATTER!

For more information please call 1-844-44-ANZZI

or email us at [email protected]

The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI

product for years to come! In the meantime let us know about your experience? We would love

to hear your thoughts from the packaging to the quality and function of the product.

Leave a review on www.ANZZI.com/reviews and let everyone know how satisfied you are with

ANZZI!

Also, we humbly request submitting as many pictures as possible along with your review.

Millions of shoppers will want to know about your experience with our products. Don’t just tell

but show, too!

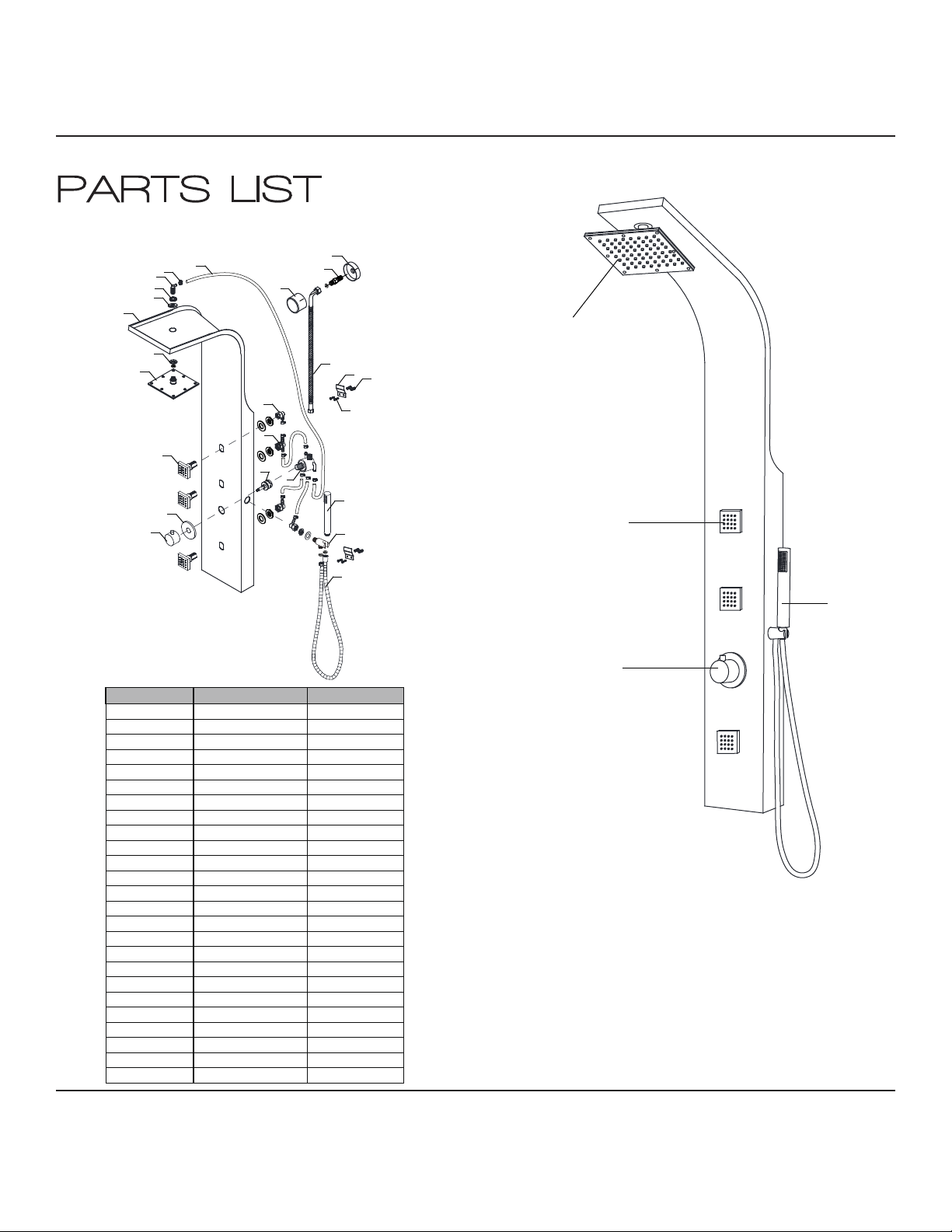

PARTS LIST

PERFECTION IS OUR TRADITION™

pg. 1

1. Shower Head

2. Diverter

3. Body Jets

4. Hand Shower

678

Component no.

Component

Material

head shower

s/s

flange

brass

body

s/s

washer

EPDM

nut

brass

connector

brass

clip

s/s

pvc hose

pvc

body jets

brass

knob plate cover

s/s

knob

zinc

one way joint

ABS

two ways joint

ABS

function cartridge

ABS

faucet

brass

hand shower

ABS

hand shower holder

ABS

flexible hose

s/s

braided hose

s/s

screw

s/s

bracket

s/s

plug

ABS

cap

ABS

long- short connector

ABS

base

ABS

PERFECTION IS OUR TRADITION™

pg. 2

For any questions or concerns contact

our dedicated technical support team

at 1-844-44-ANZZI.

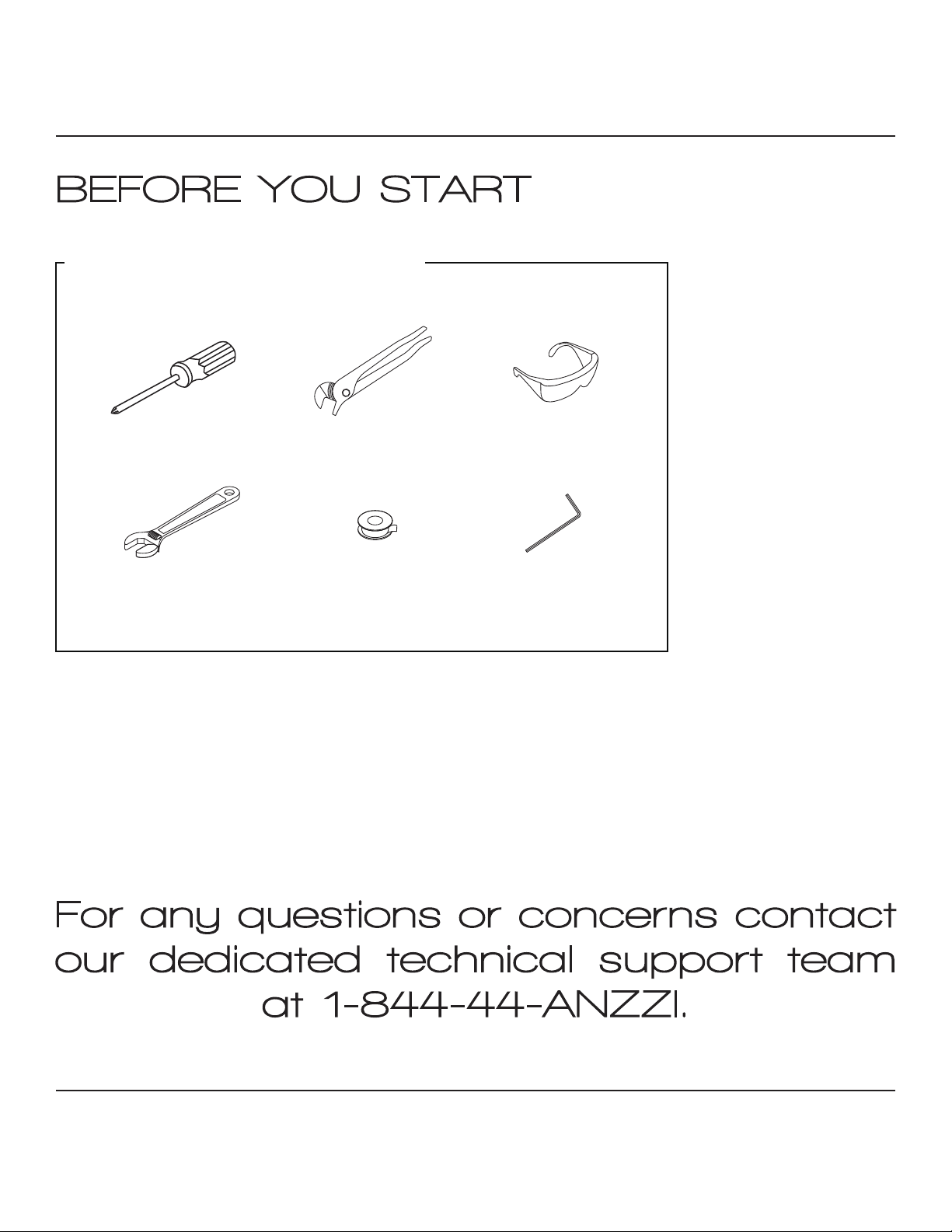

BEFORE YOU START

Screwdriver Channel Locks

Adjustable Wrench Allen key

Goggles

Teflon tape

Recommended Items

ATTENTION: Please read all instructions thoroughly

including all warnings, attentions and notes before

beginning installation.

PERFECTION IS OUR TRADITION™

pg. 3

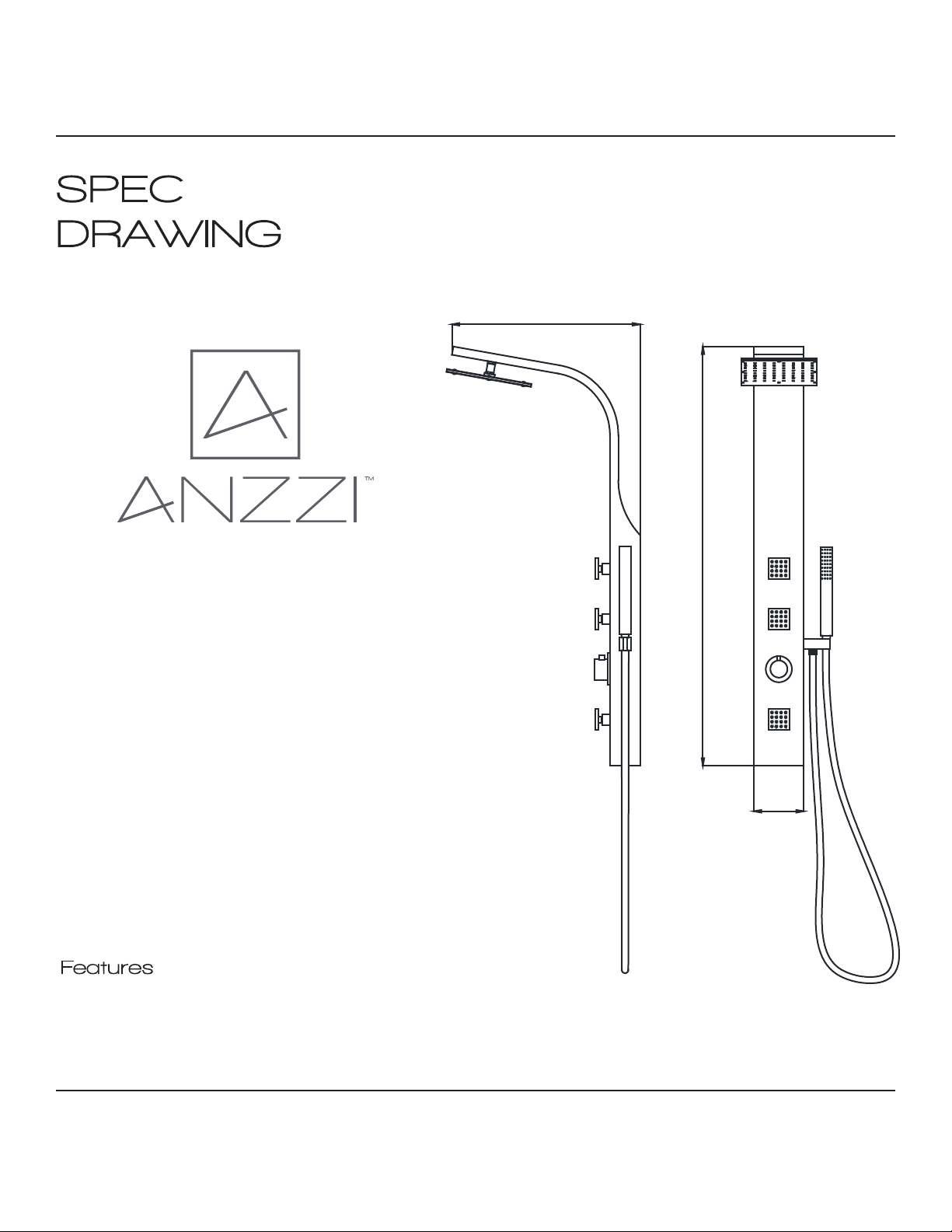

SPEC

DRAWING

SP-AZ077

Perfection is our Tradition™

Material: Stainless Steel

Finish: Brushed

Handles: 1

Jets: 3

Shower: 6.89”x6.89”

Sprayer: 60” reach

Weight: 10.80 lbs

Height: 39.37”

Supply: 1/2” connections

Flow: 2.5 gpm

Features

Heavy Rain™ Showerhead

Acu-Stream™ high pressure body jets

Euro-Grip™ hand held sprayer

Rhino Alloy™ certified materials

17.72"

4.72"

39.37"

Figure A

INSTALLATION (SETUP)

PERFECTION IS OUR TRADITION™

pg. 4

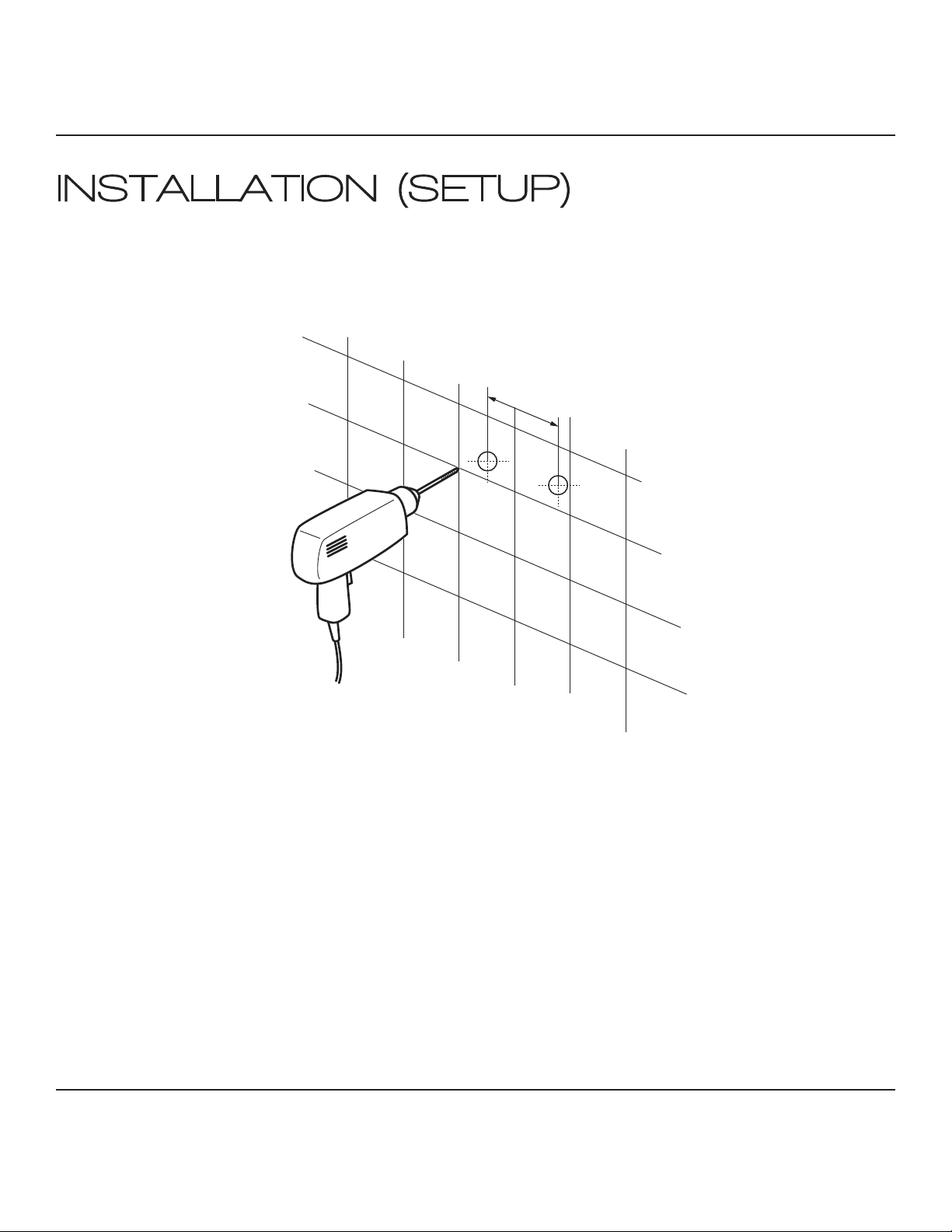

Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or

pipelines aligned with the desired drilling position.

Drill the two holes for the top bracket 1” apart at the desired height.

Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket.

IMPORTANT

Step A

Step A.2

Ø 6mm Drill

1 INCH

Figure B

INSTALLATION (SETUP)

PERFECTION IS OUR TRADITION™

pg. 5

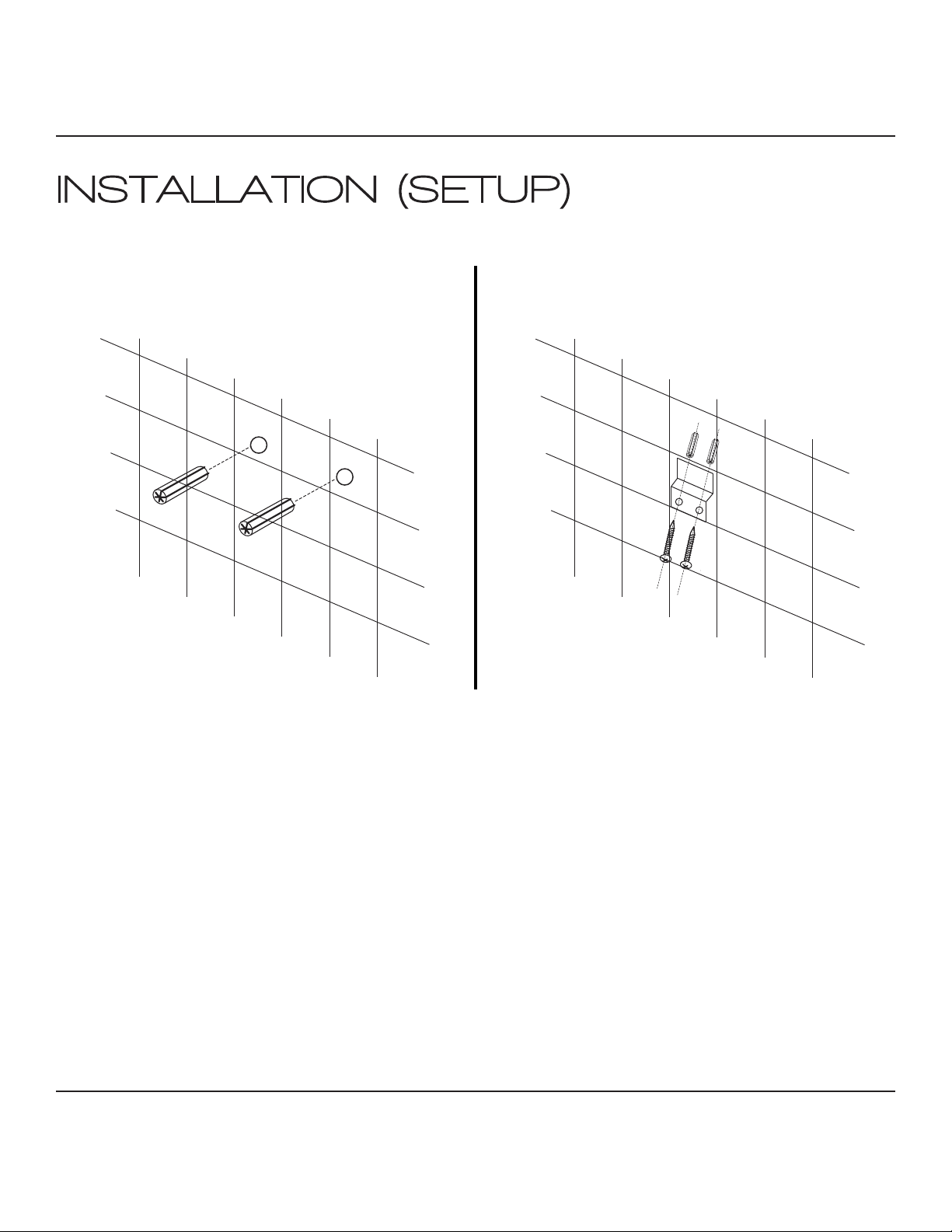

Insert the wall anchors into the pre-drilled holes as shown in Figure B.

Place the shower panel brackets aligned with the drilled holes and using a Philips screw-

driver tighten the screws to secure the brackets.

Step B

Step C

Figure C

Figure 1

INSTALLATION (HANDSHOWER)

PERFECTION IS OUR TRADITION™

pg. 6

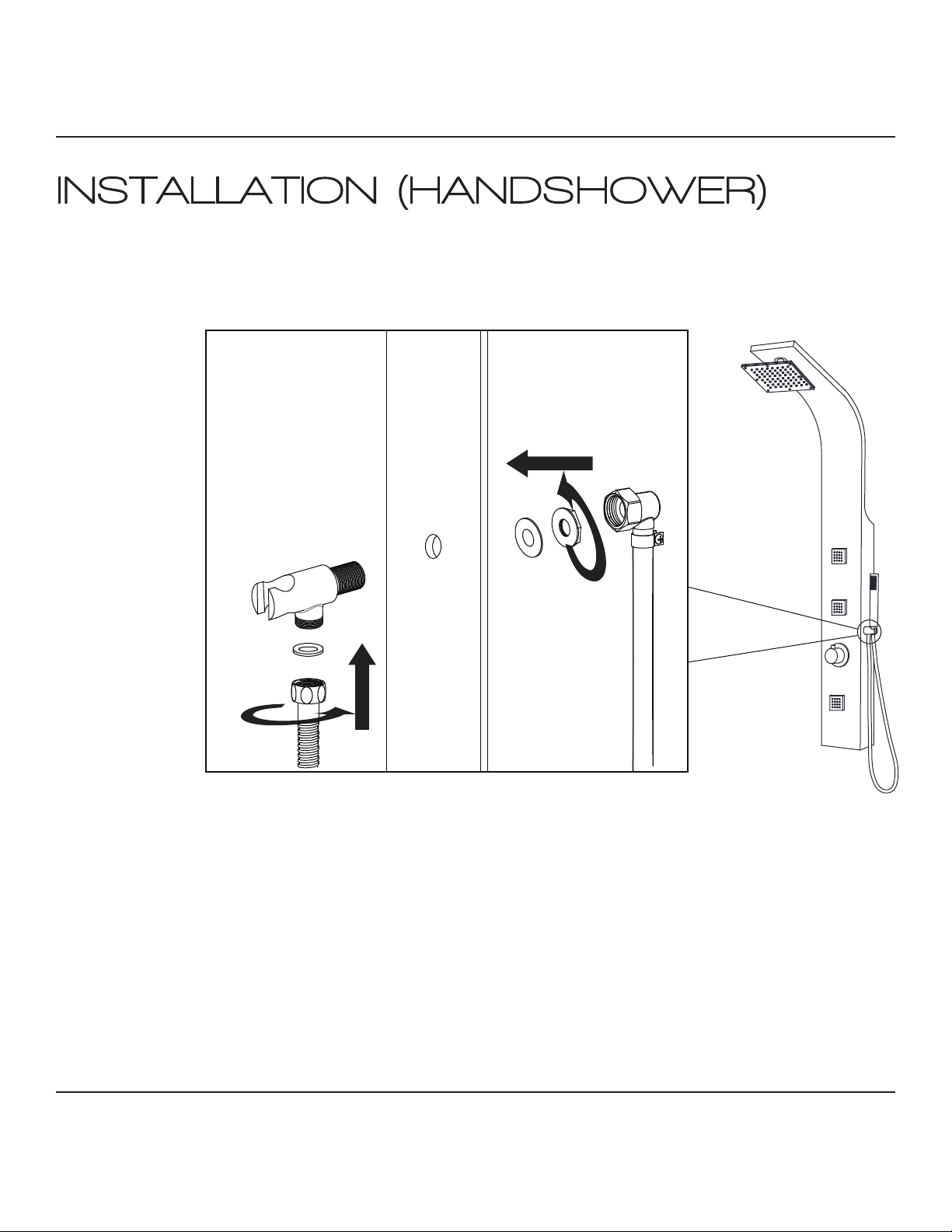

Insert the shower wand holder through the pre-drilled hole on the shower panel.

Install the water supply hose for the shower wand onto the holder, as shown.

Make sure all O-rings are inserted to prevent leakage.

Once the shower panel is fully installed and hung on the bracket, you can install the shower

wand hose to the holder connection.

Step 1A

Step 1B

Step 1C

Step 1D

Figure 2

INSTALLATION (HANDSHOWER)

PERFECTION IS OUR TRADITION™

pg. 7

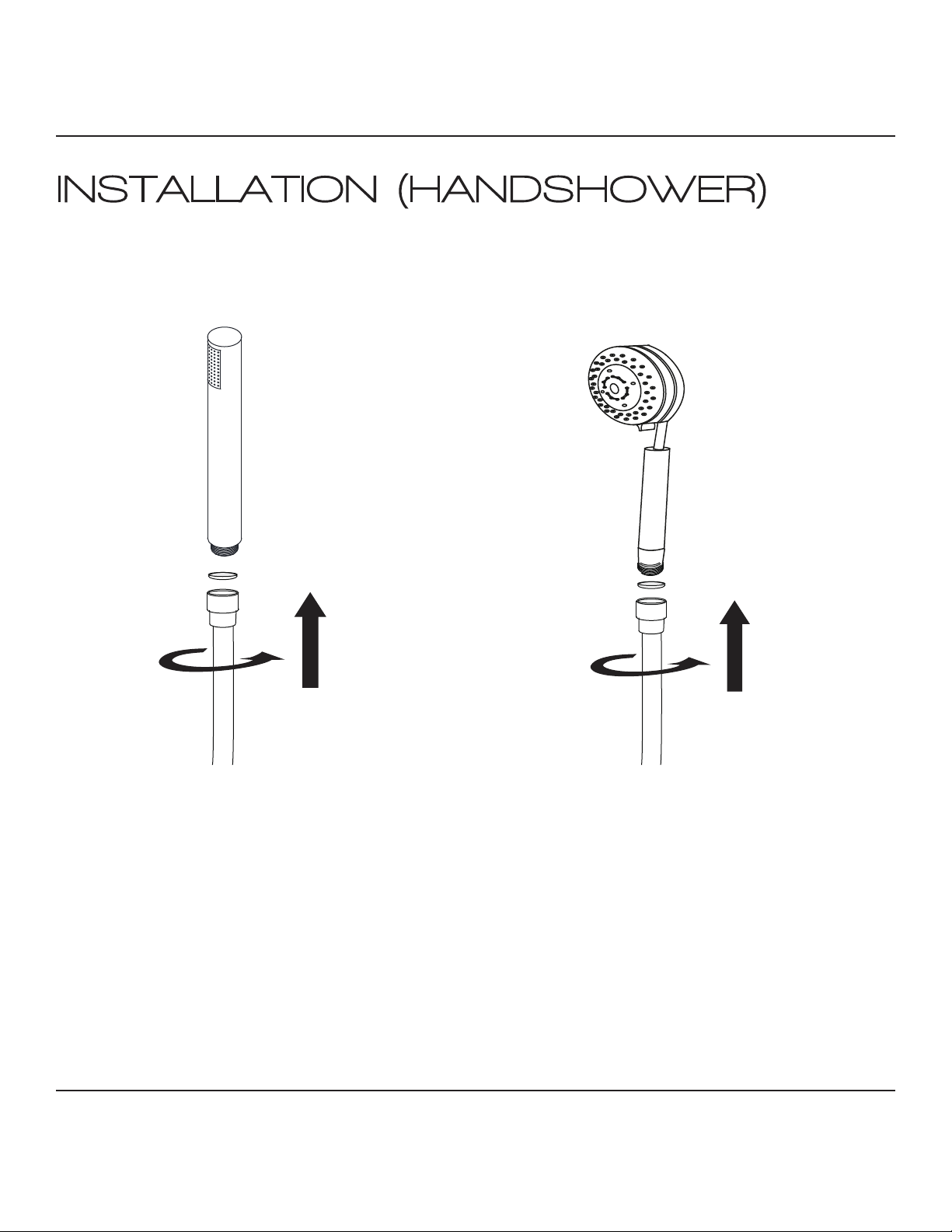

Finally, install the shower wand to the hose, as shown.Step 2A

1 Setting

Hand

Shower

3 Setting

Hand

Shower

Figure 3

INSTALLATION (SHOWER HEAD)

PERFECTION IS OUR TRADITION™

pg. 8

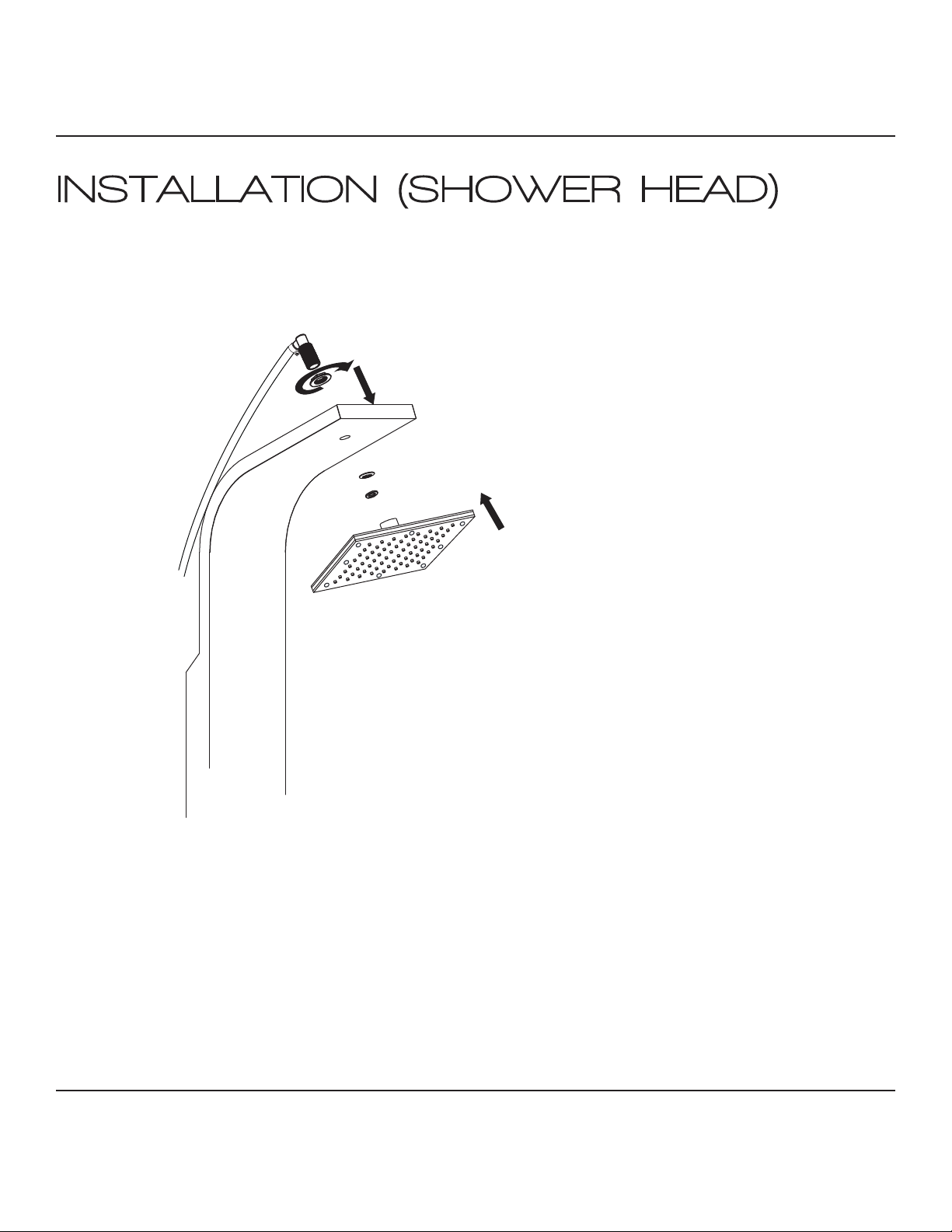

Install the shower head to the upper threader connectin on the shower panel as shown.Step 3A
