Antari HZ-500 Manual de usuario

HZ-500

Haze Machine User Manual

English Français Deutsch • • • 中文

Congratulations on the purchase of your new

ANTARI HZ-500 HAZE MACHINE

Introduction

Thank you for choosing the ANTARI HZ-500 Haze Machine. You now own a rugged and powerful

state-of-the-art machine. Prior to use, we suggest that you carefully read all of the instructions. By

following the suggestions found in this user manual, you can look forward to the best, virtually

invisible haze effect and reliable, satisfactory performance of your ANTARI HZ-500 Hazer for years

to come.

Please follow these operation and safety instructions to ensure a long and safe life for your

hazer.

Danger of Electric Shock

▪Keep this device dry

Use a grounded electrical outlet. Prior to use take care to determine that the unit is installed at the rated

voltage.

▪Always unplug the hazer before filling its tank.

▪Turn off or unplug when not in use.

▪This machine is not water-proof. If moisture, water, or hazer fluid gets inside the housing, immediately

unplug the unit and contact a service technician or your ANTARI dealer before using it again.

Grounding Instructions

▪This product must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for the electric current.

▪This product is equipped with a cord having a grounding wire with an

appropriate grounding plug.

▪The plug must be plugged into an outlet that is properly installed and grounded in accordance with all

local codes and ordinances

WARNING

Improper installation of the grounding plug is able to result in a risk of electric shock. When repair or

replacement of the cord or plug is required, do not connect the grounding wire to either flat blade

terminal. The wire with insulation having an outer surface that is green with or without yellow stripes is

the grounding wire.

This product is for use on a nominal 120-V circuit and has a grounding plug similar to the plug illustrated

in sketch A in the following Figure. Only connect the product to an outlet having the same configuration as

the plug. Do not use an adapter with this product.

Use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that accepts

the plug on the product. Make sure your extension cord is not damaged. When using an extension cord,

be sure to use one heavy enough to carry the current your product draws. For lengths less than ___ ft,

___ AWG extension cords shall be used. An undersized cord results in a drop in line voltage and loss of

power and overheating.

Danger of Burn

▪No user serviceable and modifiable parts inside. Do not disassemble the housing and do any

modification; otherwise damage of the device or danger of burn may be caused.

▪For adult use only. The Hazer must be installed out of the reach of children. Never leave the unit

running unattended.

▪Position the haze machine in well-ventilated area. Please leave about

20 cm space surrounding the machine.

▪Never aim the machine at open flames or close to flammable items.

▪Never add flammable liquids of any kind (oil, gas, perfume) to the hazer liquid.

▪Use only dealer recommended ANTARI high-quality hazer liquid (HZL). Please do not use any

other liquid which may cause erosion of inner parts.

▪If your ANTARI HZ-500 Hazer fails to work properly, stop using it immediately. Drain all hazer

liquid from the tank, pack the unit securely (preferably in the original packing material), and return

it to your ANTARI dealer for service.

▪Please note before sending the machine for transporting purpose, make sure the haze fluid

tank is empty.

▪Never drink haze liquid. If it is ingested, call a doctor immediately. If hazer liquid comes in contact

with skin or eyes, rinse thoroughly with water.

Pay attention to all warning labels and instructions printed

on the exterior of your ANTARI Hazer

Unpacking & Inspection

Open the shipping carton and verify that all equipment necessary to operate the system has arrived

intact. Before beginning initial setup of your ANTARI HZ-500 Hazer, make sure that there is no evident

damage caused by transportation. In the event that the unit's housing or cable is damaged, do not plug

it in and do not use it after having contacted your ANTARI dealer for assistance.

Operation & Filling Haze Liquid

1. Place the unit on a flat surface. Plug the power cord into a grounded electrical outlet.

2. Remove the fluid tank cap and pour the ANTARI Haze Liquid into the tank slowly and carefully to

avoid overfilling. (Filling suggestion: Please add 2 liters haze liquid in the first time of refill. From

the second refill on, add 1 liter haze liquid for every refill.) Make sure the liquid level does not

exceed the mark on the tank.

3. Please refill haze liquid slowly. Otherwise, the haze liquid may overfill and damage the

machine. Basically, every refill process of 1 liter haze liquid must be separated into 5 times,

i.e. after refilling about 200 cc haze liquid you have to stop refilling and check the tank.

Please make sure that the last 200 cc haze liquid goes through the filter inside the tank

properly before pouring the next 200 cc haze liquid into the tank. (Usually it takes about 10

seconds for 200 cc haze liquid to go through the filter).

4. Please use only dealer-recommended high-quality haze liquid. Any other types of fluids may

cause health hazard and damage the unit. Use of any other liquids may void warranty.

5. Please open the square door on the top of the flightcase before operation in order to let

the haze come out smoothly.

6. Set the power switch to “ON” on the control panel of the machine.

Make sure that the red indicator light is on.

7. There is an intake hole in the back of the flightcase. There are a metal net and a filter attached on

the intake, which can prevent a clogging problem. Please inspect and clean the metal net and filter

periodically.

Caution

1. Always monitor and make sure that there is sufficient haze liquid inside the tank during

operation.

2. When the machine is operated for a longer period of time under open- air conditions, falling

dust/debris might attach to the metal net and filter on the intake hole. The metal net and filter is

serviceable, which means those can be detached easily by screw driver. Please use water to

clean the metal net and filter periodically. By doing this you can avoid dust going into the hazers

and prevent the clogging problem of hazers.

3. If you have followed the above operation steps, and you still experience low output, mechanical

noise or no output at all, unplug the unit immediately from the mains. Check the fluid level, the

external fuse, the remote control connection, and the power cable from the wall. If all of the

above appears to be OK, plug the unit in again. If the hazer still does not function, discontinue

operation or it may result in permanent damage to the unit. Return the machine to your Antari

dealer. Always drain tank before mailing or transporting this unit.

4. Please detach the cap on the tank if you want to clean the cap.

Do not wipe it directly when the cap is attached on the tank. By doing this you can avoid the dust

falling into the fluid tank and contaminate the haze liquids.

5. Please do not allow magnetic equipment to be close to the haze outlet door of the hazer. Magnetic

equipment could cause wrong action of the door sensor.

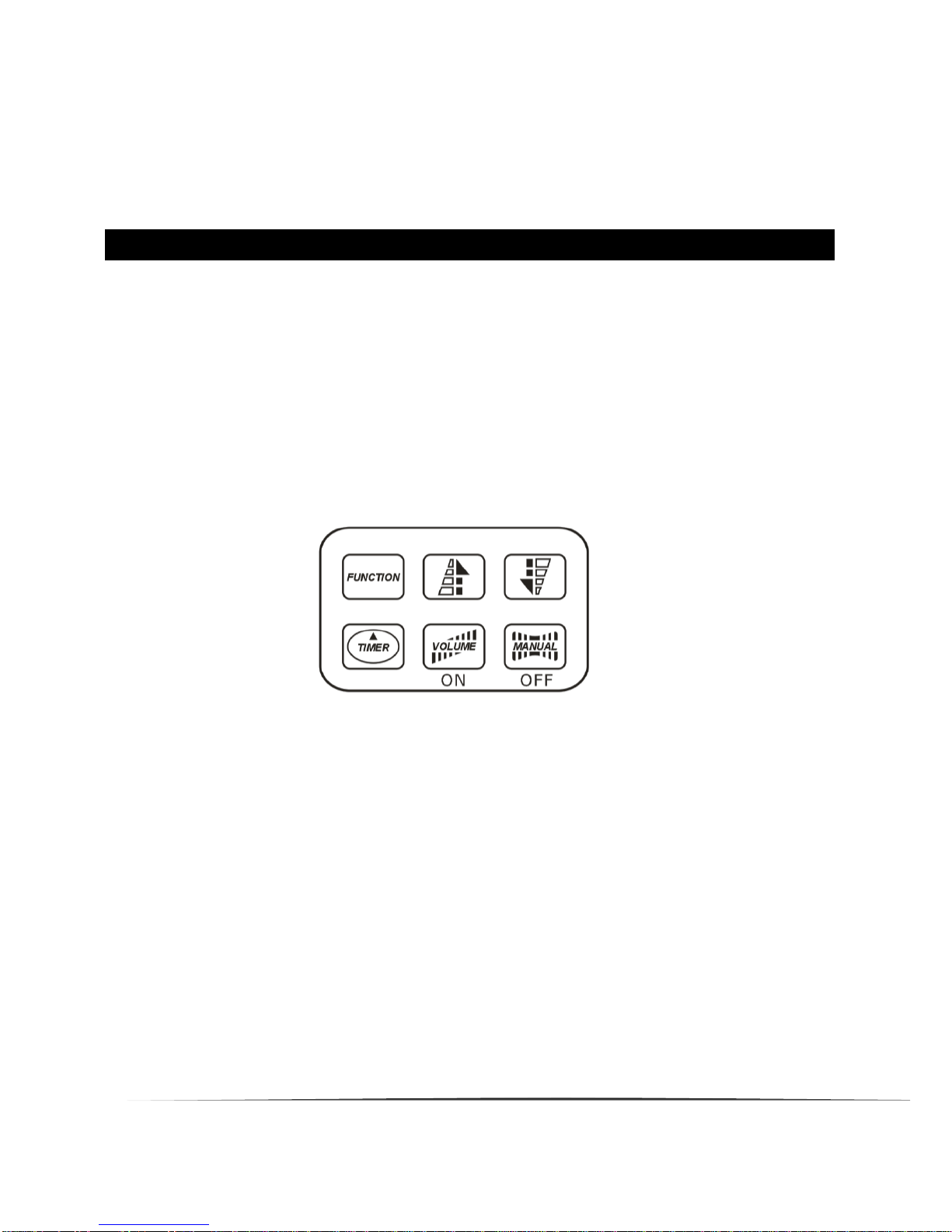

Control Panel Operation

The built-in control panel on the rear of the machine features an LCD panel displaying all operation

statuses of the haze machine. The control panel allows the user to customize functions by adjusting the

fogging duration and interval as well as the DMX address and the door sensor. There are six buttons on

the control board. All current operating parameters are automatically stored in non-volatile memory,

allowing the machine to be powered down without losing function settings. The control buttons are:

FUNCTION, Up, Down, TIMER, VOLUME and MANUAL. You can program the necessary menu settings

with the control panel when the display indicates »Ready To Haze«.

After switching on, the display shortly indicates »Antari Hz-500« and is ready for haze output. The display

indicates »Ready To Haze«.

-Continuous operation

When the machine is ready for haze output, short actuation of the button VOLUME activates continuous

haze output. The display indicates »Working«. To stop the haze output, press the button VOLUME once

again.

-Manual operation

For immediate haze output, keep the button MANUAL pressed. The display indicates »Working«. As soon

as you release the button, the haze output will stop. The manual operation will take priority over the

continuous operation and the timer operation. Even if one of these operating modes is activated, the haze

machine will always emit haze when the button MANUAL is pressed.

-Timer operation

In the timer mode, the haze machine will automatically emit haze. The time intervals, duration and haze

volume depend on the corresponding menu settings. Press the button TIMER, to activate the timer mode.

The display indicates the set time interval. The unit counts down to 0 seconds and emits haze. To

deactivate the timer mode, press the button TIMER again.

-Menu settings with the button FUNCTION

1. Setting time intervals for timer operation

Press the button FUNCTION until the display indicates »Interval Set«. Use the buttons UP and DOWN to

adjust the intervals between the individual fog outputs in timer mode within the range of 1 and 200

seconds.

2. Setting the output duration for timer operation

Press the button FUNCTION until the display indicates »Duration Set«. Use the buttons UP and DOWN to

adjust the duration of the fog outputs in timer mode within the range of 1 and 200 seconds.

3. Setting the DMX512 address

Press the FUNCTION until the display indicates »DMX 512«. Use the buttons UP and DOWN, to set the

machine to the same address as on your DMX controller. Please refer to chapter DMX512 settings for

more information on DMX operation.

4. Switching the door sensor on and off

Press the button FUNCTION until the display indicates »DOOR ON SENSOR«. Press the button

MANUAL to deactivate the door sensor (indication » DOOR OFF SENSOR «) and the button VOLUME to

reactivate it. Please see *Note 2.

5. Direct haze

Press the button FUNCTION until the display indicates »Direct Haze«. Press the button MANUAL to

activate the direct haze mode. Then the machine directly starts producing haze after switching on the

power. The display indicates »Direct Haze« and starts flashing. To stop the haze output, shortly press

the button MANUAL again. The display stops flashing.

*Note 1: The control of the master unit will override the control of the panel controller when

connecting the haze machine via DMX.

*Note 2: If the haze outlet door sensor is activated (indication »DOOR ON SENSOR«), a warning

sound will beep when haze output is activated and the door is not completely open. The

flashes and indicates »DOOR CLOSED!!«. The haze production stops until the door is

completely opened. If the door sensor is not activated (indication »DOOR OFF

SENSOR«), this safety features will not occur.

*Note 3: If the displays shows »Out Of Order«, the machine's internal temperature is too high and as a

result the thermostat has been set off to shut-down the hazer.

If you experience this problem, please check two points as described below:

1. Check if the mesh (filter) outside the ventilation fan is clean and without debris. If the mesh

is covered by dust or obstruction (such as paper, plastic bag, etc.), the machine is put

into a very poor ventilation condition and causes the internal temperature to rise.

Therefore, it is strongly suggested to clean the mesh regularly.

2. Check the surrounding temperature at the hazer's place of installation. If the temperature of

the surrounding environment is too high, please move the machine to a cooler place

with better ventilation.

*Note 4: Before moving the machine, it is important to replace the nozzle by the black rubber stopper.

Please make sure it fits tightly in order to prevent spillage of the HZL-1 Haze liquid in case the

machine is turned upside down during the transportation. Before reusing the machine, please put

the nozzle back on the outlet and make sure it is properly installed.

DMX Connector Pin Assignment

The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate pin

assignment information

Function

Ground

Data-

Data+

DMX CONTROL OPERATION

HZ-500 has on-board DMX control and the addressing is via the LCD control panel. The

HZ-500 uses 1 channel to control on/off operation. The channel has a value range from 0 to 255. The

on/off function can also be programmed with a DMX controller or DMX control software used by lighting

and effects operator.

Channel A

251-255 = ON

0-250 = OFF

If the value of channel A is set between 0 and 250, the unit is off.

While the value is set between 251 and 255, the unit is on.

Note: Once DMX cable is connected to the unit, then the LCD control panel cannot be used.

Hazer Liquid

Antari HZL-1 haze liquid was designed for use with the Antari HZ-500. Antari HZL-1 is a non-toxic

solution that produces a pure, translucent haze with extremely long hang time and low moisture, perfect

for the HZ-500.

Important: Never mix oil-based and water-based hazer liquids. Before switching the kind of haze liquid

Otros manuales para HZ-500

Tabla de contenidos

Otros manuales de Máquina de niebla de Antari

Antari

Antari M-7X Manual de usuario

Antari

Antari F-4 Fazer Manual de usuario

Antari

Antari DNG-250 Manual de usuario

Antari

Antari IP-1500 Manual de usuario

Antari

Antari Z-1200II Manual de usuario

Antari

Antari FT-200 Manual de usuario

Antari

Antari FT-20 Manual de usuario

Antari

Antari FT-100 Fire Training Manual de usuario

Antari

Antari FT-200 Manual de usuario

Antari

Antari W-715 Fog Jet Manual de usuario

Antari

Antari HZ-100 Manual de usuario

Antari

Antari HZ-400 Manual de usuario

Antari

Antari M-4 Manual de usuario

Antari

Antari DNG-250 Manual de usuario

Antari

Antari HZ-500 Instrucciones de instalación

Antari

Antari B-100 Manual de usuario

Antari

Antari Z Series Manual de usuario

Antari

Antari Z-1000 III Manual de usuario

Antari

Antari M-1 Manual de usuario

Antari

Antari M-9 RGBAW Manual de usuario

Antari

Antari FT-50 Manual de usuario

Antari

Antari F-7X Manual de usuario

Antari

Antari Z-300II Fazer Manual de usuario

Antari

Antari IP-1600 Manual de usuario

Manuales populares de Máquina de niebla de otras marcas

Boost

Boost BOOST-FOG400LED-BK Manual de usuario

Home Accents Holiday

Home Accents Holiday FM1000-ASH Manual de usuario

EuroLite

EuroLite ZEITGEIST FOG-1200 Manual de usuario

Dyna-Fog

Dyna-Fog CYCLONE ULTRA 2734 Manual de usuario

PROEL

PROEL DRAGO HEAVY PLFD150HY Manual de usuario

Sparklyn

Sparklyn Y846 Manual de usuario

Magicfx

Magicfx CO2 Gun Manual de usuario

Ibiza

Ibiza LSM500LAS Manual de usuario

Venue Lighting Effects

Venue Lighting Effects ULTRA MINI-FOGGER Manual de usuario

High End

High End F-100 Manual de usuario

Chauvet

Chauvet ARENA 2100 FLEX Manual de usuario

Beamz

Beamz F1600 Manual de usuario

Sagitter

Sagitter SG ARS900C Manual de usuario

KISANKRAFT

KISANKRAFT KK-STF-480 Manual de usuario

Orion

Orion OT-U250PP Guía

Beamz

Beamz S2500 Manual de usuario

American DJ

American DJ Dyno-Fog II Manual de usuario

JB Systems

JB Systems FX 1700 Manual de usuario
