1. Overview

Antaira Technologies’ LNP-0802C-SFP industrial PoE+ Gigabit unmanaged Ethernet switch series

is IP30 rated and DIN-Rail mountable. It comes with 6*10/100Tx which support IEEE802.3at with

high power PoE up to 30W/port, and 2*GigE combo ports (2*10/100/1000Tx RJ45, and 2*100/100

SFP slots for fiber), making it ideal for applications that demand a high bandwidth and long

distance communication.

This product series provides a high EFT and ESD protection to prevent any unregulated voltage

and is suitable for harsh environments. It supports the power redundancy feature by having a dual

power input design and a reverse power polarity protection. In addition, the built-in relay warning

function alerts maintainers when power failures occur.

The LNP-0802C-SFP series includes two models: one with an operating temperature range of -10

to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a

perfectly designed product to fulfill any special needs for industrial automation, outdoor

applications and harsh weather environments.

1.1 Key Features

 System Interface/Performance

 All RJ-45 ports support auto MDI/MDI-X function

 Embedded 6*10/100Tx (PSE 30W/Port), 2*Gigabit combo ports (2*10/100/1000Tx

RJ45, and 2* 100/1000 SFP slots)

 Store-and-forward switching architecture

 8K MAC address table

 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

 Power Input

 DC 48 ~ 55V redundant power

 Operating Temperature

 Standard operating temperature model: -10°C ~ 70°C

 Extended operating temperature model (–T): -40°C ~ 75°C

 Case/Installation

 IP-30 protection

 DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

1.2 Package Contents

 1 - LNP-0802C-SFP (T): 8-port industrial PoE+ unmanaged Ethernet switch, with

6*10/100Tx (30W/port), 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2*

100/1000 SFP slots)

 1 - User manual

 1 - Product CD

 2 - Wall mounting brackets and screws

 1 - DC cable –18 AWG & DC jack 5.5x2.1mm

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

2. Hardware Description

2.1 Physical Dimensions

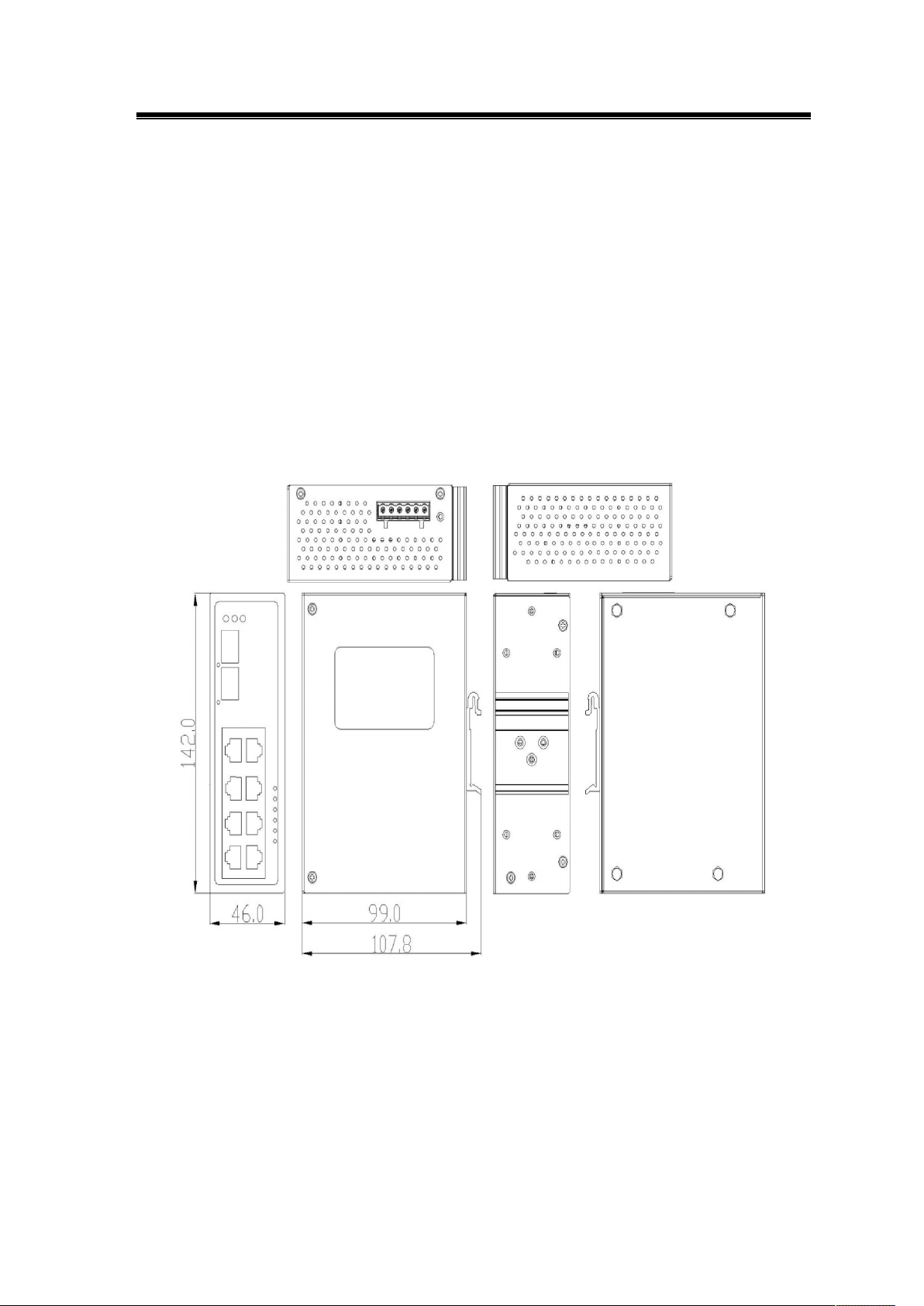

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0802C-SFP series:

8-port industrial PoE+ unmanaged switches, with 6*10/100Tx (30W/port), 2* Gigabit combo ports

(2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots)

(W x D x H) is 46mm x 99mm x 142mm

Figure 2.1

LNP-0802C-SFP Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

2.2 Front Panel

The front panel of the LNP-0802C-SFP series: 8-port industrial PoE+ unmanaged switches, with

6*10/100Tx (30W/Port), 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP

slots) is shown below in Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LNP-0802C-SFP series switch that is equipped

with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC).

Figure 2.2 - The Front Panel of the LNP-0802C-SFP Series

Figure 2.3

Top Panel View of LNP-0802C-SFP Series

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has

its own specific meaning, see below in Table 2.1.

LED Color Description

Green On Power input 1 is active

Off Power input 1 is inactive

Green On Power input 2 is active

Off Power input 2 is inactive

Fault

Red

On Power input 1 or 2 is inactive

Off Power input 1 and 2 are both functional, or no power,

inputs/ports link is active/port alarm is disabled

PoE Indicators

(Port 1~6) Green On The port is supplying PoE power

Off No powered-device attached or power supplying fails

LAN Port 1 ~ 6

(Upper LED)

Green

On Connected to network, 100Mbps

Flashing

Networking is active

Off Not connected to network

LAN Port 1 ~ 6

(Lower LED)

Green

On Connected to network, 10Mbps

Flashing Networking is active

Off Not connected to network

Gigabit Combo Port LED Indicators

LED Color Description

SFP Port

Combo G1~G2

LNK/ACT

Green

On Connected to network

Flashing Networking is active

Off Not connected to network

LAN Port

Combo G1 ~G2

(Upper LED)

Green

On Connected to network, 1000Mbps

Flashing

Networking is active

Off Not connected to network

LAN Port

Combo G1 ~G2

(Lower LED)

Green

On Connected to network, 10/100Mbps

Flashing Networking is active

Off Not connected to network

Table 2.1

LED Indicators for LNP-0802C-SFP Series

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

2.5 Ethernet Ports

 RJ-45 Ports

RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~6) are auto-sensing for 10Base-T or

100Base-Tx device connections. The Gigabit combo RJ-45 ports (LAN G1~G2) are auto-sensing

for 10Base-T, 100Base-Tx, and 1000Base-T device connections. Auto MDI/MDIX means that the

switch can connect to another switch or workstation without changing the straight-through or

crossover cabling. See the figures below for straight-through and crossover cabling schematics.

 RJ-45 Pin Assignments (Table 2.2)

Pin Number Assignment

1 Rx+

2 Rx-

3 Tx+

6 Tx-

All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can use

straight-through cables (see figure below) for all network connections to PCs, servers, other

switches or hubs. With straight-through cable, pins 1, 2, 3, and 6 are at one end of the cable, and

are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below

(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI and MDI-X port pin outs.

Note

“+” and “-” signs represent the polarity of the wires that make up each wire pair.

Pin MDI-X Signal Name MDI Signal Name

1 Receive Data Plus (RD+) Transmit Data Plus (TD+)

2 Receive Data Minus (RD-) Transmit Data Minus (TD-)

3 Transmit Data Plus (TD+) Receive Data Plus (RD+)

6 Transmit Data Minus (TD-) Receive Data Minus (RD-)

Table 2.2

RJ45 Pin Assignments

Table 2.3

Ethernet Signal Pin Outs

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de ANTAIRA

ANTAIRA

ANTAIRA LNP-0800G-24 Series Manual de usuario

ANTAIRA

ANTAIRA LNX-800AG-E Series Manual de usuario

ANTAIRA

ANTAIRA LMP-2012G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA LNP-0501-M-24 Manual de usuario

ANTAIRA

ANTAIRA LMP-0501 Series Manual de usuario

ANTAIRA

ANTAIRA LMX-1204G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA LNX-C800 Series Manual de usuario

ANTAIRA

ANTAIRA LNX-1204G-10G-SFP Manual de usuario

ANTAIRA

ANTAIRA LNP-0702C-SFP-24 Manual de usuario

ANTAIRA

ANTAIRA LMP-1204G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA LNP-1002C-SFP-T Manual de usuario

ANTAIRA

ANTAIRA LMX-0602-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LNP-800-M12-T Manual de usuario

ANTAIRA

ANTAIRA LMP-0600-24 Manual de usuario

ANTAIRA

ANTAIRA LNP-0800 Series Manual de usuario

ANTAIRA

ANTAIRA USB-HUB4K3 Manual de usuario

ANTAIRA

ANTAIRA LNX-602N Manual de usuario

ANTAIRA

ANTAIRA LMP-0702G-SFP-V2 Series Manual de usuario

ANTAIRA

ANTAIRA LMX-2012G-SFP Series Manual de usuario

ANTAIRA

ANTAIRA LNP-0602 Series Manual de usuario

ANTAIRA

ANTAIRA LNP-0500G-BT Series Manual de usuario

ANTAIRA

ANTAIRA LNP-1204G-10G-SFP Manual de usuario

ANTAIRA

ANTAIRA LNP-0800G-M12-67-24 Manual de usuario

ANTAIRA

ANTAIRA LNP-C501G-SFP-bt Series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
