Angekis BLADE 4K Manual de usuario
User Manual v2.0 ENGLISH
Rs232, RS485(Serial Visca、Pelco-P/D),
USB3.0(UVC1.5) , USB2.0(UVC1.1)
1/2.8 inch 8.42MP CMOS sensor
— 7—
IR REMOTE CONTROLLER
Power Key
Under Normal working mode ，short press Power
key to let the camera enter standby mode；Press it
again ，the camera will do self-configuration and
then go back to HOME position；It will go to preset
position if the power on mode has been set.
Address/Camera Setting Key
Set+（Cam1-Cam4）：set camera’s remote
Control address.
Short press Cam1 - Cam4 to select the camera.
Number Key
Set Presets: Set+(0-9) number key to recall presets
Clear Key
Clear +(0-9): to clear the relative preset;
Long press to clear all presets.
— 7—
Menu Key
OK: to confirm the menu selection
Menu：enter/exit menu
Back：Back to previous menu
F+/F-:
Set focus by manual, only valid under manual focus
mode.
T/W: Set the lens zoom rate
Navigating Key:Up/Down/Left/Right
Under normal working mode, use navigate key to set
the pan tilt, and select values when enter OSD.
Home Key:
Under normal working mode, short press Home key
to let the camera go back to home position.
Flip: Enable/Disable the picture up/down flip
Mir: Enable/Disable the picture left/right flip
MF: Enable manual focus mode
AF:Enable auto focus mode
SHARP: Set sharpness level
NR+/-: Set noise reduction level
Reset: Long Press(3S）to reset camera
REV: Display camera revision
Este manual sirve para los siguientes modelos
2

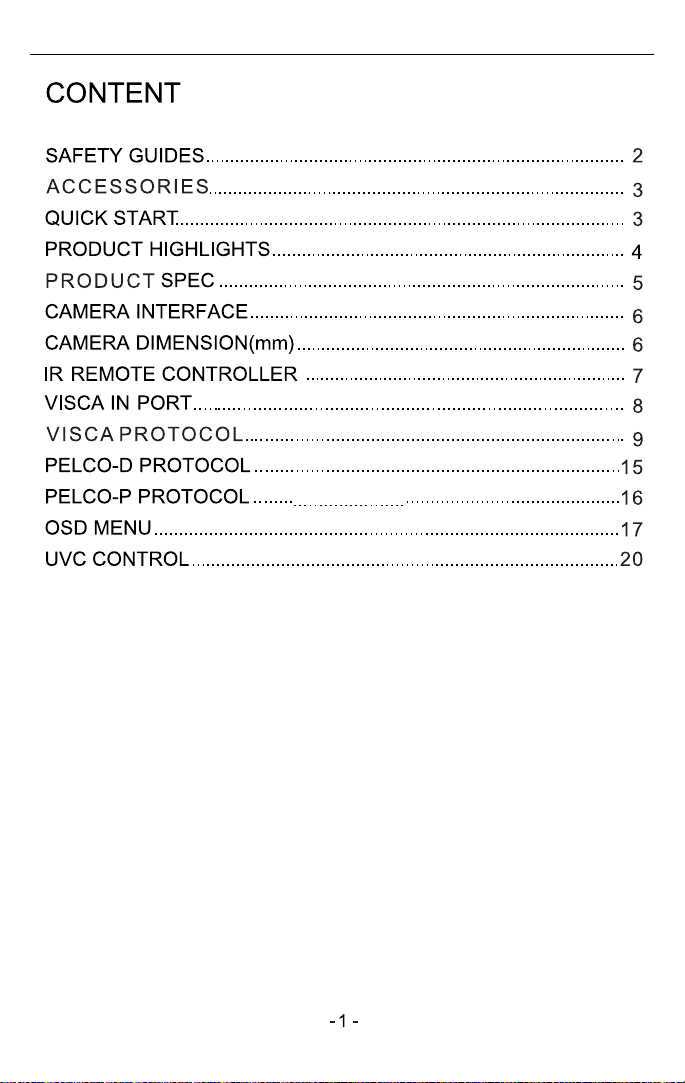

Tabla de contenidos
