ADUC812 EVALUATION BOARD

REFERENCE GUIDE

MICROCONVERTERADUC812

QUICKSTARTDEVELOPMENT SYSTEM

ADuC812 Evaluation Board Reference Guide

Evaluation Board Overview

CONTENTS:

Evaluation Board Reference Guide:

1) Evaluation Board Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2) Evaluation Board Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3) Link options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4) External Junctions (Connectors) . . . . . . . . . . . . . . . . . . . . . . . 9

5) LDR Demonstration Circuit . . . . . . . . . . . . . . . 11

6) Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

(1) EVALUATION BOARD OVERVIEW

The ADuC816 Evaluation board has the following features :

• 2 Layer PCB (4” X 5” Form Factor)

• 9V power supply/battery regulated to 5V on board (see section 2)

• 4 Pin Header Interface to RS232 dongle cable

• Access to all ADC inputs from external header. DAC output channel buffered to external header.

(see section 2 and section 4)

• All device Ports and Strobes are brought out to external header pins (see section 4)

• General Purpose Prototype Area (see section 2)

• 32KBytes External memory (SRAM) (configurable as data or volatile program memory) (see

section 2 and section 3)

• External Program Memory Socket for NV program memory (see section 2)

• 11.0592MHz Crystal (see section 2)

• Reset/External Interrupt 0 Push Buttons (see section 2)

ADuC812 Evaluation Board Reference Guide

Evaluation Board Overview

• Power Indicator/General Purpose LEDs (see section 2)

• Example LDR Demonstration Circuit (see section 5)

NOTES :

1. All references in this document to physical orientation of components on the board are made with respect to a component

side view of the board with the battery connections appearing in the top right corner of the board.

2. The board is laid out to minimize coupling between the analog and digital sections of the board. To this end, the ground

plane is split with the analog section on the right hand side and a digital plane on the left hand side of the board. The

regulated 5V power supply is routed directly to the digital section and is filtered before being routed into the analog section

of the board.

3. The ADuC812 can be socketed on the board using a QFP carrier adaptor and corresponding surface mount feet available

from Ironwood Electronics The part numbers are CA-QFE52SB-L-Z-T-01 and SF-QFE52SB-L-01 respectively.

WEB: www.ironwoodelectronics.com

Email: info@ironwoodelectronics.com

ADuC812 Evaluation Board Reference Guide

Evaluation Board Features

(2) EVALUATION BOARD FEATURES

Power Supply:

A 9V supply is fed to the board via the 2.1mm input power socket (J4). The input connector is configured

as ‘CENTER NEGATIVE’i.e. GND on the center pin and +9V on the outer shield. Alternatively the user

can connect a 9V battery via J9(-) and J10(+). The 9V supply is regulated via a linear voltage regulator

(U9), the 5V output being used to drive the digital side of the board directly. The 5V supply is also

filtered and then used to supply the analog side of the board.

When on, the green LED (D2) indicates that a valid 5V supply is being driven from the regulator circuit.

All analog supplies are decoupled with 10uF and 0.1uF at device supply pins. Digital supplies are

decoupled with 0.1uF at the digital supply pins.

RS232 Interface:

The ADuC812 (U1) TXD and RXD (pins 17 and 16 respectively) lines are connected to a header. The

cable which is included as part of the QuickStart Development System has a RS232 transciever at the

connecting end. This cable can be used to connect to both the evaluation board and the adaptor board.

Analog I/O Connections:

The inputs to the primary ADC are filtered with a first order (RC) anti-aliasing filter.

General Purpose prototype area

General Purpose prototype areas are provided at the top and the bottom or the evaluation board for adding

external components as required in the users application. As can be seen from the layout AVDD, AGND,

DVDD and DGND tracks are provided in this prototype area.

External Data Memory Interface:

The Evaluation board incorporates 32KBytes SRAM (U7). This external memory can be configured as a

data memory or as both code and data memory. Typically the 32Kbytes will be used as external data

memory. To configure it as switch link4 to the off position.

The MicroConverter uses a 24-bit address interface to external memory unlike a standard 8051, which

only uses 16-bit addresses. This means that the MicroConverter can address up to 16MBytes of XRAM

while the 8051 can only address 64kBytes of XRAM. This is done by multiplexing Port2 (high address

byte + page address byte) as well as Port0 (low address byte + data byte).

The ADuC812 evaluation board only contains 32kBytes of XRAM. Hence the full 24-bit address interface

to the XRAM cannot be used properly. To show this feature off we have configured the memory in two

modes using LK12 as discussed in section 1.2. The memory is addressed using 2 external latches

(74HC573, U14 and U15). U14 is used to latch the low order address on Port 0 before it multiplexes to a

data bus. U15 is used to multiplex Port2.

Note: U14 is unnecessary if the ADuC812 is addressing less than 64kBytes of XRAM.

ADuC812 Evaluation Board Reference Guide

Evaluation Board Features

Configuring the memory as a code memory might be useful in some applications. It is necessary for the

Keil Monitor-51 which requires von-Neumann wired code and XData memory. To configure this memory

as a data and code memory switch link 4 to the on position.

Note: If using the external data memory as both external program memory and external data

memory make sure that there is no external program memory in the program memory socket

provided, (U12). Switching on LK4 with a an external program memory inserted in U12 will cause

both U7 and U12 to be enabled together and will cause confliction on the data bus.

External Program Memory Socket:

An external program memory socket is available on the ADuC812 evaluation board. This allows the user

to easily connect in an external program memory.

Note: If using an external program meory at U12 make sure that LK4 is switched to the off position

as described above.

Crystal Circuit:

The board is fitted with a 11.0592MHz crystal. This crystal is connected between the XTAL1 and XTAL2

pins. 2 X 33pF surface mount caps are used to connect XTAL1 and XTAL2 to ground.

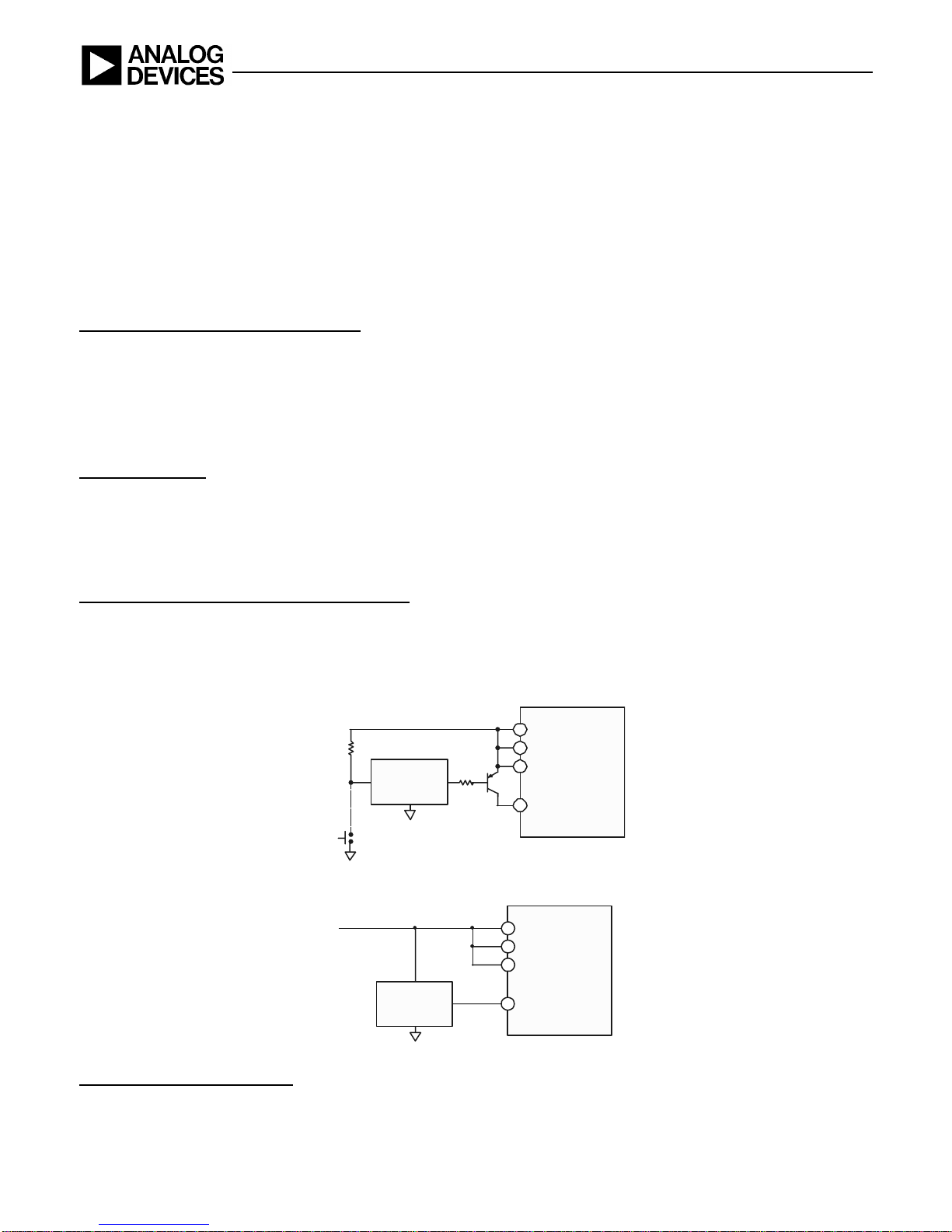

External Power on Reset Chip (ADM809)

An external power on reset chip is used to drive the RESET pin on the ADuC812. Because we want a

push button switch available to the user an active low Power on Reset chip (ADM809) is used with

5(6(7 output inverted (using a PNP BJT) before being connected to the RESET pin of the

MicroConverter.

DVDD

RESET

20 ADuC812

OPTIONAL

MANUALRESET

PUSH-BUTTON

POR

(ACTIVE LOW)

POWER SUPPLY

1k⍀

Alternatively, if a push button switch is not required, the RESET output of an active high power

on reset chip (e.g. ADM810) can be used to directly drive the RESET pin of the ADuC812.

DVDD

RESET

ADuC812

POR

(ACTIVE HIGH)

POWER SUPPLY

Reset/,17 Push Buttons:

ADuC812 Evaluation Board Reference Guide

Evaluation Board Features

A RESET push button is provided to allow the user to manually reset the part. This button is at the input

to the ADM809 (Power on Reset chip) so a delay of 240ms approx will be required for the part to be

actually released from reset after the button is released.

An ,17 push button switch is provided to allow the user perform external interrupts easily. The ,17

signal is Schmitt triggered (U5) to prevent noise on the rising edge of ,17 to cause multiple interrupts

as it passes the trip point. This Schmitt trigger also inverts the signal.

Power Indicator/General Purpose LEDs:

A green power LED (D2) is used to indicate that a sufficient supply is available on the board. A red

general purpose LED (D1) is connected to P3.4 of the ADuC812. An inverter is connected between the

LED and the port pin so that the SETB instruction turns the LED on and the CLR instruction turns the

LED off.

ADuC812 Evaluation Board Reference Guide

(3) LINK OPTIONS

LK1 (2x1) LDR Demo Connection

Function: Allows the user to connect the output of the voltage divider to ADC1.

Use : Slide LK1 into the ON position to connect the output of the voltage divider to ADC1.

Slide LK1 into the OFF position for normal operation of analog input ADC1.

LK2 (2x1) DAC0 Buffer LED Link

Function : Allows the DAC0 buffer to be connected to LED. This forms part of the LDR application

circuit.

Use : Insert LK2 to connect the DAC0 buffer to the LED

Remove LK2 to disconnect the DAC0 buffer from the LED.

LK3 (2x1) 36(1Pulldown for Serial Download/Debug Mode

Function: Allows the user to enter serial download or debug mode.

Use : Slide LK3 into the ON position to enter serial download mode or debug mode on power-on or

after a hardware reset (i.e. pressing reset button).

Slide LK3 into the OFF position for normal device operation.

LK4 (2x1) Connect PSEN to External Data Memory

Function : Allows the External Data Memory to be used as both an External Program Memory and an

External Data Memory.

Use : Slide LK4 into the ON position to connect the PSEN output from the ADuC812 (for use

with an external program memory) through an AND gate to the external data memory. This

allows the external Data Memory to be used as both external program and data memory.

Note: To use this mode make remove any external program memory inserted in the external

program memory socket provided (U12) as this will cause confliction on the data bus.

Slide LK4 into the OFF position to disconnect the 36(1 signal from the data memory,

disabling the use of the external data memory as an external program memory.

LK5,6,7 These 2-way links are used to route multi-function pins on Port 1 from the analog side of the

board to the digital side of the board as detailed below. With these links removed the digital

function is isolated from the digital side of the board, thus minimizing any feedthrough

/coupling onto the analog side of the board.

LK5 (2x1) Connect 66to SPI/I2C Connector

Function: Allows the 66 pin to be connected to the SPI/I2C connector

ADuC812 Evaluation Board Reference Guide

Use : Slide LK5 into the ON position to connect the 66 pin to the external SPI/I2C connector.

Slide LK3 into the OFF position for normal device operation of analog input ADC5.

LK6 (2x1) Connect T2to Time/Strobe Connector

Function: Allows the T2 pin to be connected to the Timer/Strobe connector

Use : Slide LK6 into the ON position to connect the T2 pin to the external Timer/Strobe connector.

Slide LK6 into the OFF position for normal device operation of analog input ADC0.

LK7 (2x1) Connect T2EXto Time/Strobe Connector

Function: Allows the T2EX pin to be connected to the Timer/Strobe connector

Use : Slide LK7 into the ON position to connect the T2EX pin to the external Timer/Strobe

connector.

Slide LK7 into the OFF position for normal device operation of analog input ADC1.

LK8 (2x1) Connect Waveform Generator Circuit

Function: This 3-way link is used to route a specific waveform (sine, square, triangular) onto ADC

channel 0 as detailed below.

The frequency of the generated waveform is 723Hz in each case.

Use: Insert Link in Position A to conntect triangular wave to ADC0

Insert Link in Position B to conntect square wave to ADC0

Insert Link in Position C to conntect sine wave to ADC0

LK9,10 (2x1) I2C Pullup Resistor Connections

Function: This connects the 1KΩpullup resistors that are required for I2C operation.

Use : Slide LK9,10 into the ON position to connect the I2C pullup resistors.

Slide LK9,10 into the OFF position for normal device operation.

LK11 (2x1) ($ Pulldown

Function: Allows the user to force the ADuC812 to execute the first 8kBytes of program memory from

the internal or external program memory space.

Use : Insert LK11 to pull ($ low causing the ADuC812 to run code from external program

memory.

Remove LK11 to leave ($ high so as to run code from the internal Flash/EE program

memory.

ADuC812 Evaluation Board Reference Guide

Note: This link can also be used with the Accutron ACE emulator. The single pin emulator

simply connects to this link.

LK12 (3x1) External Data Memory

Function: This link is used to configure the external data memory map. Either the bottom 32k Bytes of

the external data memory space is mapped or the bottom 256 bytes in the first 128 pages is

mapped. (via A16-A23 and U4).

Use : Slide LK12 to Position A to make U14 transparent. Hence the external data memory (U7) sees

address lines A0-A14. Hence the bottom 32K Bytes of the address range are mapped into the

external data memory space.

Note: In this mode (using less than 64k Bytes of XRAM) the latch U14 is unnecessary.

Slide LK9 to Position B to allow ALE to latch U14. Hence the external data memory (U7)

sees the address lines A0-A7 and A16-A22. Hence the bottom 256 Bytes in the first 128 pages

of the address range are mapped into the external data memory space.

Note: This mode may not be of particular use to the user but it does show the 24 bit

addressing ability of the MicroConverter.

ADuC812 Evaluation Board Reference Guide

(4) EXTERNAL JUNCTIONS(CONNECTORS):

J1 Analog I/O Connector

The analog I/O connector J1 carries all ADC inputs and DAC output channels as well as the external VREF

input. The pinout and orientation of this connector is shown below.

10 16

15 17

Figure 2: The Analog I/O connector J2

Pin Function Pin Function

1 ADC0 12 AGND

2 AGND 13 ADC6

3 ADC1 14 AGND

4 AGND 15 ADC7

5 ADC2 16 AGND

6 IN(+) OP-AMP (spare) 17 DAC0

7 ADC3 18 Out OP-AMP

8 IN(-) OP-AMP (spare) 19 DAC1

9 ADC4 20 AGND

10 DAC ADJUST 21 VREF

11 ADC5 22 AGND

Table 1: Pin functions for Analog I/O connector J2

J2 Serial Interface Connector

J2 provides a simple connection of the evaluation board to the PC via a dongle cable (provided with the

ADuC812 QuickStart Development System).

J3/J6/J7 (Port0 / Port2 / Port 3)

3 parallel ports (Port0, Port2 and Port3) are brought out to the connectors J4, J5 and J6. The exact pinout

of any of these connectors is shown below with reference to figure 3.

Figure 3: 10 way Connector Port

Otros manuales para MICROCONVERTER ADUC812

Otros manuales de Placa madre de Analog Devices

Analog Devices

Analog Devices EVAL-ADUSB2EBZ Manual de usuario

Analog Devices

Analog Devices DC2874A-A Guía de configuración rápida

Analog Devices

Analog Devices EVAL-AD5326DBZ Manual de usuario

Analog Devices

Analog Devices ADP5055-EVALZ Manual de usuario

Analog Devices

Analog Devices ADAV4601 Manual técnico

Analog Devices

Analog Devices EV-ADE9153ASHIELDZ Manual de usuario

Analog Devices

Analog Devices ADF4002 Manual de usuario

Analog Devices

Analog Devices EVAL-AD5933EBZ Manual de usuario

Analog Devices

Analog Devices ADA4830-1BCP-EBZ Manual de usuario

Analog Devices

Analog Devices EZ-KIT LITE ADSP-2191 Manual de usuario

Analog Devices

Analog Devices ADAU1962 Manual de usuario

Analog Devices

Analog Devices MICROCONVERTER ADUC814-28TSSOP Manual de usuario

Analog Devices

Analog Devices AD8333-EVALZ Manual de usuario

Analog Devices

Analog Devices AD7195 Manual de usuario

Analog Devices

Analog Devices UG-012 Manual de usuario

Analog Devices

Analog Devices EVAL-ADF411xEBZ1 Manual de usuario

Analog Devices

Analog Devices EVAL-ADN4693E-1 Manual de usuario

Analog Devices

Analog Devices EV-ADF5356SD1Z Manual de usuario

Analog Devices

Analog Devices EVAL-AD7175-2SDZ Manual de usuario

Analog Devices

Analog Devices EVAL-AD5344DBZ Manual de usuario

Analog Devices

Analog Devices EVAL-ADAU1401EBZ Manual de usuario

Analog Devices

Analog Devices EVAL-ADV7612-7511 Manual de usuario

Analog Devices

Analog Devices ADF4355-2SD1Z Manual de usuario

Analog Devices

Analog Devices Linear ADI Power DC3054A-C Guía de configuración rápida

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
