EVAL-AD5326DBZ User Guide

UG-977

One Technology Way •P. O. Box 9106 •Norwood, MA 02062-9106, U.S.A. •Tel: 781.329.4700 •Fax: 781.461.3113 •www.analog.com

Evaluation Board for the AD5326 12-Bit, Quad Channel, Voltage Output

Digital-to-Analog Converter (DAC)

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS. Rev. 0 | Page 1 of 14

FEATURES

Full featured evaluation board in conjunction with nanoDAC

motherboard (EVAL-MBnanoDAC-SDZ)

On-board references

Various link options

PC control in conjunction with Analog Devices, Inc., system

demonstration platform (SDP)

PACKAGE CONTENTS

EVAL-AD5326DBZ evaluation board

EVAL-MBnanoDAC-SDZ motherboard

SOFTWARE REQUIRED

EVAL-AD5326DBZ evaluation software

HARDWARE REQUIRED

EVAL-SDP-CB1Z board (SDP-B controller board), must be

purchased separately

GENERAL DESCRIPTION

This user guide details the operation of the evaluation board

for the AD5326 quad channel, voltage output DAC.

The evaluation board is designed to help users quickly prototype

new AD5326 circuits and reduce design time. The AD5326

operates from a single 2.5 V to 5.5 V supply.

Full data is available in the AD5326 data sheet, which must be

consulted in conjunction with this user guide when using the

evaluation board.

The evaluation board interfaces to the USB port of a PC via

the SDP-B controller board (EVAL-SDP-CB1Z). Software is

supplied with the evaluation board to allow the user to program

the AD5326.

This evaluation board requires SDP-B controller board (EVAL-

SDP-CB1Z), which is available for order on the Analog Devices

website at www.analog.com.

EVAL-AD5326DBZ, EVAL-MBnanoDAC-SDZ, AND SDP-B BOARDS

14448-001

Figure 1.

UG-977 EVAL-AD5326DBZ User Guide

Rev. 0 | Page 2 of 14

TABLE OF CONTENTS

Features .............................................................................................. 1

Package Contents.............................................................................. 1

Software Required ............................................................................ 1

Hardware Required .......................................................................... 1

General Description ......................................................................... 1

EVAL-AD5326DBZ, EVAL-MBnanoDAC-SDZ, and

SDP-B Boards.................................................................................... 1

Revision History ............................................................................... 2

Evaluation Board Hardware............................................................ 3

Power Supplies .............................................................................. 3

Motherboard Link Options......................................................... 3

Daughter Board Link Options.....................................................3

Evaluation Board Software Quick Start Procedures.....................4

Installing the Software..................................................................4

Running the Software ...................................................................4

Software Operation.......................................................................5

Evaluation Board Schematics and Artwork...................................7

EVAL-MBnanoDAC-SDZ Motherboard ...................................7

EVAL-AD5326DBZ Daughter Board ...................................... 11

Ordering Information.................................................................... 13

Bill of Materials........................................................................... 13

REVISION HISTORY

3/2017—Revision 0: Initial Version

EVAL-AD5326DBZ User Guide UG-977

Rev. 0 | Page 3 of 14

EVALUATION BOARD HARDWARE

POWER SUPPLIES

The nanoDAC® EVAL-MBnanoDAC-SDZ motherboard

supports single and dual power supplies.

The EVAL-AD5340DBZ evaluation board can be powered

either from the SDP-B port or externally by the J5 and J6

connectors, as described in Table 1.

Both AGND and DGND inputs are provided on the board. The

AGND and DGND planes are connected at one location on the

EVAL-MBnanoDAC-SDZ. It is recommended that AGND and

DGND not be connected elsewhere in the system to avoid

ground loop problems.

All supplies are decoupled to ground with 10 μF tantalum and

0.1 μF ceramic capacitors.

Table 1. Power Supply Connectors

Connector No. Label Voltage

J5, Pin 1 (J5-1) VDD Analog positive power supply, VDD

Single and dual supply, 5.5 V

J5, Pin 2 (J5-2) AGND Analog ground

J5, Pin 3 (J5-3) VSS Analog negative power supply, VSS

Dual supply, −5.5 V

J6, Pin 1 (J6-1) VLOGIC Digital supply from 1.8 V to VDD

J6, Pin 2 (J6-2) DGND Digital ground

MOTHERBOARD LINK OPTIONS

Various link options are incorporated in the EVAL-MBnanoDAC-

SDZ and must be set for the required operating conditions

before using the board. Table 2 describes the positions of the

links to control the evaluation board via the SDP-B board using

a PC and external power supplies. The functions of these link

options are described in detail in Table 4.

The positions listed in Table 2 and Table 4 match the evaluation

board imprints (see Figure 12).

Table 2. Link Options Setup for SDP-B Control (Default)

Link Number Position

REF1 2.5V

REF2 EXT

REF3 EXT

REF4 EXT

LK5 C

LK6 +3.3V

LK7 B

DAUGHTER BOARD LINK OPTIONS

The EVAL-AD5340DBZ daughter board has two link options.

These links set the least significant bits (LSBs) of the I2C addresses

of the DAC. Table 3 describes the function of these links. Set

LK1 and LK2 to Position B for proper device operation.

Table 3. Link Options for Daughter Board

Link Number Label Position

LK1 A0 B (low, default)



A (high)

LK2 A1 B (low, default)



A (high)

Table 4. Link Functions

Link Number Function

REF1, REF2, REF3, REF4 These links select the reference source.

Position EXT selects an off board voltage reference via the appropriate EXT_REF connector.

Position VDD selects VDD as the reference source.

Position 4.096V selects the on-board 4.096 V reference as the reference source.

Position 2.5V selects the on-board 2.5 V reference as the reference source.

Position 5V selects the on-board 5 V reference as the reference source.

LK5 This link selects the positive DAC analog voltage source.

Position A selects the internal voltage source from the SDP-B board.

Position B selects the internal voltage source, 3.3 V from the ADP121 on the motherboard.

the Position C selects the external supply voltage, VDD.

LK6 This link selects the VLOGIC voltage source.

Position 3.3V selects the digital voltage source from the SDP-B board (3.3 V).

Position VLOGIC selects an external digital supply voltage (VLOGIC).

LK7 This link selects the negative DAC analog voltage source.

Position A selects VSS.

Position B selects AGND.

UG-977 EVAL-AD5326DBZ User Guide

Rev. 0 | Page 4 of 14

EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

INSTALLING THE SOFTWARE

The AD5326 evaluation software is compatible with Windows®

Vista (64-bit/32-bit) and Windows 7 (64-bit/32-bit).

Install the software before connecting the SDP-B board to the

USB port of the PC to ensure that the SDP-B board is

recognized when it connects to the PC.

To ins tall the AD5326 evaluation software, take the following

steps:

1. Start the Windows operating system.

2. Download the installation software from the EVAL-

AD5326DBZ evaluation board page.

3. Run the setup.exe file from the installer folder if it does not

open automatically.

4. After the installation is complete, power up the evaluation

board as described in the Power Supplies section.

5. Connect the EVAL-AD5326DBZ evaluation board to the

SDP-B controller board and connect the SDP-B board to

the PC using the USB cable included in the evaluation kit.

6. When the software detects the EVAL-AD5326DBZ,

proceed through any dialog boxes that appear to finalize

the installation.

RUNNING THE SOFTWARE

To run the program, do the following:

1. Connect the evaluation board to the SDP-B board and

connect the USB cable between the SDP-B board and the PC.

2. Power up the evaluation board as described in the Power

Supplies section.

3. From the Start menu, click All Programs, Analog Devices,

AD5326 Evaluation Software.

If the SDP-B board is not connected to the USB port when the

software is launched, a connectivity error displays (see Figure 2).

Simply connect the evaluation board to the USB port of the PC and

wait a few seconds. When the SDP-B board is detected, the display

is updated (see Figure 3).

Alternatively, the software can be used without an evaluation

board. The software runs in simulation mode displaying expected

outputs based on the input data. The main window of the AD5326

evaluation software then opens, as shown in Figure 4.

14448-002

Figure 2. Connectivity Error

14448-003

Figure 3. Hardware Select

EVAL-AD5326DBZ User Guide UG-977

Rev. 0 | Page 5 of 14

14448-004

Figure 4. AD5326 Evaluation Board Software Main Window

SOFTWARE OPERATION

The software for the AD5326 allows the user to program values

to the input and DAC registers of each DAC individually.

Write to Input Register

Click Write to Input Register to load the code of the input data

control to the input register of the selected DAC in the DAC

Selection box.

LDAC Control

Click Pulse LDAC to bring the LDAC pin low and then back to

high. Doing this copies the data from the input registers to the

DAC registers, and the outputs update accordingly. The LDAC

pin can also be set high or low by clicking HIGH or LOW in

the LDAC box.

Power-Down Control

All of the DACs can be powered down simultaneously. A

selection box allows the device to operate in normal mode or

power-down mode. Click the blue progressive disclosure button

in the Power-Down Logic block to access the Powerdown

Configuration window, as shown in Figure 5. Click OK to write

the appropriate values to the AD5326 when the power-down

setting for the DAC is selected.

14448-005

Figure 5. Powerdown Configuration Window

Gain Control

The gain control of each of the DACs can be set individually.

Click the blue progressive disclosure button in the Gain- Select

Logic block to access the Gain Control window, as shown in

Figure 6. Click X1 to set a full-scale output of 2.5 V or click X2

to set a full-scale output of 5 V.

14448-006

Figure 6. Gain Control Window

UG-977 EVAL-AD5326DBZ User Guide

Rev. 0 | Page 6 of 14

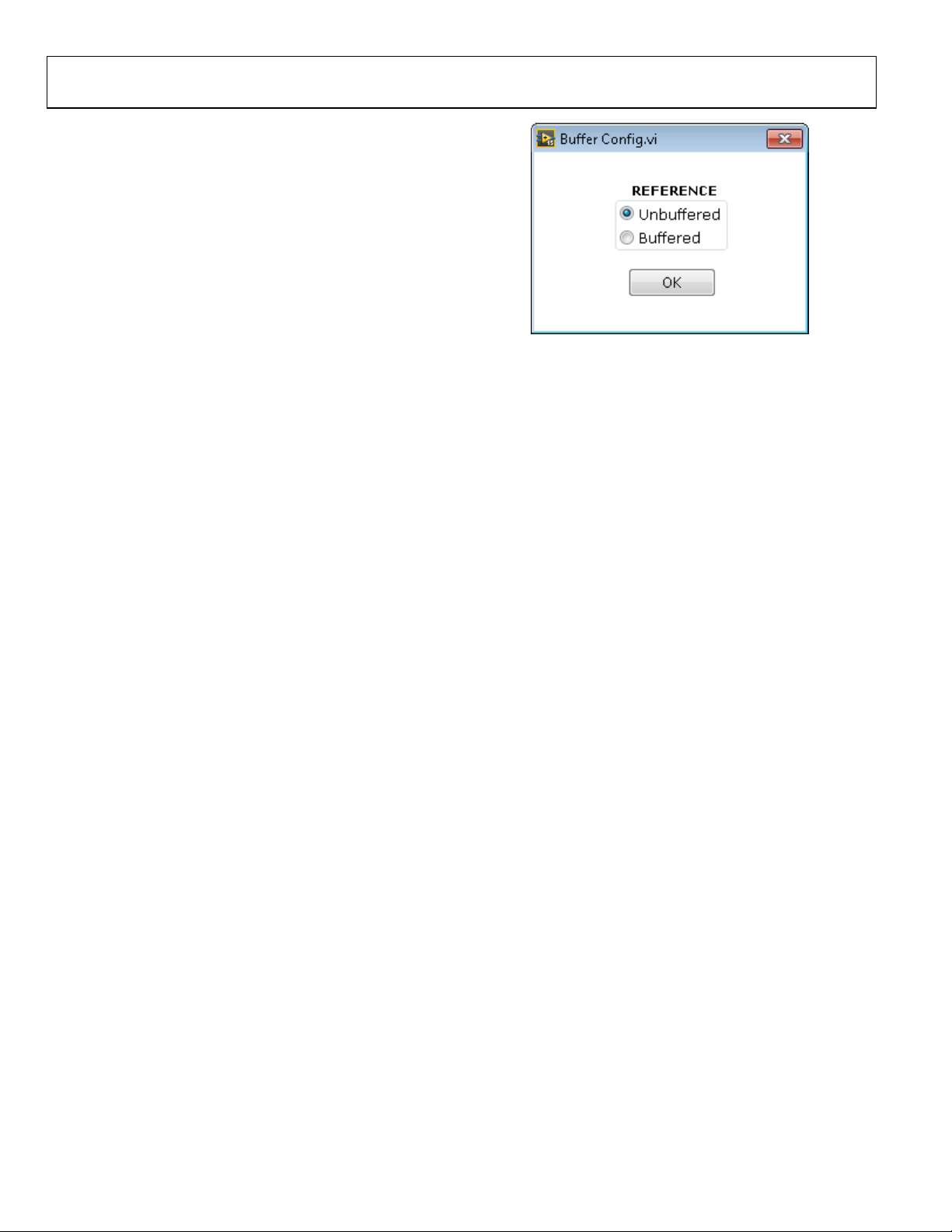

Buffer Control

The reference buffer of each of the DACs can be set individually.

Click the blue progressive disclosure button in the I2C box to

access the Buffer Config window, as shown in Figure 7. Select

the buffer setting and click on OK to apply the DAC

configuration.

14448-007

Figure 7. Buffer Configuration Window

EVAL-AD5326DBZ User Guide UG-977

Rev. 0 | Page 7 of 14

EVALUATION BOARD SCHEMATICS AND ARTWORK

EVAL-MBnanoDAC-SDZ MOTHERBOARD

14448-008

EXT_VDD

VLOGIC

GND

EXT_VSS

CONNECTOR

STANDARD

SDP

PARALLEL

PORT

SPORT

SPI

I2C

GENERAL

INPUT/OUTPUT

TIMERS

*NC ON BLACKFIN SDP 120

119

118

GND

117

GND

116

VIO(+3.3V)

115

GND

114

*PAR_D22

113

*PAR_D20

112

*PAR_D18

111

*PAR_D16

110

PAR_D15

109

GND

108

PAR_D12

107

PAR_D10

106

PAR_D8

105

PAR_D6

104

GND

103

PAR_D4

102

PAR_D2

101

PAR_D0

100

GND

PAR_A2

PAR_A0

PAR_FS2

PAR_CLK

GND

SPORT_RSCLK

SPORT_DR0

SPORT_RFS

SPORT_TFS

SPORT_DT0

SPORT_TSCLK

GND

SPI_SEL_A

SPI_MOSI

SPI_MISO

SPI_CLK

GND

SDA_0

SCL_0

GPIO1

GPIO3

GPIO5

GND

GPIO7

TMR_B

TMR_D

CLK_OUT

GND

WAKE

SLEEP

GND

UART_TX

BMODE1

60 RESET_IN

59 UART_RX

58 GND

57 RESET_OUT

56 EEPROM_A0

55 NC

54 NC

53 NC

52 GND

51 NC

50 NC

49 TMR_C*

48 TMR_A

47 GPIO6

46 GND

45 GPIO4

44 GPIO2

43 GPIO0

42 SCL_1

41 SDA_1

40 GND

39 SPI_SEL1/SPI_SS

38 SPI_SEL_C

37 SPI_SEL_B

36 GND

35 SPORT_INT

34 SPI_D3*

33 SPI_D2*

32 SPORT_DT1

31 SPORT_DR1

30 SPORT1_TDV*

29 SPORT0_TDV*

28 GND

27 PAR_FS1

26 PAR_FS3

25 PAR_A1

24 PAR_A3

23 GND

22 PAR_CS

21 PAR_RD

20 PAR_D1

19 PAR_D3

18 PAR_D5

17 GND

16 PAR_D7

15 PAR_D9

14 PAR_D11

13 PAR_D13

12 PAR_D14

11 GND

10 PAR_D17*

9PAR_D19*

8PAR_D21*

7PAR_D23*

6GND

5USB_VBUS

4GND

3GND

2NC

1VIN

J10

1A0

2A1

3A2

4VSS

VCC 7

WP 6

SCL 5

SDA

24LC32

100kΩ

DNP

100kΩ

DGND AGND

BEAD

1.6Ω

C11

4.7µF C10

0.1µF

+C7

10µF

1VIN

2GND

3EN 4

VOUT

ADP121-AUJZ33

1µF

LK5

J6-1

J6-2

0.1µF

+C6

10µF

LK6

J5-1

J5-2

J5-3

0.1µF +

10µF

LK7

R7 100Ω

R5 100Ω

R6 100Ω

R8 100Ω

R9 100Ω

R10 100Ω

R11 100Ω

R12 100Ω

R13 100Ω

R14 100Ω

0.1µF +C9

10µF

R15

100Ω

R16

DNP

PD SCL

SDA

CS WR

DB0

DB2

DB4

DB6

DB8

DB10

DB1

DB3

DB5

DB7

DB9

DB11

+3.3V

DGND

+5V

USB_VBUS

+3.3V

VDD

+3.3V

DGND

VLOGIC

DGND

+3.3V

DGNDDGND

VSS

+5V

CLR

LDAC

SCLK

SDO

SDIN

SYNC

EXT_VDD

+5V

DGND

DGND DGND

Figure 8. Motherboard SDP-B Connector and Power Supply

14448-009

EX_REF_1 EX_REF_2 EX_REF_3 EX_REF_4

VREF_1 VREF_2 VREF_3 VREF_4

REF3

REF4

REF1

REF2

+5VREF

+2_5VREF

+4_096VREF

VREF1

+5VREF

+2_5VREF

+4_096VREF

VREF2

+5VREF

+2_5VREF

+4_096VREF

VREF3

+5VREF

+2_5VREF

+4_096VREF

VREF4

VDD VDD VDD VDD

+2.5V +4.096V

C16

1µF

C15

1µF

OUTPUT

2VS

3SLEEP

GND

REF198

C17

1µF

+5V

+2.5V +4.096V

2VIN

5TRIM

VOUT

GND

ADR445ARMZ

2VIN

GND

TRIM

7COMP

VOUT

ADR431BRZ

+5VREF+2_5VREF +4_096VREF

VDD VDDVDD

Figure 9. Motherboard Reference Voltage Selector Circuit

UG-977 EVAL-AD5326DBZ User Guide

Rev. 0 | Page 8 of 14

14448-010

DAUGHTER BOARD CONNECTOR

SPI PMOD CONNNECTOR GPIO PMOD CONNNECTOR

I2C PMOD CONNNECTOR

1 2

3 4

5 6

7 8

910

11 12

13 14

15 16

SDIN SDO SCLK SYNC SCL LDAC CLR PD GAIN SDA

1 2

3 4

5 6

7 8

J8-1

J8-2

J8-3

J8-4

J8-5

J8-6

J7-1

J7-2

J7-3

J7-4

J7-5

J7-6

J3-1

J3-2

J3-3

J3-4

J3-5

J3-6

J4-1

J4-2

J4-3

J4-4

J4-5

J4-6

J4-7

J4-8

VDD

VREF1

VREF2

VREF3

VREF4

VLOGIC

SDASCL

SYNC

SCLK

SDO

SDIN LDAC

CLR

GAIN

DB6

DB7

DB8

DB9

DB0

DB1

DB2

DB3

VOUT_0

VOUT_1

VOUT_2

VOUT_3

VOUT_4

VOUT_5

VOUT_6

VOUT_7

SCL

SDA

DGND

VLOGIC

SCL

SDA

DGND

VLOGIC

SYNC

SDO

SDIN

SCLK

DGND

VLOGIC

GAIN

DGND

LDAC

CLR

VLOGIC

DGND

CS WR

DB11 DB5

DB10 DB4

AGND

Figure 10. Motherboard Connectors to Daughter Board and Serial Interface

14448-011

VOUT_0

VOUT_1

VOUT_2

VOUT_3

VOUT_4

VOUT_5

VOUT_6

VOUT_7

U10-A

AD8608ARUZ

–

U10-B

AD8608ARUZ

–

U10-C

AD8608ARUZ

–

13 14

U10-D

AD8608ARUZ

2–

U7-A

AD8616ARZ

6–

U7-B

AD8616ARZ

V+

V–

U7-C AD8616ARZ

2–

3+6

V–

V+

U11

AD8655

2–

3+6

V–

V+

U12

AD8655

VOUT_0

VOUT_1

VOUT_2

VOUT_3

VOUT_4

VOUT_5

VOUT_6

VOUT_7

VDD

VSS

VDD

VSS

Figure 11. Motherboard Output Amplifier Circuit

EVAL-AD5326DBZ User Guide UG-977

Rev. 0 | Page 9 of 14

14448-012

Figure 12. Motherboard Component Placement

14448-013

Figure 13. Motherboard Top Side Routing

UG-977 EVAL-AD5326DBZ User Guide

Rev. 0 | Page 10 of 14

14448-014

Figure 14. Motherboard Bottom Side Routing

Tabla de contenidos

Otros manuales de Placa madre de Analog Devices

Analog Devices

Analog Devices EVAL-ADF4108EBZ1 Manual de usuario

Analog Devices

Analog Devices EVAL-AD2437A1NZ Manual de usuario

Analog Devices

Analog Devices EVAL-ADP8860 Manual de usuario

Analog Devices

Analog Devices ADP5350CP-EVALZ Manual de usuario

Analog Devices

Analog Devices EVAL-ADM2582EEMIZ Manual de usuario

Analog Devices

Analog Devices EVAL-ADP5020 Manual de usuario

Analog Devices

Analog Devices UG-442 Manual de usuario

Analog Devices

Analog Devices DC3018A Manual de usuario

Analog Devices

Analog Devices LINEAR DC2469A Guía de configuración rápida

Analog Devices

Analog Devices ADSP-21369 EZ-KIT Lite Manual de usuario

Analog Devices

Analog Devices UG-061 Manual de usuario

Analog Devices

Analog Devices AD5162 Manual de usuario

Analog Devices

Analog Devices EVAL-AD7656-1SDZ Manual de usuario

Analog Devices

Analog Devices EVAL-SSM2306 Manual de usuario

Analog Devices

Analog Devices EV-ADF5904SD2Z Manual de usuario

Analog Devices

Analog Devices MAX30001G Manual de usuario

Analog Devices

Analog Devices ADP1872-EVALZ Manual de usuario

Analog Devices

Analog Devices EVAL-AD7386FMCZ Manual de usuario

Analog Devices

Analog Devices EZ-KIT Lite Manual de usuario

Analog Devices

Analog Devices DC2685B-KIT Guía de configuración rápida

Analog Devices

Analog Devices EVAL-ADPD7000 Manual de usuario

Analog Devices

Analog Devices AD8330 Manual de usuario

Analog Devices

Analog Devices EVAL-ADMV4640 Manual de usuario

Analog Devices

Analog Devices MAX17553C EV Kit A Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
