EZ-KIT Lite for Analog Devices

ADSP-BF537 Blackﬁn Processor

Key Features

•ADSP-BF537 Blackﬁn Processor

•Max core clock rate 600 MHz

•64 MB (32 M x 16) SDRAM

•4 MB (2 M x 16) ﬂash memory

•SMSC LAN83C185 10/100 PHY with

RJ45 connector

•CAN TJA1041 transceiver with

two modular connectors

•AD1871 96 kHz stereo DAC with

3.5 mm jack connector

•AD1854 96 kHz stereo ADC with

3.5 mm jack connector

•RS-232 UART line driver/receiver

•National Instruments Educational

Laboratory Virtual Instrumentation Suite

(NI ELVIS) interface

•Advanced USB-based debugger interface

•JTAG ICE 14-pin header

•Evaluation suite of VisualDSP++

development tools

•Flash utility for writing application boot

code and data to ﬂash

•Six general-purpose LEDs, four general-

purpose push-buttons

•Expansion Board Interface Cluster for

evaluating and interfacing with the

processor’s peripheral interfaces

•Discrete IDC Expansion ports for all

processor peripherals

•CE-certiﬁed

System Requirements

•Pentium®500 MHz or higher

•Minimum of 256 megabytes of RAM

•Windows®2000 or Windows XP

•One available USB connector

•750 megabytes disk space

Overview

The ADSP-BF537 EZ-KIT Lite®provides developers with a cost-effective method

for evaluation of the ADSP-BF537 Blackﬁn®Processor and its rich set of system peripherals,

including the IEEE 802.3 10/100 Ethernet MAC and CAN 2.0B controller. A TCP/IP stack

with integrated device driver and example code is provided in VisualDSP++®release 4.0.

This evaluation kit was designed with an emphasis on modularity and expandability.

With this EZ-KIT Lite, users can learn more about Analog Devices ADSP-BF537 hardware

and software development and quickly prototype applications.

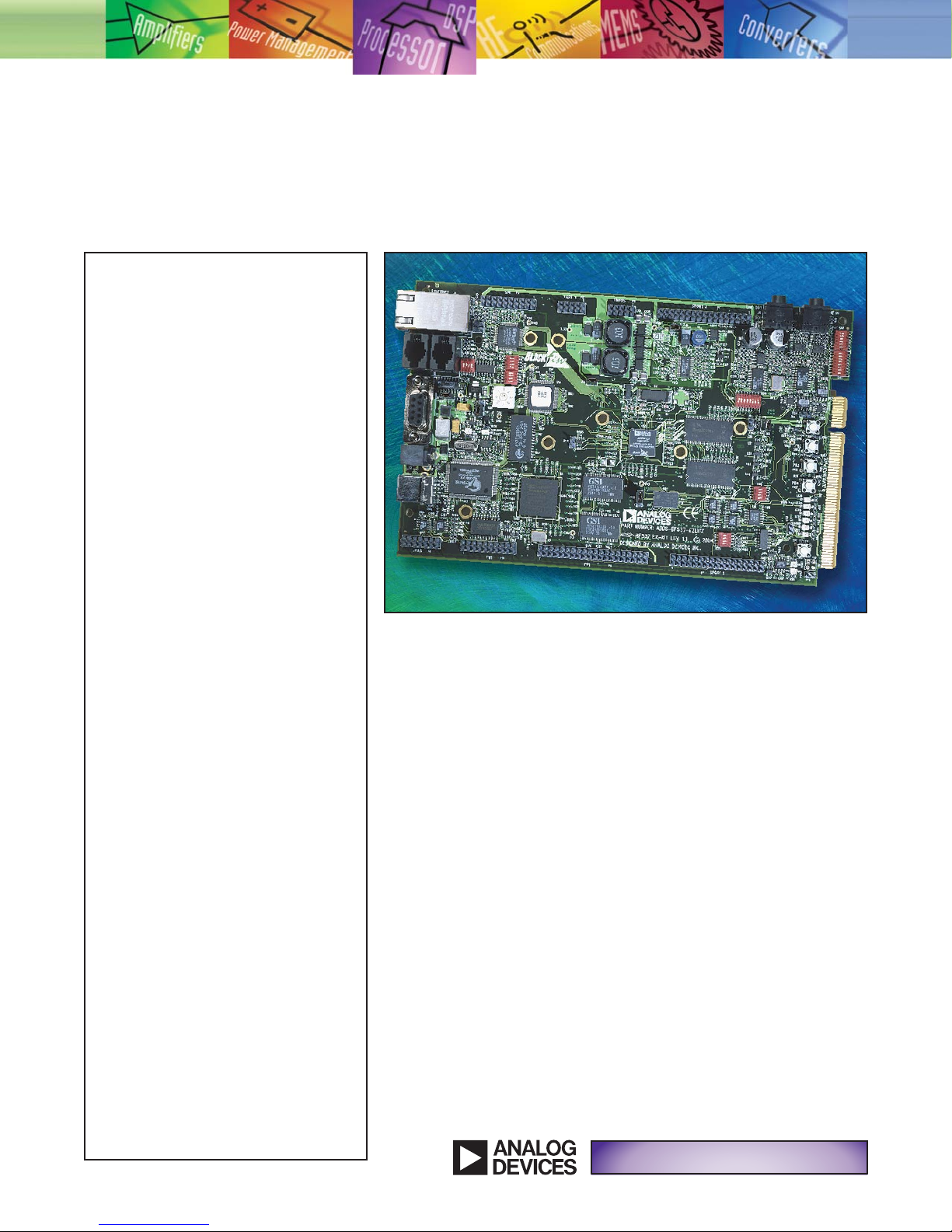

The EZ-KIT Lite includes an ADSP-BF537 processor desktop evaluation board along

with an evaluation suite of the VisualDSP++ development and debugging environment

that is comprised of a C/C++ compiler, assembler, and linker. The kit also contains

sample processor application programs, CE-approved power supply, a USB cable, both

straight through and crossover Ethernet cables, a 3.5 mm male/male stereo cable,

and a pair of stereo headphones.

Additionally, the ADSP-BF537 EZ-KIT Lite contains the National Instruments Educational

Laboratory Virtual Instrumentation Suite (ELVIS) interface. This interface will allow using the

oscilloscope, function generator, arbitrary waveform generator, DC voltage and current

measurement modules, and digital I/O. NI ELVIS is a LabVIEW™–based design and prototype

environment for university science and engineering laboratory curriculums. For more

details, go to www.ni.com.

www.analog.com/processors/tools

Embedded Processing Support

www.analog.com/processors

Email (in the U.S.A.):

[email protected]

Email (in Europe):

[email protected]

Fax (in the U.S.A.): 781.461.3010

Fax (in Europe): 49.89.76903.157

Worldwide Headquarters

Analog Devices, Inc.

One Technology Way

P.O. Box 9106

Norwood, MA 02062-9106

U.S.A.

Tel: 781.329.4700

Fax: 781.326.8703

Toll-free: 800.262.5643 (U.S.A. only)

Analog Devices, Inc. Europe

c/o Analog Devices SA

17-19, rue Georges Besse

Parc de Haute

Technologie d’Antony

F-92182

Antony Cedex, France

Tel: 33.1.46.74.45.00

Fax: 33.1.46.74.45.01

Japan Headquarters

Analog Devices, Inc.

New Pier Takeshiba

South Tower Building

1-16-1 Kaigan,

Minato-ku, Tokyo

105-6891, Japan

Tel: 813.5402.8210

Fax: 813.5402.1063

Southeast Asian Headquarters

Analog Devices, Inc.

39/F One Paciﬁc Place

88 Queensway

Admiralty,

Hong Kong, PRC

Tel: 852.2506.9336

Fax: 852.2506.4755

Trademarks and registered trademarks are the property

of their respective companies. Printed in the U.S.A. PH05378-2-1/05

www.analog.com/processors/tools

The VisualDSP++ development and debugging

environment, along with the advanced on-board USB-

based Debug Agent interface that operates up to

12 Mbits/second, enables users to perform standard

debugging functions (such as read and write

memory, read and write registers, load and execute

executables, set and clear breakpoints, and single-

step assembly, C, and C++ source code). The

evaluation versions of the included software tools are

limited to use with the EZ-KIT Lite. For faster and

unrestricted debugging, a family of JTAG emulators

and full versions of VisualDSP++ are available

separately from Analog Devices.

Analog Devices has EZ-Extender™ products (sold

separately) that plug into the Expansion Interface

of the ADSP-BF537 EZ-KIT Lite for additional

functionality. The Blackﬁn EZ-Extender daughter board

allows developers to connect to a number of Analog

Devices High Speed Converter (HSC) evaluation

boards, the OV6630 OmniVision camera evaluation

board, and an external LCD display. The Blackﬁn

USB-LAN EZ-Extender™ daughter board contains a

USB 2.0 interface and 10/100 Ethernet MAC. The

Blackﬁn A-V EZ-Extender™ daughter board contains

advanced audio and video circuitry, as well as

connectors allowing connection to three camera

sensor evaluation boards (Kodak, Mircron, and

OmniVision) and a Flat Panel Display (FPD) module.

CROSSCORE Development Tools

The ADSP-BF537 EZ-KIT Lite is part of the Analog

Devices CROSSCORE®Tools product line, which is

composed of a comprehensive set of development

tools providing engineers with easier and more robust

methods for developing and optimizing systems.

The CROSSCORE components include:

• VisualDSP++ development and

debugging environment

• EZ-KIT Lite evaluation kits

• EZ-Extender daughter boards

• Emulators

The easy-to-use VisualDSP++ integrated develop-

ment environment speeds development, debugging,

and deployment while shrinking product development

cycles and improving time to market. The EZ-KIT Lite

evaluation kits provide an easy way to investigate

the performance of the Analog Devices family of

embedded processors and DSPs. EZ-Extender daugh-

ter boards give developers access and ability to

connect various peripherals from Analog Devices and

third parties to the expansion interface of the EZ-KIT

Lite evaluation kits. Emulators are available for both

PCI and USB host platforms for rapid on-chip debug-

ging. Analog Devices is committed to continuous

expansion of leading-edge development solutions for

design engineers everywhere.

Embedded Processors and DSPs

Analog Devices is a leading supplier of embedded

and digital signal processing solutions, from high

performance Blackﬁn and TigerSHARC®Processors,

and from the low cost SHARC®Processors to

integrated mixed-signal DSPs that are ideal for an

ever-increasing spectrum of applications.

Analog Devices advances in design provide faster

processing, more memory, lower power consumption,

and simpliﬁed system integration. Analog Devices

products and technology provide a competitive

edge, complete with expert technical support,

comprehensive development tools, and the DSP

Collaborative™, an independent network of

third-party developers. For more information about

Analog Devices processors and DSPs, visit

www.analog.com/processors.

CROSSCORE Tools Support

Tel: 1-800-ANALOGD

Email: [email protected]

Web: www.analog.com/processors/tools

Ordering Information

Please call Analog Devices CROSSCORE Tools at

603-883-2430 or your local ADI sales representative

or distributor for pricing and ordering information

for part number: ADDS-BF537-EZLITE.
