AmScope SM-2 Series Manual de usuario

Series

User’s Manual

Series

abl

Contents

Before Use........................................................................................................... 3

Introduction.............................................................................................3

Safety Precautions ..................................................................................4

Parts............................................................................................................... 5

SM-2B/T.............................................................................................. 5

Definition of Parts ............................................................................... 6

Getting Started ...........................................................................................8

Assembly.................................................................................................8

Operation .................................................................................................10

Setting Up................................................................................................10

Focusing ............................................................................................... 10

Using the Trinocular Port ..................................................................11

Attaching a Camera ...........................................................................11

Replacing the lamps and fuses...........................................................12

Adjusting Focusing Tension ............................................................12

Maintenance/Precautions .................................................................... 13

Specifications..............................................................................................14

Specifications....................................................................................... 14

Optional Accessories........................................................................... 15

Technical Terms & Concepts ..........................................................16

Troubleshooting .......................................................................................17

Common Issues (Optical)..................................................................17

Common Issues (Mechanical)...........................................................18

Series

Before

Use

Introduction

Congratulations on the purchase of your new AmScope microscope!

This manual is designed for the SM-2 series microscopes (SM-2B, SM-2T, and all their variants).

The two base models of this series differ in that the -B models are binocular (two eyepiece ocular

tubes), while the -T models are trinocular (two eyepiece ocular tubes with a third port on top for

a microscope camera).

Please take a few minutes to familiarize yourself with the features and functions of your new microscope.

If you’d like more information on microscopes, parts, or accessories, please visit our website at:

www.amscope.com

We highly recommend you study this manual thoroughly before operating the microscope and

that you keep it on hand for future reference.

If you have additional questions or need assistance, please send us an email at:

info@amscope.com

Series

Before

Use

Safety Precautions

As the microscope is a precision instrument, always handle it with care, avoiding impact

or abrupt movement during transportation. Do not shake the package.

Do not place the microscope in direct sunlight or in high heat. Keep it indoors in a dry

and clean place with temperatures between 32-100 degrees F (0-40 degrees C), and in

maximum relative humidity of 85%.

Avoid touching the lenses on the objectives and the eyepieces so that oil and dirt from

your fingerprints do not obstruct your view.

Before turning the power on, make sure that the power supply voltage is consistent with

the voltage of your microscope (for units with built in illumination).

Series

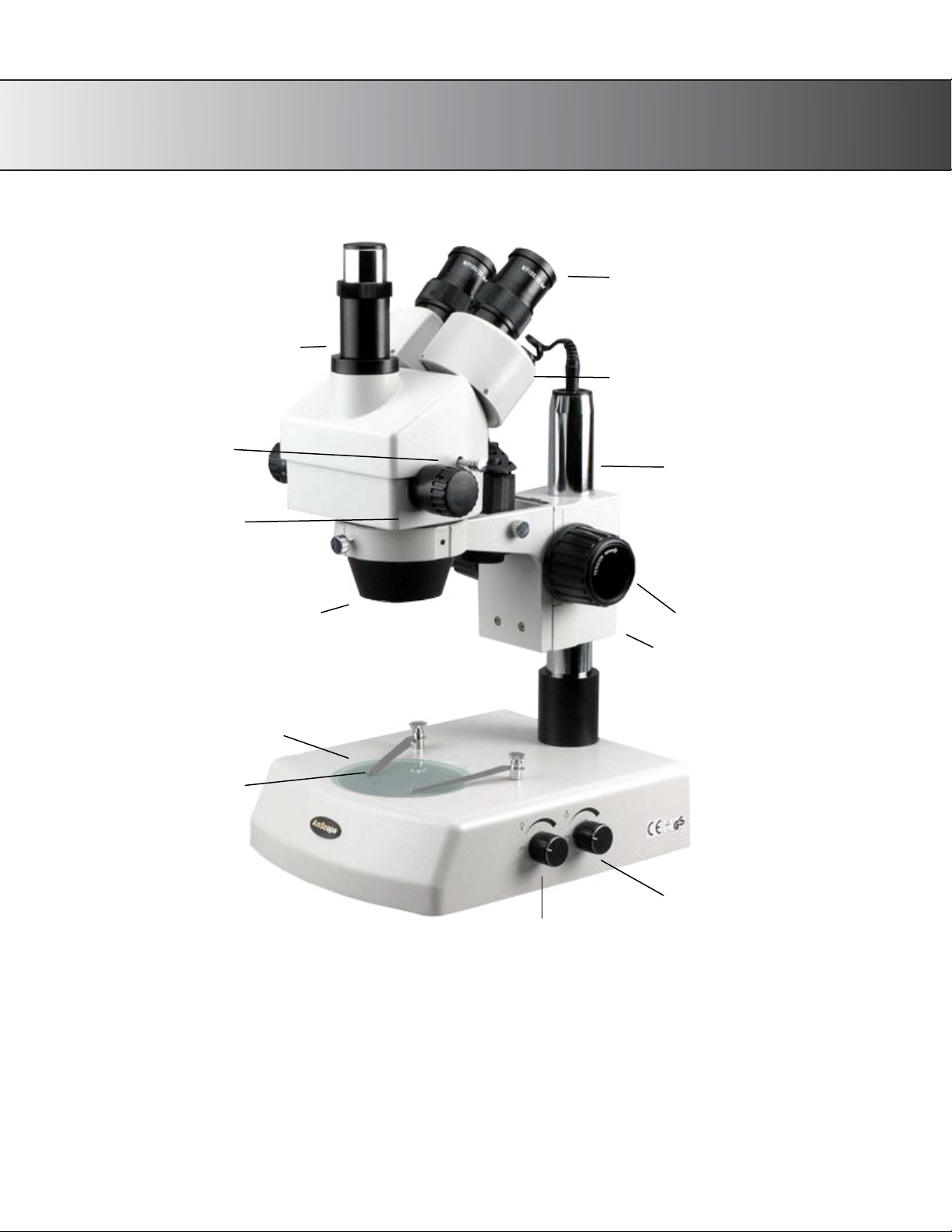

Parts

SM-2B/T

Eyepieces

Trinocular Port (SM-2T Only)

Interpupillary Adjusters

Trinocular Shutter Control

(SM-2T Only) Pillar Stand

Magnification Knob

Objective Focusing Knob

Focusing Rack

Top Light Source

StageClips

Top Light Dimmer

Base Light Dimmer

Series

Parts

Definition of Parts

AdjustableTrinocularPort

Threaded port with adjustable length of attachment of digital or video camera

Boom Stand

Stand for the microscope that allows the head to be moved in physical space in various directions

Continuous Zoom

A microscope head with a knob to change magnification through a range

Dimmer

Controls the amount of light that escapes from the illumination source

Diopter

Allows the focus to be perfected for both eyes, independent of each other

Fixed Power

Microscope head whose objectives are pre-set at certain levels and changed by rotating the objective

Focusing Knob

sed to move the microscope head vertically to bring the sample into focus

GooseneckIlluminator

Illuminator independent of the unit that allows movement of one or two necks for controlled lighting

Head Lock Screw

Screws the microscope head into place

Magnification Knob

Changes the magnification of the lenses on a continuous zoom microscope

Microscope Head

Contains the objective lens, eyepiece ocular tubes, and prisms used to magnify

Ocular Tube

Tube designed to hold the eyepieces or camera in place

Series

Parts

Ring Light

An illuminator that mounts directly onto the objective to emit even light on the sample below

Simul-FocalMicroscopeHead

Head containing a focus adjustment for a trinocular port camera to simultaneously to match the eyepieces

Table Stand

A stand which sits on the table and holds the head directly above the sample without moving

Series

Getting

Started

Assembly

Series

Getting

Started

First, take the styrofoam container out of the cardboard carton and lay it on its side, paying attention

to which

side is labeled up. Remove the tape and open the container carefully so as to avoid dropping

and damaging the

optical items. Check carefully to ensure that all parts and accessories are intact.

Check the packing list to ensure that you’re received all items. Please note that this can vary

depending on

which model you’ve purchased, and is generally listed on www.amscope.com at the

items’ details page for your

specific model.

Remove the microscope body from the box and remove the plastic protective covering. The body of the

microscope is composed of the base that comes with your unit, the focusing rack, and the head lock

screw.

For –PL model, insert the illumination device①in the bracket

and tighten the lock screw②. Insert plug into the socket③of the

pillar stand.

After mounting the focusing rack to the base (if not already

attached in shipping), slide the objective of the

microscope into

the hole and secure with included head lock screw.

For the -T models, screw the photo port onto the top of the

microscope head (trinocular C-mount port).

Remove the eyetube caps and drop the desired eyepieces into the eyepiece ocular tubes. Be sure

to avoid

touching the lens to ensure no artifacts appear in your image.

Remove the cap from the objective lens.

Plug in the microscope and turn it on if a light source is included (or refer to your specific light

source instructions for mounting/turning on if an external source). If no light emerges from the

light source, adjust the

dimmer knob near the power switch.

10.

If viewing an opaque sample, use a top light source, however while using a translucent sample,

either light

source can be used.

Series

Getting

Started

Setting Up

Once you have placed your sample on the table or base below the objective, center the sample as best

as possible.

A slide is neither needed nor required for a stereo microscope, although they can be used if

desired. If using a slide,

use the stage clips to hold it in place.

With both eyes open, look into the eyepieces. Adjust the

interpupillary distance by holding the eyepiece tubes

and rotating

the eyepiece tubes either towards or away from each other until

only one circle of light is seen by both

eyes.

Adjust the magnification knob to the lowest setting (0.7) and

move the microscope’s focusing knobs (on the

focusing rack) to

adjust the height of the unit until at approximately 4 inches

(101mm) away from the sample. If

not clear after adjusting,

please be sure that you have not installed any additional Barlow

lenses onto the objective.

Center the object in the field of view once you have achieved focus.

Focusing

A stereo microscope’s focus differs from a compound microscope. Magnification and focal distance

(working

distance) are inversely related to each other. The more magnified one is, the lower the

distance between the objective and the sample to achieve focus.

When first using the microscope, remove all Barlow lenses and set the magnification knob (on the

microscope

head) to the minimum setting (0.7x).

Begin focusing the microscope by moving the knob until the head is about 4 inches (101mm)

away from the

sample. This should bring the microscope in focus at 7x.

If you’d like to use greater magnification than the minimum setting, you will need to move the

microscope head closer to the sample as well as adjust the magnification knob to a higher setting. The

more magnified, the closer you need to be.

If you’ve achieved the maximum magnification (45x and 3/16 of an inch or 4.76mm) on the

microscope, you can

use other accessories to either further increase or further decrease the

magnification, called Barlow lenses. These

lenses screw onto the objective to either amplify or reduce

the total magnification.
