AmScope AM-1 Series Manual de usuario

Series

User’s Manual

Series

abl

Contents

Before Use........................................................................................................... 3

Introduction.............................................................................................3

Safety Precautions ..................................................................................4

Parts............................................................................................................... 5

SM-1B/T.............................................................................................. 5

SM-1TS/BS ......................................................................................6

SM-1(B/T)-PL..................................................................................... 7

Definition of Parts ............................................................................... 8

Getting Started .........................................................................................10

Assembly.............................................................................................. 10

Operation .................................................................................................12

Setting Up................................................................................................12

Focusing ............................................................................................... 12

Using the Trinocular Port ..................................................................13

Attaching a Camera ...........................................................................13

Adjusting Focusing Tension ............................................................14

Maintenance/Precautions .................................................................... 14

Specifications..............................................................................................15

SM-1 Series Specifications................................................................. 15

Optional Accessories........................................................................... 16

Technical Terms & Concepts ..........................................................17

Troubleshooting .......................................................................................18

Common Issues (Optical)..................................................................18

Common Issues (Mechanical)...........................................................19

Series

Before

Use

Introduction

Congratulations on the purchase of your new AmScope microscope!

This manual is designed for the SM-1 series microscopes (SM-1B, SM-1T, and all their variants).

The two base models of this series differ in that the -B models are binocular (two eyepiece ocular

tubes), while the -T models are trinocular (two eyepiece ocular tubes with a third port on top for

a microscope camera).

Please take a few minutes to familiarize yourself with the features and functions of your new microscope.

If you’d like more information on microscopes, parts, or accessories, please visit our website at:

www.amscope.com

We highly recommend you study this manual thoroughly before operating the microscope and

that you keep it on hand for future reference.

If you have additional questions or need assistance, please send us an email at:

info@amscope.com

Series

Before

Use

Safety Precautions

As the microscope is a precision instrument, always handle it with care, avoiding impact

or abrupt movement during transportation. Do not shake the package.

Do not place the microscope in direct sunlight or in high heat. Keep it indoors in a dry

and clean place with temperatures between 32-100 degrees F (0-40 degrees C), and in

maximum relative humidity of 85%.

Avoid touching the lenses on the objectives and the eyepieces so that oil and dirt from

your fingerprints do not obstruct your view.

Before turning the power on, make sure that the power supply voltage is consistent with

the voltage of your microscope (for units with built in illumination).

Series

Parts

SM-1B/T

Trinocular Port (SM-1T Only)

Eyepieces

Ocular Tubes

Interpupillary Adjusters

Objective

Pillar Stand

Magnification Knob

Focusing Rack

Focusing Knob

StageClips

Flat Inspection Stand

Series

Parts

SM-1TS/BS

Trinocular Port (SM-1TS Only)

Eyepieces

Ocular Tubes

Pillar Stand

Interpupillary Adjusters

Objective

Magnification Knob

Ring Light

(Not included in

base model)

Focusing Knob

Focusing Rack

StageClips

Flat Stand

Series

Parts

SM-1(B/T)-PL

Eyepieces

Ocular Tubes

Interpupillary Adjusters

Objective

Trinocular Port (SM-1T-PL Only)

Pillar Stand

Magnification Knob

Focusing Rack

Focusing Knob

Top Illuminator

Dimmer Controls

Base Illuminator

StageClips

Flat Stand

Series

Parts

Definition of Parts

AdjustableTrinocularPort

Threaded port with adjustable length of attachment of digital or video camera

Boom Stand

Stand for the microscope that allows the head to be moved in physical space in various directions

Continuous Zoom

A microscope head with a knob to change magnification through a range

Dimmer

Controls the amount of light that escapes from the illumination source

Diopter

Allows the focus to be perfected for both eyes, independent of each other

Fixed Power

Microscope head whose objectives are pre-set at certain levels and changed by rotating the objective

Focusing Knob

sed to move the microscope head vertically to bring the sample into focus

GooseneckIlluminator

Illuminator independent of the unit that allows movement of one or two necks for controlled lighting

Head Lock Screw

Screws the microscope head into place

Magnification Knob

Changes the magnification of the lenses on a continuous zoom microscope

Microscope Head

Contains the objective lens, eyepiece ocular tubes, and prisms used to magnify

Ocular Tube

Tube designed to hold the eyepieces or camera in place

Series

Parts

Ring Light

An illuminator that mounts directly onto the objective to emit even light on the sample below

Simul-FocalMicroscopeHead

Head containing a focus adjustment for a trinocular port camera to simultaneously to match the eyepieces

Table Stand

A stand which sits on the table and holds the head directly above the sample without moving

Series

Getting

Started

Assembly

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microscopio de AmScope

AmScope

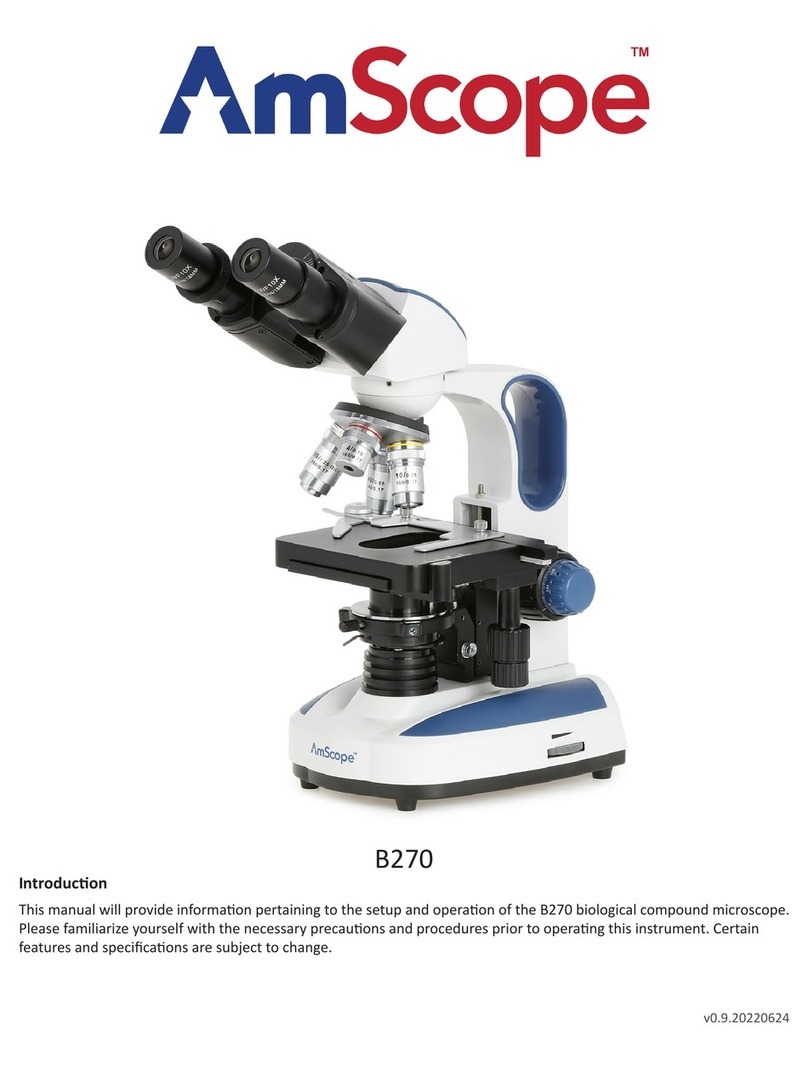

AmScope B270 Manual de usuario
