OPERATING INSTRUCTIONS

MODEL TMD SERIES

SOFTWARE

and

USB/Wireless DRIVER

Install USB Driver:

For WINDOWS VISTA_XP

_2000 and USB Driver’s

Installation

1. Connect meter to PC with USB

cable. Following dialogue box will

appear automatically. Please

select “Install USB [for

WINDOWS7_VISTA_

XP_2000“to install.

2. Installation.

Install PC software:

1. Put the disk in the disk drive.

Following dialogue box will

appear automatically. Please

execute the “autorun.exe” if it

does not appear.

2. Button explanations

Single Meter [Wireless & Line] :

Install pc software for Single

Meter.

Multi Meter [Wireless & Line] :

Install pc software for Multi

Meter.

INSTALL USB driver (for

WINDOWS 7_

VISTA_XP_2000): Please refer

to the METER and USB

DRIVER’S

Instruction Manual: Operation

instruction manual.

EXIT: Exit install program.

Single / Multi Meter installation

window.

V1. 011008

1492-00800UW-02

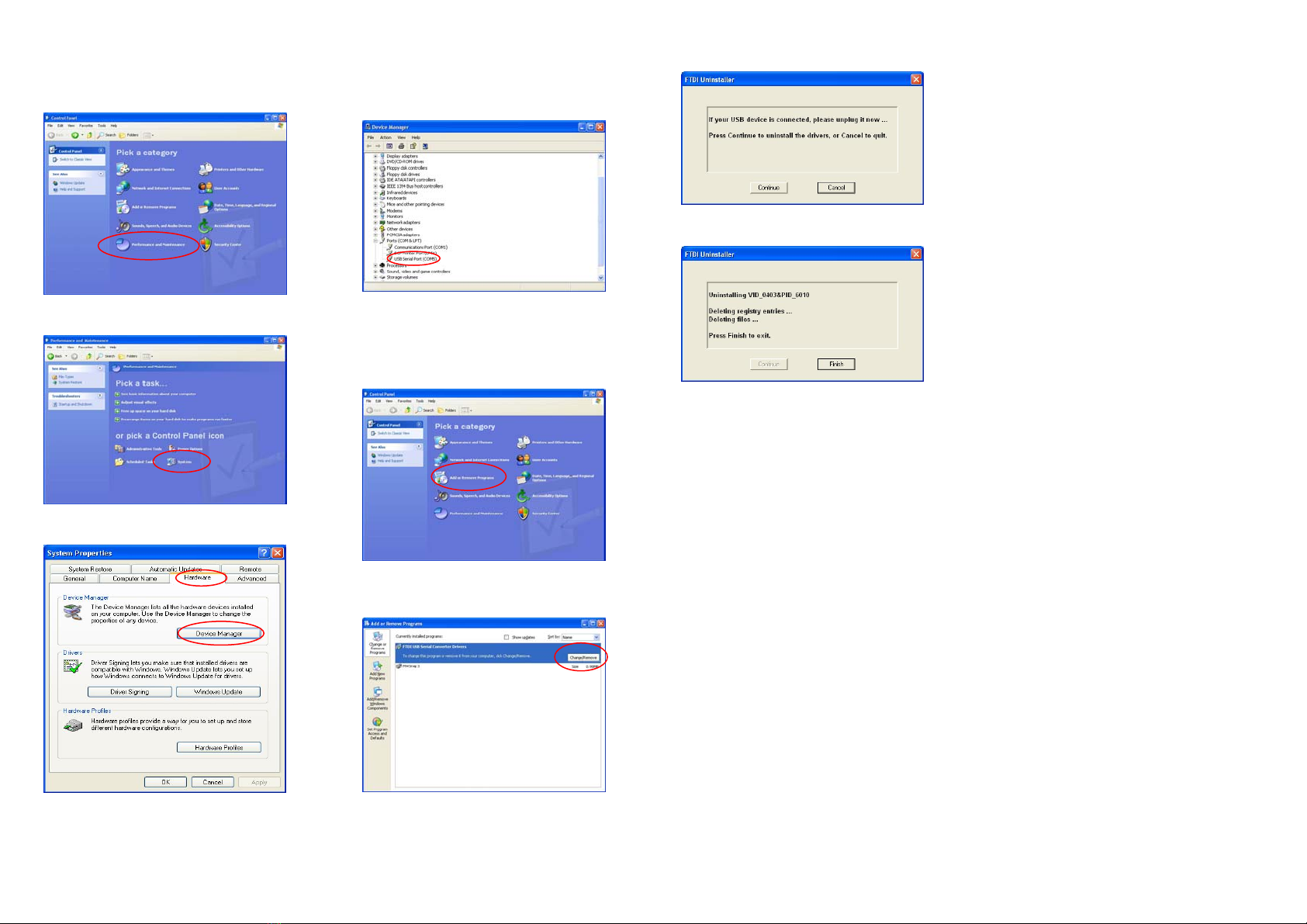

Check CONNECTION PORT

1. StartControl PanelPerformance and

Maintenance.

2. Select “System”.

3. Select “Hardware” Device Manager.

4. In this window, you see the number of the port

selected by system auto manically. You can

change it. Please write down the port number, it

will be needed for manual connection.

Uninstallation of USB Driver

1. StartSettingControl PanelAdd or Remove

ProgramsChange/Remove.

2. Select “FTDI USB Serial Converter Driv-

ers”Change/Remove.

3. Click “Continue”.

4. Click “Finish”.

Description of “Single Me-

ter“ PC software

1. Following window comes up automatically after

PC software turn on.

2. For first time use following communication port

setup dialog box. Comes up automatically

3. For communication port setup please refer to

6.1.

4. After finishing communication port setup fol-

lowing Main display window comes up.

Model number shown at up-left corner varies

according to meter.

5. Explanations of comments

5.1 File

About Display manufacturer infor-

mation.

Exit Exit program.

5.2 Setup

Options Environment selection settings

(please refer to 6.2)

Communication port Check

Search/Settings/Connection

/Showing the current Communi-

cation port used.

Log Setup 1. Log Interval:

Meter Log Interval setup. (De-

fault 1sec)

2. Key Delay Time: Key delay

time setup. (Default 0sec)

User Linear User Linear operation

5.3 Display

Graphic 1. View real time reading and

curves.

2. Window setup refer to 6.4.

Relative Set and display the difference

between two channels.

Received Signal strength indication.

Only available for meters with wireless

function.

5.4 Data Download

Download the saved data from the meter.

(Only for save/data log function mode)

6. Explanations of Toolbar

6.1 Communication port setup dialog

box.

Auto connection

: Click the button let system

select communication port automatically.

Manual connection

Select communication port and baud rate

manually. (Wireless mode, please select

57600 bps, USB mode, please refer to op-

eration manual).

After click on “Do not show this window

automatically” it will not bring up the di-

alog box automatically. It will only func-

tion when you call from the Setup.

For first use, after communication port

setting following dialogue box comes up.

Set meter ID and CH (Only for wireless

models)

1. When message “Meter is found on

CH=00, ID=00” is shown in dialogue

box.

Click “Set” to connect.

2. When message “Meter not found on

CH=00, D=00” is shown in dialogue

box, please reset ID and CH as follow-

ing:

I. Turn off the meter.

II. Press and hold wireless starting key

() and press power “on/off ”

key ( ) for longer than five se-

conds. Display will shown “00”.

III. Turn on wireless function by press-

ing wireless starting key ( ).

IV. Click “Relink”.

V. Repeat 1.

Note

If there are more than one wireless

transceivers operate at same location.

1. Different doungle ID’s should be

given.

2. Distance between 2 doungles must be

more than 30 cm. (12 inches)

6.2 Environment selection settings dia-

log box.

Time setting

Only available for meters with time set-

ting function.

Click “SET” synchronize the clock in me-

ter with the time of PC.

Doungle ID setting

Only available for meters with wireless

function.

Sound of Hi/Lo limit setting

Click data folder icon on the right ,

and select sound effect. (Only use WAVE

format).

Hi/Lo limit setting

1. Setting the Limits.

Audio alarm will be actuated, when

measurements are out of limits.

2. Background color of each channel can

be selected.

Enable or disable the function which stop

data logging when battery is low.

6.3 Relative dialog box.

6.4 Graphic dialog box.

Interval setting

Y scale setting

Select auto mode to accept Y scale auto-

matically set by PC.

Turn off the auto mode to freeze Y scale

at that moment.

Data area

Display last ten measurements.

CH1/CH2 Setting

: Click this button to turn on

or off CH1 and CH2 and select the back-

ground colors.

Start data logger

: Click this button to bring

up “Log Setup” window.

File name: To define the name of the file

in which you want to store the logged

data. The default file name is current

time. (YYYYMMDDHHMMSS).

File type: It can be saved as (*.csv or

*.xls).

User name: The user’s name.

Path: Saved path.

Description: information added by user.

User name and Description will be saved

in the data file.

Click “OK” to start recording.

Stop data logger

: Click to stop data logging

and save the data.

Return to the main window after data

logging ended.

File Exit

6.5 To export data stored in meter to PC.

Only available for meters with save/data

log function.

Click this icon to bring up “Data

download dialog box”.

File menu

File

Exports Data exports

Exit Exit program.

Reload re-load data.

6.6 Received signal strength indication.

Only available for meters with wireless

function.

I. The barograph and number are Received

Signal Strength Indicator (RSSI).

RSSI >= 60 signal is better (in green

range).

60 <= RSSI <=50 signal is good (in

yellow range).

RSSI <= 50 signal is weak. (in red

range)

II. Suggestions for weak signal:

Change the location & orientation of

doungle (vertical to the ground is

best.)

Change location of orientation of me-

ter.

6.7 Low battery warning,, please change

batteries as soon as possible.

7. INTRODUCTION OF MAIN DISPLAY

Left hand side shows reading of each channel

with unit at right-upper corner.

When measure with thermocouple, the type of

thermocouple is shown at left-upper corner.

Right hand side shows maximum (MAX), min-

imum (MIN), range (MAX-MIN) and average

(AVG) value of readings, and times of maximum

and minimum value occur.



Click the button to holds the current reading.



Click the button to reset the reading and time of

MAX, MIN&AVG.



Click the button to activate out of limit alarm.

Hi/Lo limit values are set in 6.

8. USER LINEAR OPERATION



Click this button to create a new blank file

based on the default template.



Click this button to open project.



Click this button to open or find a file.



Click this button to save the active file

with its current fine name, location and

file format.



Click this button to edit data.



Click this button to add data.



Click this button to delete data.



Click this button to calculate this polyno-

mial.

Data complete



Download user linear to meter



Click this button to close this program af-

ter prompting you to save any unsaved

files.

Wireless Features:

Frequency range:

910~920MHz.

868.1~868.5MHz.

Current consumption: Less than 1mA.

Transmission distance: 25M of sight distance

without magnetic interference.

FEDERAL COMMUNICATIONS

COMMISSION

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired opera-

tion.

NOTE

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection. This equipment gener-

ates, uses and can radiated radio frequency energy and,

if not installed and used in accordance with the in-

structions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation If

this equipment does cause harmful interference to ra-

dio or television reception, which can be determined

by turning the equipment off and on, the user is en-

couraged to try to correct the interference by one or

more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and

receiver.

- Connect the equipment into an outlet on a circuit dif-

ferent from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV tech-

nician for help.

Shielded interface cables must be used in order to

comply with emission limits.

Changes or modifications not expressly approved by

the party responsible for compliance could void the

user‘s authority to operate the equipment.

Description of Multi-Meter PC

software

Multi Wireless communication

Note: Please insert the Dongle af-

ter SW installation.

Insert Dongle to PC/USB port

System will detect dongle and in-

stall the driver while connecting to

PC USB port.

Wireless Multi-Linking version

instruction:

1. Insert USB dongle to PC’s USB

slot.

2. Start PC software.

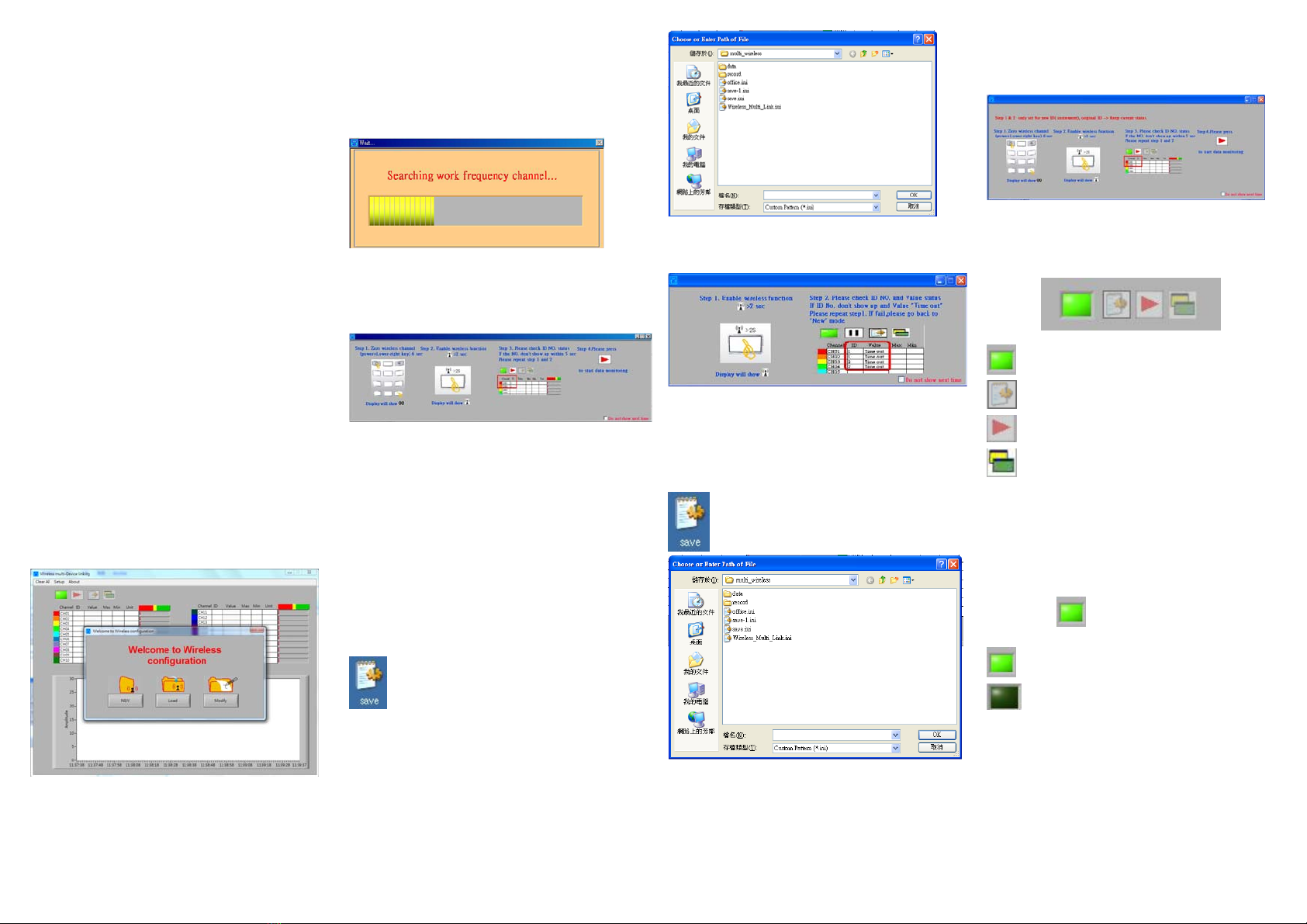

PS Software description

1. Enter start page.

2. “New ”: Start with new project

( First use )

2-1 System will search free chan-

nel, please wait.

2-2 Wizard configuration: Please

follow step by step

Note: Please add the wireless in-

strument (ID/CH) one by one to the

system to avoid working channel

collision.

3. “Load “ : Only operate with

saved project.

System will load previous “ ID/CH”

from saved file.

3-1 Please select the saved file

(.ini)

3-2 Please follow wizard configu-

ration.

4. “Modify” :

Load saved project (.ini) and can

also add new meters.

4-1 Please select the saved file

(.ini)

4-2. Please follow wizard configu-

ration

5. Function row.

：Comport Find.

：Start recording data

：Start execution key

：Enlarge display icons.

5-1. Auto Comport Find：

：Comport connection

：Comport connection fail

5-2.

：Start recording channel’s data

and measuring values into txt file.

Default File Save at:

C:\800_Multi\record

The default file name is current

time.

(YYYYMMDDHHMMSS_ID__ File

Member).

5-3 . ”Start key” to activate

connection.

5-3.1 Real time measuring values

display dialogue

Add channels respectively and

display measuring values on the

chart.

5-3.2 Connection status dialogue

Display the connection status of

each meter.

Signal strength RSSI >= 60

means good ( within green area )

Signal strength 60 >= RSSI

>=50 means normal ( within yellow

area )

Signal strength RSSI <= 50

means not good. ( within red ar-

ea )

PS: Suggestions as follows: When

the signal is weak.

6. Magnify display dialogue

For easy and clear to monitor the

channels and data.

7. Dropdown menu

7.1 Clear All : clear List & chart

to empty

7.2 Setup : Set Hi & Lo setting

value to be blinking when they

are over setting values.

7.3 About: Display manufacturer

information.

8. Y axis setting for each channel.

Precision : Y axis resolution setting

AUTO Y Scale ON/ OFF : Select Au-

to-scale

FAQ

Dongle was not found, please

reconnect dongle or check

USB port status as

page2/step2 (CHECK Dongle

CONNECTION PORT)

Working CH occupied, please

exit the software and restart

connecting again.

Description of

Multi Lines PC Software

Insert USB to PC’s USB port

1. Enter start page.

Please insert USB cable with me-

ter, PC software will auto detect

meter device and set ID number

for the meter.

2.“Load “ : Only operate with saved

project.

System will load previous

“ ID/COM” from saved file.

3.“Comport search .

4. . ”Start key” to activate

connection.

Real time measuring values dis-

play.

Add channels respectively and

display measuring values on the

chart.

5. Record data

Start recording channel’s

data and measuring values into txt

file.

6.Save previous “ ID/COM” to ini

file.

７. Magnify display dialogue

For easy and clear to monitor the

channels and data.

８. Dropdown menu

８.1 Clear All : clear List & chart

to empty

８.2 Setup : Set Hi & Lo setting

value to be blinking when they

are over setting values.

８.3 About:Display manufacturer

information.

9. Default File Save at:

C:\800_Multi\record

The default file name is current

time.

(YYYYMMDDHHMMSS_ID__ File Member).

10. Y axis setting for each

channel.

Precision : Y axis resolution setting

AUTO Y Scale ON/ OFF : Select Au-

to-scale

FAQ

Before play must to check

meter power on, if show

message err may be meter

power off or meter has not

connection.

If the ID NO. was not dis-

played while

connecting to USB cable.

Please check COM port sta-

tus as page2. Or if the COM

port is CMO3or COM10,

please change COM port NO.

to others.

PS: The data displayed was list by

connecting sequence, instead

of ID NO. First connecting in-

strument might not be ID 01.

If COM port is COM3,

please change to other

COM port.

Tabla de contenidos

Otros manuales de Instrumento de medición de Amprobe

Amprobe

Amprobe ACF3000 AK Manual de usuario

Amprobe

Amprobe PM55A Manual de usuario

Amprobe

Amprobe ALC-110 Manual de usuario

Amprobe

Amprobe LH41A Manual de usuario

Amprobe

Amprobe ADF-200 Manual de usuario

Amprobe

Amprobe MANO2-A Manual de usuario

Amprobe

Amprobe THWD-3 Manual de usuario

Amprobe

Amprobe WT-30 Manual de usuario

Amprobe

Amprobe SOLAR-500 Manual de usuario

Amprobe

Amprobe 3434877 Manual de usuario

Amprobe

Amprobe ACD-10 PRO Manual de usuario

Amprobe

Amprobe ACD-45PQ Manual de usuario

Amprobe

Amprobe AT-3500 Manual de usuario

Amprobe

Amprobe CT-326-C Manual de usuario

Amprobe

Amprobe TMA-20HW Manual de usuario

Amprobe

Amprobe PQ55A Manual de usuario

Amprobe

Amprobe LM631A Manual de usuario

Amprobe

Amprobe PM55A Manual de usuario

Amprobe

Amprobe TDR-400 Manual de usuario

Amprobe

Amprobe AC40C Manual de usuario

Amprobe

Amprobe AT-6000-R Manual de usuario

Amprobe

Amprobe UDM45 Manual de usuario

Amprobe

Amprobe MAN02-A Manual de usuario

Amprobe

Amprobe TIC 300 PRO Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
