AMG AMG5611R Manual de usuario
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
1
of
8
AMG5611R
Instruction
Sheet
D17157
-
02.doc
AMG5611R
Instruction Manual
Single Channel Video Transmit Unit for a Multimode Optical
Fibre Link
The
AMG5611R
is a compact standalone one channel video transmit unit designed to transmit 1 video
signal over a Multimode optical fibre.
The
AMG5611R
is designed to plug into an
AMG2005
or
AMG2009
subrack, which in turn fits into a
19" rack system.
The
AMG5611R
is designed to operate with an
AMG5612 / AMG5612R
single channel or
AMG5622 /
AMG5622R
dual channel video receive unit in a point
to point configuration. The R suffix in the partno.
indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No r
esponsibility is assumed by AMG for its use.
Page
2
of
8
AMG5611R
Instruction
Sheet
D17157
-
02.doc
Contents
Introduction
3
Unit Functional Schematic
................................
................................
................................
..................
3
Optical Connection
................................
................................
................................
.............................
3
1 Channel Video
................................
................................
................................
................................
.
3
Connections
4
Video Input Connections
................................
................................
................................
....................
4
Optical Connections
................................
................................
................................
...........................
4
Power Connection
................................
................................
................................
..............................
4
Front Panel Indicators
5
Power LED Video only
................................
................................
................................
........................
5
Physical Information
6
Dimensions
................................
................................
................................
................................
.........
6
Mounting Details
................................
................................
................................
................................
.
6
Safety
6
Maintenance and Repair
6
AMG Systems Ltd. reserves the right to make changes to this
d
ocument without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
3
of
8
AMG5611R
Instruction
Sheet
D17157
-
02.doc
Introduction

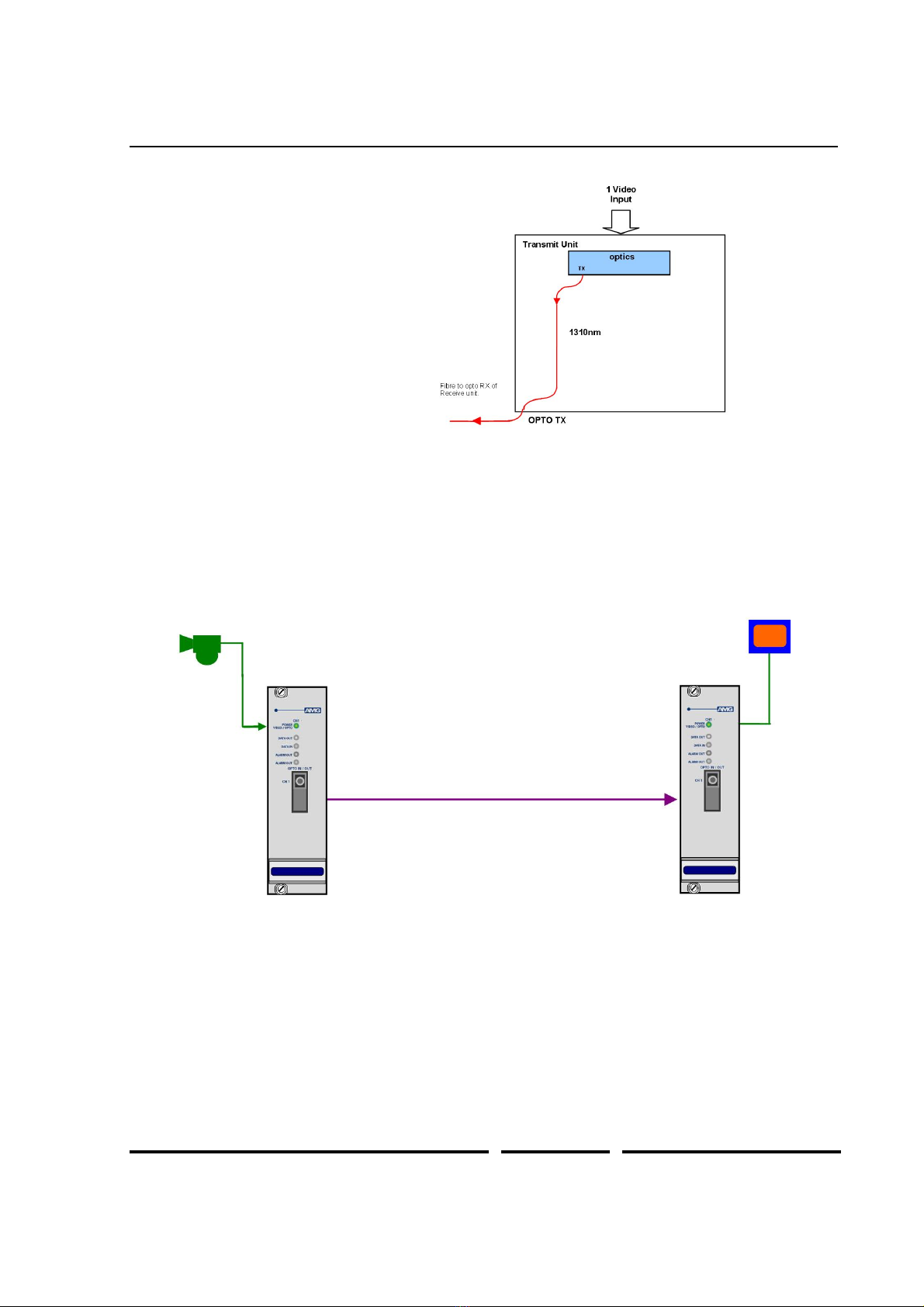

Unit Functional Schematic
The
AMG5611R
transmits 1 video signal to
the
AMG5612
receive unit.
Optical Connection
The
AMG5611R
conne
ctions are illustrated in the following example which shows a
AMG5611R
transmit unit together with an
AMG5612R
single channel rackmount receive unit configured as a point
to point system.
1 Channel Video
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
4
of
8
AMG5611R
Instruction
Sheet
D17157
-
02.doc
Connections
Video Input Connections
No. of
channels
................................
....
1
Connector
................................
............
75 ohm BNC Socket.
Input Impedance
................................
..
75 ohm terminated.
Input Level
................................
...........
1 volt p
-
p nominal
Frequency Response
...........................
10Hz to 7MHz.
Optical Connections
No. of Optical Connections
..................
1 per video channel
Minimum Optical Fibre
.........................
Multimode 50/125 or 62.5/1
25**
Connector Type
................................
...
SC/PC
Minimum Optical Launch Power
..........
-
10dBm
Transmit Wavelength
...........................
1310nm
Optical Link Dynamic Range
...............
20dB.
**Note: the transmission distance is limited by the bandwidth of the Multimode optical fibre. The optical
data rate is 155Mbits/s,
which may restrict operation to a maximum fibre length of 7km, although in
most cases the units will operate successfully over longer fibre lengths. It is advisable however for
distances greater than 7km, to have the optical fibre tested.
Power Connectio
n
Power supply
................................
.......
From plug in connection on the AMG2009 or AMG2015 subrack
Power consumption
.............................
1.5 Watts max.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is as
sumed by AMG for its use.
Page
5
of
8
AMG5611R
Instruction
Sheet
D17157
-
02.doc
Front Panel Indicators
Power LED Video only
Power / Video / Opto
...........................
Green
-
Video input.
Red
-
Unit powered, no Video input.
Off
-
No power applied
to unit
AMG Systems Ltd. reserves the right to make changes to this
document without not
ice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
6
of
8
AMG5611R
Instruction
She
et
D17157
-
02.doc
Physical Information
Dimensions
Height
................................
...................
3U Plug
-
in
Width
................................
....................
7HP
Depth
................................
...................
170mm excluding connectors
Weight
................................
..................
200grams
Mounting Details
The unit is designed to be mounted within an AMG2009 or AMG2015 Subrack on standard card
guides.
Safety
AMG Opti
cal Fibre Products use Class 1 laser systems in accordance with EN 60825
-
2:2000.
It is always advisable to follow good practice when working with optical fibre systems. This includes:
Do not stare with unprotected eyes or with any unapproved collimating
device at fibre
ends or connector faces, or point them at other people.
Use only approved filtered or attenuating viewing aids
For other safety issues and advice on good practice associated with optical fibre systems, please see
EN 60825
-
2:2000 or your lo
cal safety officer.
Maintenance and Repair
There are no user serviceable parts within AMG products. See unit data sheet for full specification.
In case of problem or failure, please call your local support centre or contact:
AMG Systems Ltd.
at
3 The
Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
Phone
+44 (0) 1767 600 777
Technical Support
+44 (0) 1767 604 491
Email
techsupport@amgsystems.com
A
MG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
7
of
8
AMG5611R
Instruction
Sheet
D17157
-
02.doc
This page is intentionally blank.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for it
s use.
Page
8
of
8
AMG5611R
Instruction
Sheet
D17157
-
02.doc
This page
is intentionally blank.
