Ameriwood HOME TYLER 4865837COM Manual de usuario

B344865837COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

4865837COM

TYLER TOY STORAGE BOOKCASE

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR

Helpful Hints

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Tube

You

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Board Identification

Not actual size

ameriwoodhome.com

LEFT PANEL

T4865837020GO

QTY: 1 PC

RIGHT PANEL

T4865837030GO

QTY: 1 PC

TOP

T4865837010GO

QTY: 1 PC

PARTITION LEFT

T4865837040GO

QTY: 1 PC

PARTITION RIGHT

T4865837050GO

QTY: 1 PC

BOTTOM

T4865837060GO

QTY: 1 PC

SHELF CENTER

T4865837070GO

QTY: 1 PC

UPPER FRONT PANEL

T4865837080GO

QTY: 1 PC

LOWER FRONT PANEL

T4865837090GO

QTY: 1 PC

Tube

You

Board Identification

Not actual size

ameriwoodhome.com

SHELF OUTER

T4865837100GO

QTY: 4 PCS

Tube

You

REAR PANEL

T4865837110GO

QTY: 1 PC

BACK PANEL

T4865837120GO

QTY: 1 PC

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

Part List

ameriwoodhome.com

Hardware Bag Reference number:

24865837COM0GO

Actual Size

×34 ×34 ×41

CAM LOCK

TGO2101

WOOD DOWEL

TGO2900

Ø1.7 X 18mm

×32

NAIL

TGO6517

Ø8 x 30mm

Ø15 x 12mm

1 2 4

×4

Ø6 x 25mm

CAM BOLT

TGO2001

×12

WOOD DOWEL

TGO2903

Ø6 x 30mm

Not Actual Size

Tube

You

Ø4 x 38mm

SCREW

TGO1319

×1

SCREW

TGO1314

Ø4.2 x 28mm

×1

WALL ANCHOR

TGO6501

Ø6 x 30mm

×1

WALL BRACKET

TGO3502

30x50x20mm

Ø4.2 x 13mm

×1

SCREW

TGO1304

ameriwoodhome.com

STEP

1.1 Attach (10) into (A) with (7) as illustrated.

1.2 Cam bolt (2) into (A), (B) and (C) as illustrated

1.3 Insert (4) into (A), (B), (C) and (H) as illustrated.

×18

24 ×10

Tube

You

×1 7 ×1

ameriwoodhome.com

STEP

2.1 Insert (4) into (D), (I) and (E) as illustrated.

2.2 Cam bolt (2) into (D) and (E) as illustrated.

×16

Tube

You

4 ×10

right sunface

Left sunface

right sunface

ameriwoodhome.com

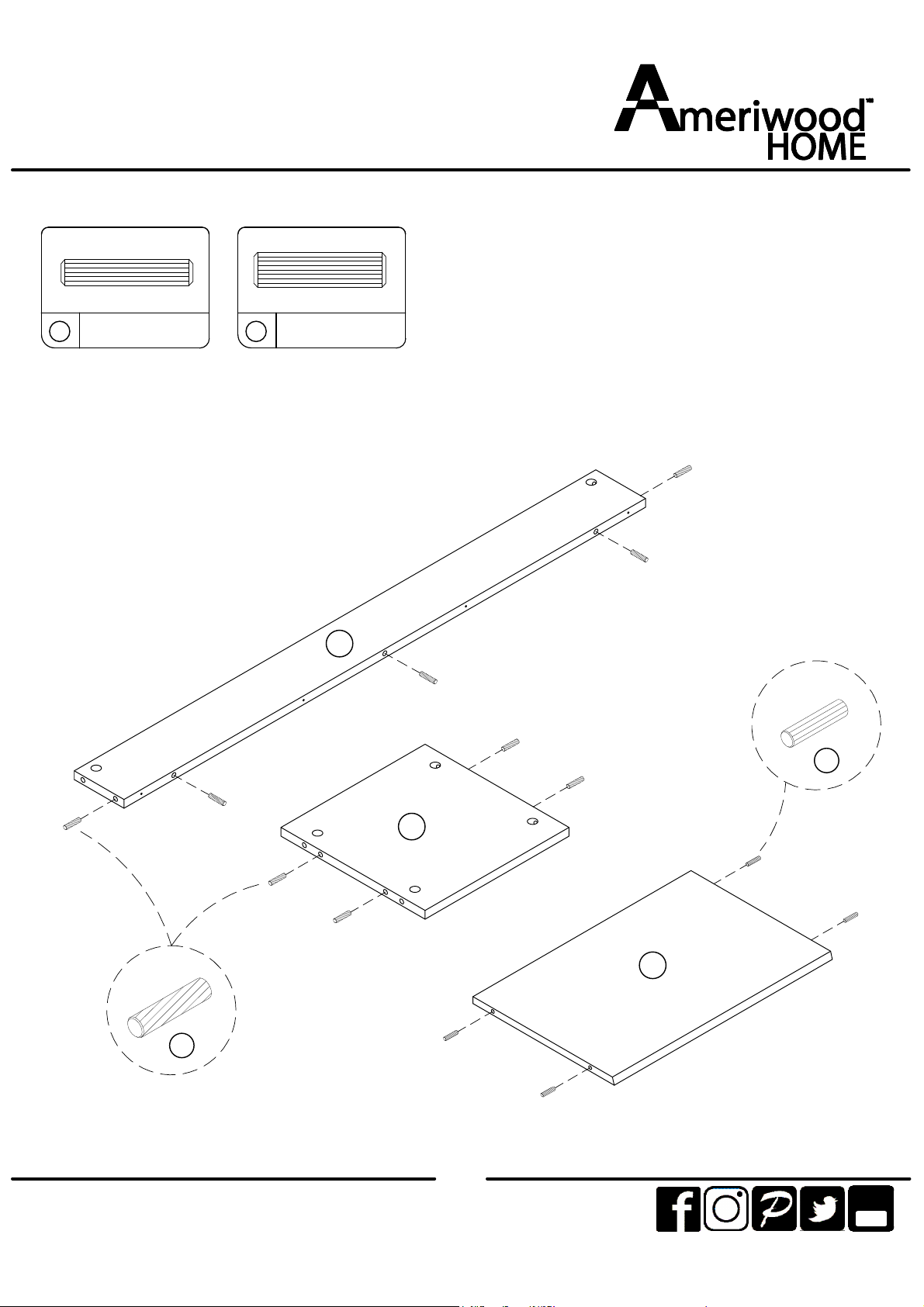

STEP

3.1 Insert (3) into (G) as illustrated.

3.2 Insert (4) into (K), (J) x 4 as illustrated.

3 ×4

Tube

You

J x 4

4 ×21
