Ameriwood HOME 5984303WCOM Manual de usuario

B345984303WCOM0

5984303WCOM

STOP

1-800-489-3351

Need Parts or Assistance?

WWW.AMERIWOOD.COM/PARTS

If a part is missing or damaged, visit our website or call our toll-free

customer service line. We will gladly ship your replacement parts

FREE of charge.

For prompt, reliable service please have your assembly manual ready.

DO NOT RETURN PRODUCT TO THE STORE

Individual stores do not stock parts.

or call toll free:

Recommended # of people needed for assembly: 2

(however it is always better to have an extra hand.)

Estimated assembly time is 2 hours.

Se localizan las traducciones españolas en el centro de este

manual.

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT SAFETY INFORMATION. PLEASE

READ AND KEEP FOR FUTURE REFERENCE.

Date of Purchase

___ / ___ / ___

Please Recycle

Recicle Por Favor

Warning:

WARNING FOR YOUNG CHILDREN - This product contains small

components, please ensure that they are kept away from small

children. Children under the age of 6, small infants and babies must not

sleep on this bed for safety reasons. To prevent injury and damage to

this unit, PROHIBIT jumping on it.

This product is designed for home use and not intended for commercial

use.

0 29986 59844 8

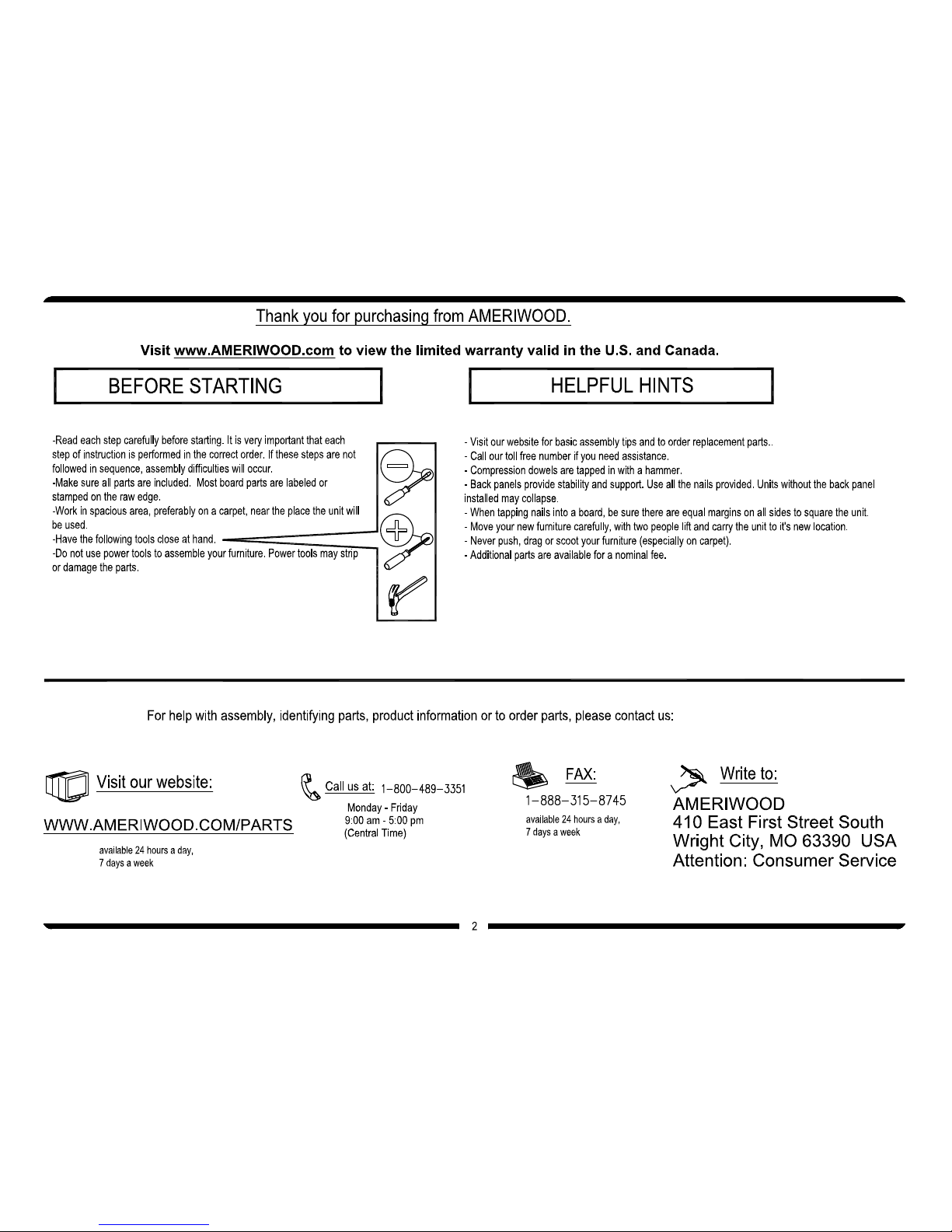

B345984303WCOM0

3 /25

Parts Parts List DESCRIPTION

PART NUMBER

QTY

ITEM SIDE A

359843030102

ASIDE B359843030202

BLEFT HEADBOARD PANEL35984303050

ERIGHT HEADBOARD PANEL35984303060

1F HEADBOARD TOP35984303070

GHEADBOARD UPPER PANEL35984303080

1H HEADBOARD CENTER PANEL35984303090

IHEADBOARD LOWER PANEL35984303100

1J HEADBOARD SLAT359843031103

KFOOTBOARD TOP35984303120

1L FOOTBOARD35984303130

1M FOOTBOARD MOLDING359843031402

NMATTRESS FRAMEA97020

114

Parts shown are the base cabinet of your model. Please note, most parts are

labeled with a sticker or have a letter stamped on a raw edge.

B345984303WCOM0

4 /25

Parts

assembled frame

marco ensamblado

rail A

#A97020-1

Qty: 2

14a

rail B

#A97020-2

Qty: 2

center rail

#A97020-3

Qty: 1

cross bar

#A97020-4

Qty: 16

leg

#A97020-5

Qty: 2

14b

14c

14d

14e

14f

14g

14h

14i

1/4-20 x 1-1/4" bolt

#A97020-6

Qty: 2

hex key

#A97020-9

Qty: 1

locking clip

#A97020-8

Qty: 32

1/4-20 x 5/8" bolt

#A97020-7

Qty: 6

Metal frame parts will be packaged in its own box.

Piezas de marco de metal serán embalados en su propia caja.

connecting plate

#A54270

Qty: 2

B345984303WCOM0

5 /25

Parts

HARDWARE COMPARTMENT LAYOUT

cam lock

#A22570

Qty: 2

cam bolt

#A22510

Qty: 2

wood dowel

#A21660

Qty: 6

1-1/8" screw

#A12920

Qty: 4

(black)

1-1/4" screw

#A13010

Qty: 12

(silver)

straight bracket

#A53820

Qty: 2

1/2" screw

#A12210

Qty: 12

1" screw

#A12810

Qty: 22

connector bolt

#A22910

Qty: 5

connector

#A22920

Qty: 5

1/4-20 x 1/2"

barrel nut

#A20640

Qty: 8

1/4-20 x 3/8" bolt

#A19170

Qty: 4

1/4-20 x 1" bolt

#A19420

Qty: 4

15 2" cross dowel bolt

#A19895

Qty: 4

cross dowel fastener

#A22950

Qty: 8

4mm hex key

#A23100

Qty: 1

5mm hex key

#A23120

Qty: 1

tack glide

#A43200

Qty: 6

20 21

2-3/4" cross dowel bolt

#A19690

Qty: 4

B345984303WCOM0

6 /25

3½ turn to fully

lock.

½ se vuelven a

totalmente

cerradura.

Tighten to fully seat. Do not over

tighten.

Apriétese a totalmente asiento. No

haga encima de apriétese.

Proper orientation of cam.

La orientación apropiada de leva.

This illustration shows how the cam fastening system works.

Esta ilustración muestra el sistema de fijación de leva y como funciona.

Lock

Apretar

Titus

Cross dowel fastening system.

Sistema de fijación de la clavija transversal.

Long slot points toward bolt.

La ranura larga apunta hacia perno.

Caution: If using a power drill or power screwdriver for

screwing, please be aware to slow down and stop when screw

is tight. Failure to do so may result in stripping the screw.

Precaución: Si se utiliza un taladro o destornillador eléctrico

para atornillar, tenga en cuenta para frenar y parar cuando el

tornillo es apretado. El no hacerlo puede resultar en la

extracción del tornillo.

B345984303WCOM0

7 /25

x 4 x 2

x 12 x 2

finished edge

borde acabado

finished edge

borde acabado

Insert two wood dowels (3) into the end holes and press

the side (A) and side (B) together.

After pressing the sides (A&B) together, secure

together with connecting plate (19), straight bracket (6)

and screws (7) as shown.

B345984303WCOM0

8 /25

2x 2

x 2

You will need to tap the connector (10) with a

hammer to fully insert. Be sure the connector

is positioned as shown before pushing into

holes.

910

10 10

B345984303WCOM0

9 /25

x 10

Position the three headboard slats (K) as shown.

Using screws (8), attach the headboard

upper panel (H) and headboard center panel

(I) as shown.

DO NOT fully tighten the screws in this step.

End View

Vista Lateral

KKK

raw surface

superficie cruda

raw surface

superficie cruda

B345984303WCOM0

10 /25

???www.ameriwood.com???

x 12 Make sure outer edge of headboard panel (E&F) are flush with the edge of the headboard slats (K).

Attach the left and right headboard panels (E&F) to the

headboard slats (K) with screws (8) as shown. Do not

overtighten screws.

Now tighten the screws that were left loose in the previous

step snug, but DO NOT overtighten.

KKK
