Ameriwood HOME FRANKLIN 7556815COM Manual de usuario

B347556815COM00

Do Not Return This Product!

Contact our customer service team for help ﬁrst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

–Unit can !p over causing severe injury or death.

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

FRANKLIN STORAGE TOWER

7556815COM

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Easy Tough

Assembly Diﬃculty Meter

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy li!ing

- Iden"fy, sort and count the parts before a#emp"ng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le!) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

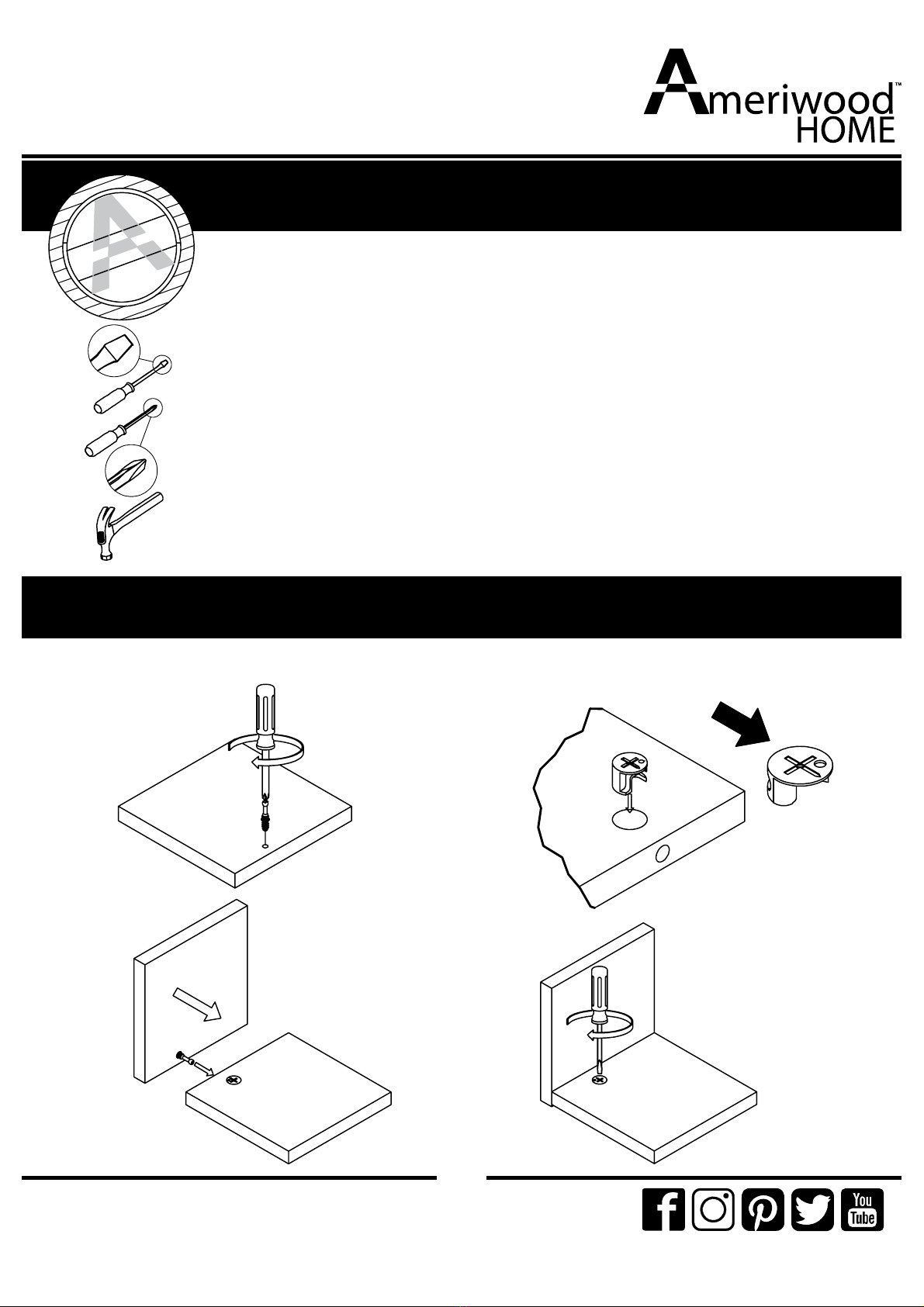

Before You Start

Cam Lock Fastening System

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cau!on: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is !ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

Board Iden•ﬁca•on

Not actual size

ameriwoodhome.com

T7556815010

TOP PANEL

T7556815020

CENTER SHELF

T7556815030

UPPER LEG (SHORT)

T7556815040

LOWER LEG (LONG)

T7556815050

FIXED SHELF

2 3

ameriwoodhome.com

* raw edges are shaded

Part List

Not Actual Size

ameriwoodhome.com

Hardware Bag Reference Number:

27556815COM0

x20

TUD0042

FLAT WASHER

TUD0062

BALL SHAPE ALLEN KEY

x20

TUD0059

JCBC Screw

M6 X 65

TUD0052

JCBC Screw

M6 X 30

x24

TUD0041

SPRING WASHER

x1 SET

TUD0021

ANTI TIPPING KIT

ameriwoodhome.com

* raw edges are shaded

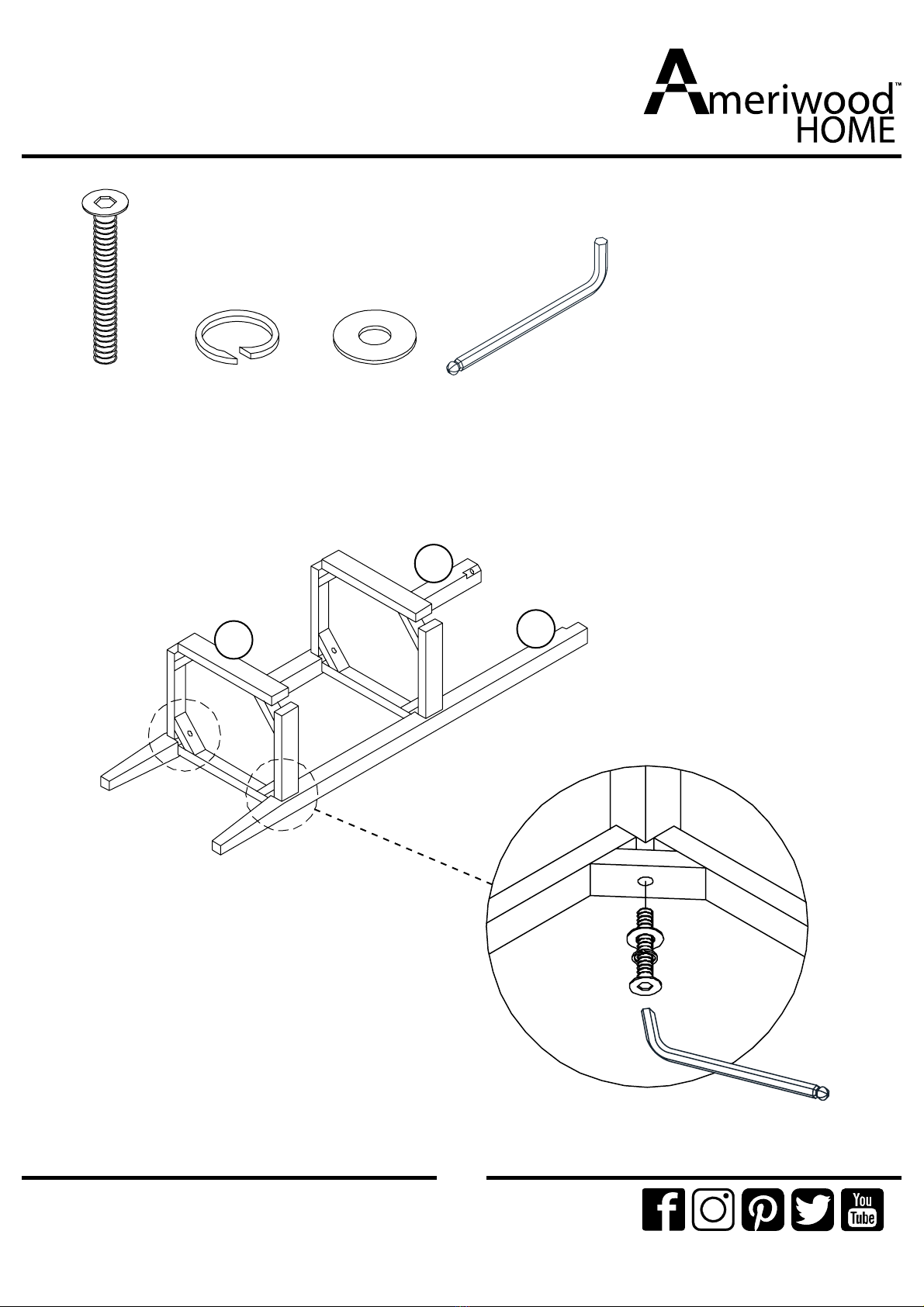

Step 1

TUD0042

TUD0059 x4

TUD0041

NOTE : DO NOT FULLY TIGHTEN ALL THE BOLT.

TUD0062

ameriwoodhome.com

* raw edges are shaded

Step 2

TUD0052

TUD0041

NOTE : DO NOT FULLY TIGHTEN ALL THE BOLT.

TUD0062

ameriwoodhome.com

* raw edges are shaded

Step 3

TUD0042

TUD0059 x4

TUD0041

3 3

1NOTE : FULLY TIGHTEN ALL THE BOLT.

TUD0062

ameriwoodhome.com

* raw edges are shaded

Step 4

TUD0042

TUD0059 x2

TUD0041

TUD0062

NOTE : DO NOT FULLY TIGHTEN ALL THE BOLT.

ameriwoodhome.com

* raw edges are shaded

Step 5

TUD0042

TUD0059 x2

TUD0041

TUD0062

NOTE : DO NOT FULLY TIGHTEN ALL THE BOLT.
