Condor Toolless TV Stand

B346743333COM01MP

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help rst.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Di culty Meter

Easy Tough

THE TOP SHELF OF UNIT IS DESIGNED TO HOLD LCD

AND PLASMA TVS UP TO 50” WITH A WEIGHT OR NOT

MORE THAN 60 LBS (27KG).THE BASE OF THE TV MUST

REST ON THE SUPPORTING TOP SURFACE OF THE UNIT

WITHOUT OVERHANGING THE EDGES.OVERHANGING THE

EDGES MAY RESULT IN INSTABILTY CAUSING POSSIBLE

DAMAGE OR INJURY.SEE PAGE 8 OF THESE INSTRUCTIONS

FOR FURTHER SAFETY INSTRUCTIONS.

WARNING

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team ĮƌƐt for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy li ing.

- Iden y, sort and count the parts before a em g assembly.

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 20 MINUTE

ͲDŽǀĞǇŽƵƌŶĞǁĨƵƌŶŝƚƵƌĞĐĂƌĞĨƵůůǇǁŝƚŚƚǁŽƉĞŽƉůĞůŝŌĂŶĚĐĂƌƌǇƚŚĞƵŶŝƚƚŽŝƚƐ

ŶĞǁůŽĐĂƟŽŶ

- Visit our website for assembly video clips.

- Call our toll free number if you need assistance.

ameriwoodhome.com

Not actual size

T6743333010MP

TOP

T6743333020MP

LARGE SHELF

T6743333030MP

SMALL SHELF

T6743333040MP

SUPPORT BAR

(QTY : 1) (QTY : 1) (QTY : 4) (QTY : 1)

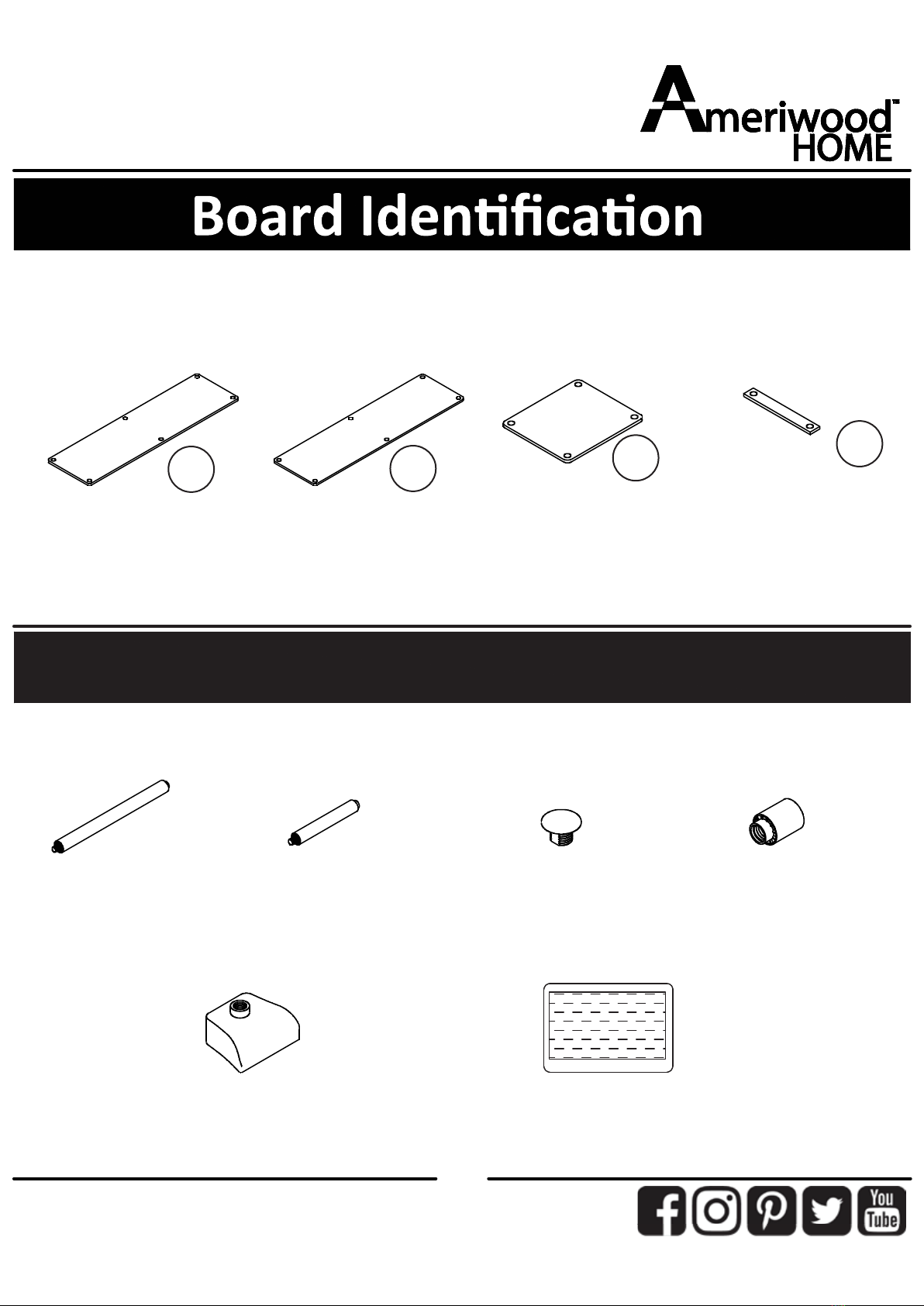

Part List

Not actual Size

TMP303401

LONG POLE

TMP301621

SHORT POLE

TMP032021

TOP CAP

TMP034381

ROUND LEG

TMP101381

ANTI-TIP LEG

TMP6743

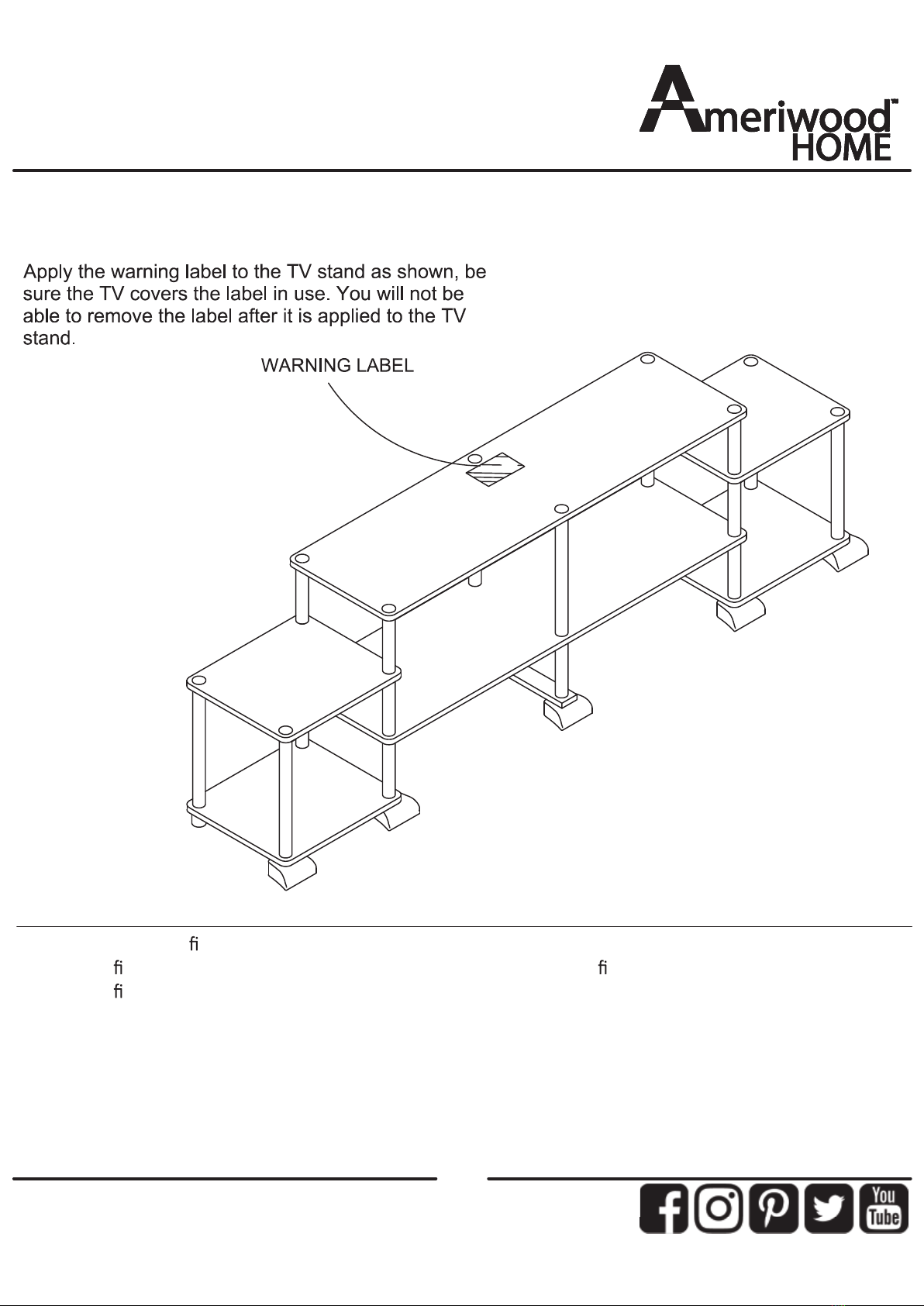

WARNING LABEL

(QTY : 6) (QTY : 14) (QTY : 10) (QTY : 5)

(QTY : 5) (QTY : 1)

ameriwoodhome.com

STEP 1

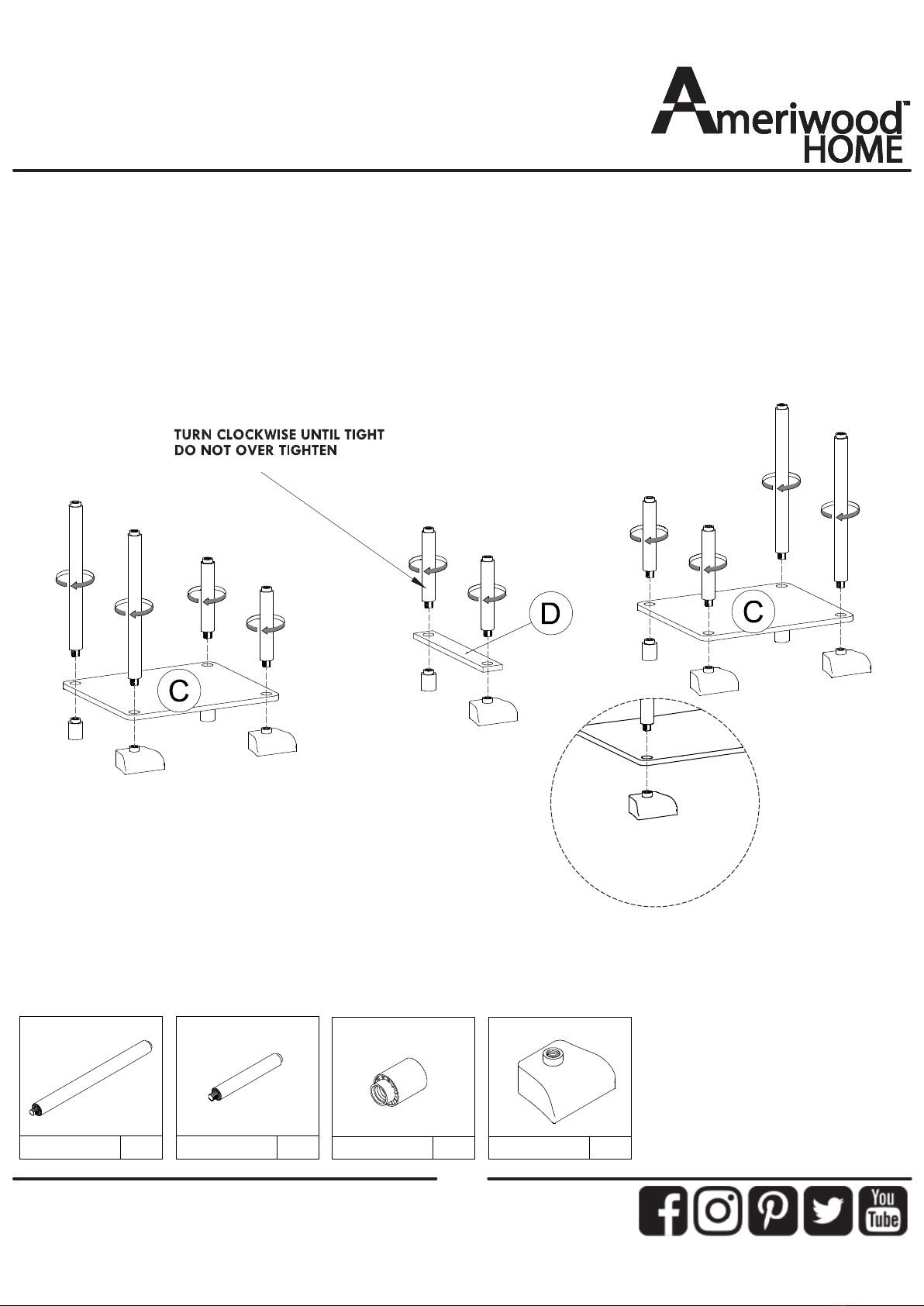

- Use long pole & short pole to join the round leg & anti-tip leg

with panels (C&D) as below shown.

LONG POLE SHORT POLE ROUND LEG ANTI-TIP LEG

4pcs 6pcs 5pcs 5pcs

Please note: Wider side of all

anti-tip leg should be placed

outward.

- Make sure the board finishing surface are placed upwards.

ameriwoodhome.com

STEP 2

LONG POLE SHORT POLE

2pcs 4pcs

- Make sure the board finishing surface are placed upwards.

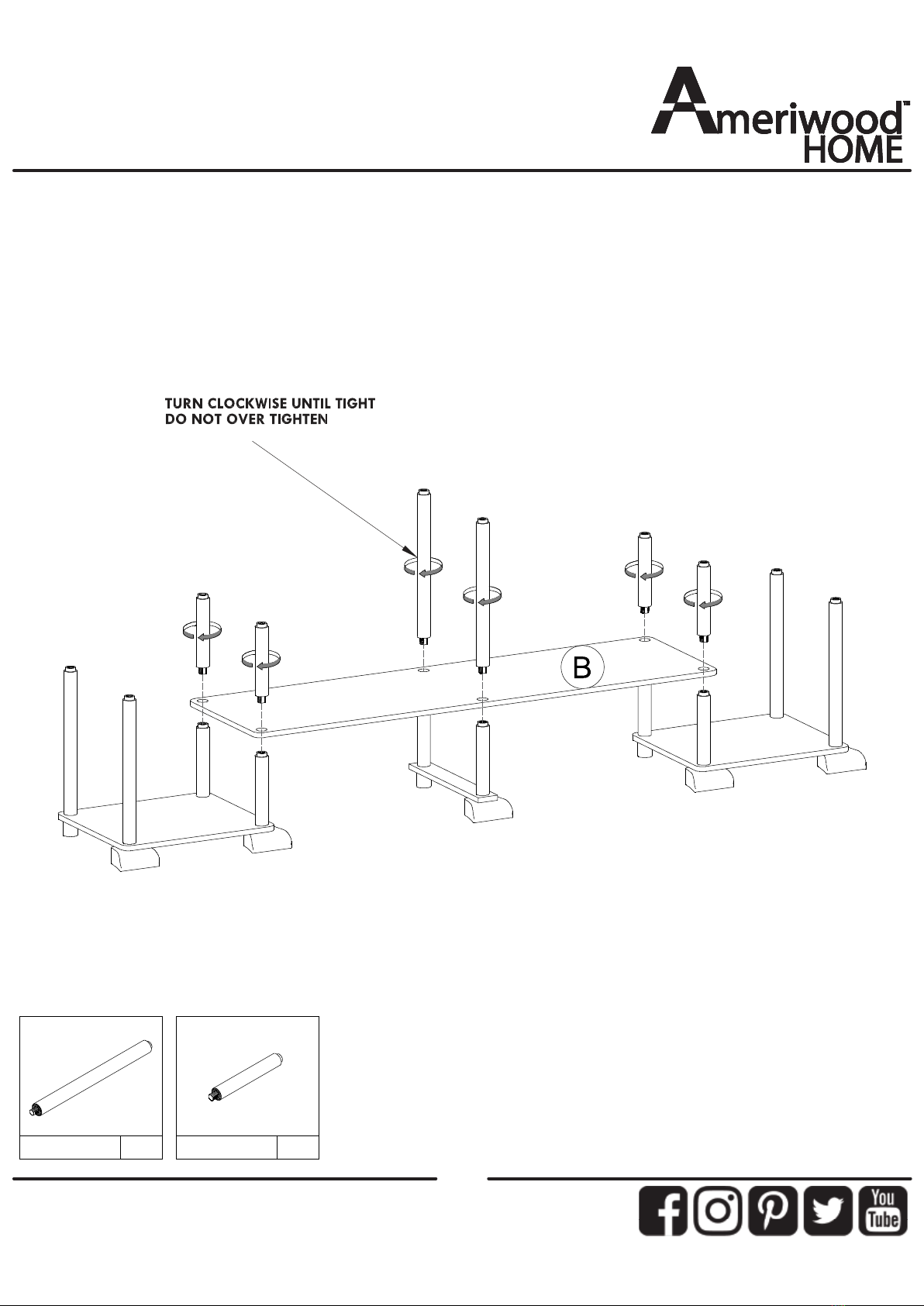

- Use long pole & short pole to join the unit with panel (B)

as below shown.

ameriwoodhome.com

STEP3

- Make sure the board finishing surface are placed upwards.

SHORT POLE 4pcs TOP CAP 4pcs

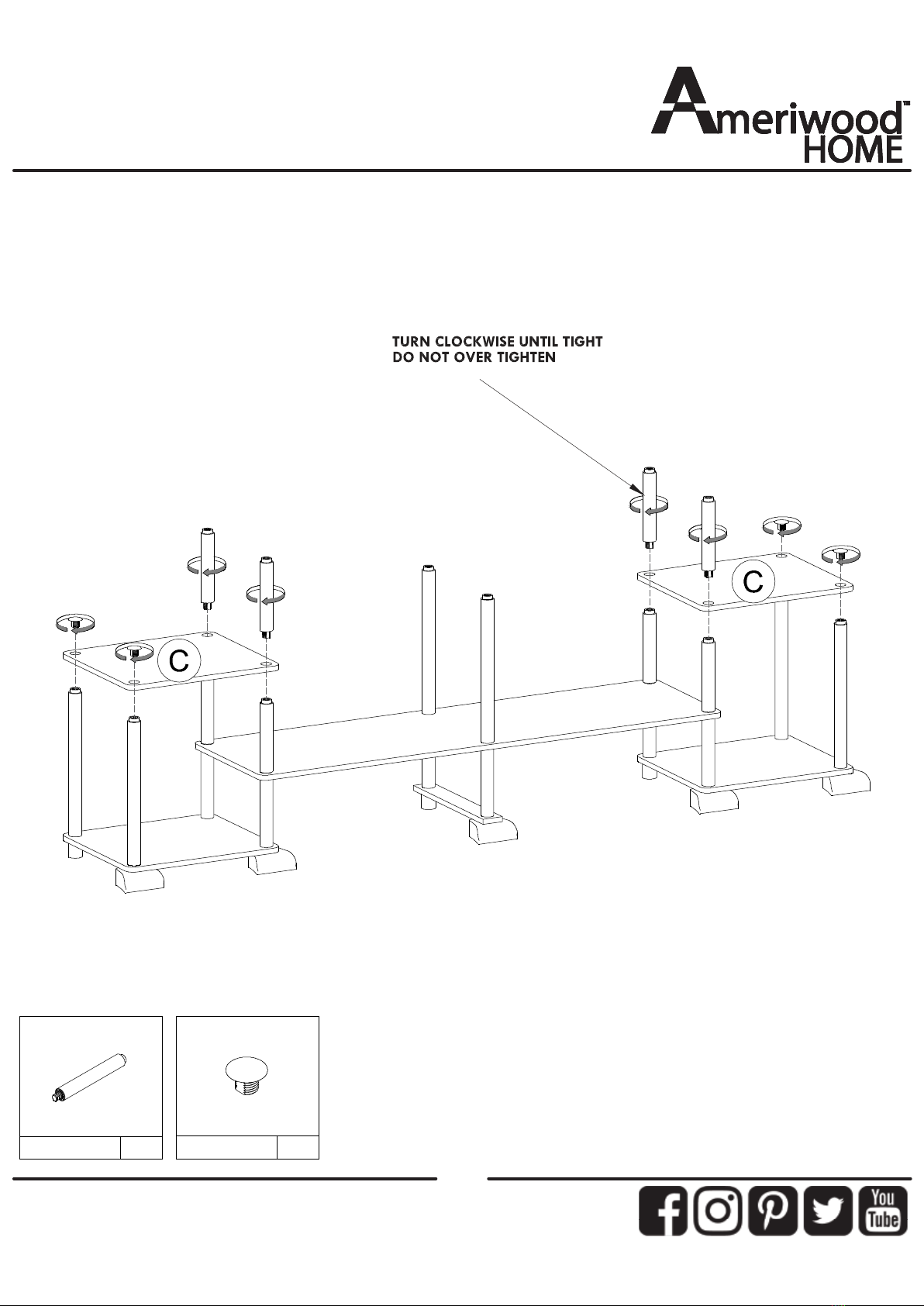

- Use top cap & short pole to join the unit with panel (C)

as below shown.

ameriwoodhome.com

STEP 4

- Make sure the board finishing surface are placed upwards.

TOP CAP 6pcs

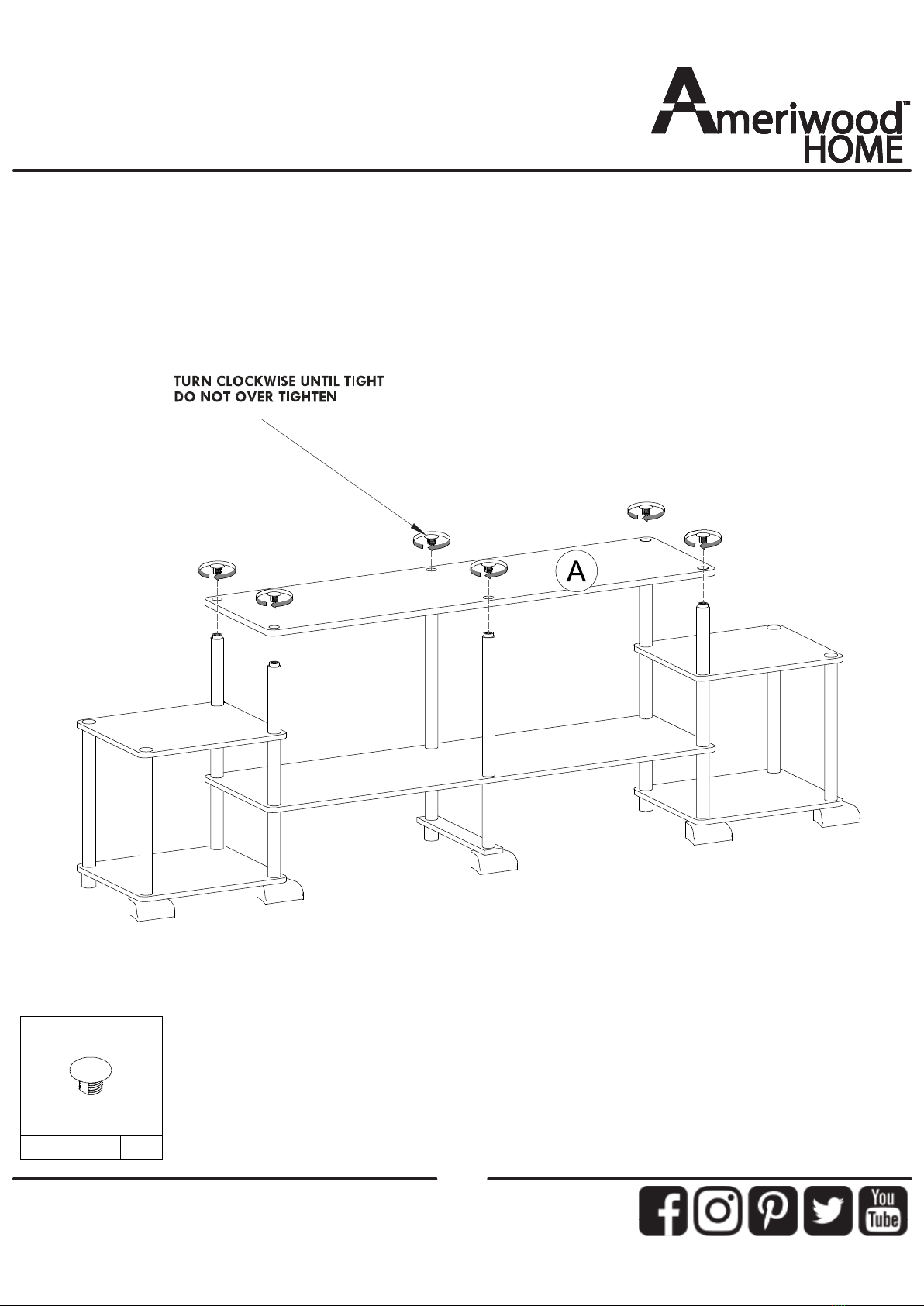

- Use top cap to join the unit with panel (A) as below shown.

ameriwoodhome.com

Maximum Loads

Certi cate of Conformity

1. This certi cate applies to the Dorel Home Furnishings, Inc. product identi ed by this instruction manual.

2. This certi cate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303).

3. This product is distributed by: Dorel Home Furnishings, Inc.

410 East First Street South

Wright City, MO 63390

636-745-3351

4. Site of Manufactu Malaysiare:

5. See front page of instruction manual for date of manufacture.

This unit has been designed to support the maximum loads shown. Exceeding these load limits

could cause sagging, instability, product collapse, and/or serious injury.

Accommodates most flat panel TVs up to 50”,

60 lbs./27kgs MAX.

20 LBS (9.1KG) 20 LBS (9.1KG)

20 LBS

(9.1KG)

20 LBS

(9.1KG)

20 LBS

(9.1KG)

20 LBS

(9.1KG)

ameriwoodhome.com
