American Time PE64BGPD204 Manual de instrucciones
Keyhole
Hanger
INST-POE-ANA Rev 5
Power Over Ethernet (PoE) Analog Clocks
2
1
Pre-Installation
1. Verify network infrastructure with Network Administrator.
• Power over Ethernet (PoE) solution
• Dynamic Host Conguration Protocol (DHCP) settings
2. Plan Analog PoE Clock locations and cabling routes
Unpack the box
• Remove the components from the box. Save the packing materials in case you need
them later.
Check the contents
Your package contains:
• Analog PoE clock(s)
• 1ft CAT 5 or higher Ethernet patch cable
• Quick Start Guide
• Installation and Operation Manual
• USB Drive (optional) with Network Clock Connect Software—Part #H004167B-POE
3
Hang your clocks
1. Place the clock on the wall using the keyhole hanger on the back of the clock or the optional
security bracket (sold separately).
Note: If hanging your clock over an Ethernet jack, offset the clock as shown below.
6
Please read this rst!
If this is your rst installation or you have questions at any time during this process, please call
American Time toll free at 800-328-8996.
phone: 800-328-8996 online: american-time.com fax: 800-789-1882
mail: 140 3rd St. So.; PO Box 707, Dassel, MN 55325-0707
With
Optional
Security
Bracket
(12" shown)
Set up the Clock

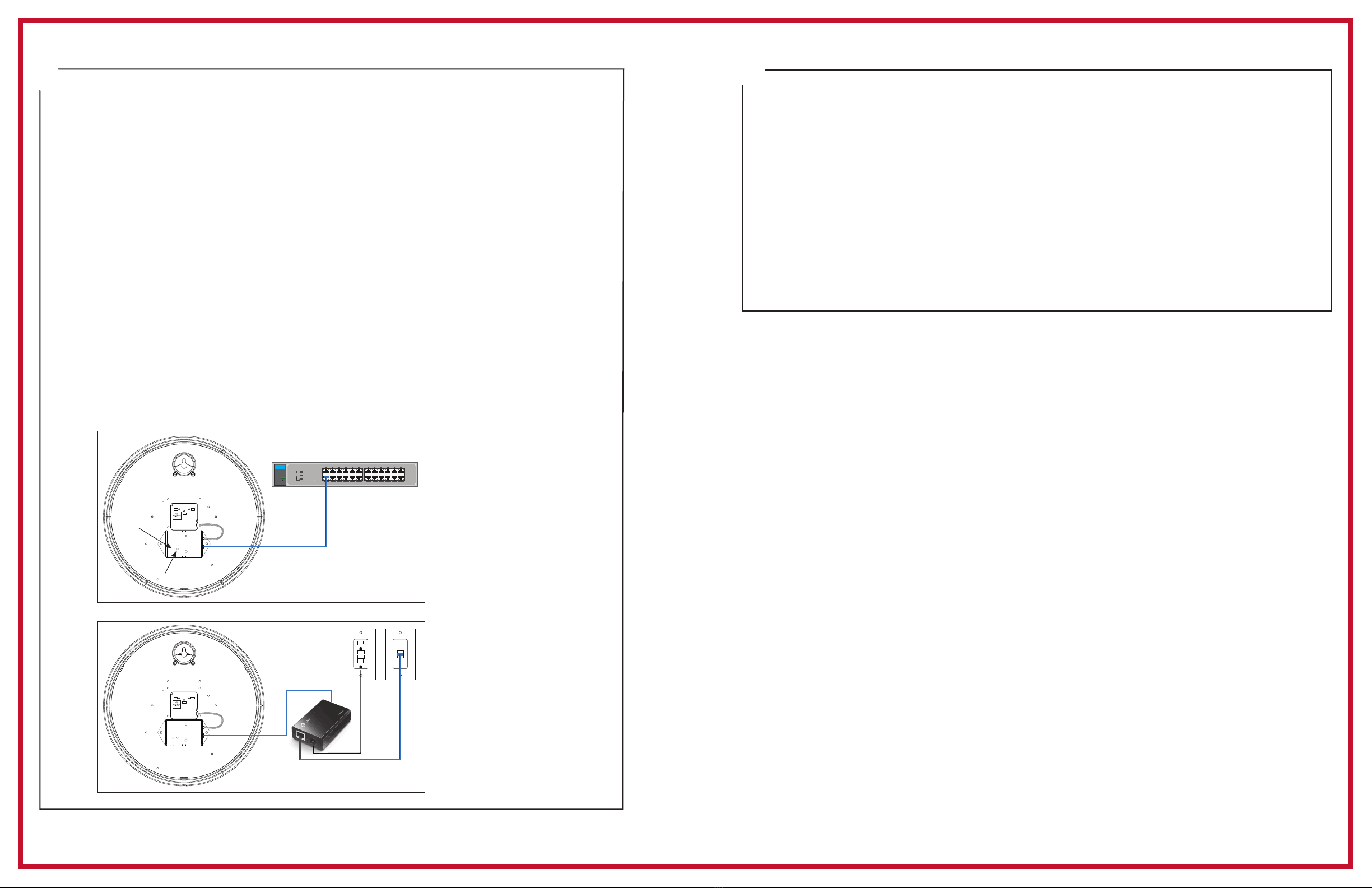

1. Apply power to the clock by connecting a CAT 5 or higher Ethernet patch cable (A) from
a PoE switch (Fig. 1) or single injector (Fig. 2) to the PoE receiver (D).
—PoE Switch (Fig.1) - Check with network administrator for infrastructure needs. This part
is not supplied by American Time.
—PoE Injector (TMA200-6) (Fig. 2) - This is an optional power source that may be
purchased from American Time.
2. The Status LED (B) will indicate the clock's status as follows:
—Flashing Orange: Acquiring an IP address using DHCP
—Flashing Red: Attempting SNTP sync
—Continuous Red: Failed SNTP sync
—Flashing Green: Received SNTP sync
—Continuous Green: Successful SNTP sync
Note: When a DHCP network is not present at initial start up, the PoE clock will default
to a random Static IP in the range of 169.254.1.0 to 169.254.254.255.
For more details reference the PoE Analog and Global Series Digital Manual.
Find it online: american-time.com
Navigate to: SUPPORT > PRODUCT DOCUMENTATION > select MANUAL > type PoE in
searchbox > SEARCH – Click on PoE Analog and Global Series Digital Manual.
3. The Buzzer LED (C) designates if the buzzer is enabled. The buzzer is an optional feature.
A=PoE connection (CAT 5 or higher Ethernet patch cable) B=Status LED C=Buzzer LED D=PoE Receiver
QUICK START INSTALLATION GUIDE POWER OVER ETHERNET ANALOG CLOCKS
5
4
Adjustments via Network Clock Connect
1. Download Network Clock Connect. Find it online: american-time.com
Navigate to: SUPPORT > PRODUCT DOCUMENTATION > select FIRMWARE > SEARCH
Click on Network Clock Connect.
The software will automatically download. It is also available from the optional USB
Drive (H004167B-POE, purchased separately).
2. Install Network Clock Connect application – Password = clock4u (default)
3. Network Clock Connect will allow you to congure:
• Network address settings
• Time Synchronization settings
• Daylight Saving Time settings
• Schedules (Buzzer clocks) - maximum of 100 scheduled events
For more details, reference the PoE Analog and Global Series Digital Manual.
1 3 5 7 9 11
2 4 6 8 10 12
13 15 17 19 21 23
14 16 18 20 22 24
10/100/1000 Base-T Ports (1-24)
Ethernet
Gigabit Switch
Power
Fault
Locator Reset Clear
LED
Mode
Act
Spd
FDx
A
A
A
B
C
Fig. 1
Fig. 2
D
TMA200
PoE switch
