AMD Phenom 10h Manual operacional

Advanced Micro Devices

Family 10h

AMD Phenom™ Processor

Product Data Sheet

Publication # 44109

Revision: 3.00

Issue Date: November 2007

The contents of this document are provided in connection with Advanced Micro Devices, Inc.

(“AMD”) products. AMD makes no representations or warranties with respect to the accuracy

or completeness of the contents of this publication and reserves the right to make changes to

specifications and product descriptions at any time without notice. The information contained

herein may be of a preliminary or advance nature and is subject to change without notice. No

license, whether express, implied, arising by estoppel or otherwise, to any intellectual property

rights is granted by this publication. Except as set forth in AMD’s Standard Terms and

Conditions of Sale, AMD assumes no liability whatsoever, and disclaims any express or

implied warranty, relating to its products including, but not limited to, the implied warranty of

merchantability, fitness for a particular purpose, or infringement of any intellectual property

right.

AMD’s products are not designed, intended, authorized or warranted for use as components in

systems intended for surgical implant into the body, or in other applications intended to

support or sustain life, or in any other application in which the failure of AMD’s product could

create a situation where personal injury, death, or severe property or environmental damage

may occur. AMD reserves the right to discontinue or make changes to its products at any time

without notice.

Trademarks

AMD, the AMD Arrow logo, AMD Phenom and combinations thereof, AMD CoolCore and 3DNow! are trademarks of

Advanced Micro Devices, Inc.

HyperTransport is a licensed trademark of the HyperTransport Technology Consortium.

MMX is a trademark of Intel Corporation.

Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies.

PID:44109 Rev:3.00 - November 2007 Family 10h AMD Phenom™ Processor Product Data Sheet

Revision History

Date Revision Description

November 2007 3.00 Initial Public Release

PID:44109 Rev:3.00 - November 2007 Family 10h AMD Phenom™ Processor Product Data Sheet

Family 10h AMD Phenom™ Processor Features

1 Family 10h AMD Phenom™ Processor Features

The following is a list of features and capabilities of the Family 10h AMD Phenom™ processor.

• Compatible with Existing 32-Bit Code Base

• Including support for SSE, SSE2, SSE3, SSE4a, ABM, MMX™, 3DNow!™ technology and legacy x86

instructions

• Runs existing operating systems and drivers

• Local APIC on the chip

• AMD64 Technology

• AMD64 technology instruction set extensions

• 64-bit integer registers, 48-bit virtual addresses, 40-bit physical addresses

• Sixteen 64-bit integer registers

• Sixteen 128-bit SSE/SSE2/SSE3 registers

•Multi-Core Architecture

• Triple-core or quad-core options

• AMD Balanced Smart Cache

• Discrete L1 and L2 cache structures for each core

• Shared L3 cache structure

•Machine Check Architecture

• Includes hardware scrubbing of major ECC protected arrays

•Cache Structures

•64-Kbyte 2-Way Associative ECC-Protected L1 Data Cache

• Two 64-bit operations per cycle, 3-cycle latency

•64-Kbyte 2-Way Associative Parity-Protected L1 Instruction Cache

• With advanced branch prediction

• 512-Kbyte 16-Way Associative ECC-Protected L2 Cache

• Exclusive cache architecture storage in addition to L1 caches

• 2048-Kbyte (2-Mbyte) Maximum 32-way Associative ECC-Protected L3 Cache

• Shared cache architecture storage in addition to exclusive L1 and L2 caches

• Floating-Point Unit

• AMD Wide Floating-Point Accelerator

• 128 bit Floating-Point Unit (FPU)

• Virtualization Features

• SVM disable and lock

• Nested paging

• Rapid Virtualization Indexing

•Power Management

• Multiple low-power states

• Independent Dynamic Core Technology

• AMD CoolCore™ Technology

• Dual Dynamic Power Management

• System Management Mode (SMM)

• ACPI-compliant, including support for processor performance states

• Supported power states: C0, C1, C1E, S0, S1, S3, S4, S5

•Electrical Interfaces

• DDR2 SDRAM: SSTL_1.8 per JEDEC specification

• DDR2 SDRAM-like electrical specifications also used for clock, reset and test signals

PID:44109 Rev:3.00 - November 2007 Family 10h AMD Phenom™ Processor Product Data Sheet

Family 10h AMD Phenom™ Processor Features

• Refer to the AMD Family 10h Processor Electrical Data Sheet, order# 40014, for electrical details of

AMD Family 10h processors.

• HyperTransport™ Technology to I/O Devices

• HyperTransport 1 and HyperTransport 3 technology supported

• One (1) link, 16-bits in each direction, supporting up to 2000 MT/s or 4.0 GB/s in each direction in

HyperTransport Generation 1.0 mode and 3600 MT/s or 7.2 GB/s in each direction in HyperTransport

Generation 3.0 mode.

•Integrated Memory Controller

• AMD Memory Optimizer Technology

• Low-latency, high-bandwidth

• ECC checking with double-bit detect and single-bit correct

• 144-bit DDR2 SDRAM controller operating at frequencies up to 533 MHz

• Supports up to four unbuffered DIMMs

• Available Packages

• Compliant with RoHS (EU Directive 2002/95/EC) with lead used only in small amounts in specifically

exempted applications

• Package AM2r2

• Refer to the AM2r2 Processor Functional Data Sheet, order# 41697, for functional and mechanical

details of the AM2r2 package processor.

• 940-pin lidded micro PGA

• 1.27-mm pin pitch

• 31 x 31 row pin array

• Organic C4 die attach

PID:44109 Rev:3.00 - November 2007 Family 10h AMD Phenom™ Processor Product Data Sheet

Compatible Socket Infrastructures

2 Compatible Socket Infrastructures

Refer to the AMD Infrastructure Roadmap, order# 41842 for information on platform feature

implications of package and socket infrastructure combinations. Family 10h AMD Phenom™

processors support the following socket infrastrucutres:

• Socket AM2 Socket Infrastructure

• Compatible with AM2 and AM2r2 package processors

• Refer to the Socket AM2 Processor Functional Data Sheet, order# 31117, for functional and mechanical

details of the AM2 socket.

• Socket AM2r2 Socket Infrastructure

• Compatible with AM2 and AM2r2 package processors

• Refer to the AM2r2 Processor Functional Data Sheet, order# 41697, for functional and mechanical

details of the AM2r2 socket.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de AMD

AMD

AMD ATI FireMV 2400 Manual de usuario

AMD

AMD Athlon XP 10 Manual de usuario

AMD

AMD NVMe/SATA RAID Manual de usuario

AMD

AMD ADA3000DAA4BW - Athlon 64 1.8 GHz Processor Manual de usuario

AMD

AMD Geode LX CS5536 Manual de usuario

AMD

AMD 3200 - Athlon 64 2.0 GHz Processor Manual de usuario

AMD

AMD SB600 Manual del producto

AMD

AMD ADA3800DAA5BV Manual operacional

AMD

AMD Infinity Fabric Link Manual de usuario

AMD

AMD Geode LX [email protected] Guía del producto

AMD

AMD Opteron 4200 Series Manual de usuario

AMD

AMD MulTView ALL-IN-WONDER 9700 PRO Manual de usuario

AMD

AMD Geode SC2200 Guía del producto

AMD

AMD 780E Manual del producto

AMD

AMD Athlon Manual de usuario

AMD

AMD Geode LX 800 Manual de usuario

AMD

AMD AMD 785G Manual de usuario

AMD

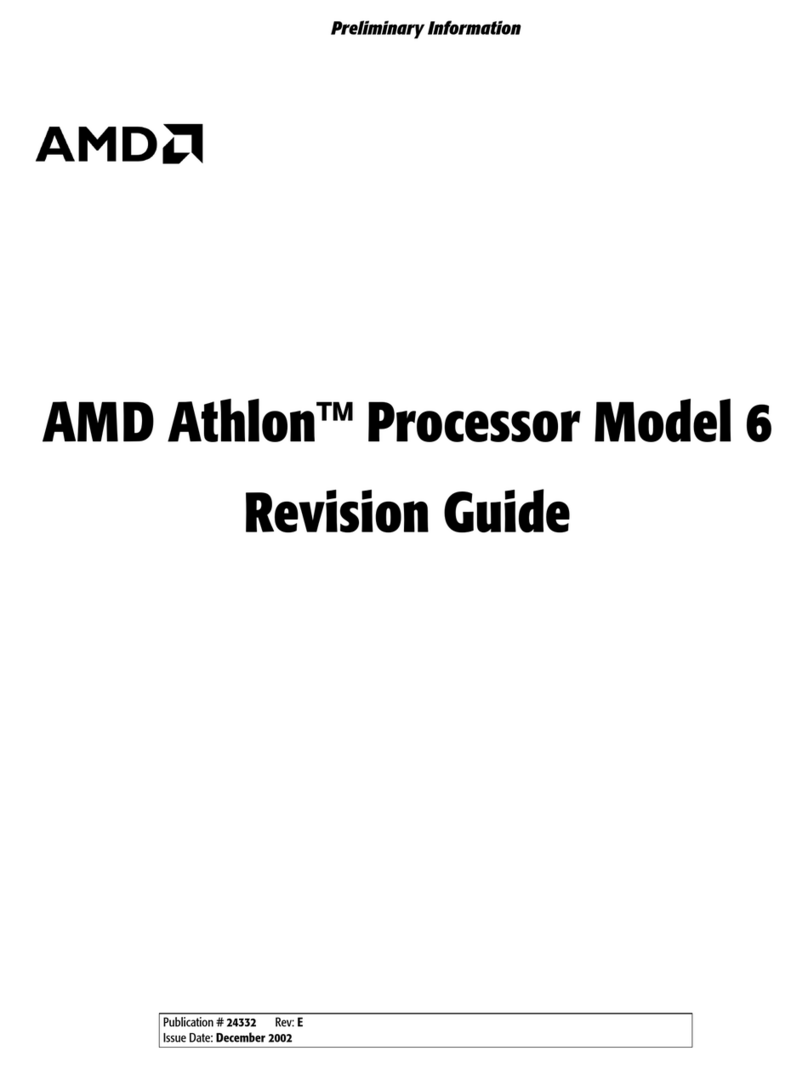

AMD Athlon 6 Manual de usuario
