Alpine PND-K3 Manual de usuario

QUICK REFERENCE GUIDE

Portable Navigation System

GUIDE DE RÉFÉRENCE RAPIDE

Système de Navigation Portatif

WARNING

This product is designed to assist you while you drive your vehicle. It should not be used as a

substitute for your personal judgment. Road conditions and regulations take precedence over

information contained on the map display; observe actual trafﬁc restrictions and circumstances

while driving. For safety, users should stop vehicle before operating the system.

Please read the complete Owner’s Manual before operating this product; please see Page 10 of

this Quick Reference Guide for instructions on accessing the Owner’s Manual.

INSTALLATION NOTE

Certain state and local regulations may prohibit the placement of any object on windows or the

dash. See your authorized Alpine dealer for other installation options.

MAPS

All map coverage includes only roads and regions that have been mapped in a digitized format.

Product information listed in this brochure is based upon current information at the time of printing, but cannot be guaranteed.

All designs, features, speciﬁcations and delivery dates are subject to change without notice. For updated product information,

IMPORTANT INFORMATION INSTALLATION

HOW TO MOUNT THE PND-K3

BEFORE YOU START

Before you start, charge the

PND-K3 for at least three hours,

using the included AC charger.

HOW TO REMOVE THE PND-K3

1Find a spot suitable for the

navigation device. Stick the

suction cup against the desired

mounting location. Press the

lever to secure the suction cup.

2Guide the navigation device onto

the cradle.

3Gently push until a click sound

is heard and the device is locked

in place.

1Press on the button immediately

behind the navigation device.

This will release the unit forward.

Gently lift the device from its cradle.

INSTALLATION

COMMENT INSTALLER LE PND-K3

AVANT DE COMMENCER

Avant de commencer, rechargez

le PND-K3 pendant au moins

trois heures, à l’aide du chargeur

c.a. fourni.

COMMENT RETIRER LE PND-K3

1Trouvez un emplacement

convenable pour l’appareil de

navigation. Collez la ventouse

à l’emplacement de montage

désiré. Appuyez sur le levier

pour ﬁxer la ventouse.

2Placez l’appareil de navigation sur

le socle.

3Poussez délicatement jusqu’à ce

qu’un son soit entendu et que

l’appareil soit verrouillé en place.

1Appuyez sur le bouton situé

directement à l’arrière de l’appareil

de navigation. Cela provoquera le

relâchement de l’appareil vers

l’avant. Soulevez délicatement

l’appareil de son socle.

AVERTISSEMENTS

Ce produit est conçu pour vous aider lors de la conduite de votre véhicule. Il ne doit pas être utilisé

en tant que substitut de votre jugement personnel. Les conditions de la route et les règlements

remplacent tous les renseignements contenus à l’afﬁchage de la carte; conformez-vous aux

restrictions et aux circonstances de traﬁc actuelles pendant la conduite. Par mesure de sécurité, les

utilisateurs doivent arrêter le véhicule avant de faire fonctionner le système.

Veuillez lire le Manuel de l’utilisateur en entier avant d’utiliser le produit; veuillez consulter

la page10 de ce Guide de référence rapide au sujet des directives pour accéder au Manuel de

l’utilisateur.

NOTE D’INSTALLATION

Certains règlements d’État et locaux peuvent interdire l’installation d’objet sur les vitres ou sur

le tableau de bord. Consultez votre concessionnaire autorisé Alpine au sujet d’autres options

d’installation.

CARTES

Toute la couverture de la carte n’inclut que les routes et les régions qui ont fait l’objet d’une

cartographie en format numérisé.

Les renseignements sur le produit inscrits dans cette brochure sont basés sur les renseignements à jour au moment de l’impression,

mais leur exactitude ne peut pas être garantie. Toutes les conceptions, caractéristiques, spéciﬁcations et dates de livraison sont

sujets à des changements sans avis préalables. Pour obtenir des renseignements sur le produit mis à jour, veuillez visiter le site

RENSEIGNEMENTS IMPORTANTS

CONTROLS

PRIMARY BUTTON CONTROLS

POWER

Press and hold for two

seconds to turn on/off

the device.

SD CARD SLOT

For music playback.

(SD card not included.)

HEADPHONE JACK

(Headphone not included.)

RESET BUTTON

Press and hold for

two seconds (if necessary).

MINI-USB CONNECTOR

VOLUME DOWN

Controls audio volume

level down.

VOLUME UP

Controls audio volume

level up.

MAIN MENU

“GO TO” BUTTON

Press this to start entering

a destination.

“PLAY” BUTTON

Press this to go to the

music player.

“SETTINGS” BUTTON

Press this to change

system settings.

“MAP” BUTTON

Press this to go to the

map.

“INFO” BUTTON

Press this to check

information such as:

• GPS receiver status

• Speed and trip information

“HOME” BUTTON

Press this to go to a saved

home location.

CONTROLS

PRIMARY BUTTON CONTROLS

POWER

Press and hold for two

seconds to turn on/off

the device.

SD CARD SLOT

For music playback.

(SD card not included.)

HEADPHONE JACK

(Headphone not included.)

RESET BUTTON

Press and hold for

two seconds (if necessary).

MINI-USB CONNECTOR

VOLUME DOWN

Controls audio volume

level down.

VOLUME UP

Controls audio volume

level up.

MAIN MENU

“GO TO” BUTTON

Press this to start entering

a destination.

“PLAY” BUTTON

Press this to go to the

music player.

“SETTINGS” BUTTON

Press this to change

system settings.

“MAP” BUTTON

Press this to go to the

map.

“INFO” BUTTON

Press this to check

information such as:

• GPS receiver status

• Speed and trip information

“HOME” BUTTON

Press this to go to a saved

home location.

INPUT A DESTINATION

Select from

recent destinations.

Type in a new address.

Select from

recent streets.

Search by entering

street name.

Select from

saved destinations.

More options

(setting destination

using coordinates or

by intersection).

Select from

recent cities.

Search by entering

city name.

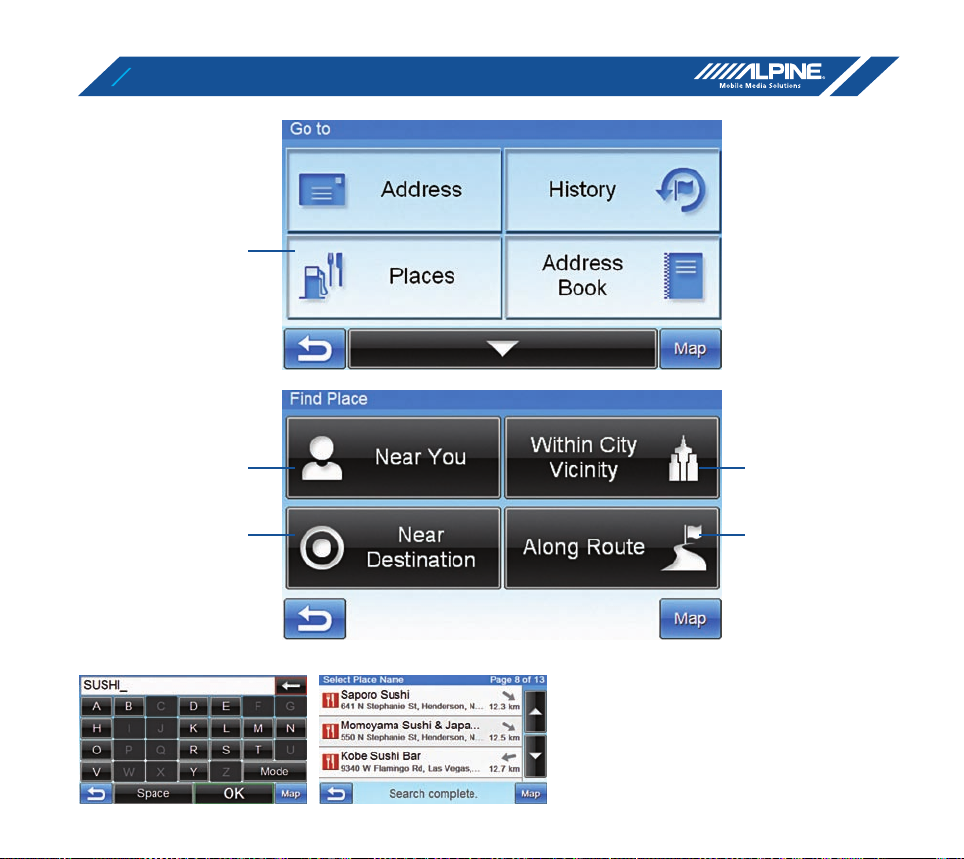

FIND A PLACE

Search from a list

of places (restaurants,

ATMs, gas stations, etc.).

Search within

a city.

Search near

current location.

Search along

current route.

Search near

destination.

POINT OF INTEREST (POI)

KEYWORD SEARCH

Don’t know the full POI name? Instead,

type in what you know or need and ﬁnd

relevant results. This search method returns

POI names containing — not necessarily

beginning with — the search term.

INPUT A DESTINATION

Select from

recent destinations.

Type in a new address.

Select from

recent streets.

Search by entering

street name.

Select from

saved destinations.

More options

(setting destination

using coordinates or

by intersection).

Select from

recent cities.

Search by entering

city name.

FIND A PLACE

Search from a list

of places (restaurants,

ATMs, gas stations, etc.).

Search within

a city.

Search near

current location.

Search along

current route.

Search near

destination.

POINT OF INTEREST (POI)

KEYWORD SEARCH

Don’t know the full POI name? Instead,

type in what you know or need and ﬁnd

relevant results. This search method returns

POI names containing — not necessarily

beginning with — the search term.

MAP

MAP WITHOUT GUIDANCE

Goes back to Main

Menu screen.

Zooms Map View in.

Zooms Map View out.

MAP WITH GUIDANCE

Changes map view (2D, 3D).

Change navigation mode

to arrow only mode.

Goes back to Main

Menu screen.

Zooms Map View in.

Zooms Map View out.

Press to repeat voice

guidance.

Press to view

Route Menu.

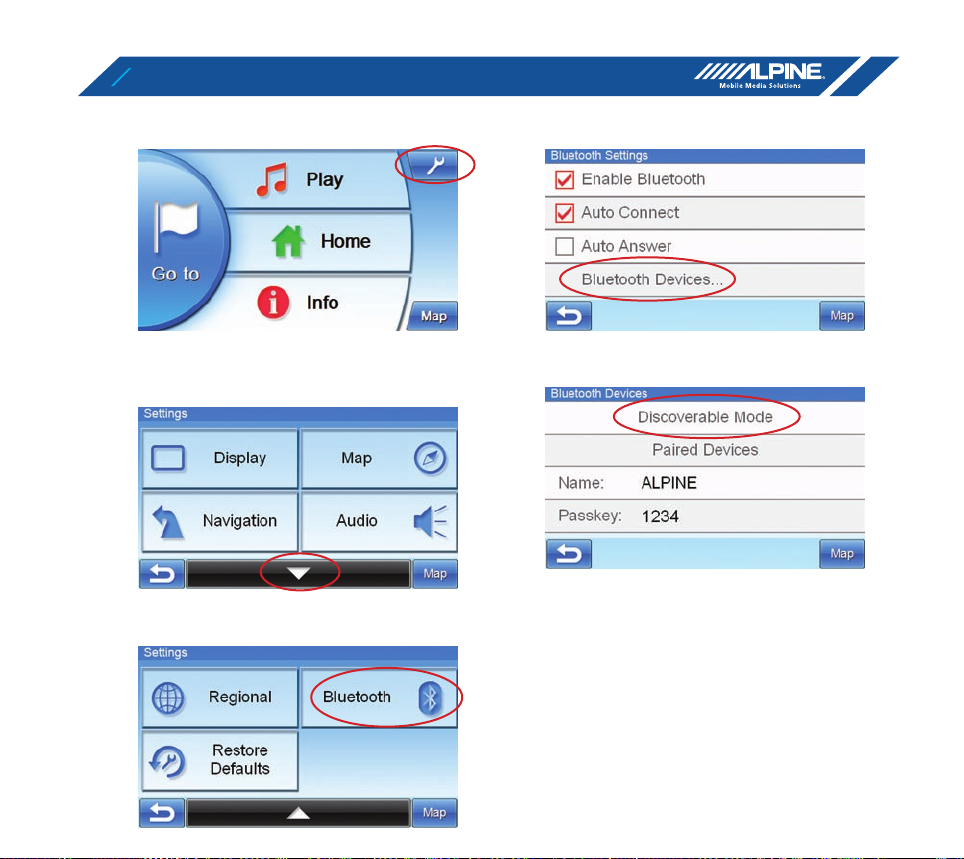

SET UP BLUETOOTH

6On the Bluetooth enabled mobile

phone, search for Bluetooth

devices.

7Once the PND-K3 is found on the

mobile phone, connect to the

PND-K3.

1Access the Settings menu. 4Select ‘Bluetooth Devices…’.

2Press the Down Arrow to access

page two of the Settings menu. 5Select ‘Discoverable Mode’.

3Enter the Bluetooth setup screen.

MAP

MAP WITHOUT GUIDANCE

Goes back to Main

Menu screen.

Zooms Map View in.

Zooms Map View out.

MAP WITH GUIDANCE

Changes map view (2D, 3D).

Change navigation mode

to arrow only mode.

Goes back to Main

Menu screen.

Zooms Map View in.

Zooms Map View out.

Press to repeat voice

guidance.

Press to view

Route Menu.

SET UP BLUETOOTH

6On the Bluetooth enabled mobile

phone, search for Bluetooth

devices.

7Once the PND-K3 is found on the

mobile phone, connect to the

PND-K3.

1Access the Settings menu. 4Select ‘Bluetooth Devices…’.

2Press the Down Arrow to access

page two of the Settings menu. 5Select ‘Discoverable Mode’.

3Enter the Bluetooth setup screen.

UPDATES AND OWNER’S MANUAL

ACCESS SOFTWARE AND/OR MAP UPDATES

Software and/or map updates can be accessed by connecting the PND-K3 to a PC. The

PND-K3’s Owner’s Manual can also be accessed the same way (internet connection required

for either function).

Periodic software and/or map updates will be available. Some may require an additional fee,

please refer to the on-screen instructions.

2Connect the PND-K3 to the PC using the provided USB cable.

4Follow the on-screen instructions.

1Turn on the PND-K3.

3Open “My Computer” on the PC. Click the “Alpine Update” icon that appears.

Software Update: When a software

update is available, this button will be

active. Follow the on-screen instructions

to access the software update.

View Owner’s Manual.

PERSONALIZE YOUR SYSTEM

CHANGE THE BACKGROUND COLORS

There are eight menu colors and eight map colors to choose from.

Select “Display” from the Settings menu to change your color scheme.

Press to advance

to the next

color scheme.

Press to return

to the previous

color scheme.

Otros manuales para PND-K3

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de navegación para automóviles de Alpine

Alpine

Alpine NVE-M300 Manual de usuario

Alpine

Alpine X009-FD2 Manual de usuario

Alpine

Alpine INE-W927HD Manual de usuario

Alpine

Alpine NVE-M300 Manual de usuario

Alpine

Alpine X009E Manual de usuario

Alpine

Alpine i209-WRA Manual de usuario

Alpine

Alpine NVE-N077P Guía

Alpine

Alpine HVS-HF01 SMART MAP PRO Manual de usuario

Alpine

Alpine INE-W940 Manual de usuario

Alpine

Alpine INE-W940 Manual de usuario

Alpine

Alpine INA-W910R Manual de usuario

Alpine

Alpine PMD-B100 - Blackbird - Automotive GPS... Manual de usuario

Alpine

Alpine INE-S920HD Manual de usuario

Alpine

Alpine X800D-U Manual de usuario

Alpine

Alpine X701D/INE-W997D Manual de usuario

Alpine

Alpine NVE-M300 Manual de usuario

Alpine

Alpine KCE-900E Guía

Alpine

Alpine Advanced Navi Station X803D-U Manual de usuario

Alpine

Alpine INE-W970HD Manual de usuario

Alpine

Alpine NVE-P1 - Navigation System Module Manual de usuario

Alpine

Alpine NVE-N099P Series Manual de usuario

Alpine

Alpine PND-K3 Manual de usuario

Alpine

Alpine MGU Manual del operador

Alpine

Alpine INE-W960 Manual de usuario

Manuales populares de Sistema de navegación para automóviles de otras marcas

Clarion

Clarion Navigation In-Car Entertainment Manual de usuario

Rosen

Rosen DP-1001 Manual de usuario

Skoda

Skoda AMUNDSEN+ Manual de usuario

Blaupunkt

Blaupunkt TravelPilot DX-N Manual de usuario

Pioneer

Pioneer MZ360500EX Manual de usuario

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manual de usuario

Kenwood

Kenwood DNN991HD Manual de usuario

AvMap

AvMap Geosat 2C Manual de usuario

Eonon

Eonon GE01B Manual de usuario

Pioneer

Pioneer AVIC-Z920DAB Manual de usuario

Nextar

Nextar M3-MX - Automotive GPS Receiver Manual de usuario

Furrion

Furrion NV2200 Manual de usuario

Mio

Mio MOOV 200-Series Manual de usuario

Prestigio

Prestigio GeoVision 5150 Manual de usuario

Hummer

Hummer 2006 H3 Manual de usuario

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guía de configuración

Garmin

Garmin StreetPilot c510 Manual de usuario

Garmin

Garmin nüvi 2200 Manual de usuario
