Allnet ALL8809WMP Manual de usuario

ALL8809WMP

8-Port PoE+10/100/1000Mbps

with 2-Port Gigabit SFP

Web Managed Switch

User Manual

User Manual ALL8809WMP I

Content

Content…………………………………………………………………………………I

Introduction……………………………………………………………………………..3

Product Overview……………………………………………………………………………….3

Web Management Feature…………………………………………………………………….3

Specification……………………………………………………………………………………..4

Mechanical……………………………………………………………………………………....4

Performance…………………………………………………………………………………........5

Package Contents……………………………………………………………………………...5

Hardware Description………………….……………………...………………..…….5

Physical Dimensions / Weight………………………………………………………………...5

Front Panel……………………………………………………………………………………...5

LED Indicators…………………………………………………………………………………..6

Rear Panel………………………………………………………………………………………6

Hardware Installation…………………………………………………………………………..7

Software Description………………………………………………………………...7

Configuration……………………………………………………………………………………8

System ..…………………………………………………………………….…………….....8

System Configuration……………………………………………...…………………...8/9

Ports ………….…………………………………………………..…………………………..10

Port Configuration ……………………...……………….………………………10/11

Vlan…………………………………….……………………….…………………………...12

Port Segmentation (VLAN) Configuration……………….……………………..........12

Add a Vlan………………………………………………….……………...……………12

VLAN Configuration List………………………………….………………..………….12

VLAN Setup……………………………………………….…...……………………….12

VLAN Per Port Configuration…………………………...……………………………13

Aggregation…………………………………………………………………………….….14

Aggregation / Trunking Configuration…………………………………………….....15

LACP……………………………………………………………………………….……….15

LACP Port Configuration……………………………………...………………………15

RSTP………………………………………………………………………………………..16

RSTP System Configuration……………….………………………………………...16

RSTP Port Configuration………….………………………………………………….16

IGMP Snopping………………………………………………………………………….19

User Manual ALL8809WMP II

IGMP Configuration…………………………………………………………………19

Mirroring…………………………………………………………………………………20

Mirroring Configuration…………………………………………………………...20

QoS……………………………………………………………………………………….21

QoS Configuration…………………………………………………………………..21

QoS Mode: QoS Disabled………………………………………………………….22

QoS Mode: 802.1p…………………………………………………………………..22

QoS Mode: DSCP…………………………………………………………………...23

Power over Ethernet………………………………………………………………………....24

PoE Configuration………………………………………………………………..25

Storm Control……………………………………………………………………………25

Storm Control Configuration……………………………………………………….25

Monitoring…………………………………………………………………………………...26

Statistic Overview……………………………………………………………………… 26

Detailed Statistic………………………………………………………………………..27

LACP Status……………………………………………………………………………. 27

LACP Aggregation Overview……………………………………………………....27

LACP Port Status……………………………………………………………………28

RSTP Status……………………………………………………………………………..28

RSTP VLAN Bridge Overview……………………………………………………..28

RSTP Port Status…………………………………………………………………....29

IGMP Status……………………………………………………………………………..29

IGMP Status………………………………………………………………………….30

VeriPHY…………………………………………………………………………………..30

VeriPHY Cable Diagnostics................................................................................30

Ping……………………………………………………………………………………....32

Ping Parameters………………………………………………………………….....32

Maintenance………………………………………………………………………………...34

Warm Restart…………………………………………………………………………....34

Factory Default………………………………………………………………………….34

Software Upload………………………………………………………………………..35

Configuration File Transfer…………………………………………………………....35

Logout……………………………………………………………………………………36

CE Declaration of Conformity..............................…………….......................................37

User Manual ALL8809WMP 3

Introduction

Product Overview

This switch is a Web Smart Switch equipped with 8-ports PoE+

10/100/1000BaseT(X) plus 2-port gigabit SFP. It is designed for easy

installation and high performance in an environment where traffic is on the

network and the number of users increased continuously. The compact rigid

19” rack-mount size is specifically designed for small to medium workgroups.

It can be installed where space is limited; moreover, it provides smooth

network migration and is easy to upgrade the network capacity.

In addition, the switch features comprehensive and useful functions, such as:

QoS (Quality of Service), Spanning Tree, VLAN, Power over Ethernet (PoE),

Link Aggregation, SNMP/RMON, IGMP Snooping capability via the

intelligent software. It is suitable for both metro-LAN and office application.

Web Management Features

Configuration

System

Ports

VLANs

Aggregation

LACP

RSTP

IGMP Snooping

Mirroring

Quality of Service

Power over Ethernet

Storm Control

Monitoring

Statistics Overview

Detailed Statistics

LACP Status

RSTP Status

IGMP Status

VeriPHY

Ping

Maintenance

Warm Restart

User Manual ALL8809WMP 4

Factory Default

Software Upload

Configuration File Transfer

Logout

Specifications

Standard

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.3ab 1000BaseT

IEEE 802.3af PoE

IEEE 802.3at PoE+

IEEE 802.3z 1000BaseSX/LX

IEEE 802.3x Full-duplex Flow Control

IEEE 802.3ad Link Aggregation

IEEE 802.1Q VLAN

IEEE 802.1d Spanning tree protocol

IEEE 802.1w Rapid Spanning tree protocol

IEEE 802.1p QoS

Number of Port

8-port PoE+10/100/1000BaseT(X) with 2 Gigabit SFP Open Slots

Mechanical

LED Indicator

Port 1~8: Link/ Act, 1000M, PoE

Port 7FX, 8FX: Link

Per Unit: Power

Power Consumption: 130/260 Watts (Max), 30 Watts per port

Power Input: 100~240V/AC, 50~60HZ

Product Dimensions/ Weight: 424 × 266 × 44 mm (L x D x H ) / 3.2 or 3.4kg

Performance

MAC Address & Multicast group: 8K

Buffer Memory: 176 KB

Jumbo Frames: 9.6K

Transmission Method: Store and Forward

User Manual ALL8809WMP 5

Package Contents

Before you start to install this switch, please verify your package that

contains the following items:

One PoE Gigabit Ethernet Switch

One AC Power Cord

One CD : User Manual

Rack-mount kit

Hardware Description

This part primarily presents hardware of this switch, physical dimensions and

functional overview would be described.

Physical Dimensions/ Weight

424 × 266 × 44 mm (L x D x H ) / 3.2 or 3.4kg

Front Panel

The front Panel of the Web Smart Switch consists of 8 gigabit RJ-45 ports+2

gigabit SFP open slot. The LED Indicators are also located on the front panel.

User Manual ALL8809WMP 6

LED Indicators

The LED Indicators present real-time information of systematic operation

status. The following table provides description of LED status and their

meaning.

Table 1-1 LED Indicators

LED

Status

Description

Power

Power is on.

Off

Power is off.

7FX / 8FX

Link

SFP Module is connected

Off

SFP Module is disconnected

Link/ACT

Port 1~8

10/100/1000 Link is connected

Off

10/100/1000 Link is disconnected

1000M

Port 1~8

Link 1000Mbps

Off

Link 10/100Mbps

PoE

Port 1~8

providing the power

Off

not providing the power

Rear Panel

The 3-pronged power plug is placed at the rear panel of the switch right side

shown as below.

LED Display

RJ-45 Port

SFP Open Slot

Reset

User Manual ALL8809WMP 7

Hardware Installation

Set the switch on a large flat space with a power socket close by. The flat

space should be clean, smooth, level and sturdy. Make sure there is enough

clearance around the switch to allow attachment of cables, power cord and

allow air circulation. The last, use twisted pair cable to connect this switch to

your PC then user could start to operate the switch.

User Login:

Default IP-Address: 192.168.2.1

Benutzername: admin

Passwort: admin

Software Description

This part instructs user how to set up and manage the switch through the web

user interface. Please follow the description to understand the procedure.

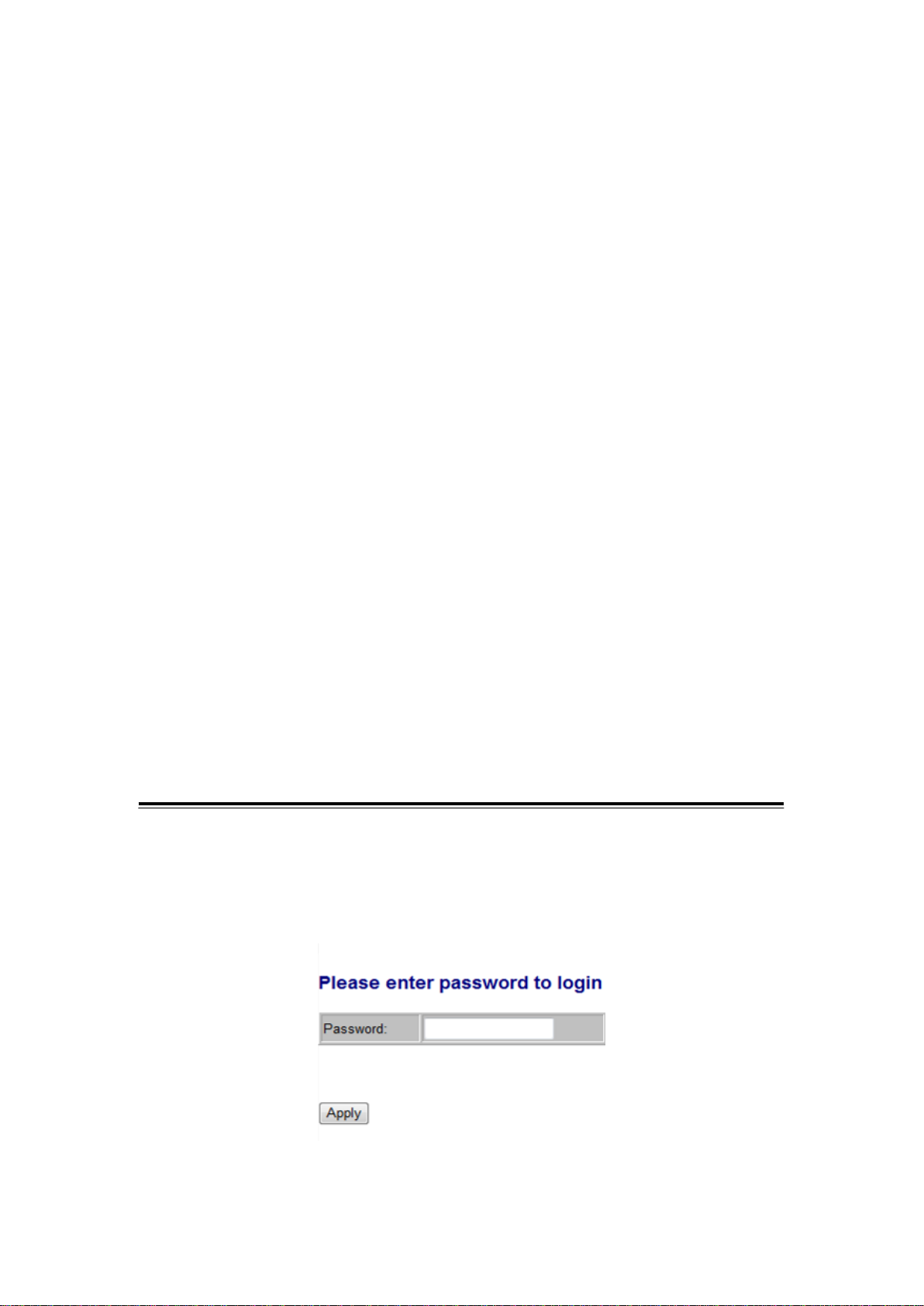

At the first, open the web browser, and go to 192.168.2.1 site then the user will

see the login screen. Just clicks the Apply then the login process is completed

and comes out the sign “Password successfully entered”.

User Manual ALL8809WMP 8

Figure 1-1

After the user login, the right side of website shows all functions as Fig. 1-2.

Figure 1-2

Configuration

System

System Configuration

This page shows system configuration information. User can configure lots of

information as Fig. 1-3:

User Manual ALL8809WMP 9

Figure 1-3

MAC Address: Displays the unique hardware address assigned by

manufacturer (default).

S/W Version: Displays the switch’s firmware version.

H/W Version: Displays the switch’s Hardware version.

DHCP Enabled: Click the box to enable DHCP

Fallback IP address: Manually assign the IP address that the network is

using. The default IP is 192.168.2.1

Fallback Subnet Mask: Assign the subnet mask to the IP address

Fallback Gateway: Assign the network gateway for industrial switch. The

default gateway is 0.0.0.0.
