Alliance Laundry Systems Home laundry Automatic Clothes Washers Manual de usuario

September 1999

Keep These Instructions for Future Reference.

(If the washer changes ownership, be sure this manual accompanies the washer.)

Installation Instructions

Home Laundry Automatic Clothes Washers

D311IE3A

Part No. 38910

38910 1

means without the expressed written consent of the publisher.

Table of Contents

Replacement Parts

If replacement parts are required, contact the source

from where you purchased your washer or contact Alliance Laundry Systems LLC

Shepard Street

P. O. Box 990

Ripon, WI 54971-0990

Phone: (920) 748-3950

for the name and address of the nearest authorized parts

distributor.

Replacement Parts.............................................................................. 1

Roughing In Dimensions.................................................................... 2

Before You Start

Tools ............................................................................................. 2

Electrical ....................................................................................... 2

Water............................................................................................. 2

Installing the Washer

Step 1 Remove the Shipping Brace and Shipping Plug................ 3

Step 2 Wipe Out Inside of Washtub ............................................. 3

Step 3 Connect Water Inlet Hoses ................................................ 4

Step 4 Connect Drain Hose to Drain Receptacle.......................... 5

Step 5 Position and Level the Washer.......................................... 8

Step 6 Plug In the Washer............................................................. 8

Step 7 Add Water to the Washer .................................................. 9

Step 8 Check Lid Switch .............................................................. 9

Step 9 Check Installation .............................................................. 9

Electrical Requirements..................................................................... 10

Earthing Instructions..................................................................... 10

Water Supply Requirements ............................................................. 11

Water Temperature ....................................................................... 11

Water Pressure.............................................................................. 12

Risers ............................................................................................ 12

Installer Checklist.................................................................. Back Cover

238910

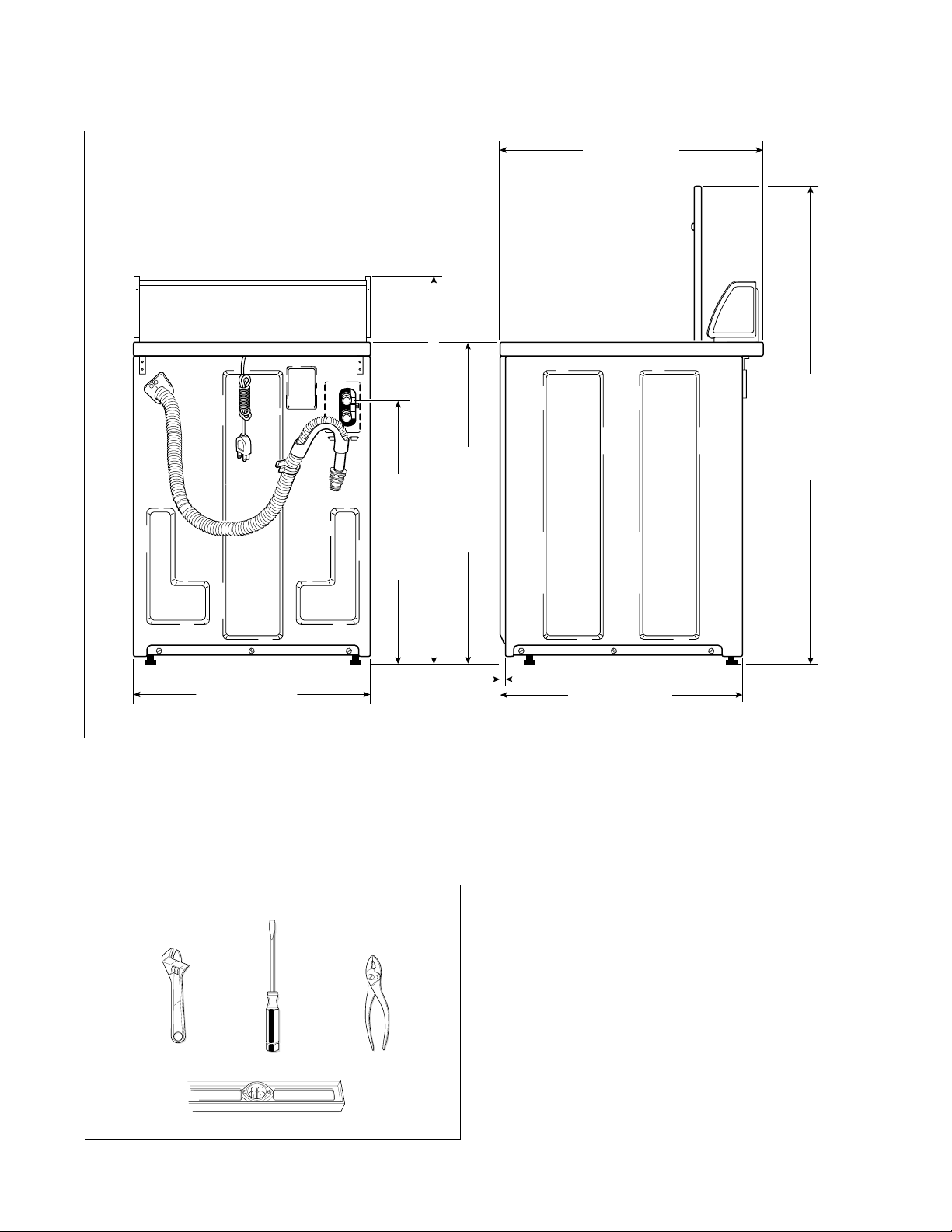

Roughing In Dimensions

Before You Start

Tools

For most installations, the basic tools you will need are:

Electrical

Refer to Serial Plate for specific electrical

requirements. For more detailed information refer to

section on Electrical Requirements.

Water

Washer needs two standard 19,05 mm (3/4 inch) water

supply faucets with a pressure between 138 to 827 kPa

per square inch (20 – 120 pounds per square inch). For

more detailed information refer to section on Water

Supply Requirements.

W519IE3A

71,1 cm (28")

*134,6 cm (53")

66,0 cm (26")

*73,7 cm (29")

*109,2 cm (43")

*92,5 cm (36,4")

65,0 cm (25,6")

10,2 mm

(0,4")

*WITH LEVELING LEGS TURNED INTO BASE

D074IE1D

LEVEL

SCREWDRIVER

PLIERS

WRENCH

38910 3

Installing the Washer

Step 1:

Remove the Shipping Brace and Shipping

Plug

NOTE: Install dryer before washer. This allows

room for attaching exhaust duct.

Remove the shipping brace from under the lid. The

plastic shipping plug will be released from the base of

the washer when removing the cardboard base from the

washer.

NOTE: Do not tilt washer to front or sides when

moving.

The shipping brace and plug should be saved and must

be reinstalled whenever washer is moved or transported

to a new location. This will prevent damage to washer

components.

NOTE: See your Use and Care Guide for

instructions on reinstalling shipping brace and

shipping plug.

Step 2:

Wipe Out Inside of Washtub

Prior to first wash, use an all purpose cleaner or a

detergent and water solution and a damp cloth to

remove shipping dust from inside of washtub.

W405IE1B

SHIPPING

BRACE

W373IE0A

SHIPPING

PLUG

W371IE0A

Installing the Washer

438910

Step 3:

Connect Water Inlet Hoses

NOTE: Refer to Section on Water Supply

Requirements before connecting water inlet hoses.

Remove the two screened filter washers and the two

plain rubber washers from accessories bag, and install

them according to the illustration.

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the filter screens in the inlet

hoses, or the screens in the water mixing valve.

NOTE: When installing in newly constructed or

renovated building, it is very important to flush the

lines since build-up may have occurred during

construction.

IMPORTANT: Thread hose couplings onto valve

connections finger-tight, then approximately 1/4

turn with pliers. DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

RUBBER WASHER

(Plain)

W004IE1G

FILTER WASHER

(Screen must be

facing outward)

INSTALL THIS

END OF HOSE

(WHITE COUPLING)

TO WATER

SUPPLY FAUCET

INSTALL THIS END OF HOSE

(BLUE COUPLING)

TO VALVE CONNECTIONS

AT REAR OF WASHER

INLET

HOSE

Installing the Washer

38910 5

Step 4:

Connect Drain Hose to Drain Receptacle

Remove the drain hose from its shipping position on

the rear of the washer by unhooking the hose from the

retainer clamp.

Find the instructions, on the following pages, that are

appropriate for your type of drain receptacle

(standpipe, high standpipe, low standpipe, sink, wall,

or laundry tub). Follow these instructions to properly

install the drain hose.

IMPORTANT: Drain receptacle must be capable of

handling a minimum of 32 cm (1-1/4 inch) outside

diameter drain hose.

Standpipe Installation:

Place the adapter into the standpipe.

Remove the beaded tie-down strap from accessories

bag and place around standpipe and drain hose,

approximately 30 cm (12 inches) down from the top of

pipe and tighten strap to hold hose to standpipe. This

will prevent the drain hose from dislodging from drain

receptacle during use.

IMPORTANT: To prevent siphoning, do not place

any ribbed portion of the drain hose into the

standpipe.

W324IE0A

RETAINER

CLAMP

STANDPIPE

ADAPTER

W325IE1C

DRAIN

HOSE

SLEEVE

30,489

(12")

STANDPIPE

5,08 cm (2") or 4 cm (1-1/2")

DIAMETER

TIE-DOWN

STRAP

STANDPIPE

ADAPTER

RIBBED

PORTION OF

DRAIN HOSE

91,44 cm

(36")

Recommended

Height

638910

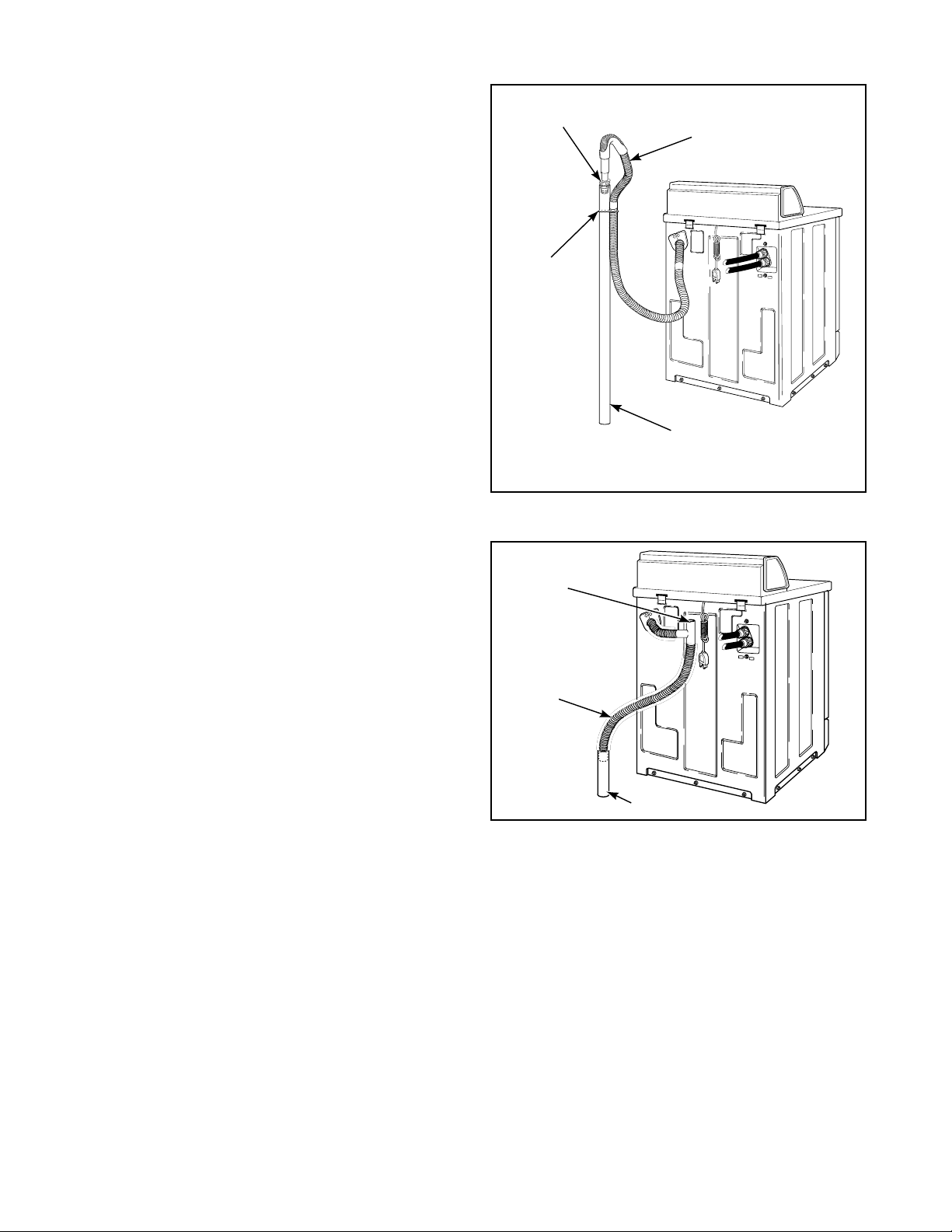

High Standpipe Installation:

Place the adapter into the standpipe. Remove the

beaded tie-down strap from accessories bag and place

around standpipe and drain hose, approximately 30 cm

(12 inches) down from the top of pipe and tighten strap

to hold hose to standpipe. This will prevent the drain

hose from dislodging from drain receptacle during use.

Low Standpipe Installation:

No. 562P3 Siphon Break Kit is required for this type of

installation. This kit is available (as optional equipment

at extra cost) through an authorized dealer or parts

distributor. Installation instructions are supplied with

the kit.

W327IE1B

DRAIN

HOSE

TIE-DOWN

STRAP

STANDPIPE

(Standpipes higher than 122 cm [4 feet]

are not recommended)

STANDPIPE

ADAPTER

W416IE1A

562P3

SIPHON

BREAK

KIT

DRAIN

HOSE

STANDPIPE

Installing the Washer

38910 7

Sink Installation:

For this type of installation, use the beaded tie-down

strap (supplied in accessories bag), or use a large wire

tie (available from your local hardware store) and

secure the drain hose to the cabinet top hinge. See

illustration. This will prevent the drain hose from

dislodging during use.

We recommend leaving the standpipe adapter on the

drain hose for this type installation.

In the Wall Installation:

For installations of this type, the drain hose MUST be

secured to one of the inlet hoses using the beaded tie-

down strap from accessories bag.

NOTE: End of drain hose must not be below height

of cabinet top.

Laundry Tub Installation:

For this type of installation, the drain hose MUST be

secured to the stationary tub to prevent hose from

dislodging during use. Use the beaded tie-down strap

(supplied in accessories bag) to secure hose.

We recommend leaving the standpipe adapter on the

drain hose for this type installation.

W177IE1A

DRAIN HOSE

TIE-DOWN STRAP

OR WIRE TIE

CABINET TOP

HINGE

W329IE2A

TIE-DOWN STRAP

(Tape if necessary)

STANDPIPE

ADAPTER

W178IE1A

TIE-DOWN

STRAP

(Tape if necessary)

Installing the Washer

838910

Step 5:

Position and Level the Washer

Place rubber feet on all four leveling legs.

Placewasher in position on a clean, dry, and reasonably

firm floor. Installing the washer on any type of

carpeting is not recommended.

Loosen 7/8" locknuts and adjust the two front leveling

legs. Once adjusted, tilt the unit forward on front legs

and lower back down into position to set the rear self-

leveling legs.

Washer must not rock. After washer is at desired

height, tighten locknuts securely against bottom of

washer base. If these locknuts are not tight, washer will

not remain stationary during operation.

Improper installation or flexing of a weak floor will

cause excessive vibration.

Do not slide washer across floor once the leveling legs

have been extended, as legs and base could become

damaged.

Step 6:

Plug In the Washer

Refer to section on Electrical Requirements, and plug

the washer in.

LEVELING

LEG

W179IE1A

LOCKNUT

LEVEL

RUBBER

CUP

WASHER

BASE

W504SE3B

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems ATE50FWP431AW01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems AFB50RSP111TW01 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems TR7104WN Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems SFNBXFSP122DW01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CCN020HNF Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems H2641 Guía

Alliance Laundry Systems

Alliance Laundry Systems HWF261*E Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TLW22C SVG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 800970R1 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 9002062R3 Guía de instalación

Alliance Laundry Systems

Alliance Laundry Systems FLW1542C SVG Guía

Alliance Laundry Systems

Alliance Laundry Systems CHM1772C Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems 801455R2 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen TV2000WN Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems WF150 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems NetMaser Series Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems NX30BVPA7 Guía

Alliance Laundry Systems

Alliance Laundry Systems UWL035K12 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washers Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 802715 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWS01A* series Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems F232135R12 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HFNKCASG116TN01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWK23A*-3050 series Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
