Alliance Laundry Systems FTS80A*H Manual de usuario

Operating Instructions

www.comlaundry.com

Operating Instructions

Frontload

Washers

Models FTS80A*H, FTZ80A*H and

FTU80A*H

Part No. 800972R1

December 2001

800972

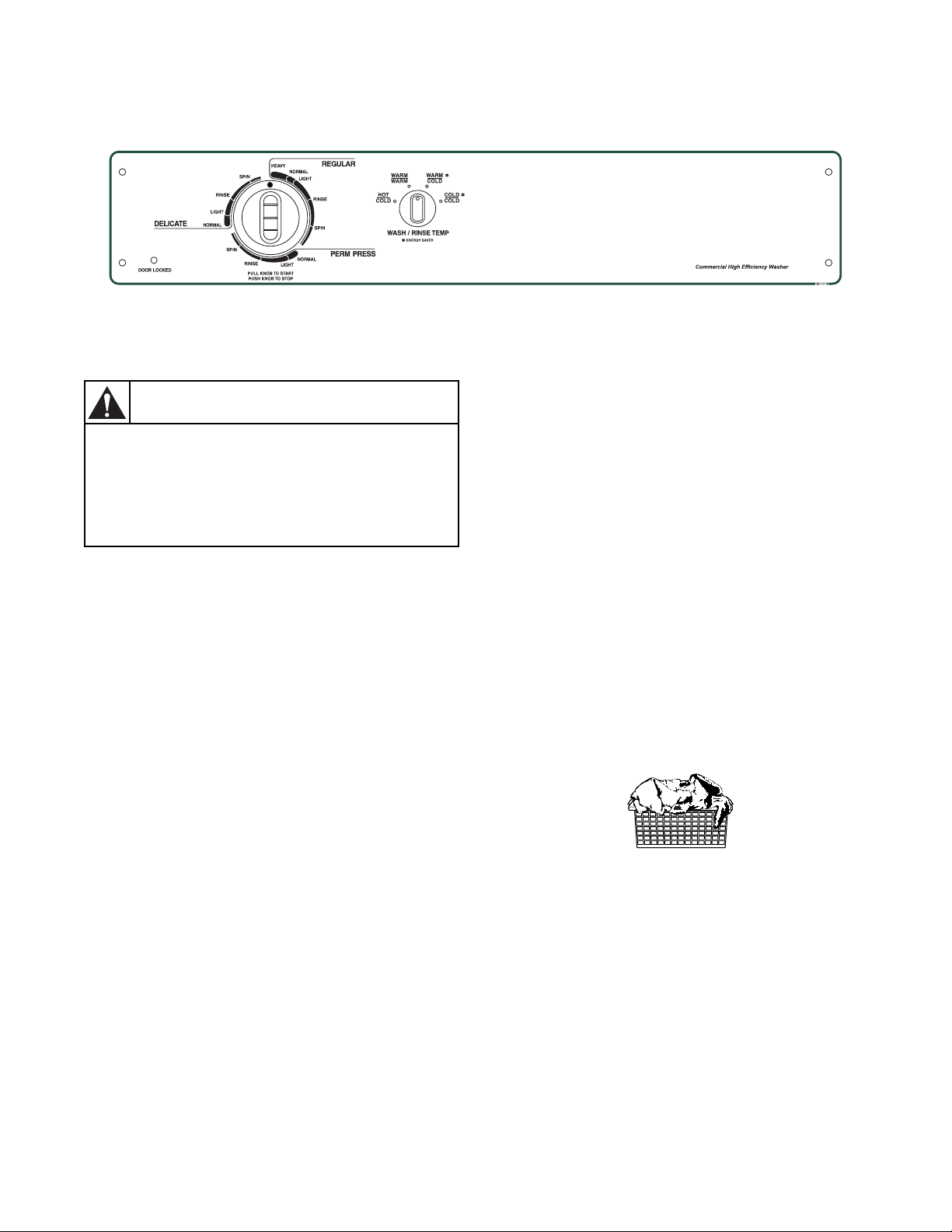

Operating Instructions

NOTE: Always follow manufacturer’s care labels.

Determine Proper Cycle

REGULAR Cycle

Use for sturdy items, like play or work clothes, towels,

T-shirts, etc. The wash selection will depend on the

type of fabric and the amount of soil. There are three

settings in the REGULAR cycle – HEAVY, NORMAL

and LIGHT.

PERMANENT PRESS Cycle

Use for permanent press items and synthetics. The

wash selection will depend upon the type of fabric

and amount of soil. There are two settings in the

PERMANENT PRESS cycle – NORMAL and

LIGHT.

DELICATE Cycle

Wash delicate items usually washed before by hand on

this cycle. There are two settings in the DELICATE

cycle – NORMAL and LIGHT.

To Wash Clothes

IMPORTANT: Before using your new washer,

make sure the washer cord is plugged into a

120 Volt electrical outlet that has the proper

grounding and polarity. Make sure the washer

hoses are connected to the hot and cold water

faucets, and that the faucets are turned on. Be

sure the drain hose is not kinked and is inserted

into a drain. Refer to the INSTALLATION

INSTRUCTIONS for details of proper washer

installation.

IMPORTANT: Prior to first wash, use an all-

purpose cleaner, or a detergent and water solution,

and a damp cloth to remove shipping dust from

inside of washtub.

1. Get the clothes ready for washing. Empty pockets

and cuffs. Sort items into separate loads. Pretreat

stains and heavily soiled areas.

FLW709N

To reduce the risk of fire, electric shock,

serious injury or death to persons, read the

IMPORTANT SAFETY INSTRUCTIONS in the

Use and Care Guide before operating your

washer.

W018E

WARNING

D305I

800972

2© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

2. Measure and add low sudsing detergent, fabric

softener, and bleach to the dispenser drawer.

Refer to section on Using Your Dispenser

Drawer.

IMPORTANT: If using detergents made for

topload washers, avoid oversudsing by using only

1/4 cup regular detergent (1/2 of the recommended

amount).

3. Load clothes into wash drum. Refer to section on

Load Sizes in your Use and Care Guide.

4. Close the loading door tightly. The washer will

not operate with the loading door open.

5. Set WASH/RINSE temperatures.

There are four WASH/RINSE temperatures available –

Hot Wash/Cold Rinse, Warm Wash/Cold Rinse, Warm

Wash/Warm Rinse, and Cold Wash/Cold Rinse.

Refer to the Available Water Temperatures section

for the temperature that works best for your garments.

6. Select the cycle according to the type of fabric

being washed. Push the timer knob in and turn

clockwise to the desired cycle and wash time.

Use the indicator dot on the knob as a guide.

FLW710N

FLW711N

FLW712N

FLW713N

FLW714N

To reduce the risk of serious injury, do not

by-pass the loading door switch by

permitting the washer to tumble or spin with

the loading door open.

W095

WARNING

Window may be hot in the Hot Wash Cycle.

W326E

WARNING

800972

7. Pull the timer knob out to start the washer. The

DOOR LOCKED light will come on after a short

delay, water fill will begin, and wash drum will

begin tumbling.

NOTE: Washer door MUST be closed tightly to

start washer.

If items need to be added or removed after a cycle

has started, push the timer knob in, wait approximately

45 seconds for DOOR LOCKED light to go out, open

door, add or remove items, adjust the timer knob (if

desired) and pull timer knob out.

There is no agitator on this washer. Instead, the

clothing gently tumbles through the water. The wash

action consists of a period of tumbling in one

direction, a brief pause, and then a reverse tumble in

the opposite direction. The pauses are part of the

tumble action and add to the uniqueness of the washer.

Do not attempt to turn the timer through these pauses.

They are part of the cycle.

Timer

Although the washer cycles are automatic, the timer

may be reset to lengthen, shorten or repeat a portion of

a cycle.

To set or reset the timer, push timer knob in to stop the

washer. Hold timer knob in firmly while slowly

turning it clockwise to the setting desired. Pull timer

knob out to start the washer.

DOOR LOCKED Light

When the washer is started, the DOOR LOCKED light

will come on after a short delay. The light will turn off

10 to 30 seconds after the cycle is complete.

Out of Balance Load

If at the end of the cycle, the load is dripping wet, the

washer has limited the spin speed. This is to prevent

damage to the unit if there is a severely unbalanced

load.

If this condition occurs, redistribute the load manually

and repeat the cycle beginning at the last rinse.

If the condition persists, consider steps discussed in

the Before Washing section of the Use and Care

Guide.

800972

4© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Available Washing Cycles

The cycles of your washer include several different

settings. Refer to Table 1 for what can be expected

during the cycles that you select.

Regular Cycle

Description Activity Water Temperatures

Heavy, Normal, Light Fill & Tumble Hot, Warm or Cold

Spin Slow Spin

Rinse Fill & Tumble Warm or Cold

Spin Medium & Fast Spin

Fluff Tumble

Permanent Press Cycle

Description Activity Water Temperatures

Normal, Light Fill & Tumble Hot, Warm or Cold

Spin Slow Spin

Rinse Fill & Tumble Warm or Cold

Spin Medium Spin

Fluff Tumble

Delicate Cycle

Description Activity Water Temperatures

Normal, Light Fill & Tumble Hot, Warm or Cold

Spin Slow Spin

Rinse Fill & Tumble Warm or Cold

Spin Slow Spin

Fluff Slow Tumble

Table 1

800972

Using Your Dispenser Drawer

Detergent Compartment

The detergent compartment is located on the right side

of the dispenser drawer. Refer to compartment 1 of

illustration.

Use low sudsing powdered or liquid detergents that are

recommended for use with high efficiency or front

loading washers. Powdered bleach can also be used in

the dispenser along with the detergent.

NOTE: If using detergents made for topload

washers, avoid oversudsing by using 1/2 of the

recommended amount.

When adding detergent, use only the recommended

amount. Adding too much detergent or using regular

sudsing detergent could result in an oversudsing

condition, which would require additional rinsing with

cold water. Use care when adding detergent so as not

to spill into the other compartments. Detergent mixed

with fabric softener can make the softener gummy.

NOTE: The normal level of suds should be below

center of the door.

Liquid Bleach Compartment

The bleach compartment is located in the left front

corner of the dispenser drawer. Refer to compartment 2

of illustration. It has been designed to prevent the

dispensing of undiluted bleach onto the clothes load.

Use liquid bleach in the dispenser. Powdered bleach

must not be used in this compartment. Powdered

bleach can be used in the detergent compartment

only and can be added along with the detergent.

DO NOT use more than the maximum level

indicated for the bleach compartment. Adding more

than the maximum amount could result in early

dispensing of the product and possible damage to

fabrics.

Carefully pour recommended amount of bleach into

the compartment before starting wash load.

Be careful not to spill undiluted bleach. It is a strong

chemical and can damage some fabrics if it is not

properly diluted. Follow bleach manufacturer’s label

for proper use.

Carefully close dispenser door. Do not allow bleach to

spill into other compartments.

Fabric Softener Compartment

The fabric softener compartment is located in the

left rear corner of the dispenser drawer. Refer to

compartment 3 of illustration.

Use no more than the maximum level indicated for the

fabric softener compartment. Adding more than the

maximum amount could result in early dispensing of

the product and possible staining of fabrics.

Add fabric softener to compartment before beginning

washload. The fabric softener will be dispensed during

the last rinse cycle.

Carefully close dispenser door. Do not allow softener

to spill into other compartments.

To Clean the Dispenser

Remove the dispenser drawer from the washer by

firmly pulling the drawer straight out, past the stop

position. Rinse dispenser drawer in hot water. A small

brush may be used to thoroughly clean out any

residue. After cleaning, reinstall the dispenser drawer.

From time to time, water may be discovered in the

dispenser drawer. This condition is normal. To remove

the water, simply remove the dispenser drawer and

pour out the water.

FLW715N

800972

6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Available Water Temperatures

The Hot Wash temperature is determined by the actual

temperature of the hot water supplied to the washer.

Hot water is the most effective for cleaning, but it is

not recommended for all fabric types (read labels).

The Warm Wash is useful for providing a thorough

cleaning on lightly soiled clothing without damaging

fabric or adding to color fading.

The Warm Rinse is useful in preventing wrinkles on

certain fabrics. Check labels for fabric manufacturer’s

recommendations.

The Cold Wash is ideal for delicate items. Although its

cleaning abilities are not as great as with hot or warm

water, it is useful for colors that bleed easily and for

sensitive fabrics.

The Cold Rinse is optional in every cycle and is the

most beneficial for fabrics. Cold rinses reduce

wrinkling and color fading. In addition, cold rinses

will save money and energy.

NOTE: The Energy Saver settings, marked with an

asterisk (*), show which temperature settings will

use the least energy.

NOTE: Always follow manufacturer’s care labels.

Hot

Approximately 120°F

(or as determined by outside hot water supply)

●Sturdy whites and colorfast items.

●Work clothes.

●Heavily soiled items.

●Diapers.

Warm

Approximately 100°F

●Light and moderately soiled items.

●Non-colorfast or dark colors.

●Permanent press.

●Silks, woolens, nylon, acrylic.

●Rinsing of some items.

Cold

Approximately 65°F

●Non-colorfast items.

●Extra delicate clothing.

●Rinsing of most items.

Instrucciones de operación

www.comlaundry.com

Lavadoras de

carga frontal

modelos FTS80A*H, FTZ80A*H y

FTU80A*H

Pieza No. 800972R1

Diciembre 2001

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems HWNLX2SP111CW01 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems HC125BYV Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems TLW12C SVG Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems F232148 Guía

Alliance Laundry Systems

Alliance Laundry Systems TLW12C SVG Guía

Alliance Laundry Systems

Alliance Laundry Systems HWNLX2SP111CW01 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen TLW24C-SVG1 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems EC001F Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems DCG020ND Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CFD14C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWS01A* series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washer Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSP303XW01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CTLW-35A Guía

Alliance Laundry Systems

Alliance Laundry Systems UW POCKET HARDMOUNT UW35B2 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems NX18BVPA6 Guía

Alliance Laundry Systems

Alliance Laundry Systems MB26 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems D1627ENR5 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems W446I Guía

Alliance Laundry Systems

Alliance Laundry Systems AFBE9BSP303NN29 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems HF150 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CABINET FREESTANDING 9001889R7 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems Commercial Automatic Washer Manual de uso y mantenimiento

Alliance Laundry Systems

Alliance Laundry Systems HFNBCF Manual del propietario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
