Alliance Laundry Systems TMB1276C Manual del propietario

Programming

www.comlaundry.com

Tumble Dryer

UniLinc Control

Refer to Page 4 for Model Identification

TMB1276C

Part No. 70444801R3

July 2011

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

means without the expressed written consent of the publisher.

70444801 1

Table of

Contents

Introduction......................................................................................... 4

Model Identification ............................................................................. 4

Nameplate Location.............................................................................. 4

Preliminary Information.................................................................... 5

About the Control................................................................................. 5

Power Failure Recovery................................................................... 5

Communications .............................................................................. 5

Audit Information ........................................................................... 5

IR Communications Menu............................................................... 6

IR Communications Error Menu ..................................................... 6

Restore to Factory Defaults ............................................................ 6

Entering Program Mode................................................................... 6

UniLinc Identification........................................................................ 7

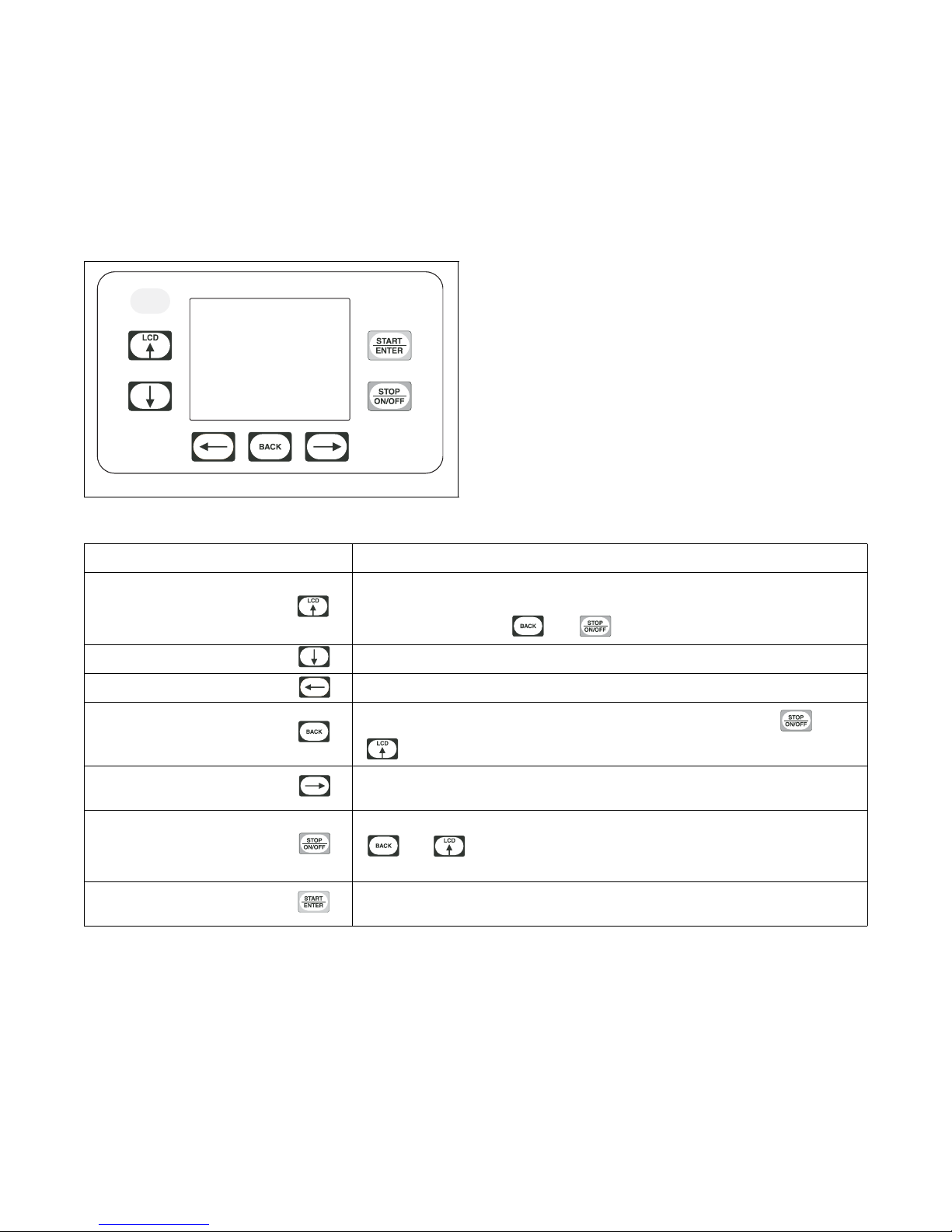

Operational Keypad.............................................................................. 7

Operation Modes .................................................................................. 8

General Modes of Operation............................................................ 8

Power-up Mode................................................................................ 8

Idle Mode......................................................................................... 8

Run Mode......................................................................................... 8

Rapid Advance Mode ...................................................................... 8

Pause Mode...................................................................................... 8

Error Mode....................................................................................... 8

Communication Mode ..................................................................... 8

Cool Down Mode............................................................................. 8

End of Cycle Mode.......................................................................... 9

Extended Tumble Mode................................................................... 9

Reversing Mode (reversing models only)........................................ 9

Entering Diagnostic Mode From Idle Mode.................................... 9

Machine Cycle Definition and Operation......................................... 10

Machine Cycle Operation..................................................................... 10

Time Dry Cycle................................................................................ 10

Auto-Dry Cycle................................................................................ 10

Moisture Dry Cycle (if equipped).................................................... 10

Rotation Sensor Equipped Machines.................................................... 10

Cycle Menu........................................................................................... 10

To Start a Cycle ............................................................................... 11

Run Menu ............................................................................................. 12

Contrast/Backlight Menu...................................................................... 13

Close Door Menu.................................................................................. 13

Run Diagnostic Menu........................................................................... 14

Temp and Moisture Menu .................................................................... 15

Cycle Stopped Menu............................................................................. 16

Error Menu............................................................................................ 16

Open Door Menu.................................................................................. 17

Clean Lint Screen Menu....................................................................... 17

Load Sensed Menu ............................................................................... 17

Service Moisture Sensor Menu............................................................. 17

270444801

Menu Navigation................................................................................. 18

The UniLinc.......................................................................................... 18

Menu to Menu Navigation............................................................... 18

Screen to Screen Menu Navigation.................................................. 18

Menu Navigation with Parameters................................................... 18

Cycle Name and Banner Editing...................................................... 18

Display Screen Maps............................................................................ 19

System Menu Map Tree................................................................... 19

Run Menu Map Tree........................................................................ 20

Service Menu Map Tree................................................................... 20

Programming UniLinc ....................................................................... 21

System Menu........................................................................................ 21

Save Changes Menu ............................................................................. 21

Program Menu.................................................................................... 22

Program Menu...................................................................................... 22

Modify Cycle........................................................................................ 22

Available Characters........................................................................ 23

Cycle, Segment and Step Programming Flow Diagram....................... 24

Modify Cycle Segment Menu Navigation....................................... 24

Global Setup........................................................................................ 25

Global Setup Menu............................................................................... 25

Language Menu.................................................................................... 25

Date/Time Menu................................................................................... 26

Banners Menu....................................................................................... 26

Rapid Advance Menu........................................................................... 27

Audio Menu.......................................................................................... 27

Miscellaneous Menu............................................................................. 28

Ignition Retry Menu ............................................................................. 28

Temperature Menu................................................................................ 29

Reverse Cylinder Menu (if equipped) .................................................. 29

Cool Down Menu ................................................................................. 30

Moisture Menu (if equipped)................................................................ 30

Factory Defaults Menu......................................................................... 31

Diagnostics........................................................................................... 32

Diagnostic Menu................................................................................... 32

Test Menu............................................................................................. 32

Test Cycle Menu.............................................................................. 32

Test Cycle Chart .............................................................................. 33

Inputs Outputs Menu........................................................................ 34

Alarms Menus....................................................................................... 35

Machine ID Menu................................................................................. 35

Machine Errors................................................................................... 36

PDA Communications Error................................................................. 36

Network Communications Error........................................................... 36

Open Thermistor Error ......................................................................... 36

Shorted Thermistor Error...................................................................... 36

Stove and Cabinet Limit Errors............................................................ 36

70444801 3

Auto Ignition Retry (Gas Models Only)............................................... 37

Air Flow Switch Errors......................................................................... 37

Airflow Switch Sensed Closed While Not In Run Mode ................ 37

Airflow Switch Does Not Close After Cycle Started ...................... 37

Airflow Switch Bounces During A Running Cycle......................... 37

Rotation Sensor Error........................................................................... 37

Moisture Sensor Error........................................................................... 38

Fan Motor Contactor Error................................................................... 38

Fan Motor Centrifugal Switch Error..................................................... 38

DIP Switch/Harness Index Mismatch Error......................................... 38

Laundry Management........................................................................ 39

Laundry Management Menus............................................................... 39

Maintenance........................................................................................ 40

Service Schedule Menu ........................................................................ 40

Daily Menu (Service)....................................................................... 40

Monthly Menu (Service).................................................................. 40

Quarterly Menu (Service) ................................................................ 41

Bi-Annual Menu (Service)............................................................... 41

Cycle Charts........................................................................................ 42

470444801

Introduction

Model Identification

Information in this manual is applicable to these

models:

Includes models with the following control suffixes:

Nameplate Location

The nameplate is located on the back of the machine

and is programmed in the UniLinc Control. To access

Machine ID Menu through the control:

1. Press and hold , then , then

keypads at the same time.

2. Press the keypad until Diagnostic is

highlighted.

3. Press the keypad.

4. Press the keypad until Machine ID is

highlighted.

5. Press the keypad.

Always provide the machine’s serial number and

model number when ordering parts or when seeking

technical assistance. Refer to Figure 1.

Figure 1

Gas Steam/Thermal Oil Electric

25 Pound UA025L

UA025N UT025L

UT025N UU025L

UU025N UT025S UU025S UT025E UU025E

30 Pound UA030L

UA030N UT030L

UT030N UU030L

UU030N UT030S UU030S UT030E UU030E

35 Pound UA035L

UA035N UT035L

UT035N UU035L

UU035N UT035S UU035S UT035E UU035E

50 Pound UA050L

UA050N UT050L

UT050N UU050L

UU050N UT050S

UT050T UU050S

UU050T UT050E UU050E

55 Pound UA055L

UA055N UT055L

UT055N UU055L

UU055N Not Applicable UT055E UU055E

75 Pound UA075L

UA075N

UT075L

UT075N

UTF75L

UTF75N

UU075L

UU075N UT075S

UT075T UU075S

UU075T UB075E

UT075E UU075E

120 Pound UA120L

UA120N UT120L

UT120N UU120L

UU120N UT120S

UT120T UU120S

UU120T Not Applicable

170 Pound UA170L

UA170N UT170L

UT170N UU170L

UU170N UT170S

UT170T UU170S

UU170T Not Applicable

UO – UniLinc OPL RU – reversing UniLinc OPL

TMB1332R

Machine ID

Model: UT030NUOG2K0W01

Serial #: 1107002759

Install Date: 07/01/2011

Machine Type: 30

Control SN: 11410113

Front End SW: 1

Display SW: 1

Node Number: 250

70444801

Preliminary Information

About the Control

The UniLinc control on the tumbler is an advanced,

graphical, programmable computer that lets the owner

control most machine features by interacting with the

control.

UniLinc allows the owner to program custom cycles,

run diagnostic cycles, and retrieve audit and error

information.

Tumblers shipped from the factory have default cycles

and other settings built in. The owner can change the

default cycle or any cycle.

IMPORTANT: It is extremely important that the

tumbler has a positive ground and that all

mechanical and electrical connections are made

before applying power to or operating the tumbler.

Power Failure Recovery

If a cycle is in progress when the power fails, and if

the power outage lasts three or more seconds, the cycle

is lost and cannot be resumed when power recovers. If

the power outage lasts less than three seconds, the

control will resume the cycle when the power

recovers.

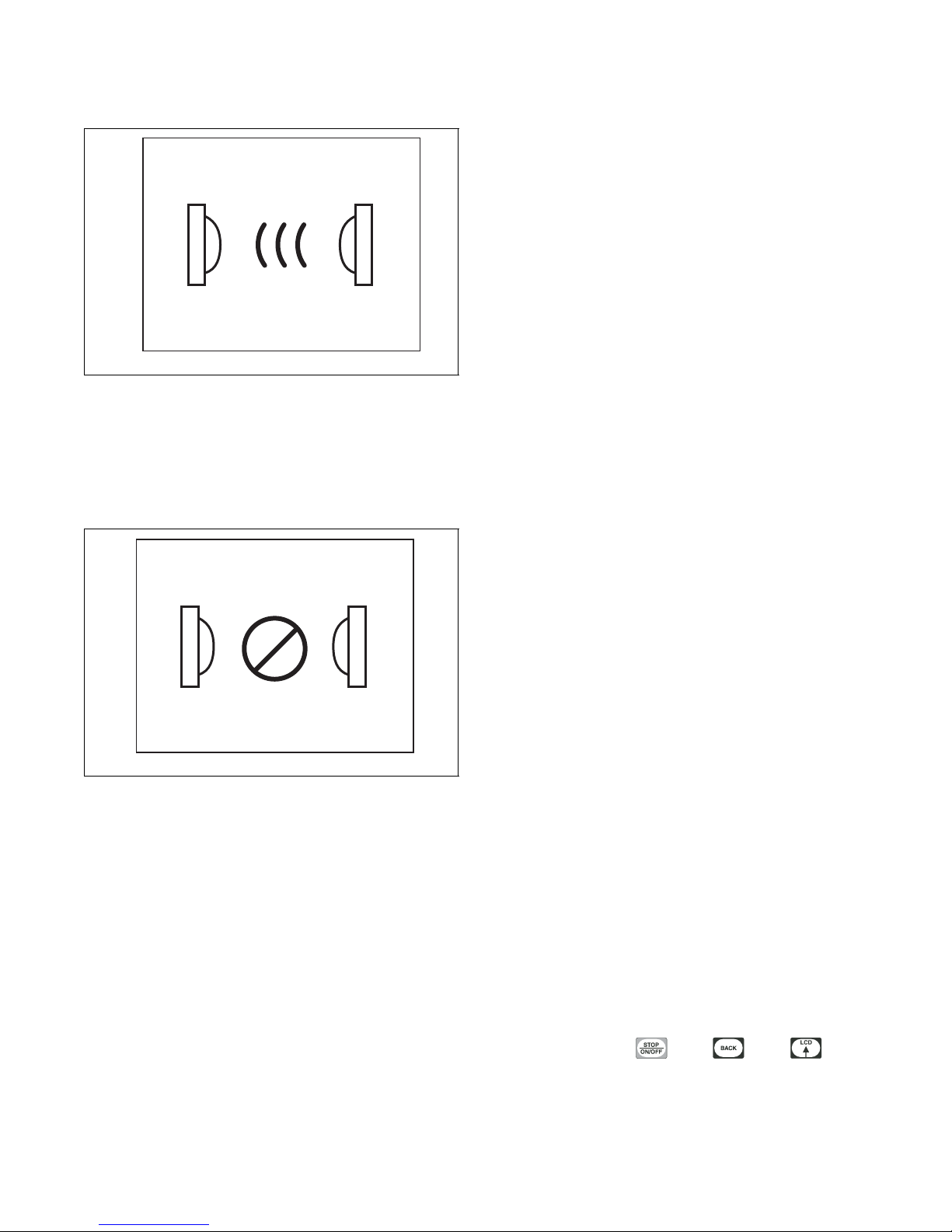

Communications

The control has the ability to communicate with a

PDA and a laptop with an IrDA device running the

UniLinc software. Devices such as PDAs and laptops

that are IrDA capable (able to transmit information to

machine) that have been tested and approved for use

with the UniLinc software can be used as a tool for

managing the machine.

The control will also accept communication with a

network which allows the control to be linked to a

personal computer. This network link allows an owner

to program, collect data and run diagnostics on any

machine. For detailed information on network

communications, refer to the network instructions.

Audit Information

The control collects and stores audit information,

which can be accessed with a PDA, PC or network.

Refer to the following list for some of the available

audit information. Refer to UniLinc PC and PDA

Application User Instructions.

•Total Number of Individual Cycle Counters

•Last 25 Machine Cycles

•Service History

•End of Cycle to Loading Door Open Time

•End of Cycle to Start of Next Cycle Time

•Total Number of Machine Cycles

•Total Number of Operating Minutes

•Power Failure Audit Data

The PDA, PC or network can receive audit and

program data from the control, and send programming

data and diagnostic commands to the control. Refer to

UniLinc PC and PDA Application User Instructions

for additional information.

Some of the above listed audit data is available

manually. Refer to Laundry Management section.

Preliminary Information

70444801

IR Communications Menu

The IR Communications Menu displays while the

control is communicating with a PDA. The control

will jump back to the previous page when the

communication is complete.

IR Communications Error Menu

The IR Communications Error Menu displays after the

control had an error communicating with a PDA. The

control will return to previous page after 3 seconds.

Restore to Factory Defaults

When the user selects Restore All Cycles And Global

Settings To Factory-Defaults, the control resets all of

the default values. The control also resets Machine

Cycles #1 through #41. The control will also reset the

following to factory-defaults:

Default Global Settings

Language = English

Ignition Retries = 3

Temperature Units = Fahrenheit (°F)

High (H) Temperature = 190 (°F)

Medium (M) Temperature = 160 (°F)

Low (L) Temperature = 140 (°F)

Very Low (VL) Temperature = 120 (°F)

Cool Down Temperature = 100 (°F)

Cool Down Time = 2 (minutes)

Rapid Advance = Disabled

Multi-Segment Cycles = Disabled

LCD Backlight ON/OFF = On

Banner # 1 = Blank

Banner # 2 = Blank

Daylight Saving = Enabled

Key Pad Audio = Enabled

End of Cycle Audio = Low (5 seconds)

End of Cycle External Signal = Enabled (5 seconds)

Clean Lint Screen Reminder = Off

Display Limit Errors = Disabled

Manual Diagnostics = Enabled (accessable via PC and

PDA only)

*Manual Programming = Enabled (accessable via PC

and PDA only)

**Reverse Cylinder Rotate Time = 120 (seconds)

**Reverse Cylinder Stop Time = 6 (seconds)

**Advanced Reversing = OFF

***Advanced Options for Moisture Dry = Disabled

***Display Moisture Sensor Error = Disabled

*If manual programming is disabled, programming

changes to UniLinc can only be made with an external

communication device. Refer to UniLinc PC and

PDA Application User Instructions.

**Only available on units equipped with reversing

feature.

***Only available on units equipped with moisture

sensing feature.

Refer to Factory Defaults, Menu section for

information on Restoring Factory Defaults.

Entering Program Mode

1. Press and hold , then , then to

enter the System Menu. Select Program to enter

programming options.

PHM1003R

Figure 2

PHM1004N

Figure 3

Invalid Data

70444801

UniLinc Identification

Operational Keypad

The control includes seven keypads. These functions

are available to the operator and are intended to

control and manage operation of the tumbler. Refer to

Figure 4 and Table 1.

TMB1276C

Figure 4

Keypad Description

LCD/UP ARROW

Press to move the cursor on display and to edit programming values. Also, press

while in Cycle Menu or Run Menu to change to the Contrast Adjust/Backlight

Menu. Also, press with and to enter System Menu.

DOWN ARROW Press to move the cursor on display and edit programming values.

LEFT ARROW Press to move the cursor on display.

BACK Press to move back to the previous display menu. Also, press with and

to enter System Menu.

RIGHT ARROW Press to move the cursor on display. Press while running a cycle to get to Run

Diagnostic Menu.

STOP/ON/OFF Press to stop and abort a machine cycle during Run Mode. Also press with

and to enter System Menu. When in Cycle Programming Menu,

press to turn segments and cycles on and off.

START/ENTER Press to start or rapid advance a machine cycle during Run Mode. Also, press to

save edited programming values when used in programming menus.

Table 1

UniLinc Identification

70444801

Operation Modes

General Modes of Operation

In each mode of operation, the user may press keypads

or communicate with the control to change the

displayed menu.

Power-up Mode

The control enters this mode at power-up. After the

control completes operation in the Power-up Mode it

will enter Idle Mode. The display is blank during

Power-up Mode.

Idle Mode

The control is ready for operation in Idle Mode.

Control can display different menus depending on user

input (keypad press, opening or closing the loading

door, or PDA communication). If there is no user input

for one minute, control will turn off the LCD

backlight. The control will light when there is user

input. If there is no user input for 10 minutes, the

display will go blank.

If the control is in Idle Mode, Cycle Menu is

displayed, loading and lint door closed, and the

keypad is pressed, control will enter Run Mode.

Run Mode

The Control enters Run Mode during a cycle. The

Display shows machine cycle time remaining, the

current cycle type, segment, temperature, and

graphical indicators. Loading and lint doors are closed

during Run Mode. Press keypad to stop cycle

and enter Pause Mode. Press keypad to enter

Run Diagnostic Menu. Control enters Pause Mode if

loading or lint door opens. Press to Rapid

Advance.

Rapid Advance Mode

If the Rapid Advance Option is enabled, the user can

advance a running machine cycle by pressing the

keypad. In a Time Dry cycle, pressing the

keypad will decrease the remaining time by one

minute. Pressing and holding the keypad will

decrease the remaining time by four minutes per

second until the end of the cycle.

In the Auto-Dry and Moisture Dry cycles, pressing the

keypad will advance the cycle to the next

enabled segment. Note that Auto-Dry cycles only have

one programmable segment.

In the Cool Down segment, pressing the keypad

will decrease the remaining time by one minute.

When the cycle is completed, the audit counter, Total

Rapid Advance Cycles is incremented rather than the

Total Machine Cycles audit counter. In addition this

cycle is recorded in the audit list “Last 25 Machine

Cycles Completed”. If the Rapid Advance Option is

disabled preventing a manual Rapid Advance, the user

may still execute a Rapid Advance using the PDA or

PC. Refer to UniLinc PC and PDA Application User

Instructions for additional information on using a

PDA or PC to Rapid Advance a cycle.

Pause Mode

If keypad is pressed or the loading or lint door is

opened while in Run Mode, control enters Pause

Mode.

If the door is opened then closed, the control will

prompt the user to press to resume the cycle.

If is pressed while already in Pause Mode, the

control will enter End of Cycle Mode.

Error Mode

This mode will be entered to display all fatal machine

errors.

Communication Mode

This mode is entered whenever the control is

communicating with a PDA or a network. Refer to

UniLinc PC and PDA Application User Instructions.

Cool Down Mode

The control enters the Cool Down Mode after the heat

segment of the cycle is completed or fatal error occurs.

The control turns the heater off and for steam heated

units turns the damper motor on. The cool down

segment will end once the cool down temperature has

been reached or the programmed cool down time

expires, which ever happens first.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Secadora de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers 50 Pound Capacity 75 Pound Capacity Model Identification Part No.... Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems D0582 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LES37AW Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems UA025L Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems DRYING TUMBLERS 70269501R3 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems LES33A F4562 Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems DRY710C Guía

Alliance Laundry Systems

Alliance Laundry Systems 505828 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 513257R1 Guía

Alliance Laundry Systems

Alliance Laundry Systems SFE107*A Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumbler 70278501R5EN Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems DRY2030N Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems D715I Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems DCB50EG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none Manual de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems LTZ87A*H0902 Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LTS87A*H Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Stacked Drying Tumbler Manual de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems UniLinc 35 Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR3003WG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 800795 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems ZE1010-1502 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CTSA9AWN Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
