Troubleshooting

DRY684C

Part No. 505894R2

March 2012

Homestyle

Dryers

Refer to Page 6 for Model Numbers

the expressed written consent of the publisher.

505894 1

Table of

Contents

Section 1 – Safety Information

Locating an Authorized Servicer ..................................................... 4

Section 2 – Introduction

Customer Service ............................................................................ 5

Nameplate Location ........................................................................ 5

Model Identification ........................................................................ 6

How Your Dryer Works .................................................................. 7

Section 3 – Troubleshooting

1. Dryer Motor Does Not Run ...................................................... 9

2. Dryer Stops in Cycle; Quits After the First Few Loads;

Has a Burning Smell; Cycles On Motor Thermal Protector ..... 11

3. Dryer Motor Runs But Cylinder Does Not Turn ...................... 12

4. Dryer Motor Does Not Stop ..................................................... 13

5. Dryer Runs Only When Door is Open ..................................... 14

6. Dryer Heating Assembly Does Not Heat or Burner Does

Not Ignite .................................................................................. 15

7. Igniter Does Not Glow (Gas Supply Sufficient) –

Gas Dryer Models ..................................................................... 17

8. Burner Ignites and Goes Out Repeatedly –

Gas Dryer Models ..................................................................... 18

9. Igniter Glows But Burner Does Not Ignite –

Gas Dryer Models ..................................................................... 19

10. Dryer Heater Assembly or Burner Shuts Off Prematurely ....... 20

11. Dryer Heater Assembly or Burner Repeatedly Cycles

Off On Limit Thermostat .......................................................... 21

12. Dryer Heater Assembly or Burner Does Not Shut Off ............. 23

13. Clothes Do Not Dry in Dryer ................................................... 24

14. Timer Does Not Advance in Automatic Cycle ......................... 25

15. Clothes Are Too Hot When Removed From Dryer .................. 26

16. Excessive Chattering or Vibrating Noise in Dryer ................... 27

17. Excessive Humming or Whistling Noise in Dryer ................... 28

18. Ignition Control Flashes ........................................................... 29

Section 4 – Adjustments

19. Leveling Legs ........................................................................... 31

20. Burner Flame (Gas Models) ..................................................... 32

Section 5 – Test Procedures

21. Timer Contacts ......................................................................... 34

22. Fabric Selector Switch .............................................................. 35

23. Drive Motor .............................................................................. 36

24. Motor Switch ............................................................................ 39

25. Burner System Operation ......................................................... 41

26. Electrical Circuit To Ignition System (Gas Models) ................ 43

2505894

27. Gas Valve Coils Check (Gas Models) ...................................... 43

28. Sensor Check (Gas Models) ..................................................... 44

29. Igniter Check (Gas Models) ..................................................... 44

30. Ignition Control Grounding Check

(Silicon Nitride Ignition) .......................................................... 44

31. Thermal Fuse (Electric Models) ............................................... 44

32. Heater Assembly (Electric Models) ......................................... 45

33. Cycling or Limit Thermostat .................................................... 45

34. Door Switch .............................................................................. 45

Section 6 – Internal Wiring of Dryer Motor Switch

505894 3

Section 1

Safety Information

Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION,”

“WARNING” and “DANGER”) followed by specific instructions. These precautions are intended for the personal

safety of the operator, user, servicer, and those maintaining the machine.

DANGER

Danger indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death.

WARNING

Warning indicates a hazardous situation that, if not avoided, could cause severe personal injury or death.

CAUTION

Caution indicates a hazardous situation that, if not avoided, may cause minor or moderate personal injury or

property damage.

Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.

IMPORTANT

The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will

occur if the procedure is not followed.

NOTE

The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is

important but not hazard related.

In the interest of safety, some general precautions relating to the operation of this machine follow.

• Failure to install, maintain, and/or operate this machine according to the manufacturer’s

instructions may result in conditions which can produce serious injury, death and/or

property damage.

• Do not repair or replace any part of the machine or attempt any servicing unless specifically

recommended or published in this Service Manual and that you understand and have the

skills to carry out.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the machine is properly grounded and to reduce the risk of fire,

electric shock, serious injury, or death.

W284

WARNING

4505894

Section 1 Safety Information

NOTE: The WARNINGS and IMPORTANT INSTRUCTIONS appearing in this manual are not meant to

cover all possible conditions and situations that may occur. Common sense, caution and care must be

exercised when installing, maintaining or operating the machine.

Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do

not understand.

Locating an Authorized Servicer

Alliance Laundry Systems is not responsible for personal injury or property damage resulting from improper

service. Review all service information before beginning repairs.

Warranty service must be performed by an authorized technician, using authorized factory parts. If service is

required after the warranty expires, Alliance Laundry Systems also recommends contacting an authorized

technician and using authorized factory parts.

To reduce the risk of electric shock, fire, explosion, serious injury or death:

• Disconnect electric power to the dryer(s) before servicing.

• Close gas shut-off valve to gas dryer(s) before servicing.

• Never start the dryer(s) with any guards/panels removed.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the dryer is properly grounded.

W001R1

WARNING

Repairs that are made to your products by unqualified persons can result in hazards due to

improper assembly or adjustments subjecting you, or the inexperienced person making such

repairs, to the risk of serious injury, electrical shock, or death.

W007

WARNING

If you or an unqualified person perform service on your machine, you must assume the

responsibility for any personal injury or property damage which may result. The manufacturer

will not be responsible for any injury or property damage arising from improper service and/or

service procedures.

W286

WARNING

505894 5

Section 2

Introduction

Customer Service

If literature or replacement parts are required, contact

the source from whom the machine was purchased or

contact Alliance Laundry Systems at

+1 (920) 748-3950 for the name and address of the

nearest authorized parts distributor.

For technical assistance, call +1 (920) 748-3121.

Nameplate Location

When calling or writing about your product, be sure to

mention model and serial numbers. Model and serial

numbers are located on nameplate(s) as shown.

D412PE1A

Nameplate

6505894

Section 2 Introduction

Model Identification

Information in this manual is applicable to these

dryers:

ADE3TFWS431AW01

ADE3TRWS431AW01

ADE3TRWS431NW22

ADE32FSS431AN01

ADE32FSS431NN22

ADE32FSS541RN01

ADE41FSS171TN03

ADG3TFWS301AW01

ADG3TRWS301AW01

ADG32FSS301AN01

ADG41FSS111TN03

AEZ17A*F1702

AEZ28A*F1702

AEZ68A*F1702

AGZ17A*F1102

AGZ28A*F1102

AGZ68A*F1102

BDE30FGS171CW01

BDG30FGS111CW01

CDE3LRGS171CW01

CDE4BFGS171CW01

CDG3LRGS111CW01

CDG4BFGS111CW01

CEZ68A*F1702

CGZ68A*F1102

FDE3TRGS401NW22

FEN16A*G4018

FEN17A*G3018

FEN17A*G4018

FES16A*G4018

FES17A*F3300

FES17A*F4350

FEU17A*F1702

FEZ17A*F1702

FGN16A*M3013

FGN17A*M3013

FGS17A*F3060

FGZ17A*F1102

LDE3TRWS331TW05

LDG3TRWS111TW05

LEB07A*F1709

LED17A*F1700

LEG37A*F4350

LEH37A*F3300

LEK37A*F4350

LEN27A*G3008

LEN27A*G3018

LEN27A*G4008

LEN27A*G4018

LEN27A*G99M3

LEN37A*G3018

LEN37A*G4018

LES17A*F3000

LES17A*F3007

LES17A*F3022

LES17A*F4500

LES17A*M4588

LES27A*G3018

LES27A*G4000

LES27A*G4500

LES27A*G4518

LES27A*G4018

LES28A*G4018

LES33A*F4562

LES37A*F3000

LES37A*F3028

LES37A*F3300

LES37A*F3327

LES37A*F4350

LES37A*F5412

LES37A*G3018

LES37A*G4018

LET57A*F1700

LET67A*F1700

LET68A*F1700

LEY47A*F1709

LEZ27A*F1702

LEZ27A*G3018

LEZ27A*G4018

LEZ37A*F1702

LEZ37A*F3000

LEZ37A*G3018

LEZ37A*G4018

LEZ37A*G5618

LEZ57A*F1702

LEZ67A*F1702

LGG37A*F3058

LGH37A*F1182

LGH37A*F5423

LGK37A*F3058

LGK37A*F3060

LGN27A*M3008

LGN27A*M3013

LGN37A*M3013

LGS17A*F3020

LGS17A*F3081

LGS17A*K1180

LGS17A*M3020

LGS17A*M3082

LGS27A*M3013

LGS27A*M3080

LGS37A*F3000

LGS37A*F3022

LGS37A*F3028

LGS37A*F3058

LGS37A*F3060

LGS37A*F3080

LGS37A*F5412

LGS37A*F5423

LGS37A*G3013

LGS37A*G3080

LGS37A*M3013

LGS37A*M3080

LGS38A*M3013

LGS38A*M3020

LGS40A*M3020

LGT57A*F1100

LGT68A*F1100

LGY47A*F1109

LGZ27A*F1102

LGZ27A*M3013

LGZ37A*F1102

LGZ37A*F3000

LGZ37A*G3013

LGZ37A*M3013

LGZ57A*F1102

LGZ67A*F1102

MDE3TRWS331TW06

MDG3TRWS111TW06

ZDE30RGS171CW01

ZDE3LRGS171CW01

ZDE41FSS171CN01

ZDE4BFGS171CW01

ZDE4BRGS171CW01

ZDG30RGS111CW01

ZDG3LRGS111CW01

ZDG41FSS111CN01

ZDG4BFGS111CW01

ZDG4BRGS111CW01

* Add Letter To Designate Color. L – Almond W – White Q – Bisque G – Gray

505894 7

Section 2 Introduction

How Your Dryer Works

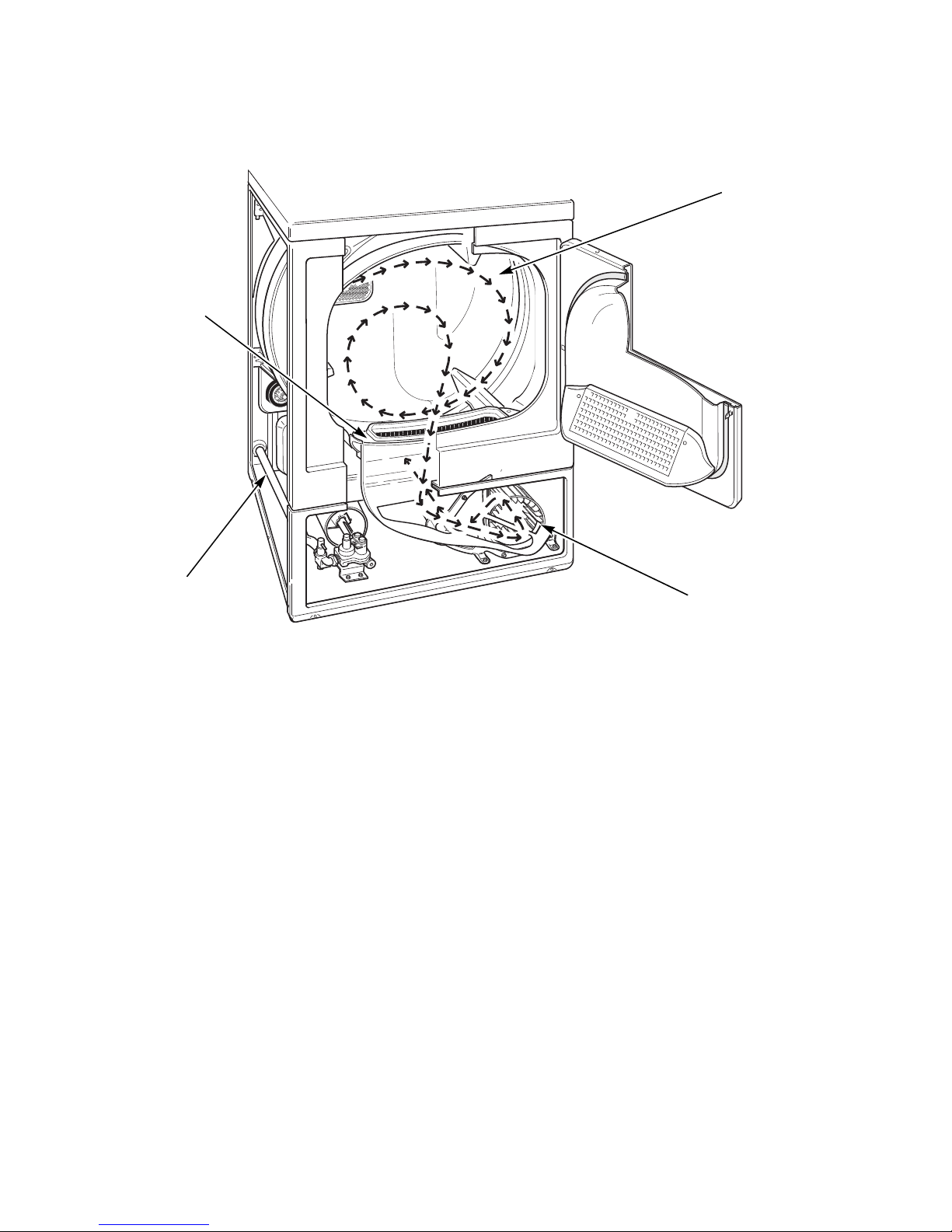

The dryer uses heated air to dry loads of laundry. When

the motor is started, the exhaust fan pulls room

temperature air in through louvers at the rear of the

dryer and over the heat source (burner flame for gas

and heating element for electric). The heated air moves

through the heater duct and into the cylinder, where it

circulates through the wet load. The air then passes

through the lint filter, air duct, and exhaust fan, where

it is vented to the outdoors.

DRY1819S

Lint

Filter

Cylinder

Heater

Duct Blower

Fan

8505894

Section 3

Troubleshooting

IMPORTANT: Refer to wiring diagram for aid in testing dryer components.

To reduce the risk of electric shock, fire, explosion, serious injury or death:

• Disconnect electric power to the dryer(s) before servicing.

• Close gas shut-off valve to gas dryer(s) before servicing.

• Never start the dryer(s) with any guards/panels removed.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the dryer is properly grounded.

W001R1

WARNING

Este manual sirve para los siguientes modelos

138

Tabla de contenidos

Otros manuales de Secadora de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems LES19A SERIES Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HSE117*A Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems UA025L Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems AE Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 510988R3 Guía

Alliance Laundry Systems

Alliance Laundry Systems ADEE8B BLACK Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems W800 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems DC0220SFG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems DRY684C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems D355IE1B Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems DR3003WX Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems ADG41F1 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TLW1991N Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers 50 Pound Capacity 75 Pound Capacity Model Identification Part No.... Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems 503806R1 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems SFE107*A Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR5003WG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HA025L Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems Dryer Tumblers Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems DR3000WG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LTS87A*H Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
