TTL Output Module

Cat. No. 1771OG

Installation Instructions

This document provides information on:

important pre-installation considerations

power supply requirements

initial handling procedures

installing the module

using the indicators for troubleshooting

module specifications

You can use any TTL device that meets the input logic level specification

of -0.2V dc to +0.8V dc (low), and 2.0V dc to 5.25V dc (high).

The TTL module requires power from two sources: the I/O chassis

backplane, and a +5V dc power supply that you provide for transmission

of TTL signals.

Backplane

The TTL module receives its power through the 1771 I/O chassis

backplane from the chassis power supply. The module requires 168mA

from the output of this supply. Add this to the requirements of all other

modules in the I/O chassis to prevent overloading the chassis backplane

and/or backplane power supply.

Customer Supply

You must provide a separate +5(+0.25)V dc power supply for TTL outputs

from the module and for your TTL input devices. Your module requires

250mA from the output of your supply. Ripple should not exceed 50mV

peak to peak.

To The Installer

Preinstallation

Considerations

Power Requirements

TTL Output Module

Cat. No. 1771OG

Installation Instructions

The TTL output module is shipped in a static-shielded bag to guard against

electrostatic discharge damage. Observe the following precautions when

handling the module:

Electrostatic Discharge Damage

ATTENTION: Under some conditions, electrostatic discharge

can degrade performance or damage the module. Observe the

following precautions to guard against electrostatic damage.

Wear an approved wrist strap grounding device, or touch a grounded

object to discharge yourself before handling the module.

Do not touch the backplane connector or connector pins.

If you configure or replace internal components, do not touch other

circuit components inside the module. If available, use a static-free

work station.

When not in use, keep the module in its static-shielded bag.

This section explains how to:

select the logic level

key the I/O chassis

install the module

make the wiring connections

Selecting the Logic Level

You can select one of two logic conditions:

If you choose: Then: Set Switch SW:

HIGH = TRUE logic 2.0 to 5.25V dc corresponds to logic ``1" (on) SW1 - on, SW2* - on

LOW = TRUE logic -0.2 to 0.8V dc corresponds to logic ``1" (on) SW1 - off, SW2* - on

* SW2 setting is optional for HIGH-TRUE indicator.

Select high-true or low-true using the switch assembly inside the module.

Initial Handling

Installing Your Module

TTL Output Module

Cat. No. 1771OG

Installation Instructions

1. Remove the side cover from the module by removing the screw at

each of the four corners.

2. Set the switches as needed for your application.

When OFF, LOW = TRUE

logic selected.

When OFF, HIGH = TRUE

indicator does not illuminate.

When ON, HIGH = TRUE

indicator illuminates

continuously.

When ON, HIGH = TRUE

logic selected.

TTL Output Module

(cover removed)

10446-I

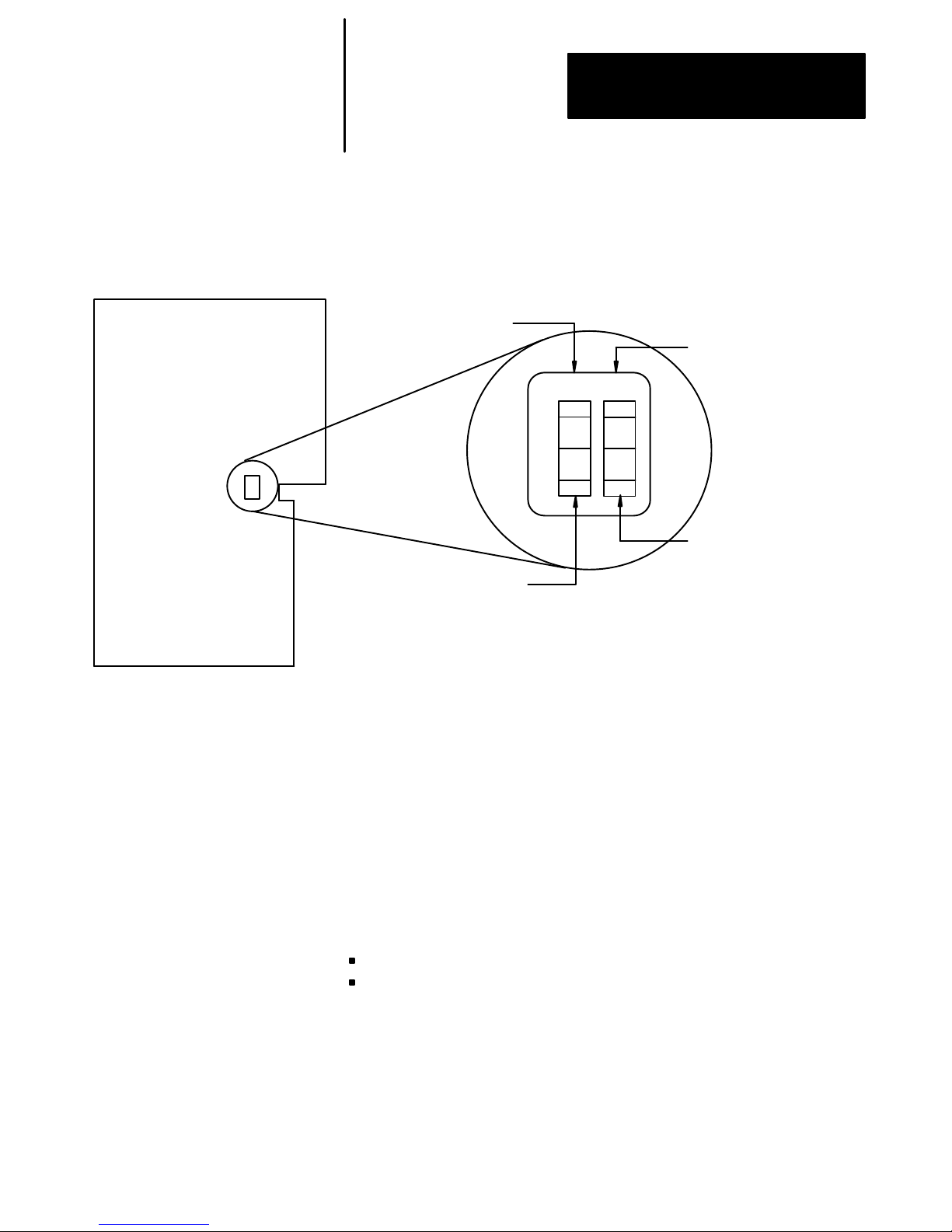

TTL Logic Level Selection Switch Assembly

3. Reinstall the cover and secure with the four screws.

Keying Your I/O Chassis

Use the plastic keying bands, shipped with each I/O chassis, to key the I/O

slots to accept only this type of module.

The module circuit board is slotted in two places on the rear edge. The

position of the keying bands on the backplane connector must correspond

to these slots to allow insertion of the module. You can key any connector

in an I/O chassis to receive this module except for the left-most connector

reserved for adapter or processor modules. Place the keying bands between

the following numbers labeled on the upper backplane connector:

Between 6 and 8

Between 10 and 12

You can change the position of these keys if system redesign and rewiring

makes insertion of a different module necessary.

TTL Output Module

Cat. No. 1771OG

Installation Instructions

Installing the Output Module

To install the TTL output module in your 1771 I/O chassis, follow the steps

listed below:

ATTENTION: You must first turn off power to the 1771 I/O

chassis backplane and field wiring arm before removing or

installing an I/O module.

Failure to turn off power to the backplane or field wiring arm

could cause personal injury, module damage, or degradation

of performance.

Failure to turn off power to the backplane could cause

personal injury or equipment damage due to possible

unexpected operation.

1. Turn off power to the I/O chassis.

2. Place the module in the plastic tracks on the top and bottom of the

slot that guides the module into position.

3. Do not force the module into its backplane connector. Apply firm,

even pressure on the module to seat it properly.

4. Secure the module’s position by doing the following:

With a Series A chassis, snap the chassis latch over the top of the module

With a Series B chassis, pull down the locking bar

5. Connect the field wiring arm to the output module.

Connecting Wiring to the Output Module

Connect wiring to the input module using the field wiring arm (cat. no.

1771-WC) shipped with the module (shown in the following figure). Make

your connections as follows:

1. Attach the field wiring arm to the pivot bar on the bottom of the I/O chassis.

2. Pivot the field wiring arm upward and push it into the module until

the field wiring arm clicks into position. The field wiring arm is

designed to let you install and remove the module without

disconnecting the wires.

ATTENTION: Do not apply ac or reverse dc voltage to module

terminals. Circuitry at the input of module may be damaged.

TTL Output Module

Cat. No. 1771OG

Installation Instructions

3. Separate the shielded cables from wiring that radiates electrical noise.

Refer to category 2, low power dc I/O lines, in publication 1770-4.1,

‘‘Programmable Controller Wiring and Grounding Guidelines”.

4. Prepare the cable for grounding by doing the following:

Remove a length of cable

jacket from the Belden 8761

cable.

Pull the foil shield and bare

drain wire from the insulated

wires.

Bare

drain

wire

Insulated

wires

Foil

shield

Twist the foil shield and drain

wire together to form a single

strand.

Attach a ground lug.

20104

Belden

8761 Cable

5. Ground the single strand (at the ground lug end) to the grounding

stud on the I/O chassis or by using single-point grounding.

19480

When you connect grounding conductors to the I/O chassis

grounding stud, place a star washer under the first lug, then

place a nut with captive lock washer on top of each ground lug.

Grounding Stud

1Use

the cup washer if crimpon lugs are not used.

Chassis Ground Singlepoint Grounding

Ground Lug

Nut

Ground Lug1

Star

Washer

I/O Chassis Side Plate

Nut and Captive

Washer

Externaltooth Washers

#10 Threadforming screw

19923

TTL Output Module

Cat. No. 1771OG

Installation Instructions

6. You must connect both ends of the insulated signal return wire in

each transmission cable as follows:

connect one end to the dc common terminal of your +5V dc power

supply

connect the other end to the dc common terminal of the field

wiring arm

dc common

+5V dc

Output 0

Output 1

Output 2

Output 3

Output 4

Output 5

Output 6

Output 7

Customer

Power Supply

+5V dc

1Add a pullup resistor (1K ohm typical)

if not internal to the device.

(See applicable codes and laws.)

The outputs of the 1771OG are opencollector with

internal 1K pullup (up to 5V) resistors.

(Actual wiring runs in this direction.)

10447-I

Field Wiring Arm

Cat.. No. 1771WC

Ground cable shield at the chassis

grounding stud or by using single

point grounding

7. Connect TTL output devices using Belden 8761 shielded cable as

shown in the connection diagram. Do not exceed 50 cable feet for any

output device. Connect the insulated wires to their respective

terminals on the field wiring arm.

Driving Inputs with Outputs

Output terminals of the TTL output module (cat. no. 1771-OG) may

directly drive inputs of a TTL input module (cat. no. 1771-IG). Connect

the cable shield between modules at one end only.

TTL Output Module

Cat. No. 1771OG

Installation Instructions

The front panel of your module contains nine status indicators (Figure 1).

The red top indicator is labeled ‘‘HIGH = TRUE.” When on, it indicates

you selected high-true logic (SW1 on and SW2 on). When off, it indicates

you selected low-true logic (SW1 off and SW2 on).

Each of the lower eight red indicators light when their corresponding

output terminal delivers TTL voltages in the true state.

Indicators may appear dim during rapid pulsing of output signals.

Figure 1

Status

Indicators

HIGH = TRUE indicator

Output 0

Output 1

Output 2

Output 3

Output 4

Output 5

Output 6

Output 7

Status Indicators

10448-I

Interpreting the Status

Indicators

Specifications

TTL Output Module

Cat. No. 1771OG

Installation Instructions

Outputs per Module 8

Module Location 1771 I/O chassis

Output Voltage Range

HIGH = TRUE

LOW = TRUE

ON: 2.0 to 5.25V dc

OFF: -0.2 to +0.8V dc

ON: -0.2 to +0.8V dc

OFF: 2.0 to 5.25V dc

Maximum Output Current Source: 1mA; Sink: 20mA

Customer Supply Voltage 5V dc (+0.25V)

50mV peaktopeak ripple max.

Customer Supply Current per Module 250mA max.

Output Signal Delay Less than 1ms

Power Dissipation 2.2 Watts (max.); 0.8 Watts (min.)

Thermal Dissipation 7.5 BTU/hr (max.); 2.7 BTU/hr (min.)

Backplane Current 168mA max.

Isolation Voltage Tested at 1500V ac (rms) for 1 second

Environmental Conditions

Operational Temperature

Storage Temperature

Relative Humidity

0oto 60oC (32oto 140oF)

-40oto 85oC (-40oto 185oF)

5 to 95% (without condensation)

Conductors Wire Size

Cable

Category

14 gauge stranded maximum

3/64 inch insulation maximum

Shielded, (Belden 8761)

Keying Between 6 and 8

Between 10 and 12

Field Wiring Arm Catalog Number 1771WC

Wiring Arm Screw Torque 79 inchpounds

1Refer

to publication 17704.1 `

`Programmable Controller Wiring and Grounding Practices."

With major offices worldwide.

Algeria •

Argentina

•

Australia

•

Austria

•

Bahrain

•Belgium •Brazil •

Bulgaria

•

Canada

•Chile •

China, PRC

•

Colombia

•Costa Rica •

Croatia

•

Cyprus

•Czech

Republic

•

Denmark

•

Ecuador

•Egypt •El Salvador •Finland •France •

Germany

•

Greece

•

Guatemala

•

Honduras

•

Hong Kong

•

Hungary

•Iceland •

India

•

Indonesia

•

Israel

•Italy •Jamaica •

Japan

•

Jordan

•

Korea

•

Kuwait

•

Lebanon

•Malaysia •Mexico •

New Zealand

•

Norway

•Oman •Pakistan •

Peru

•Philippines

•

Poland

•

Portugal

•

Puerto Rico

•

Qatar

•

Romania

•

Russia-CIS

•

Saudi Arabia

•

Singapore

•Slovakia •Slovenia •

South Africa, Republic

•Spain •

Switzerland

•

aiwan

•Thailand •

The Netherlands

•T

urkey

•

United Arab Emirates

•

United Kingdom

•

United States

•

Uruguay

•V

enezuela

•Yugoslavia

orld Headquarters, AllenBradley

, 1201 South Second Street, Milwaukee, WI 53204 USA, T

el: (1) 414 3822000 Fax: (1) 414 3824444

AllenBradley has been helping its customers improve productivity and quality for 90 years.

AB designs, manufactures and supports a broad range of control and automation products

worldwide. They include logic processors, power and motion control devices, manmachine

interfaces and sensors. AllenBradley is a subsidiary of Rockwell International, one of the

world's leading technology companies.

Publication

17712.177 January 1994

Supersedes

Publication 17712.131 - May 1989

95510767

1994 AllenBradley Company

, Inc. Printed in USA

Tabla de contenidos

Otros manuales de Unidad de control de Allen-Bradley

Allen-Bradley

Allen-Bradley 1756-M02AS Manual de usuario

Allen-Bradley

Allen-Bradley Micrologix 1500 Manual de usuario

Allen-Bradley

Allen-Bradley ControlNet 1786-RPFM Manual de usuario

Allen-Bradley

Allen-Bradley 1771-OW Manual de usuario

Allen-Bradley

Allen-Bradley 1732ES-IB16 Manual de usuario

Allen-Bradley

Allen-Bradley ControlNet 1747-SCNR Manual de usuario

Allen-Bradley

Allen-Bradley 1606-XLBRED20 Manual de usuario

Allen-Bradley

Allen-Bradley 1492-IFM40F-3 Manual de usuario

Allen-Bradley

Allen-Bradley ProcessLogix 1757 Series Manual de usuario

Allen-Bradley

Allen-Bradley ControlNet 1747-ACN15 Manual de usuario

Allen-Bradley

Allen-Bradley Kinetix 2000 Manual de usuario

Allen-Bradley

Allen-Bradley DeviceNet 1747-SDN/B Manual de usuario

Allen-Bradley

Allen-Bradley ControlNet 1786-RPFRL/B Manual de usuario

Allen-Bradley

Allen-Bradley ArmorBlock MaXum B Series Manual de usuario

Allen-Bradley

Allen-Bradley Bulletin 160 DeviceNet Manual de usuario

Allen-Bradley

Allen-Bradley Micro800 2080-MEMBAK-RTC2 Manual de usuario

Allen-Bradley

Allen-Bradley PowerMonitor 500 Manual de usuario

Allen-Bradley

Allen-Bradley ControlLogix 1756-ENBT Manual de usuario

Allen-Bradley

Allen-Bradley ControlLogix 1756-OF4 Manual de usuario

Allen-Bradley

Allen-Bradley ControlLogix 1756-ENET/B Manual de usuario

Allen-Bradley

Allen-Bradley MSR41 Manual de usuario

Allen-Bradley

Allen-Bradley 1794-OW8 Manual de usuario

Allen-Bradley

Allen-Bradley POINT I/O PROFIBUS 1734-APB Manual de usuario

Allen-Bradley

Allen-Bradley ControlLogix 1756-DH485 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
