Alcatel-Lucent Audioffice 8115 Manual de usuario

Alcatel - Lucent 8115 Audioce

User guide

R100

8AL90050USAAed01

Box content

Your Alcatel-Lucent 8115 Audioce

1 Discover your Alcatel-Lucent 8115 Audioce dock

2 Set-up

•Safety guidelines 3

•Important information 3

•4

•

4 Use

Adjusting the volume 6

Table of contents

6Placing or receiving an Alcatel-Lucent IP deskphone call in jack mode

User guide Alcatel-Lucent 8115 Audioce

7Connectivity

7Alcatel-Lucent DeskPhones compatibility

Buttons 7

5 Technical Data 7

Technical Specications

Connect your devices

5Connect a USB handset (optional)

6 Warranty 7

7 Support 7

6Activating and desactivating the mute

Activating and desactivating the speakers

Optional USB handset

Updating your Alcatel-Lucent 8115 Audioce

Declaration of Conformity for the European Union

Environment 8

Legal 8

FCC

•

Important information

Safety Guidelines

Required Power Supply

This dock is powered through a mains AC 100-240V supply.

Warning

•Do not open the base or charger.

Please ensure that no liquid comes into contact with the product.

Do not expose the device to excessive smoke, dust, mechanical vibration or shock.

Only use the cables, adapters and batteries supplied.

Place the unit near an accessible electrical outlet.

Do not expose the device to excessive heat, e.g. to direct sunlight or near heating

equipment.

Do not use in areas where there are risks of explosion.

•

Operating and storage temperature

Use the device in a room where the temperature is always between 0 and 40ºC (32 to 104ºF).

User guide Alcatel-Lucent 8115 Audioce

Box content

Designed and produced by invoxia, Paris

1 Discover your Alcatel-Lucent 8115 Audioce dock

Your Alcatel-Lucent 8115 Audioce

User guide Alcatel-Lucent 8115 Audioce

AC adapter

Alcatel-Lucent 8115 Audioce base

Adjust volume.

Receive and End a call.

Mute

Jack 3.5 mm cable

USB type A - type B cable

2 Set-up

Place your Alcatel-Lucent 8115 Audioce near your mains supply socket.

Once installed, to benet from the best sound quality avoid placing any objects (walls or cumbersome

objects) within a range of 20cm.

User guide Alcatel-Lucent 8115 Audioce

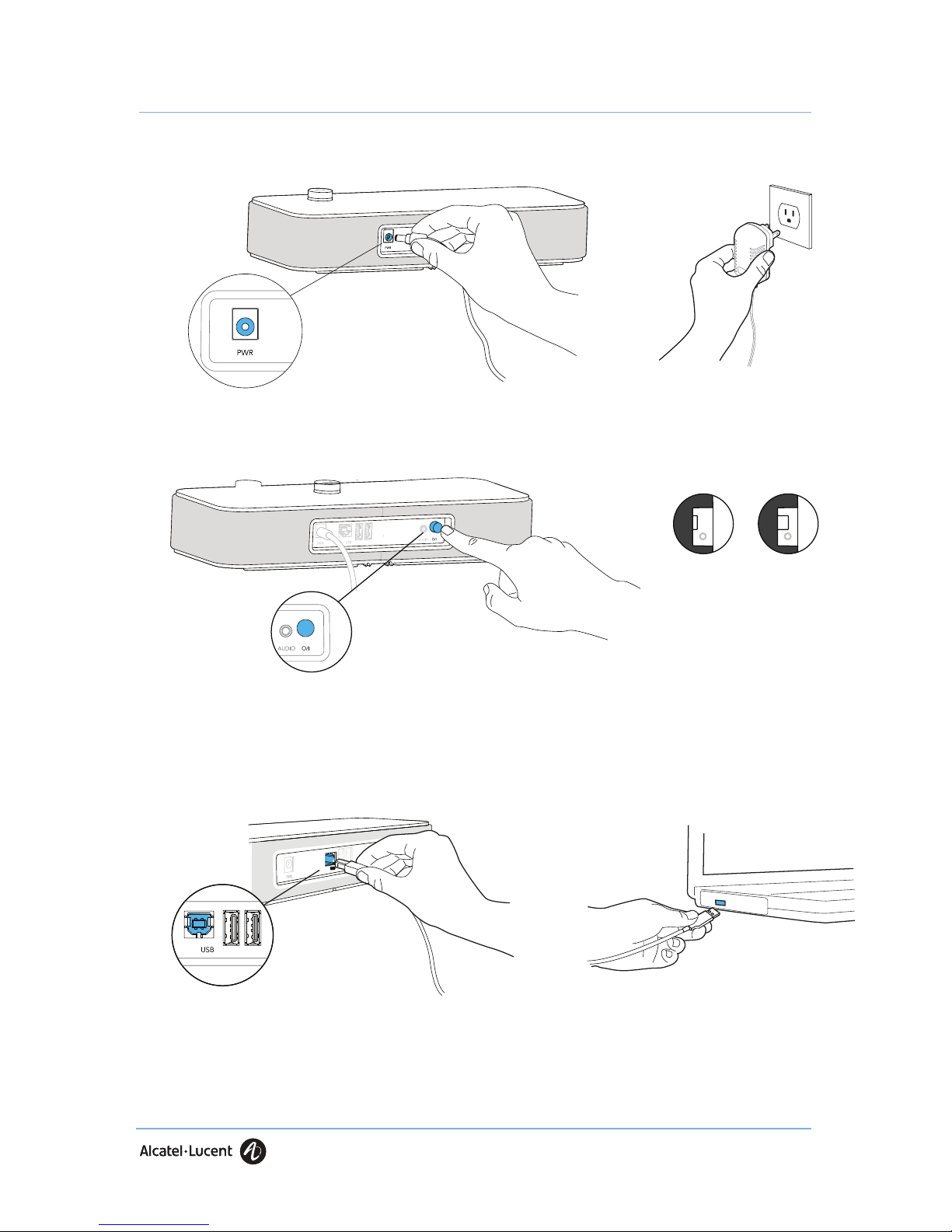

1. Plug the mains power adapter into the back of the base and into a wall mount socket.

2. Press the On / O button at the back of the base.

Connect your devices

Connect a USB handset (optional)

The USB slave port is to connect your computer to have the sound on the 8115, the two USB masters ports are

there to allow you to charge other devices like smartphones and tablets.

The 3.5 mm jack allows you to connect your Alcatel-Lucent IP deskphone.

A USB handset (available in option) may be plugged to one of the two USB masters ports at the back of the base.

ON OFF

User guide Alcatel-Lucent 8115 Audioce

Use Alcatel-Lucent 8115 Audioce as a conference module for your Alcatel-Lucent Deskphone or for your Alcatel-

Lucent Softphone on your mobile.

4 Use

Placing or receiving an Alcatel-Lucent Deskphone call in jack mode

Upon jack connection to the Alcatel-Lucent Deskphone, user needs to congure the jack interface to “External

Handsfree” in order to use it for conference.

The jack connected, dial from your Alcatel-Lucent Deskphone and press the Alcatel-Lucent 8115 Audioce

volume button to use it as a conference device.

To end the call, hang up the call from the phone.

Muting a call can be done with the Audioce Mute button or thru the Alcatel-Lucent Deskphone Mute key.

Adjusting the volume

Turn the volume button to regulate the volume coming from the speakers.

Activating and desactivating the mute

Tap the Mute icon from your Alcatel-Lucent deskphone or directly from the Alcatel-Lucent 8115 Audioce icon.

Activating and desactivating the speakers

To accept a call in speaker mode or to switch to speaker mode during a call, press the volume button on the

base.

Optional USB handset

You can order an optional USB handset shipped with a smart holder

The optional USB handset allows to benet from a clear sound for individual call and keep you away from mobile

airwaves with a great listening comfort.

To answer a call, pick-up the handset or press the volume button.

To end a call, hang-up the handset on the smart-holder or press the volume button when in handsfree.

You can switch from handset to handsfree:

- In handsfree, to swicth to the handset, just pick-it-up.

- With the handset, press the volume button to switch in handsfree.

Beware: in handsfree if you press the volume button, you’ll hang-up the call, you won’t switch to the handset.

Updating your Alcatel-Lucent 8115 Audioce

To always benet from the last features and acoustics improvements made to the Alcatel-Lucent 8115 Audioce,

we regularly updates the device rmware.

Use a USB Stick and follow this link https://businessportal.alcatel-lucent.com/alugesdp/faces/gesdp/customer

Support/DynamicLink.jspx?reference=SIPT_SOFTWARE_DOWNLOAD&_afPfm=2 and go into the 8125-8115 section

under "Phones".

Download the last available rmware version. Save it in root of the USB stick, then insert the USB key into your

Audioce. The volume button led ashes during the update and is kept enlightened when the rmware is

up-to-date.

You may then turn the base O, remove the USB stick and turn the base On again.

Connectivity

1 USB slave port

2 USB port

1 jack 3.5 mm input and output

Alcatel-Lucent DeskPhones compatibility

Made for 8012, 4028/4029, 4038/4039, 4068 Alcatel-Lucent Deskphones

8028/29, 8038/39, 8068, 8068BT Premium Deskphones

8082 Smart Deskphone

Power supply: 100-240V / 12V 3A AC adapter

Dimensions: 29x11,5x5,25cm

Operating temperature: 0°C – 40°C

Weight: 0,9 kg

Humidity: 10% - 90%

Buttons

Volume / Answer button

Mute

Technical Specications

On/ O button

User guide Alcatel-Lucent 8115 Audioce

5 Technical Data

6 Warranty

7 Support

The standard Alcatel-Lucent Enterprise warranty will apply to the dock and not accessories.

Details are available at https://business portal.alcatel-lucent.com under the customer section category Hardware

Support.

e-Support from the Alcatel-Lucent Business Partners Web site : https://businessportal.alcatel-lucent.com click under

“Let us help you” the eService Request link.

e-mail: [email protected]

Declaration of Conformity for the European Union

nvoxia declares that the Alcatel-Lucent 8115 Audioce product complies with the essential requirements and other relevant

provisions of the European RTTE Directive 1999/5/EC on Radio and Telecommunication Terminal Equipment.

U.S. Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may

cause undesired operation.

The changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating

to conjunction with any other antenna or transmitter.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected

- Consult the dealer or an experienced radio/TV technician for help.

Environment

Your Alcatel-Lucent 8115 Audioce dock has been designed and manufactured using quality materials and components which

can be reused and recycled. The presence of the crossed-out wheeled bin symbol indicates that the product complies with EU

Directive 2002/96/EC.

It must be disposed of through an appropriate collection and recycling structure.

Please contact your local electrical and electronic equipment waste management scheme.

Please respect your local municipal regulations and do not dispose of these products with unsorted household waste.

The correct disposal of products at the end of their working life is good for the environment and your health.

Légal

User guide Alcatel-Lucent 8115 Audioce

Alcatel-Lucent, Alcatel-Lucent 8115 Audioce and related trademarks, names and logos are the property of Alcatel-Lucent.

invoxia ®, Audioce™ are registered trademarks of invoxia.
