Alcatel-Lucent OmniSwitch 9000

Chassis LAN Switch

Alcatel-Lucent | OmniSwitch 90002

The award winning Alcatel-Lucent OmniSwitch

9000 family (OS9000s) is a product line of full-

featured, high-performance 10-Gigabit Ethernet

chassis LAN switches that ranges from a low-cost,

entry-point chassis.

The OS9000s deliver future-proof solutions with advanced security and QoS

features for use in small-to-large enterprise cores, in the aggregation layer

and in wiring closets with ﬂexible power-over-Ethernet support. The OS9000s

are a part of Alcatel-Lucent’s end-to-end enterprise switch family.

The switches support future edge requirements as Gigabit

Ethernet to the desktop becomes commonplace and demand for

power-over-Ethernet (PoE) capability increases.

The Alcatel-Lucent OmniSwitch 9000s are designed to anticipate

future network needs with wire-rate processing for simultaneous

IPv4 / IPv6 and support for unicast and multicast

applications such as voice-over-IP and video collaboration.

Alcatel-Lucent | OmniSwitch 9000 3

“This switch best supports the SNMP

standard and was the only participant to

supply a web interface from which we

could perform many tasks normally

accomplished on a CLI.”

OS9700, WINNER OF

NETWORK COMPUTING’S

EDITOR’S CHOICE AWARD

Alcatel-Lucent | OmniSwitch 90004

The Alcatel-Lucent OmniSwitch 9000 Family

The Alcatel-Lucent OmniSwitch 9000 family offers ﬂexible

features and beneﬁts that make it an ideal switch to use

throughout your network and works exceptionally well

as a core or aggregation switch. The OS9000 family offers

a common set of network interface (NI) modules that are

compatible and interchangeable with all OS9000 models,

reducing the cost of keeping spares and therefore

lowering the total cost of ownership (TCO).

The OS9000 family offers a wide range of GigE and 10GigE interfaces that provide the

industry’s most ﬂexible combination of Ethernet interfaces for use in a wiring closet. It

also offers power-over-Ethernet to support IP phones, WLAN access points and

video cameras. VoIP and video performance is also enhanced in an OmniSwitch-based

network through the use of policy-based QoS using OmniVista NMS PolicyView.

Alcatel-Lucent | OmniSwitch 9000 5

Alcatel-Lucent OmniSwitch 9800

The Alcatel-Lucent OmniSwitch 9800 (OS9800) has an 18-slot chassis which

provides the largest capacity available in the OS9000 family and is designed

for those applications that require a large port density. Designed for smart

continuous switching operations, the two center slots are dedicated to CMMs

allowing redundant conﬁgurations, with 16 additional slots for network interface

modules. The CMMs provide two critical functions – active standby resiliency for

system control and active-active redundancy for the switching fabric. The 16 slots

provide support for up to 768 GigE ports or 96 10 GigE ports. Plus, key OS9800’s

sub-components – such as network interface cards (NICs) and the power supply

units (PSU) – are compatible and interchangeable with all other OS9000s as well

as the fan trays with the OS9700, reducing the cost of keeping spares and

lowering the total cost of ownership.

Alcatel-Lucent OmniSwitch 9700

The Alcatel-Lucent OmniSwitch 9700 (OS9700) has a 10-slot chassis that offers

high-density capacity supporting an aggregation of up to 384 GigE ports or 48

10GigE ports. The OS9700 supports two slots for CMMs and has eight additional

slots for network interface modules. Similar to the OS9800, the OS9700 has been

designed for smart continuous switching operation whenever used in a redundant

conﬁguration. The Alcatel-Lucent OmniSwitch 9700 was named as Network

Computing’s Editor’s Choice for its superb manageability and ease of use.

Alcatel-Lucent OmniSwitch 9600

The Alcatel-Lucent OmniSwitch 9600 (OS9600) features a 5-slot chassis making it

Alcatel-Lucent’s low-cost, entry-point LAN switch solution that provides the small

enterprise the best performance-to-price available today. The OS9600 supports a

single CMM and four network interface modules. The OS9600 also future proofs

the investment since the network can be expanded inexpensively by reusing all

components in an OS9700 including the CMM, the OS9000 network interface

modules, the power supplies, and the large power-over-Ethernet shelf. By offering

the same features and capabilities as the other OmniSwitch 9000 switches, the

OS9600 provides enterprise businesses an affordable core that supports converged

voice, video, data and other applications.

OmniSwitch 9700

OmniSwitch 9800

OmniSwitch 9600

OmniSwitch 9700

CPU

Virtual Switching Fabric CMM Monitoring

& Sychronization

CMM A

Active Control Standby Control Standby Gigabit

Ethernet Connection

Active Gigabit

Ethernet Connection

CMM B NI 8NI1

STP BPDU

ARP Request

Locally Processed

Requests

Centrally Processed

Requests

Routing Update

Management Access

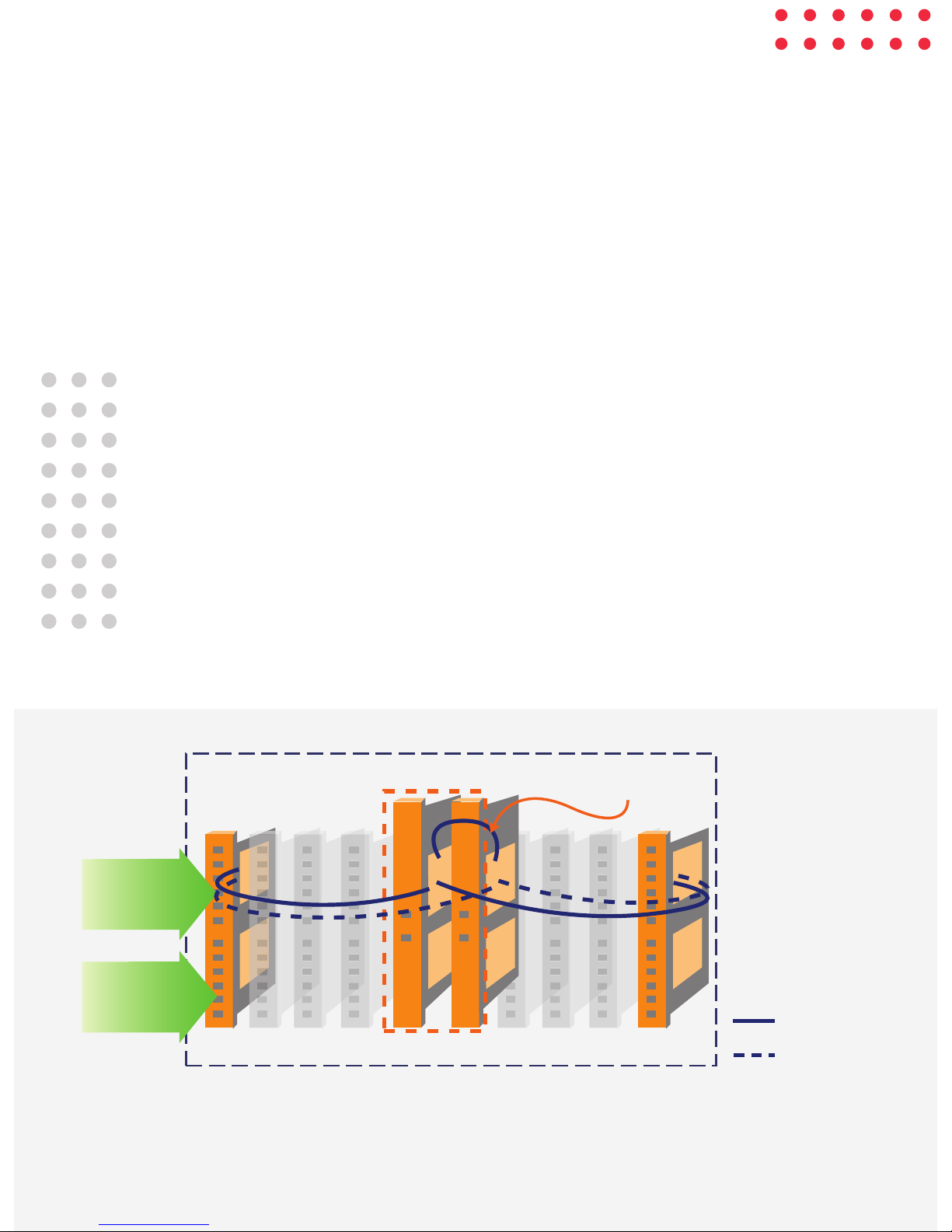

Principle of operation for distributed intelligence

Alcatel-Lucent | OmniSwitch 90006

PRODUCT FEATURES AND BENEFITS

The OS9000 family provides an easy and economical way to upgrade or

deploy a new Ethernet network. The large number of ports makes the

OmniSwitch 9000s suitable for two- or three-tier network designs. This is

possible because of the high performance capability and density of GigE and

10GigE. The OS9000s also future proofs the network with native and full

support of simultaneous IPv4 / IPv6 for addressing migration from IPv4 to

IPv6 or new IPv6 deployments.

The OS9000s are engineered to be deployed in the:

The OS9000 switch family addresses the needs of

converged networks: high availability, wire-speed

performance, high density GigE and 10GigE, and

improved network response time.

nEnterprise core

nData center

nWiring closet

nAggregation layer

Alcatel-Lucent | OmniSwitch 9000 7

OmniSwitch 9000 full redundancy

Fans Redundancy

CMM Redundancy

Power Redundancy

HIGH PERFORMANCE FOR CONVERGED NETWORKS

The OS9000 family is designed for resiliency and

exceptional network performance to support real-

time triple-play applications such as voice-over-IP

(VoIP), data and video applications. Applications are

supported by:

nHigh-port density

nHigh-capacity switching and trafﬁc aggregation for

enterprise network cores

nHighly-available switching fabric with a unique load

sharing capability1

nMulti-layer security

nWire speed packet classiﬁcation

SIMPLIFIED NETWORK MANAGEMENT

Network management is simplified by providing

users with familiar commands and user interfaces

since all OmniSwitch products use the same Alcatel-

Lucent Operating System (AOS) and are completely

integrated with the Alcatel-Lucent OmniVista

Network Management System (NMS). Alcatel-Lucent

also offers other management options such as

WebView, which is a web-based user-friendly element

manager, a command line interface (CLI) and SNMP for

third-party network management systems. No feature is

exclusive to one management method. All are equal

which leaves it to the administrator to select his or her

preferred option.

(1) Requires dual CMMs in either the OS9700 or OS9800

8 Alcatel-Lucent | OmniSwitch 9000

SECURITY

Alcatel-Lucent secures the network with proactive and reactive

capabilities that are provided through Alcatel-Lucent Access Guardian

and the Alcatel-Lucent OmniVista 2770 Quarantine Manager.

The Alcatel-Lucent OmniVista Quarantine Manager is

an open, attack containment solution that defends

against attacks at the network and application levels

by isolating misbehaving users and providing a

means for user remediation. It integrates quarantine

information from any IDS or source of information

about an attack and can locate and isolate an

attacking device on any switch or wireless LAN switch

in the network.

Although third-party switches can quarantine a port,

when the OmniVista Quarantine Manager is used with

an Alcatel-Lucent OmniSwitch it is able to offer options

to either isolate or quarantine only the offending user

while keeping network access to any other users on

the same port open.

Alcatel-Lucent Access Guardian provides identity based

network access to enable enforcement of device and

network security policies, resulting in increased privacy

and availability of communications. Access Guardian

authenticates network users, confirms their PC’s

conformance to security policies, and then provides

access rights based on the user’s role. Using Access

Guardian, the network is able to provide secure access

to all authorized users including IP phones and other

network devices, regardless of the vendor. All while

protecting the privacy and availability of your

business’ communications.

Alcatel-Lucent’s Access Guardian enables proactive, network-wide

security through auto-sense authentication that runs on the OmniSwitch,

preventing unauthorized network access. The Alcatel-Lucent OmniVista

2770 Quarantine Manager provides reactive security by automatically

handling malicious attacks by taking intrusion information and

dynamically reconfiguring the network to contain the attack.

9Alcatel-Lucent | OmniSwitch 9000

ENTERPRISE CORE / DATA CENTER

The OS9000s address enterprise network core requirements with:

nEnhanced VoIP and video performance with

policy-based QoS

nFuture-proof support for multi-media applications with

wire-rate multicast

nEnhanced forwarding – improves network response time

through hardware-based forwarding at first packet and

elimination of CPU solicitation for ACL/QoS demands

nHigh-availability from complete redundancy of all critical

components, from a distributed architecture, and from fabric

availability plus extensive support of L2/L3 protocols for

smart use of network topology redundancies

Medium-sized network

Two tier, single data center/building

Large-sized Network

Three tier, multi data center/building

10 Alcatel-Lucent | OmniSwitch 9000

AGGREGATION LAYER

The OS9000s address aggregation requirements with:

nHigher 10G port density than

competitive products

nIncreased options for wire-rate

GigE ports (copper, ﬁber, PoE)

WIRING CLOSET CONNECTIVITY

The OS9000 addresses wiring closet requirements with:

HIGHEST AVAILABILITY FOR THE ENTERPRISE

The OmniSwitch 9000s carry on Alcatel-Lucent’s tradition of providing the highest availability possible to support the

demands of IP communications and mission-critical applications, all at an enterprise price. Providing the highest

availability to the enterprise ensures that users have constant access to resources and services at all times. To ensure

the highest levels of availability, the OmniSwitch 9000s provide:

nDistributed architecture, where each NI autonomously

supports functions, such as source learning, Spanning

Tree functions, and L2/L3 forwarding

nRedundant modules and sub-components (CMMs1,

fans and PSUs)

nHot swappable modules and sub-components (NIs,

CMMs1, fan trays, PSUs, SFPs and XFPs)

nHitless loading of optional software (routing / security),

without re-booting

nImage rollback to automatically re-load previous

conﬁgurations and software versions for “easier”

remote site management

nFull power-over-Ethernet support for IP

phones, WLAN access points and video

cameras with up to 2400W of power

through dedicated power shelves

nIsolation of intruders with OmniVista 2770

Quarantine Manager

nFlexible authentication with Access Guardian

nExtensive support of AOS user-oriented

features such as user authentication,

learned port security (LPS), group

mobility, and port mapping

nNew 48-port 10/100/1000 module with up

to 768 ports in a single, redundant system

nNew 22-port module with 20 ports of

copper and ﬁber (RJ-45, software

upgradeable from 10/100 to 10/100/1000)

and 2-ports of 100/1000 SFP (ﬁber)

(1) Requires dual CMMs in either the OS 9700 or the OS 9800

Otros manuales para OmniSwitch 9000 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Alcatel-Lucent

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6250 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 9900 Series Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 1850 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6855 Series Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6450 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 2220 Instrucciones de instalación

Alcatel-Lucent

Alcatel-Lucent 1850 TSS-320 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6350 Manual de instalación

Alcatel-Lucent

Alcatel-Lucent 8340 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch AOS Release 7 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7950 SR Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 1675 LambdaUnite Guía del usuario

Alcatel-Lucent

Alcatel-Lucent 1850 TSS-320 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7210 SAS E OS Manual de usuario

Alcatel-Lucent

Alcatel-Lucent Service Aggregation Router 7705 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6900 Manual de instalación

Alcatel-Lucent

Alcatel-Lucent 7450 ESS OS Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6560 Series Manual de instalación

Alcatel-Lucent

Alcatel-Lucent 7210 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6850-48 Manual de instalación

Alcatel-Lucent

Alcatel-Lucent OmniAccess 4504 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6450-P10S Manual de instalación

Alcatel-Lucent

Alcatel-Lucent 4306G Series Manual de usuario

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 9000E Series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manual de usuario
