Electric Shower
Installation and Instruction Manual
Patents Pending, Registered Design
2
© 2015 AKW 14-009-033-07
Product Features
Introduction
Product Features
The iSure Electric Shower has been specifically designed to allow for easy installation.
Advanced fitting innovations mean it’s quick and easy to install over most manufacturers’
footprints and extra safe.
Flexible Installation
8 Water Inlet Points
8 Cable Inlet Points
Dual power blocks for left or right wiring
Retro-fit footprint
3 year warranty
8.5kW or 9.5kW options available
Smart App
8
Electrical Cable
Entry Points
3
Spray Patterns
8
Water Inlet
Entry Points
Warranty
3yr
150kg
Rail Rating
3
Spray Patterns
2m
Smooth Hose
8
Water Inlet
Entry Points
8
Electrical Cable
Entry Points
Optional
Easy Grip
Adjuster
2m
Smooth Hose
Optional
Easy Grip
Adjuster
3
© 2015 AKW 14-009-033-07
Contents
Introduction
These instructions are provided to advise the minimum standards of installation and recommends the best practice for the installation.
Due to the very wide variability of possible installation conditions AKW cannot provide all circumstances for the installation. AKW cannot
accept any liability in connection with this information or its use. This information is provided on the condition that the person receiving
it shall make their own tests to determine the suitability for their particular purpose. None of the foregoing affects your statutory rights.
Failure to install this AKW product in accordance with supplied instructions or the making
of unauthorised modifications will invalidate any warranty and may affect product safety.
Introduction 2-3
Product Features 2
Contents 3
User 4-8
User Safety Information 4
User Operating Instructions 5
Cleaning Recommendations 6
User Troubleshooting 7
User Warranty 8
Installer 9-17
Main Components 9
Specifications 10
Important Safety Information 11
Installation Requirements 12
Positioning of the Shower 13
Disassembly 14
Fitting to the wall 15
Reassembly- Bottom Cover 16
Reassembly- Front Cover 17
Plumbing 18-21
Water Requirements 18
Plumbing Connections 19
Plumbing Entry Points 20
Check List 21
Electricals 22-25
Electrical Requirements 22-23
Electrical Entry Points 24
Check List 25
Commissioning 26-28
Cold Water Flushing & Priming 26
Functional Checks & Testing 27
Record Commissioning Tests 28
General
Contact Us 32

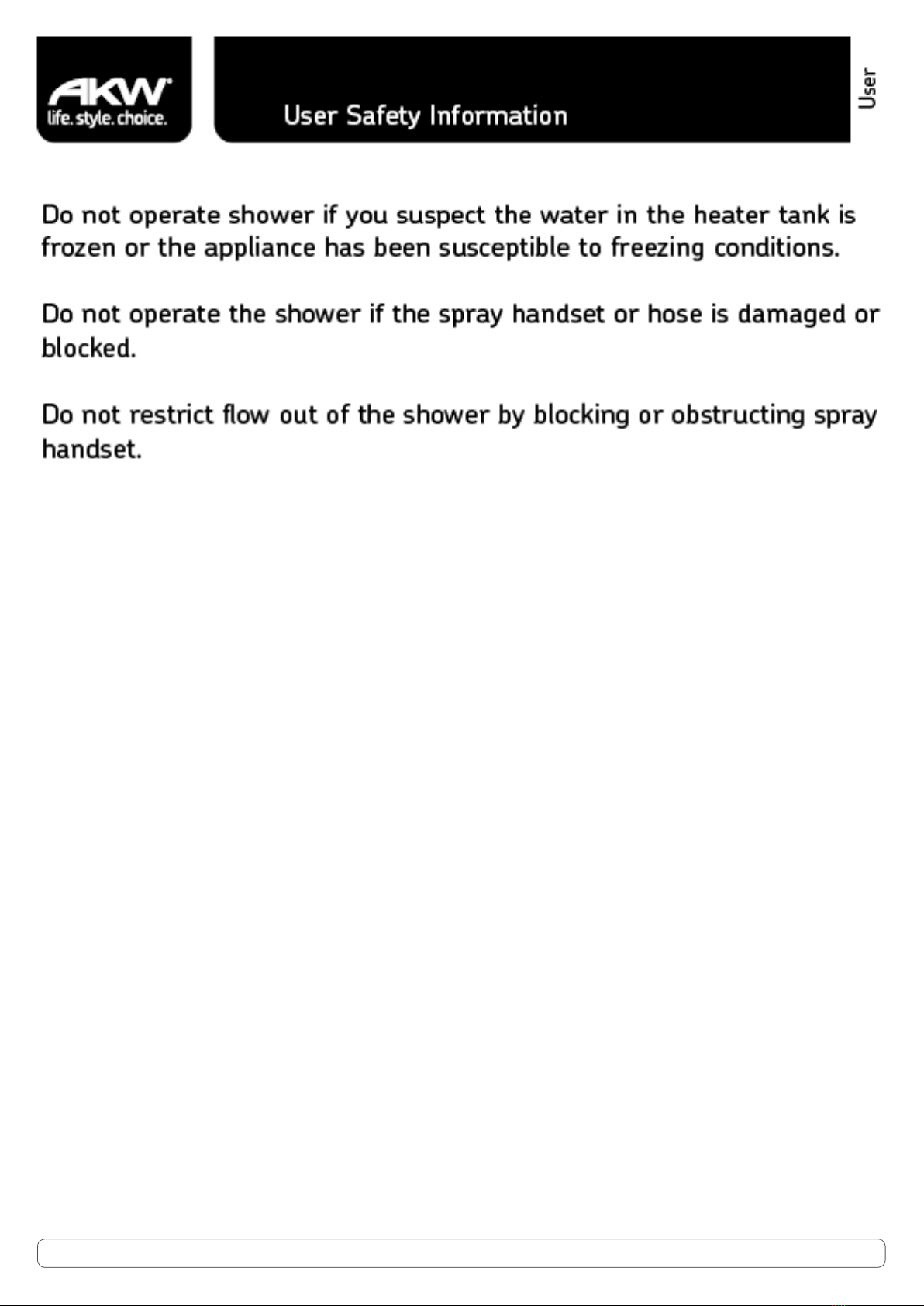

4
© 2015 AKW 14-009-033-07
5
© 2015 AKW 14-009-033-07
User

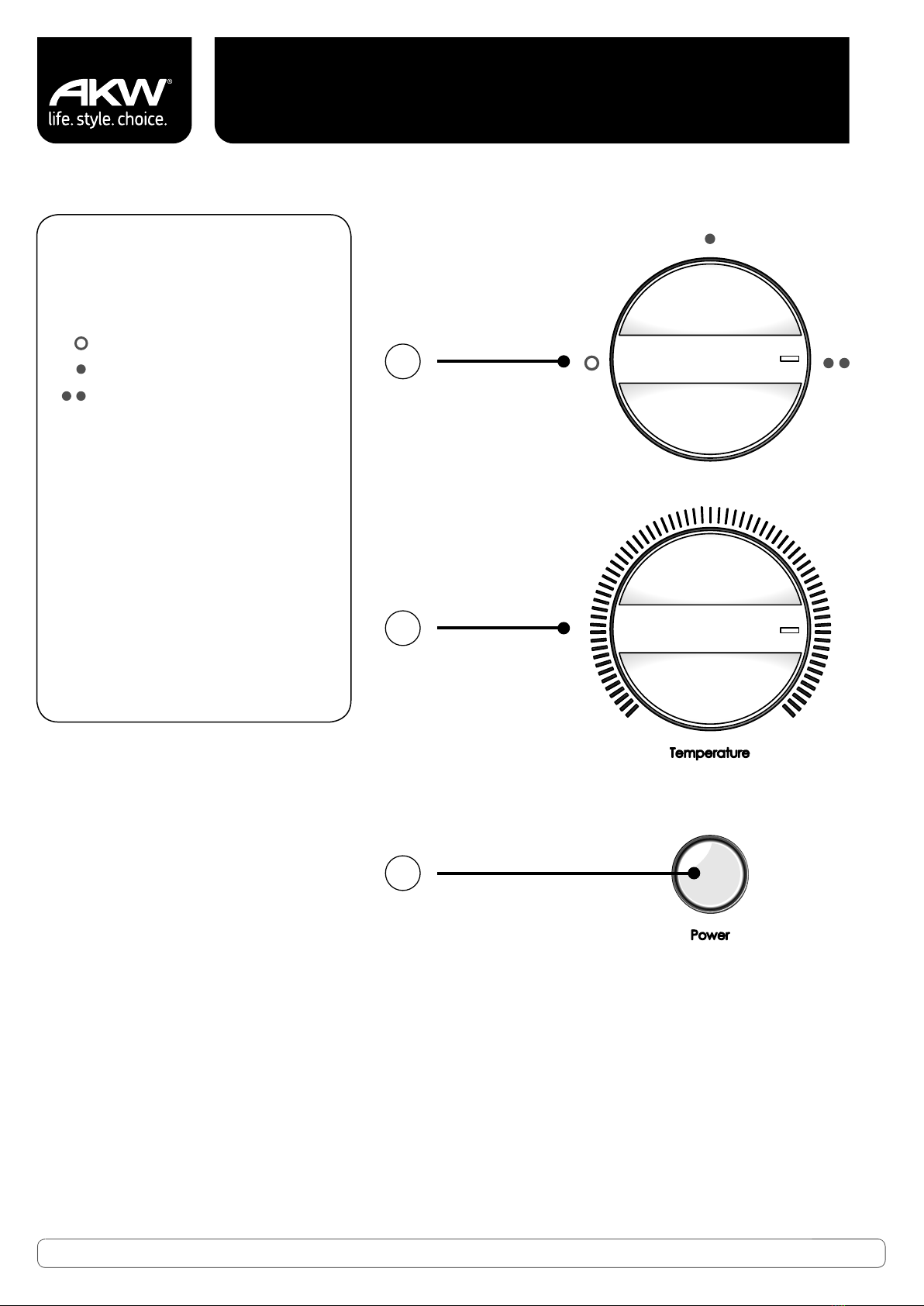

User Operating InstructionsUser Operating Instructions
1. Power Level Control
Adjustable power setting:
Low
Medium
High
2.Temperature Control
Adjustable temperature control
3. Power Button
Push button to power on/off
the shower
1
2
3
Starting the Shower
Switch on the mains power at the isolating switch.
When the power is first turned on, the shower is in standby mode.
To switch on, press and release the power button, the Temperature and Power Level will be indicated
on the two controls.
To switch off, press and release the power button to the stop water flowing.
6
© 2015 AKW 14-009-033-07
7
© 2015 AKW 14-009-033-07
Fault Cause Remedy
No Water Flow
Shower runs hot
and cold during use
Shower
temperature cycles
between hot and
cold
Water from
pressure relief
outlet-PRD
activated
Water isolating valve in off position
Filter blocked
Power supply not on
Obstruction in hose or handset Call AKW Technical Enquiries
Clean the handset
Increase the flow by adjusting
the temperature control knob
to cooler setting.
Reduce the power setting
Water temperature
too hot
Shower temperature is set too high
causing the thermal cut out to turn
off the heating elements to reduce
the water temperature
Turn shower temperature
control anticlockwise
to reduce the water
temperature
Check running pressure
(minimum of 0.7bar)
Wait until pressure increases
Turn on water supply
Turn off water supply, remove
filter and clean
Turn on power supply
Insufficient water flowing
through the shower
Water pressure is below minimum
requirement. This may be caused
by other appliances on the same
pipework drawing water
8
© 2015 AKW 14-009-033-07
9
© 2015 AKW 14-009-033-07
Removable
Bottom Case
Side Pipe & Cable
Cut-out Entry
Side Pipe & Cable
Cut-out Entry
Shower Hose
Outlet
Water Heater Can
Live & Neutral Terminal
Block
Earth Terminal Block
Fixing Hole
Fixing Hole
Fixing Hole
Rear of
Front Cover
Top Pipe Inlet and
Cable Entry Cover
Bottom Pipe Inlet and
Cable Entry Cover
10
© 2015 AKW 14-009-033-07
Supply Source Mains pressure cold water only
Minimum Dynamic Pressure 50kPa (0.7 Bar)
Maximum Static Pressure 1000 kPa (10 Bar)
Optimal Minimum Dynamic Pressure*100 kPa (1 Bar) (Recommended to ensure high performance)
Maximum Inlet Temperature 28°C
Minimum Inlet Temperature 3°C
Inlet Connection 15mm pipe
Outlet Connection 1/2” BSP Male Thread Fitting
Nominal Rating at 240 V 9.5kW & 8.5kW
Supply Fuse / Circuit Breaker (9.5kW 40/45A) & (8.5kW 35/40A)
Residual Current Device (RCD) 30 mA (must be fitted)
Supply Cable Refer to current wiring regulations
and BS 7671 to determine minimum
cable size. No larger than 10mm2
Isolation Switch (e.g. Pull Cord) 45 Amp Double pole with 3mm
contact separation.
Height (H) 380 mm
Width (W) 230 mm
Depth (D) 85 mm
Footprint Height (H2) 345 mm
Footprint Width (W2) 210 mm
Water Ingress Rating IPX4
Water and Cable Entry Points Top, bottom, side or back.
ELECTRICITY SUPPLY PLUMBING SUPPLY
PHYSICAL
