AGPtek M07 Manual de usuario

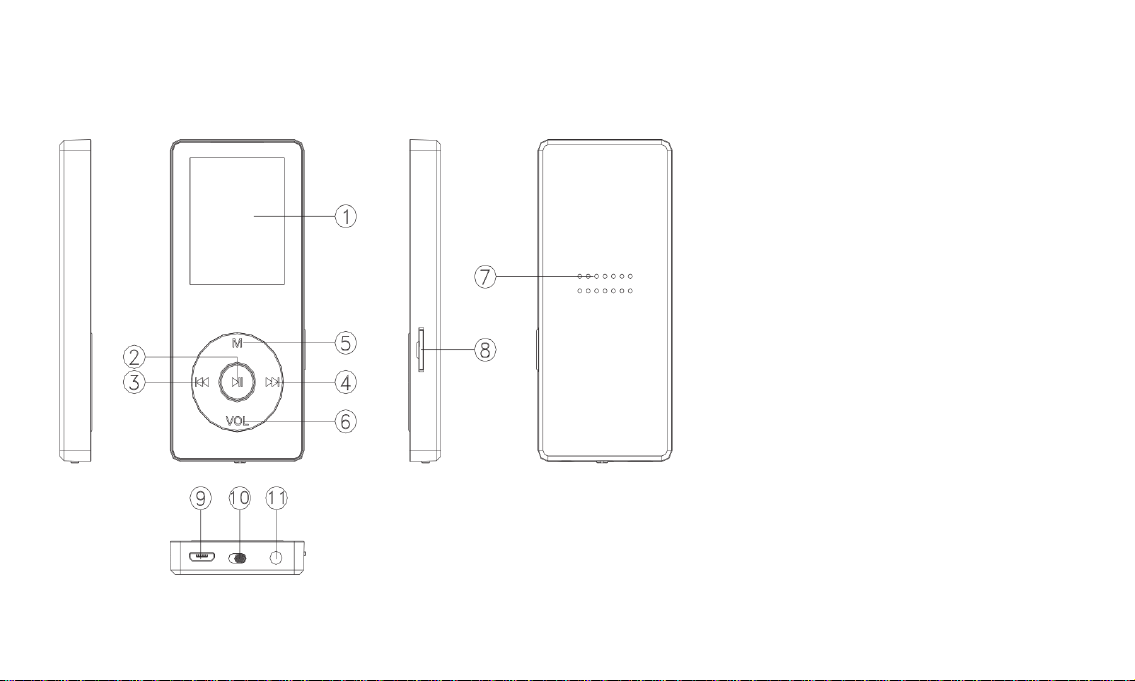

Buttons and controls
1. Display screen
2.“ ”: Play/Pause
/Selection button
3.“ ”: Previous/Fast
backward/ VOL- button
4.“ ”: Next/Fast
forward/VOL+ button
5.“M”: Menu button
6.“VOL”: Volume/
Return button
7. Speaker hole
8. TF card slot
9. USB port
10. Power on/off button
11. Earphone port
Charge the Player
1. Plug the attached USB cable into the USB port of a computer to
charge the player.
2. Use only the 5V/500mAh charger for charging or it may lead to
product failure.
While it is fully charged, disconnect the cable from your device by
pulling it straight outward.
When you start charging, it will show two options: “Charge &
Transfer”and “Charge & Play”. An icon in the top right corner will
show the charging status.
Power On/Off
1. Power On: Slide the power switch to “On”position. If the switch
already at “On”position, just press the play button “ ” for 3
seconds.
2. Power Off:
1) Slide the power switch to “Off”position.
2) Press play button “ ” for 3 seconds when the switch at “On”
position.
Screen Lock
Hold button Mto lock screen, then all the buttons are useless except
for screen lock button. Press any button to light up screen, then
hold button Magain to unlock screen, then you can use other
buttons.
Volumn Adjustment
Hold button VOL, then press M/VOL to increase/decrease the
volume.
Main interface
Each time you press the button / , it will bring you to one of its
9 different functions, including Music, FM radio, Folder View, Set,
Recordings, Pictures, EBook, Video and Last Played(Now Playing)
Music
When there is a Music icon in the main interface, click button
to access to its function. The related list will show, including: All
songs, Last played, Artists, Albums, Genres, Playlists, Create Playlist.
Submenu
While it’s on music playing interface, click button M to access to
the submenu.
The related list will show, including “Home”, “Shuffle”, “Repeat”,
“Bookmarks”, “Play music from”, “Equalizer”, “Variable Speed
Playback”, “Sleep timer”, “Delete”“Add to playlist”and “Remove
from playlist”.
1. Bookmarks
Click button M >Bookmarks>Add bookmark /Go to bookmark
/Delete bookmark. Select according to your need.
2. Variable Speed Playback
Click button M >Variable Speed Playback to adjust speed from
-8(Slowest) to +8(Fastest ). Set the playing speed as you need.
FM radio
Insert the earphone, then select FM frequency from 87.5 to
108.0MHz.
Tune to the radio station you want. Choose Start FM radio recording
to start recording the radio. Click to pause/resume. Click VOL
and choose yes to save the recording and it will back to the FM
radio interface automatically. Click button M to find the saved
recordings in FM recording.
Set
When there is a Set icon in the main interface, click button to
access to its function. The related list will show, including: Play
mode, Sound settings, Sleep timer, Display settings, Date and time,
Language, Information, Format device, Factory settings, Create
playlist.
Note: when you set “date and time”, use button M to switch to next
one. For example, “Set time”, after you set the hour, press button M
to switch to set minute.
Recordings
When there is a Recordings icon in the main interface, click button
to access to its function.
- Select Start voice recording and click button to start recording,
click it again to pause/resume.
- Click the VOL button and choose yes to save the recording.
- Find the saved recordings in Recordings >Recordings library.
Click the button M/VOLto select from all the recordings you have
saved. Then click the button to play the recordings.
Last Played(Now Playing)
When there is a Last Played(Now Playing) icon in the main interface,
click button to access to its function. The music/radio playing
interface will be shown, and it will resume playing music/radio
from where you left.
Note: When there is no music/radio playing in the backstage, the
Last Played(Now Playing) function will not be available.
Help and Troubleshooting
●Can’t turn the player on
Please check whether the battery has been run out, maybe you can
connect the player with computer and try again after charging.
●Can’t hear the sound
-Please check if the volume is set to zero
-Check that the headset is inserted correctly.
●Can’t download file from computer
-Please confirm whether it’s connected properly
-Please check whether the storage space of the internal memory is
full
-Please check whether the USB cable is damaged
If you have any problems about this product, please feel free to
Specifications
Music formats
MP3,WMA,DRM,WMA,OGG,APE(Normal
/Fast), FLAC, WAV, AAC-LC, ACELP
Recording formats
MP3, WMA, ACT
Video formats
AMV/AVI
Screen
1.8" OLED screen
Size
88*38*9mm, net weight:75g
Case
Full zinc alloy case
Capacity
8GB; support up to 64GB micro SD
card(not included)
Playing time
19.5 hours at medium volume by
earphone, 3.5 hours at maximum volume
by loudspeaker
Charging time
1.5 hours
Battery capacity
3.7V/260 mAh
Recording distance
10-15 meters
Lyric format
LRC
1. Bildschirm
2. Abspielen/Pause/bes
timmen
3. Vorherig/Schneller R
ücklauf
4. Nächst/Schnller
Vorlauf
5. Men üTaste/VOL+
Taste
6. Volumen/ Zur ück
Taste/VOL- Taste
7. Lautsprecher Loch
8. TF Karte Buchse
9. USB Buchse
10. Ein/Aus Schalter
11. Kopfhörer Buchse
