Instruction Manual P/N: 46-70049

Make: Dodge Model: RAM 2500/35000 Year: 2003-2012Engine: L6-5.9/6.7L (td)

®

Label Qty. Description Part Number

A 1 Glide Guard & Hanger Strap 05-60095

B 1 Hanger Strap 05-60095-1

C 12 Flat washers 03-50228

D 4 Aluminum Spacers 05-60130

E 2 M16x2x25 Screws 03-50246

F 2 Hex Nuts 03-50244

G 4 Hex Socket Screws 03-50245

H 2 Hex Head Cap Screws 03-50238

I 1 aFe Logo Plate 05-40101 (Pre-Installed)

J 4 Fillister Head Screws 03-50045 (Pre-Installed)

K 4 Hex Nuts 03-50247 (Pre-Installed)

Installation will require the following tools:

Ratchet, 6mm Allen, 8mm Allen,13mm Socket and Wrench.

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7100.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Disconnect the negative battery terminal before proceeding.

• Retain factory parts for future use.

Page 2

aFepower.com

A B C

D

F

G

H

E

Page 3

®

Refer to Figure A for step 1

NOTE: FOr aFE cOvEr FOllOw sTEps 1-8 & FOr sTOck cOvEr FOllOw sTEps 9-16.

Step 1. Remove the 4 highlighted bolts. These will be used to mount your Glide Guard.

REMOVAL

Page 4

Figure A

Refer to Figure B for step 2

Step 2. Place the Glide Guard on a stand and slide it on to line up the 4 bolt holes.

REMOVAL

aFepower.com

Page 5

Figure B

®

Refer to Figure C for step 3

Step 3. Start all 4 screws by hand and be sure to install a washer on the backside of the Glide

Guard mounting ﬂange and another washer on the front side of the mounting ﬂange.

Figure C

INSTALL

Page 6

Refer to Figure D for step 4

Step 4. Install the hanger strap with the 2 long bolts and washers (hand tighten only).

Figure D

INSTALL

aFepower.com

Page 7

®

Refer to Figure E for step 5

Step 5. Tighten up the 4 mounting screws and torque to 16ft. lbs.

Page 8

Figure E

INSTALL

aFepower.com

Page 9

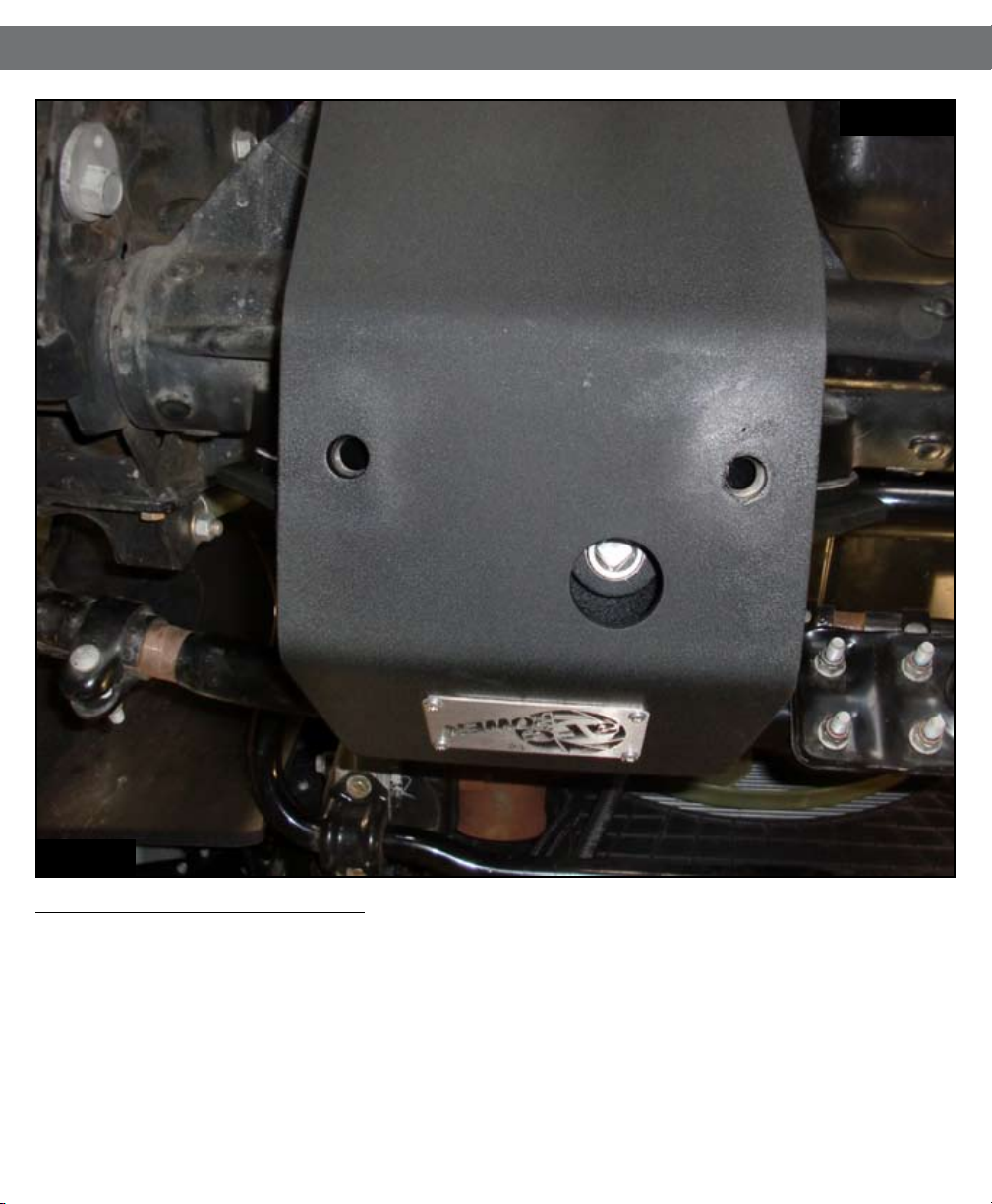

Refer to Figure F for step 6

Step 6. Install the 2 set screws at the bottom of the Glide Guard. These screws are only to be

hand tightened.

Figure F

INSTALL

®

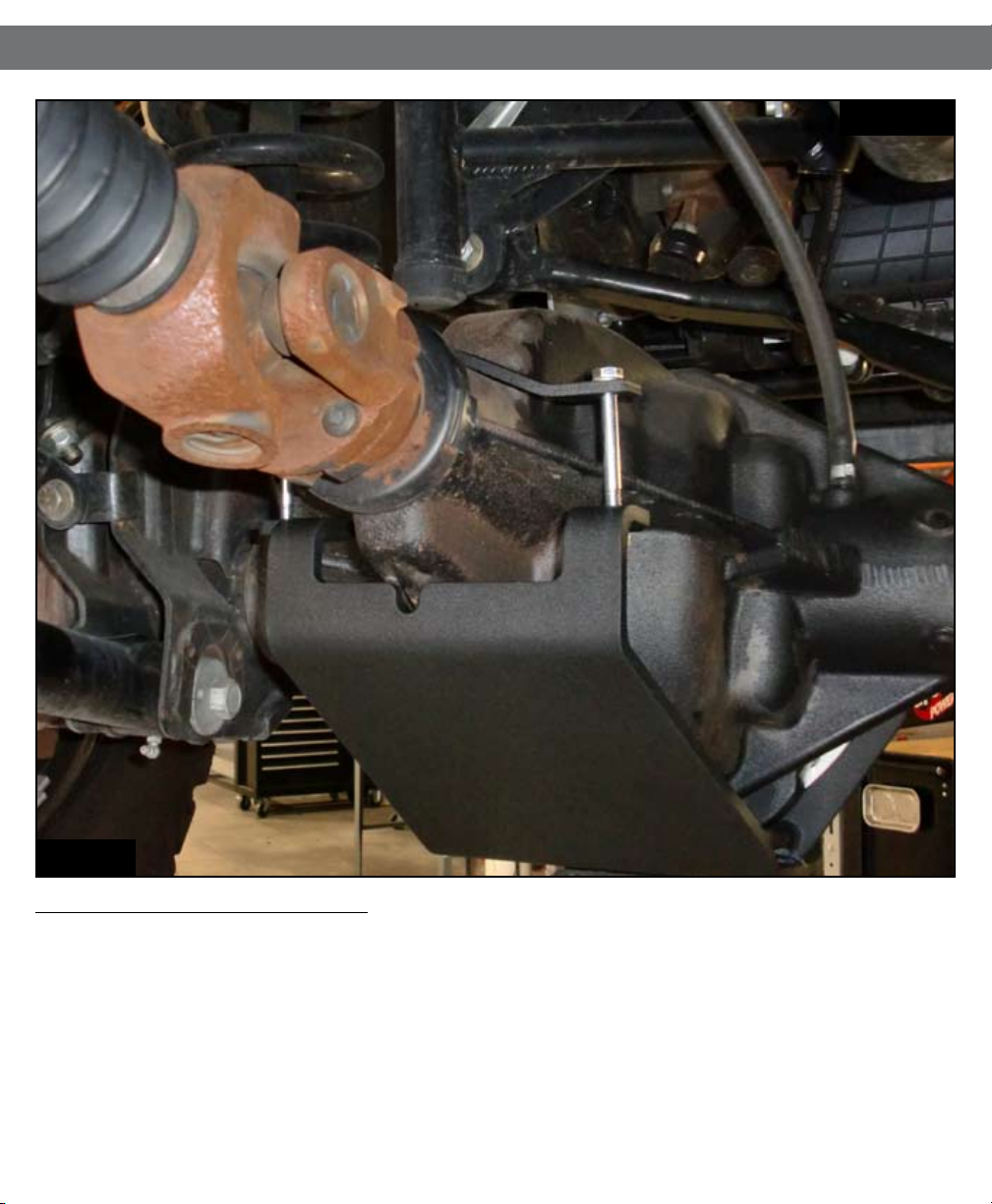

Refer to Figure G for step 7

Step 7. Tighten down the bolts just until the hanger strap begins to ﬂex.

Page 10

Figure G

INSTALL
