AFe Power 77-46309 Manual de usuario

®

advanced FLOW engineering

Instruction Manual P/N: 77-46309

Make: MINI Model: Cooper/S (F55/56/57) Year: 2015-2019 Engine: L4-2.0L (t) B46/B48

Make: MINI Model: Clubman/S (F54) Year: 2015-2019 Engine: L4-2.0L (t) B46/B48

Make: MINI Model: Countryman S (F60) Year: 2015-2019 Engine: L4-2.0L (t) B46/B48

Make: BMW Model: X1 18i/28i/ix (F48) Year: 2016-2019 Engine: L4-2.0L (t) B46/B48

Note: Includes MINI Convertible & JCW Editions.

®

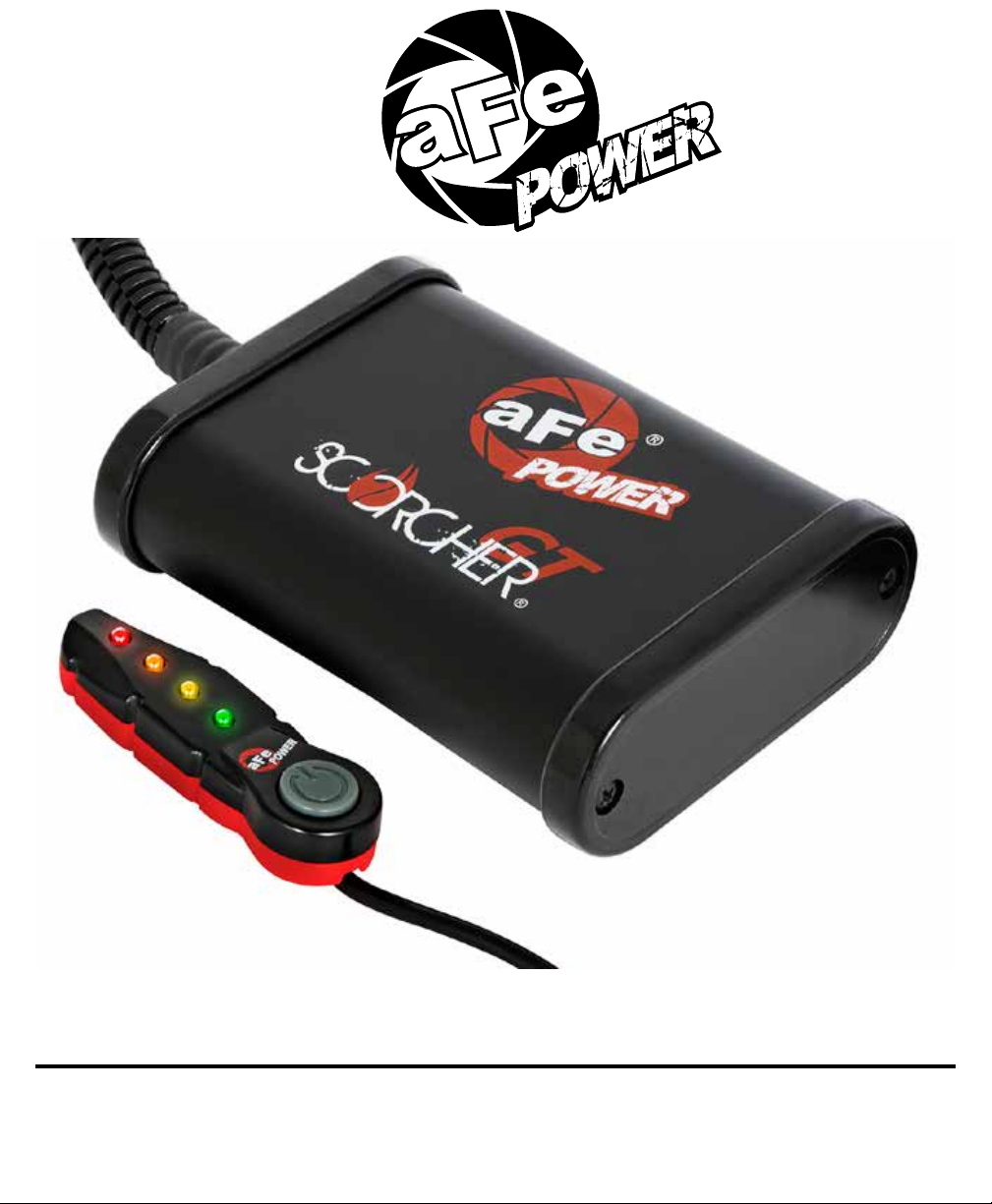

Label Qty. Description Part Number

A 1 Module R77-46309

B 1 LED Switch 05-70029

C 2 Velcro (2" Inches) 05-01244

D 4 Cable Ties 05-60167

Note: Legal in California for use on race vehicles only. The use of this device on vehicles used on public

streets or highways is strictly prohibited in California and others states that have adopted California

emission regulations.

• Please read the entire instruction manual before proceeding.

• Ensure all components listed are present.

• If you are missing any of the components, call customer support at 951-493-7185.

• Ensure you have all necessary tools before proceeding.

• Do not attempt to work on your vehicle when the engine is hot.

• Disconnect the negative battery terminal before proceeding.

• Retain factory parts for future use.

Page 2

aFepower.com

Page 3

A

B

CD

®

Refer to Figure A for Step 1.

Step 1: Before installing your aFe module, you will have to place your vehicles ECU in sleep mode. In

order to do this you will need to do the following:

- If the engine is cold, open the hood, close the doors lock the car and wait 30 seconds.

- If the engine is warm, open the hood, close the doors lock the car and wait 20 minutes.

- If the engine is warm and you can’t wait 20 minutes, disconnect the battery.

REMOVAL

Page 4

Figure A

Refer to Figure B for Step 2.

Step 2: Locate the MAP and TMAP sensors. The MAP sensor is located on top of the intake manifold

towards the radiator. The TMAP sensor is located on the charge pipe just before the throttle

body, underneath the air scoop.

REMOVAL

Page 5 aFepower.com

Figure B

Step 3: Locate and disconnect the MAP sensor, by sliding back and then pressing down on the gray

locking clip.

Step 4: Locate the MAP sensor jumper harness on the aFe module. The MAP harness will have three

wires on the connectors. Plug the female connector of the module into the MAP sensor, then

take the male connector of the module and connect to the female connector of the engine

harness.

Note: Make sure connections are fully engaged. Usually, connectors make a snapping

sound when fully engaged.

Refer to Figure C for Steps 3-4.

Figure C

Page 6

INSTALL

®

Refer to Figures D for Step 5.

Step 5: Remove the air scoop from the airbox by removing the two 10mm bolts, this will allow you to

access the TMAP sensor.

Figure D

Page 7

INSTALL

aFepower.com

Page 8

Refer to Figure E for Steps 6-7.

Step 6: Locate and disconnect the TMAP sensor by sliding back, then pressing down on gray locking

clip.

Step 7: Locate the TMAP sensor jumper harness on the aFe module. The TMAP harness will have four

wires on the connectors. Plug the female connector of the module into the TMAP sensor, then

take the male connector of the module and connect to the female connector of the engine

harness.

Figure E

INSTALL

®

aFepower.com

Page 9

Refer to Figure F for Step 8.

Step 8: Remove the windshield trim cover by rotating the two 10mm locking clips, and the other four

clips can be rotated with a ﬂathead screwdriver. This will give you access to the ﬁrewall to route

the cable for the switch.

Figure F

REMOVAL

Page 10

Refer to Figure G for Steps 9-10.

Step 9: Carefully route the switch cable behind steering wheel cover.

Step 10: Mount the Switch on an open, ﬂat surface.

Figure G

INSTALL

®
