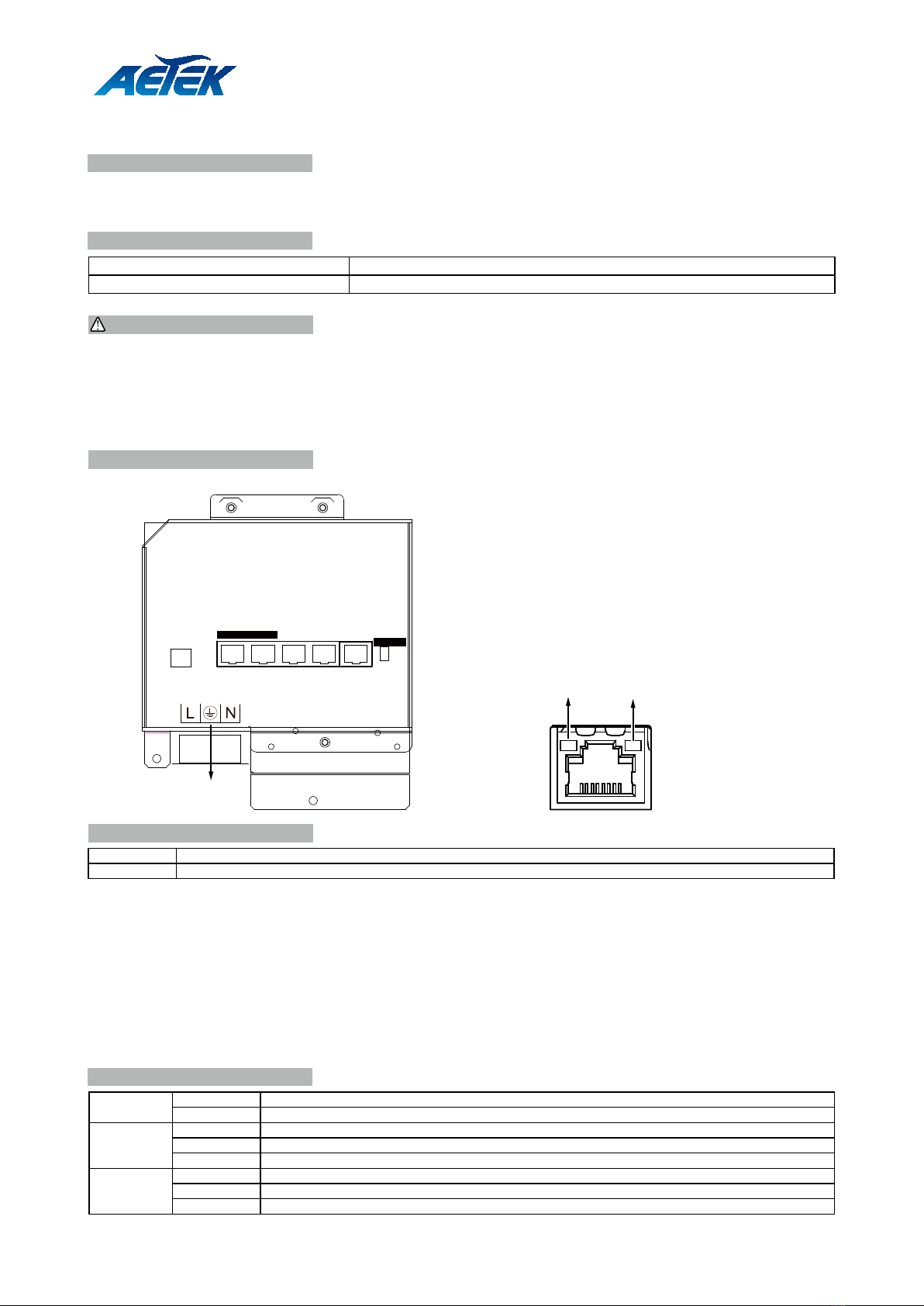

AETEK H21-041-30-075 Manual de usuario

100-240VAC

Industrial 4xFE PoE + 1xFE

EXPoE Switch

+ -

EX Mode

OFF

1 2 3 4 5

PoE

LINK/ACT

PWR

VAC 100~240 power input

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the switch are not blocked.

3. Use CAT5 or 5e UTP/STP cables.

4. AC input (100~240V/AC, 50~60Hz)

5. IP67 rated housing

6. Although housing is IP67 rating , this is not suitable for water jets.

IMPORTANT:

INTRODUCTION

LED DEFINITIONS

CONNECTION

* 1x PoE switch * 1x Quick Installation Guide

* 1x T25 L-wrench

PACKAGE CONTENTS

Power Orange ON Power is on and normal.

Orange Off Power is off.

Link/Act Green ON Ethernet port is connected.

Green Off No connection.

Green blinking Data is being transmitted or received.

PoE Orange ON Port is linked to a powered device.

Orange Off No device is connected.

Orange blinking Abnormal power supply is detected.

H21-041-30-075

Quick Installation Guide

The H21-041-30-075 is a 4 port 10/100BaseT PoE switch capable of feeding 15.4/30W (54V max. per port) power to

Power over Ethernet (PoE) devices. It comes with another 1x FE RJ45 uplink port.

Outdoor Unmanaged PoE Switch

Port LED1 Port LED2

EX MODE DIP SWITCH

EX ON Ports 1 & 2 up to 250m PoE distance. When enabled, each port is isolated, but is linked to the uplink ports.

EX OFF Normal communication for ports 1 ~ 5.

* EX mode in 802.3af (15.4W): camera connection up to 250m@10Mbps via EXPoE ports.

* EX mode in 802.3at (30W): camera connection up to 200m@10Mbps via EXPoE ports.

*Effect factors

1.Must connect af PoE PD.

2.Poor cabling quality with insufcient copper.

3.IP camera’s networking design could not support 10Mbps@250m transmission.

**Suggestion

1.Checking the interoperability reaching 10Mbps@250m before physical deployment.

2.Adjust to “EX Mode OFF” reaching 10/100Mbps@100m if “EX Mode ON” is fail.

AETEK INC.

3F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T:+886-2-82452822|W:www.aetektec.com|E:[email protected]

All specications are subject to change without noice.

Use the included M10 hex socket screws to secure the power box to a pole-mount or corner mount bracket.

3/4” conduit

AM-314

AM-315

AM-414

M10

Outdoor PoE switch:

AW-FET-060C-065

The mounting hole denition is illustrated below. The same mounting hole pattern apply to all pole-mount and corner-

mount brackets.

INSTALLATION

IMPORTANT:

1. If the need should arise for connecting two outdoor switches, use the uplink ports #4 or #5. If you use PoE ports for

cross-switch connections, the 12KV surge protection will not apply.

2. The cabinet must be grounded using a ground wire between the

ground screw and earth ground.
