AETEK D60-044-30 Manual de usuario
1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the converter are not blocked.
Single-mode): 9/125um ,1310nm.
4. DC input (48~57VDC or 12~56VDC). Follow the printed polarity for V+, V-, and Ground.
5. Digital output (relay): ON/OFF, support 24VDC/1A. Digital input: level 0(Low), level 1(High).
D60-044-30 D60-044-91 D60-084-30
L2 PRO Gigabit PoE Switch

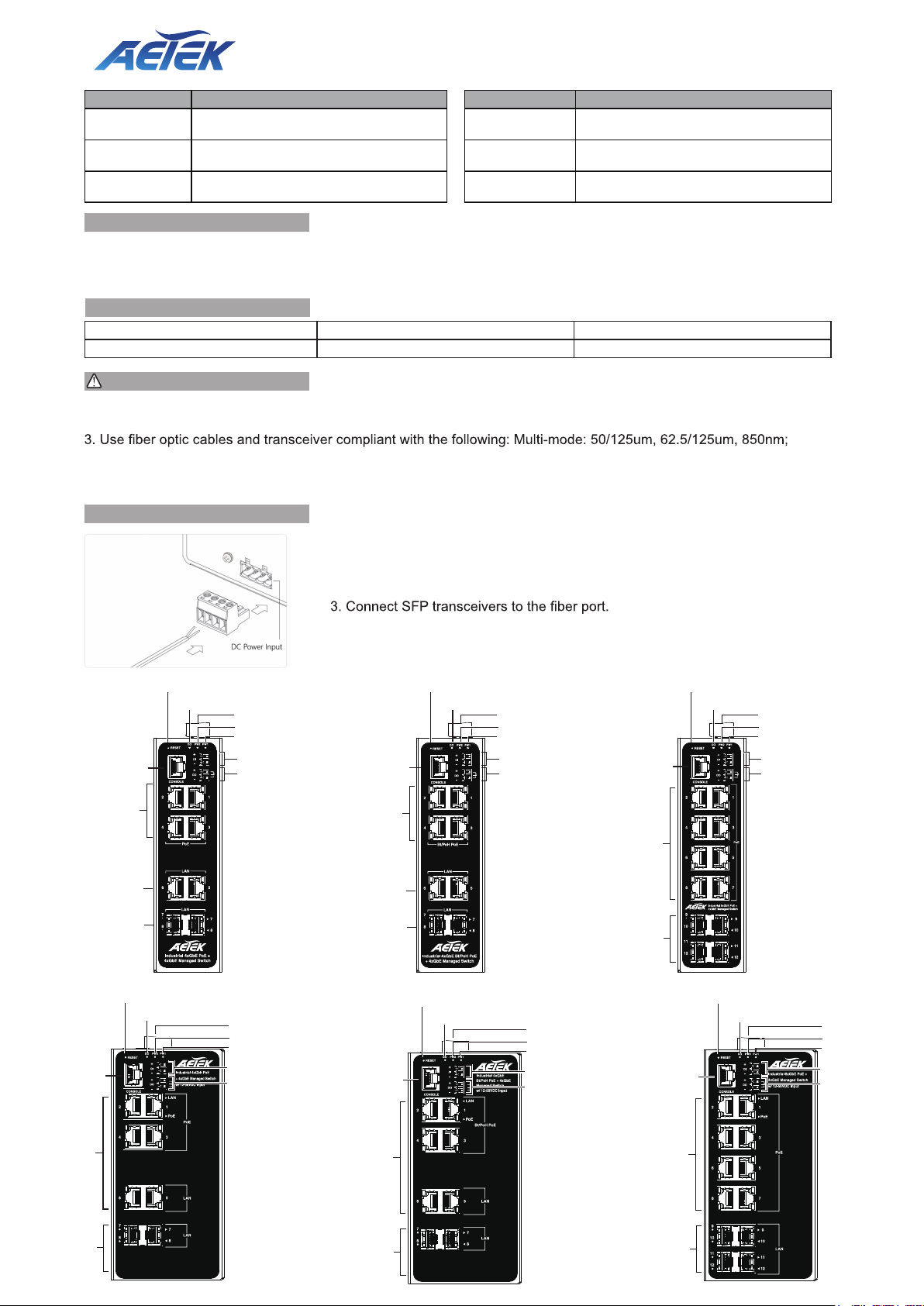

Quick Installation Guide
The D60 series is a 4/8 port 10/100/1000BaseT at PoE/ bt PoE switch capable of feeding 15.4/30W or 15.4/30//60/90W
(54Vmax. per port) power to Power over Ethernet (PoE) devices. It comes with another 2x GbE TP port + 2xGbE SFP port or
4xGbE SFP port.
IMPORTANT:
INTRODUCTION
CONNECTION
* 1x PoE switch * 1x Quick Installation Guide * 1x 4-pin terminal block
* 2x 2-pin terminal block
* 1x DB9F-RJ45 console cable * 1x DIN rail bracket
PACKAGE CONTENTS
1. Pull out the 4-pin terminal block.
2. Connect power wires to V+, and V-.
4. install the 4-pin terminal block.
10/100/1000
PoE RJ45 ports
100/1000
SFP ports
Digital input
Digital output relay
Console port
10/100/1000
PoE RJ45 ports
100/1000
SFP ports
10/100/1000
RJ45 ports
100/1000
SFP ports
10/100/1000
RJ45 ports
10/100/1000
PoE RJ45 ports
Console port
Console port
Power1 LED
Power2 LED
48~56VDC Input
DO LED
Reset button
Digital input
Digital output relay
Digital input
Digital output relay
P/N:A625013801G
Model Description
D60-044-30 4xGbE 30W PoE+2xGbE SFP+2xGbE RJ45
48-56 VDC Input
D60-044-91 4xGbE 90W bt PoE+2xGbE SFP+2xGbE RJ45
48-56 VDC Input
D60-084-30 8xGbE 30W PoE+4xGbE SFP
48-56 VDC Input
Model Description
D60-044-30-DC 4xGbE 30W PoE+2xGbE SFP+2xGbE RJ45
12-56 VDC Input
D60-044-91-DC 4xGbE 90W bt PoE+2xGbE SFP+2xGbE RJ45
12-56 VDC Input
D60-084-30-DC 8xGbE 30W PoE+4xGbE SFP
12-56 VDC Input
Power1 LED
Power2 LED
48~56VDC Input
DO LED
Reset button
Power1 LED
Power2 LED
48~56VDC Input
DO LED
Reset button
D60-044-30-DC D60-044-91-DC D60-084-30-DC
10/100/1000
PoE RJ45 ports
100/1000
SFP ports
Console port Digital input
Digital output
relay
Power1 LED
Power2 LED
12~56VDC Input
DO LED
Reset button
10/100/1000
PoE RJ45 ports
100/1000
SFP ports
Console port Digital input
Digital output
relay
Power1 LED
Power2 LED
12~56VDC Input
DO LED
Reset button
10/100/1000
PoE RJ45 ports
100/1000
SFP ports
Console port Digital input
Digital output
relay
Power1 LED
Power2 LED
12~56VDC Input
DO LED
Reset button

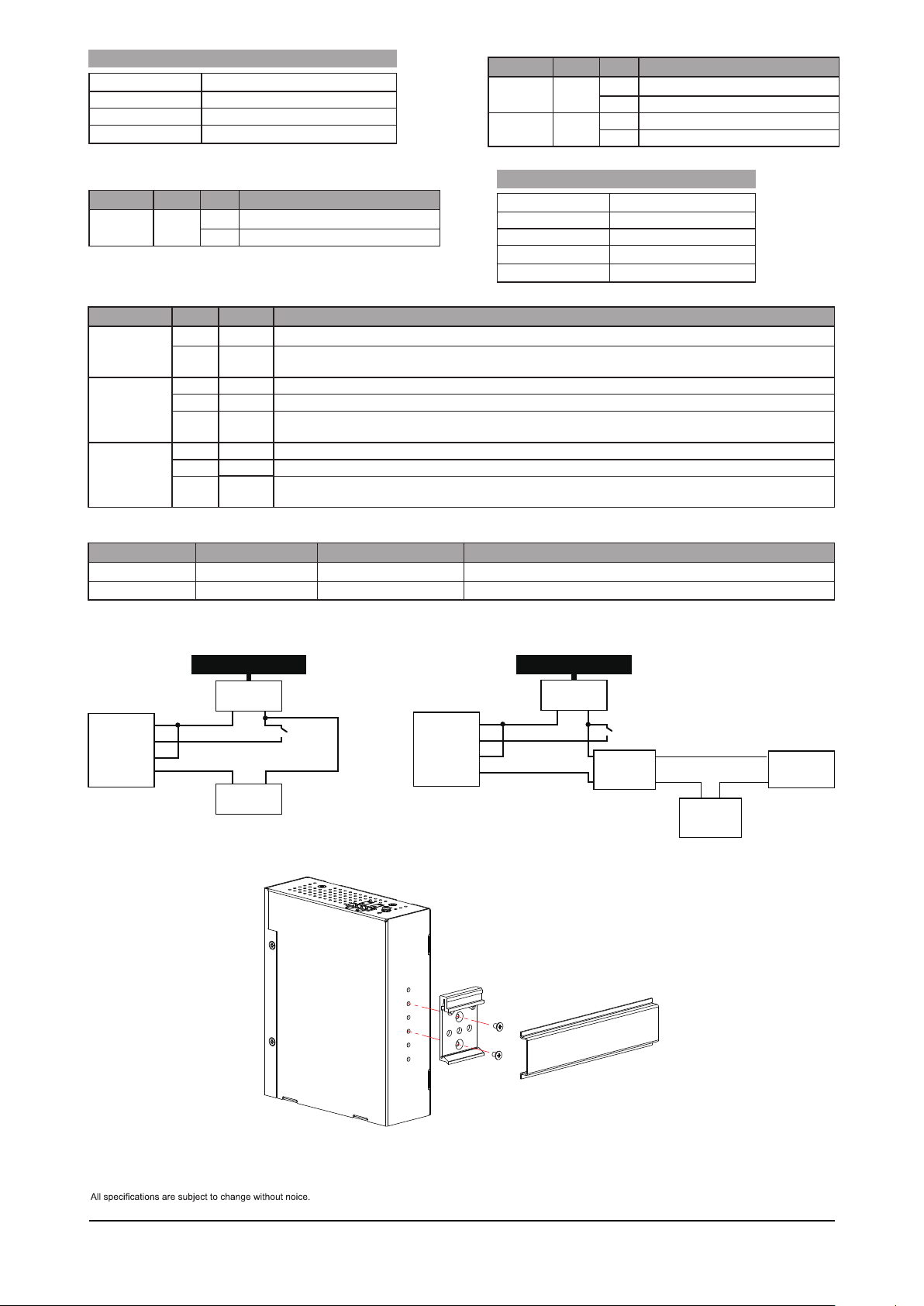

IP Address 192.168.1.1
Subnet Mask 255.255.255.0
User Name
Password
DEFAULTS
Power LEDs
LED Color State Description
Power1 Green On Powered on correctly.
Off Not receiving power from power1.
Power2 Green On Powered on correctly.
Off Not receiving power from power1.
DO LED
LED Color State Description
System Yellow On DO ON
Off DO OFF
Baud rate 115200
Stop bits 1
Data bits 8
Parity N
Flow control none
Console Port Defaults
Port Status LEDs
LED Color State Description
RJ45 Ports
Up (PoE)
Amber On The port is enabled and supplying power to connected device.
- Off The port has no active connection, or it is not connected to a PoE PD device. Otherwise, the port may
have been disabled through the switch user interface.
RJ45 Ports
Down (LAN)
Green On The port is enabled and established a link to connected device.
- Off The port has no active network connection, or it has no established link to connected device.
Otherwise, the port may have been disabled through the switch user interface.
SFP Ports Green On The port is enabled and supplying power to connected device.
Green Blinking
Green Blinking
The port is transmitting/receiving packets.
The port is transmitting/receiving packets.
- Off The port has no active network connection, or it has no established link to connected device.
Otherwise, the port may have been disabled through the switch user interface.
Reset button
Task Method SYS LED Behavior Port Status LED Behavior
Reset Press 2 ~ 7 seconds Blinking Green All LEDs Off.
Restore Defaults Press 7 ~ 12 seconds Blinking Green All LEDS On.
DIN Rail Installation
admin
admin
DI+
DI-
DO+
DO-
12VDC
Switch
+ -
12V device
+ -
100-240VAC Input
DI/DO Connection Diagram
100-240VAC Input
DI+
DI-
DO+
DO-
Switch
AC or DC
device
12V Relay AC or DC
- -
+ +
AC or DC
Power
12VDC
+ -
DI/DO Connection Diagram w/ AC or DC Relay
AETEK INC.
6F, No.192-1, Lien-Cheng Rd., Chung-Ho, New TaipeiCity, 235, Taiwan, R.O.C.
|T:+886-2-82452822|W:www.aetektec.com|E:[email protected]om
Copyright © 2022 AETEK INC. All rights reserved.
