Aerpro FP9750 Guía
FP9750
BA- BF
SX-SY
INSTALL KIT
TO SUIT
FALCON
& TERRITORY
Product and Install Information
2
If you would like to find more information on this product or download an up to date
digital copy of this manual, please visit the https://aerpro.com website and search
for your model or scan the QR code below.
https://aerpro.com/FP9750GK
https://aerpro.com/FP9750SK
https://aerpro.com/FP9750PB
An installation and setup video is also available on our site
3
1 x Double DIN facia kit
1 x Built-in HVAC and steering wheel control unit
1 x Main wiring harness
1 x Universal SWC patch lead
1 x Video in/out lead
1 x Mounting kit
4 x M6 Bolts
1 x User/Install manual
Inclusions
4
5
Interface Functions
NOTE: The Climate control buttons will not work without ignition power,
including Door Lock & In-Cabin Light

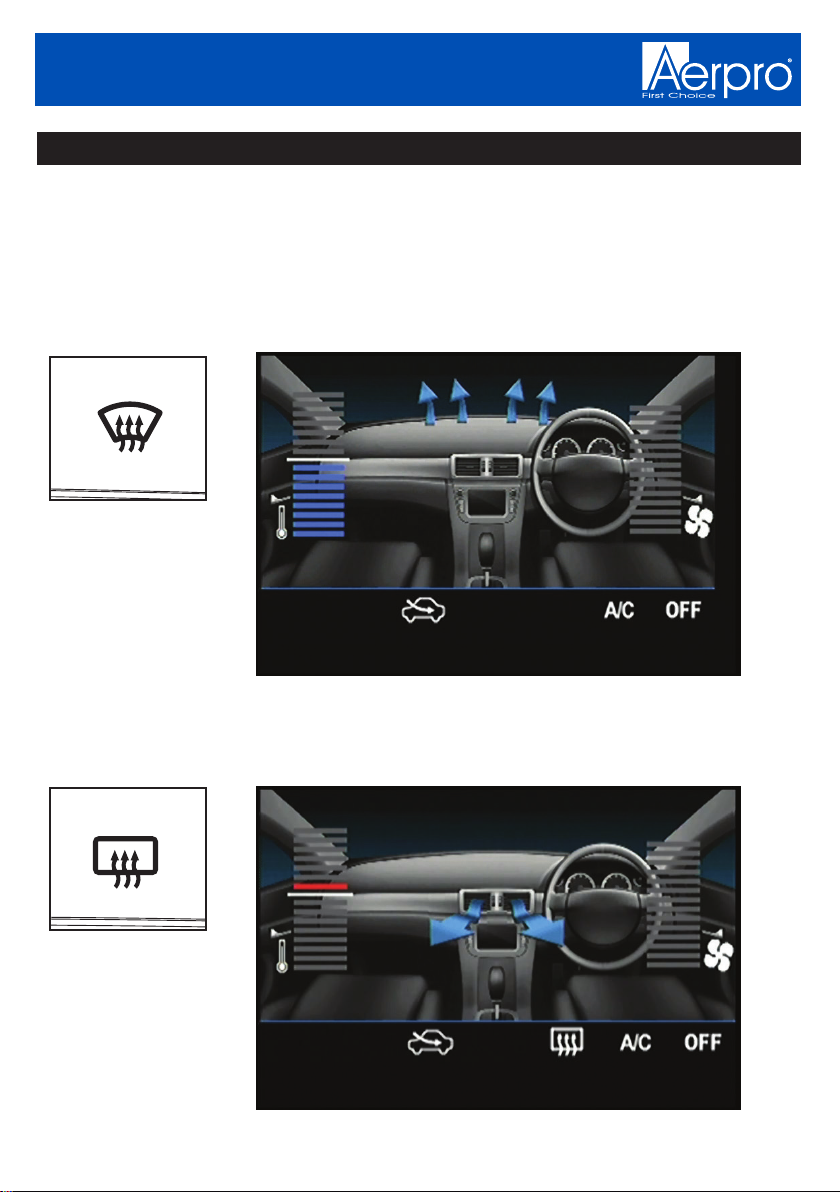

Front Demister
Fresh air is blown through the heater core and then ducted to and distributed over
the interior surface of the vehicles windshield
Rear Demister
The demister clears condensation from the rear back glass
6
Interface Functions
Air Circulation Mode
Changes between fresh air drawn in directly from the outside of the vehicle, or
recirculation where the air is drawn from inside the cabin
7
Interface Functions
Mode
Changes the vent positions for heating and cooling
8
Heating & Cooling Temperature
Press up to increase temperature, press down to decrease temperature. Left hand
side buttons adjust passenger side (Front & Rear). Right hand side buttons adjust
drivers side (Front & Rear) temperature settings
Interface Functions
Air conditioning On or Off
Press to turn the air conditioning On/Off or vice versa. This can be changed and
reversed in the setup menu. NOTE: Holding down the A/C button completely
turns the A/C heating and cooling system off on Dual Zone models
Fan Speed Adjustment
Pressing these will turn the fan speed up and down. NOTE: With the A/C on and
fan speed set to zero, there still will be a small amount of cold air pushed out
through the vents
9
Interface Functions
10
Interface Functions
Trip Computer
This displays information relating to Average speed, Average fuel use, Trip time
and remaining fuel in kilometres. Press and hold the trip computer button to reset
the average speed on dual zone models. Beep sound will confirm reset.
NOTE: Trip button only works when not in the climate control display or
settings menu
Auto Function
Press to automatically control the climate control to a specified temperature.
NOTE: This will only work on Dual Zone models
