Advantech PPC-6121 Instrucciones de instalación

Product Disassembly Instructions

Product Category:

Panel PC

Product Marketing Name / Model:

PPC-6121

Purpose: The document provides the basic instructions for the disassembly of products to remove components and

materials requiring selective treatment, as defined by EU directive 2002/96/EC and 2012/19/EU, Waste Electrical and

Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

Item Description Notes Quantity of items

included in product

Printed Circuit Boards (PCB) or Printed

Circuit Assemblies (PCA)

With a surface greater than 10 sq. cm Mother

board, Card Reader board, USB Daughter

board, LID Daughter board

Batteries

All types including standard alkaline and

lithium coin or button style batteries 6cell

battery or 9 cell battery, and RTC battery

External electrical cables and Power

cord 0

Liquid Crystal Displays (LCD) with a

surface greater than 100 sq cm

Includes background illuminated displays with

gas discharge lamps 1

Cathode Ray Tubes (CRT)

Gas Discharge Lamps 0

Electrolytic Capacitors / Condensers

measuring greater than 2.5 cm in

diameter or height

Item Description Notes Quantity of items

included in product

Mercury-containing components For example, mercury in lamps, display

backlights, scanner lamps, switches, batteries

Capacitors / condensers (Containing

PCB) 0

Plastics containing Brominated Flame

Retardants weighing > 25 grams

(Not including PCBs or PCAs already liste

d as a

separate item above) 0

Components and parts containing toner

and ink, including liquids, semi-liquids

(gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations. 0

Asbestos waste and components which

contain asbestos 0

Components containing refractory

ceramic fibers 0

Chlorofluorocarbons (CFC),

hydrochlorofluorocarbons (HCFC) or

hydrofluorocarbons(HFC), hydrocarbons

(HC)

Components, parts and materials

containing radioactive substances 0

2.0 Disassembly Tool

List the tools that would typically be used to disassemble the product to a point where components and materials can

be removed.

Disassembly Tool Picture

Screwdriver

Lever

Star Screwdriver

Hexagon Driver

Slanted pliers

Pliers

Hammer

Knife

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials.

A. Disassembly Box module.

A-1. Disassembly 5 pcs screw to remove the Rear cover.

A-2. Disassembly 2 pcs Antenna rubber.

A-3. Disassembly 1 pcs screw to remove the Riser card bracket.

A-4. Disassembly 6 pcs screw to remove the VESA bracket module.

A-5. Disassembly 8 pcs screw to remove the FAN.

A-6. Disassembly 4 pcs screw to remove the CPU cooler.

A-7. Disassembly 4 pcs screw to remove the HDD/SSD module

A-8. Disassembly 4 pcs screw to remove the HDD/SSD tray

A-9. Disassembly 4 pcs screw to remove the HDD/SSD

A-10. Disassembly Hex 12pcs from DB9/DB15 port, screw 4pcs from IO bracket to separate the IO bracket.

A-11. Disassembly Power button from IO bracket.

A-12. Disassembly 4 pcs screw to remove the Speaker module.

A-13. Disassembly CPU from CPU socket.

A-14. Disassembly DDR module from DDR socket.

A-15. Disassembly M.2 card (1pcs screw) and Mini PCIe card (2pcs screw) from each socket.

A-16. Remove RTC battery wire cable.

A-17. Disassembly 7 pcs screw to remove the Mother board.

B. Disassembly Panel module.

B-1. Disassembly 7 pcs screw to remove the MB frame.

B-2. Disassembly screw 4pcs to remove the LCD sub-assembly from Front Bezel.

B-3. Disassembly screw 4pcs to separate the LCD bracket left and right with LCD module.

B-4. Separate the LCD sponge from LCD opening bezel.

B-5. Disassembly screw 1pcs to remove the LED indicator board.

B-6. Remove the waterproof from front bezel.

3.2 Exploded view drawing. Insert a graphic illustration below to identify the items contained in the product that

require selective treatment (with descriptions and arrows identifying locations).

Otros manuales para PPC-6121

Tabla de contenidos

Otros manuales de Panel táctil de Advantech

Advantech

Advantech PPC-3120-RE9A Instrucciones de instalación

Advantech

Advantech UTC-W101E Manual de usuario

Advantech

Advantech PPC-6151C Manual de instalación y operación

Advantech

Advantech PPC-3150SW Manual de instalación y operación

Advantech

Advantech SPC-200 Series Manual de usuario

Advantech

Advantech PPC-415 Manual de instalación y operación

Advantech

Advantech TPC-1260G Manual de usuario

Advantech

Advantech TPC-1582H Manual de usuario

Advantech

Advantech POC-128 Manual de instrucciones

Advantech

Advantech COASTIPC PPC-412 Manual de instalación y operación

Advantech

Advantech ProFlat IDP31-156WP45HIB1 Manual de usuario

Advantech

Advantech IPPC-6152A Manual de usuario

Advantech

Advantech PPC-L61T Manual de usuario

Advantech

Advantech UltraSlim PPC-S153 Manual de usuario

Advantech

Advantech PPC-3211SW Manual de instalación y operación

Advantech

Advantech PPC-L60T Manual de usuario

Advantech

Advantech UTC-520F Manual de usuario

Advantech

Advantech TPC-650 Manual de usuario

Advantech

Advantech TPC-300 Elkhart Lake Series Manual de usuario

Advantech

Advantech PPC-4151W Manual de usuario

Advantech

Advantech TPC-1560 Manual de usuario

Advantech

Advantech IPPC-9151 Series Manual de usuario

Advantech

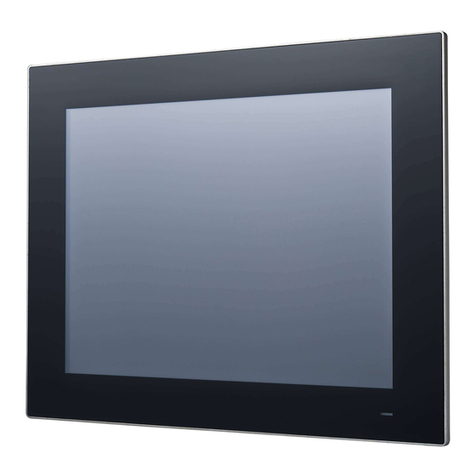

Advantech PPC-3100S Manual de usuario
