Advantech PPC-100 Manual de usuario

PPC-100

486-based Panel PC with 10.4"

LCD display

This document is copyrighted, 1997, by Advantech Co. Ltd. All rights

are reserved. Advantech Co., Ltd. reserves the right to make improve-

ments to the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or transmit-

ted in any form or by any means without the prior written permission of

Advantech. Information provided in this manual is intended to be

accurate and reliable. However, Advantech assumes no responsibility for

its use, nor for any infringements upon the rights of third parties which

may result from its use.

All brand and product names mentioned herein are trademarks or

registered trademarks of their respective holders.

FCC Class B

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment gener-

ates, uses and can radiate radio frequency energy and , if not installed and

used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interfer-

ence will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver

•Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for

help.

Part No. 2002100020, 2nd Edition

Printed in Taiwan, April 1997

iii

Packing List

Before installing your panel PC, ensure that the following materi-

als have been received:

PPC-100

Utility Disks

User‘s Manual

Accessories for PPC-100

•I/O socket

•FDD flat cable (35 cm)

•FDD power wire (35 cm)

•HDD flat cable (15 cm)

•Power cord (1.8 m)

•Assembly mounting parts

•Heat Sink

Note: If you install a 486 or 5x86 series CPU, you must install a

HeatSink above the CPU in order to avoid heat damage.

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

Contents

Chapter 1: General Information ................................. 1

1.1 Introduction...................................................................... 2

1.2 Specifications.................................................................... 3

1.3 LCD Specifications .......................................................... 6

1.4 Dimensions........................................................................ 7

1.5 I/O Arrangement.............................................................. 8

1.6 Cutout (suggestion) .......................................................... 9

1.7 Mounting......................................................................... 10

Chapter 2: System Setup ........................................... 11

2.1 General............................................................................ 12

2.2 Removing Rear Panel .................................................... 13

2.3 Installing Options........................................................... 14

2.4 Installing Software to the HDD .................................... 17

2.5 Exploded Diagram ......................................................... 18

2.6 PCM-4865 and I/O Adapter Replacement ................. 19

2.7 Power Supply and Cooling Fan Replacement ............. 21

Chapter 3: The Engine of PPC-100 (PCM-4865) ......... 23

3.1 Introduction.................................................................... 24

3.2 Features........................................................................... 25

3.3 PCM-4865 Connector Pin Assignment ........................ 28

3.4 PCM-4865 Jumper settings........................................... 34

Chapter 4: Software Configuration ......................... 47

4.1 Introduction.................................................................... 48

4.2 Utility disk ...................................................................... 48

4.3 Ethernet Utility Disk...................................................... 51

Chapter 5: SVGA Setup............................................... 55

5.1 Introduction.................................................................... 56

5.2 Sleep Mode...................................................................... 56

5.3 Simultaneous Display Mode.......................................... 56

5.4 Software Support ........................................................... 57

5.5 Driver Installation.......................................................... 58

Appendix A: Power Supply Specifications .............. 71

Appendix B: Touchscreen (Optional) ........................ 75

Appendix C: Programming the Watchdog Timer .... 79

Appendix D: 4 Digital Isolated I/O Interface ............ 81

Appendix E: Monochrome LCD Display .................... 83

General

Information

This chapter gives background informa-

tion on the PPC-100

Sections include:

• Introduction

• Specifications

• LCD Specifications

• Dimensions

• I/O Arrangement

• Cutout (suggestion)

• Mounting

CHAPTER

2PPC-100 User's Manual

1.1 Introduction

The PPC-100 Panel PC is a PC-based industrial computer that is designed

to serve as a Man Machine Interface (MMI). It is a PC-based system with

10.4" color TFT or Mono LCD display, on-board Ethernet and multi-

COM port interfaces. This simple, complete and compact system lets you

easily build a panel PC into your configuration. By incorporating the

PPC-100 into your project, your product development time will definitely

be shortened.

The PPC-100 is a compact, network-compatible PC with extensive

features to control a dedicated system in a wide variety of applications.

Common industrial applications include factory automation systems,

precision machinery , and production process control. It is also suitable

for many non-industrial applications, including terminal information

systems, entertainment management systems, and car park automation.

Our panel PC is a reliable, cost-effective solution to your application's

processing requirements.

Chapter 1 General Information 3

1.2 Specifications

General

• Disk drive housing: Space for one 2.5" HDD

• Dimensions: 342 mm(W) x 265 mm (H) x 61.5 mm (D)

• Weight: 2.7 kg

• Power supply: 50 Watts

Input voltage: 90~240VAC@50/60 Hz

Output voltage: [email protected], +12V@2A, [email protected]

• Cooling fan dimensions: 60 x 60 x 15 mm (L x W x H)

• Front panel: IP65 protection

Standard PC Functions

• CPU: 486SX/DX/DX2-25/33/66/DX4-100/120, 5x86 series

• BIOS: AWARD 128KB flash memory

• Chipset: VIA VT82C496G

• 2nd level cache: on-board 128KB

• RAM: 2MB to 32 MB . One 72-pin SIMM socket (supports fast page mode

and EDO DRAM)

• Enhanced IDE HDD interface: Supports up to two IDE hard disks

• Floppy disk drive interface: Supports up to two floppy disk drives.

• Multi-mode parallel port: Supports SPP/ECP/EPP

• Serial ports: Three RS-232 ports (COM1*, COM3, and COM4), one RS-232/

422/485 port (COM2) (RS-485 is default)

• Battery: 3.6V @ 600 mA lithium battery

• Watchdog timer: Supports system reset or IRQ 15. Software enable/disable.

Time interval is 1.6 seconds.

*Note: The PPC-100 with the optionally installed touchscreen will share COM1.

4PPC-100 User's Manual

Solid State Disk Function

• Socket: One 32-pin socket for FLASH/EPROM

• Size: 512KB (Flash on board)

• Utility software: Includes software to prepare files for EPROM

Local-bus Flat Panel/VGA Interface

• Chipset: C&T 65545

• Display memory: 1 MB DRAM

• Display type: simultaneously supports CRT and flat panel displays

• CRT display mode: Supports resolutions up to 1024 x 768 @ 256 colors

• Panel display modes: Supports resolutions up to 640 x 480 True Colors

Ethernet Controller Function

• Chipset: Realtek RTL 8019

• Type: 16-bit Ethernet, Novell NE2000 compatible

• Connector: 10 Base-T connector on board

Digital Isolated I/O Ports

• 4 optically-isolated inputs

Input voltage: 5 to 40 VDC

Input resistance: 1.2K @ 0.5 W

Isolation voltage: 2,500 VDC

Maximum speed: 10KHz

• 4 optically-isolated outputs

Output voltage: Open collector 5 to 40VDC

Sink current: 200 mA max. (each channel)

Isolated voltage: 2,500 VDC

Chapter 1 General Information 5

Touchscreen (optional)

• Type: Analog resistive

• Resolution: continuous

• Light Transmission: 75%

(Surface meets ASTM-D-1044 standard, Taber Abrasion Test)

• Controller: RS-232 interface (uses COM1)

• Power consumption: +5V @200mA

• Software driver: supports both DOS and Windows

• Durability: 30 million touches in life

Option Modules

• CPU: 486 SX/DX/DX2-25/33/66, DX4-100/120, 5x86 series

• Memory: 2/4/8/16/32 DRAM (Fast page mode)

• HDD: 2.5" HDD

• Operating System: Windows 95, DOS, OS/2, Windows 3.1

• Touchscreen: Analog resistive

Environment

• Temperature: 0°to 45° C (32° to 113° F)

• Relative humidity: 10 to 95% @ 40 °C, non-condensing

• Shock: 10G peak accerelation (11 msec duration)

• Certifications: Meets FCC, CE, UL

• Power MTBF: 50,000 hrs

Tabla de contenidos

Otros manuales de Panel táctil de Advantech

Advantech

Advantech POC-W152 Manual de instrucciones

Advantech

Advantech PPC-315W TGL Manual de usuario

Advantech

Advantech PPC-150 Series Manual de usuario

Advantech

Advantech PPC-3150SW-PN4A Manual de usuario

Advantech

Advantech PPC-3211SW Manual de instalación y operación

Advantech

Advantech PPC-3151-650AE Manual de instalación y operación

Advantech

Advantech TPC-1251T-Exxx Series Manual de usuario

Advantech

Advantech TPC-51WP Series Manual de usuario

Advantech

Advantech PPC-6121 Instrucciones de instalación

Advantech

Advantech PPC-315W TGL Manual de instalación y operación

Advantech

Advantech PPC-3150 Manual de usuario

Advantech

Advantech PPC-3151W Manual de usuario

Advantech

Advantech TPC-1581WP Manual de usuario

Advantech

Advantech PPC-6151C Manual de usuario

Advantech

Advantech ITA-8100 Manual de usuario

Advantech

Advantech PPC-306 EHL Manual de instalación y operación

Advantech

Advantech PPC-3150SW Manual de usuario

Advantech

Advantech UltraSlim PPC-S153 Manual de usuario

Advantech

Advantech PPC-321W TGL Manual de usuario

Advantech

Advantech PPC-318W Manual de instalación y operación

Advantech

Advantech PPC-120 Manual de usuario

Advantech

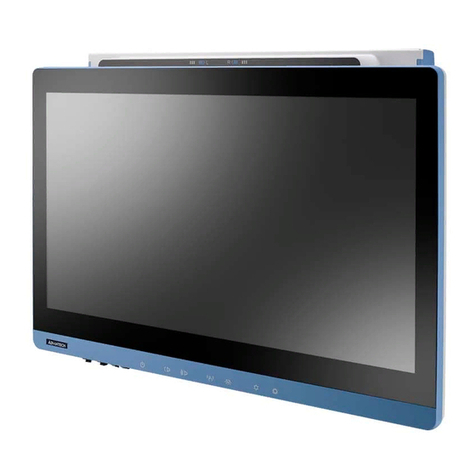

Advantech POC-621 Series Manual de usuario

Advantech

Advantech TPC-1260 Manual de usuario

Advantech

Advantech PPC-112W Manual de instalación y operación

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

AMX

AMX AXP-PPC Guía

Sartorius

Sartorius X3 PR 5410 Manual de usuario

AMX

AMX Modero X Series Manual de usuario

B&R Industries

B&R Industries MAPPC900-ENG Manual de usuario
