Advantech ICR-3201 Series Guía

Start Guide

ICR-3201, ICR-3211, ICR-3231

ICR-3232, ICR-3241

Start Guide

Safety Instructions

Please take care to following instructions:

•Use the router in compliance with national and international law and in compliance with

any special or additional restrictions regulating the use of the router in various applica-

tions and environments.

•To avoid possible injury and/or damage to the device, observe the relevant provisions

and standards. Use only the original accessories as recommended. Unauthorized de-

vice or accessory modiﬁcation or using accessories that have not been approved can

result in router damage and/or violation of the regulations.

•Unauthorized device or accessory modiﬁcation or using the accessories that have not

been approved can result in warranty termination.

•Do not open the router.

•Caution! Small children can swallow the SIM card.

•When connecting the device to a power supply, do not exceed the deﬁned voltage.

•Do not expose the router to extreme ambient conditions. Protect the router against dust,

moisture, and high temperature.

•It is recommended that you do not use the router at petrol ﬁlling stations. We recommend

observing local restrictions concerning radio-based devices while working with explosive

material, such as at petrol ﬁlling stations or in chemical plants.

•While using the router close to personal medical devices, such as cardiac pacemakers

or hearing aids, proceed with heightened caution.

•Operating the router too close to TV sets, radio receivers, personal computers, or tele-

phones can cause interference.

•It is recommended that you create a copy or backup of the essential settings stored in

the memory of the router.

QSG-0006-EN, February 28, 2022 1Released in the Czech Republic

Start Guide

Product Disposal Instructions

The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) di-

rective was introduced to ensure that electrical/electronic products are recycled

using the best available recovery techniques to minimize the impact on the en-

vironment. This product contains high-quality materials and components which

can be recycled. At the end of its life, this product MUST NOT be mixed with

other commercial waste for disposal. The device contains a battery. Remove

the battery from the device before disposal. The battery in the device needs to be disposed of

apart accordingly. Check the terms and conditions of your supplier for disposal information.

Open Source Software License

The software in this device uses various pieces of open-source software governed by the

following licenses:

•GPL versions 2 and 3

•LGPL version 2

•BSD-style licences

•MIT-style licences

The list of components together with complete license texts can be found on the device

itself. See the Licenses link at the bottom of the router’s main Web page (General Status)

or point your browser to this address (replace the DEVICE_IP string with the real router’s IP

address):

https://DEVICE_IP/licenses.cgi

This is a written offer valid for three years since the device purchase, offering any third party

for a charge no more than the cost of physically performing source distribution, a complete

machine-readable copy of the corresponding source code on a ﬂash drive medium. If you are

interested in obtaining the source, please get in touch with us at:

[email protected]

Modiﬁcations and debugging of LGPL-linked executables:

The device manufacturer hereby grants the right to use debugging techniques (e.g., de-

compilation) and making customer modiﬁcations of any executable linked with an LGPL library

for its purposes. Note these rights are limited to the customer’s usage. No further distribution

of such modiﬁed executables and no transmission of the information obtained during these

actions may be done.

QSG-0006-EN, February 28, 2022 2Released in the Czech Republic

Start Guide

First Use

Before applying power to the router, connect all the components you need for your appli-

cations. A cross-shaped screwdriver is necessary to insert a SIM card.

Do not run the router without an antenna connected to the main antenna connector. The

energy from the transmission is effectively reﬂected by the open end and can damage

the equipment.

ICR-3201 routers are not equipped with a cellular module, which means that SIM card

slots and cellular antenna connectors are not available on the router.

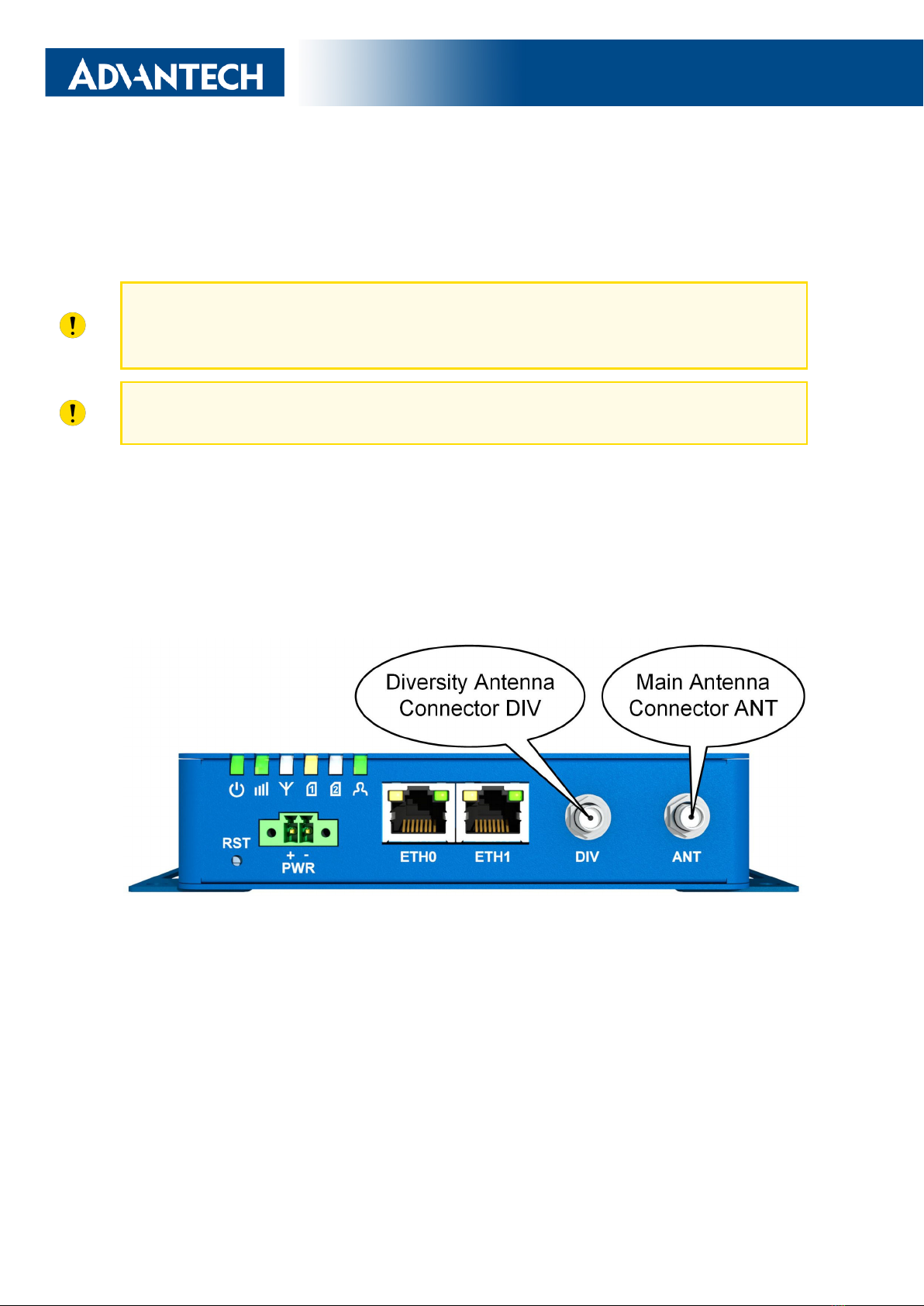

1. Antenna

Use SMA connectors to connect the antennas to the router; see the ﬁgure below. First,

connect the main antenna to the ANT connector. Next, connect the second diversity antenna

to the DIV connector to improve the quality and reliability of a wireless link.

2. SIM Card

The SIM card reader for two mini-SIM cards (2FF with size of 25.0 x 15.0 x 0.76 mm) is

located on the left side panel of the router. If you intend to use this device to communicate

over a cellular network, please place an activated data-provisioned SIM card into the SIM card

reader. Unscrew the SIM cards cover and push your SIM card into the SIM1 or SIM2 slot until

it clicks into place.

QSG-0006-EN, February 28, 2022 3Released in the Czech Republic

Start Guide

Disconnect the router from the power supply before handling the SIM card.

3. Power

The router requires an external DC power supply. The DC voltage required is between

+9 and +36 V DC. The router has built-in protection against reverse polarity without signaling.

Connect the power supply cable to the PWR connector on the router’s front panel; see the

ﬁgure below.

QSG-0006-EN, February 28, 2022 4Released in the Czech Republic

Start Guide

4. Ethernet

For an initial conﬁguration made in a web browser, connect a PC by an Ethernet cable to

the default LAN interface, use the ETH0 port; see the ﬁgure above. By default, this interface

has the following conﬁguration:

Connector Purpose Default Setting

ETH0 LAN port (default)

Connect your PC to this port to get the

router web interface.

DHCP Server

IP Address: 192.168.1.1

NetMask: 255.255.255.0

Conﬁguration

1. Conﬁguring the Device Using the Web Browser

You can use a web browser running on your PC to access the router web interface. Here

you can perform router monitoring, conﬁguration, and administration. First, connect the PC to

the default LAN interface described in the Ethernet chapter. To get the router interface, enter

the https://192.168.1.1 address in a web browser. Please note that usage of the HTTPS

protocol for secure communication over the network is required.

There is just the extbfroot user account created on the router by default. See the product

label on the router for its default password1. Log in to the web interface by the root user

and his password. See the conﬁguration manual of the router for a detailed description and

examples of the router conﬁguration.

After logging on to the device for the ﬁrst time, we strongly recommend changing the

default password due to security reasons.

For security reasons, we highly recommend updating the router’s ﬁrmware to the latest

version regularly. Downgrading the ﬁrmware to an older version than the production

version or uploading ﬁrmware intended for a different device may cause the device’s

malfunction.

1If the label does not contain a unique password, use "root" string as the password.

QSG-0006-EN, February 28, 2022 5Released in the Czech Republic

Start Guide

2. Conﬁguration Settings via WebAccess/DMP

Your router has been pre-installed with the WebAccess/DMP client. For its activation,

enable it in the router’s web interface (Customization -> User Modules -> WebAccess/DMP

Client). For more information, see the conﬁguration manual of your router.

The activated client periodically uploads router identiﬁers, conﬁguration, and cellular net-

work statistics to the WebAccess/DMP server. If you have purchased a part number

ending with "-DMP", the DMP client is activated by default.

With the WebAccess/DMP client activated, you may conﬁgure the router from WebAc-

cess/DMP portal. Navigate your browser to https://www.wadmp.com.

If this is your ﬁrst time, please self-sign-up with the site. If not, please log in with your

username and password. Once logged in, further assistance can be found at https://docs.

wadmp.com.

3. Restoring and Backing up the Router Conﬁguration

The default factory settings will replace the current conﬁguration if you reset the router.

Therefore, we recommend you back up the router conﬁguration before resetting the device.

Refer to the conﬁguration manual for more information.

You can restore the default router conﬁguration once the router boots up and the PWR

LED starts blinking. To do so, press the RST button on the router’s front panel for more than

4 seconds. After you press this button, all settings reset to the default values, and the router

will reboot.

Support

All product-related manuals, documents, and software can be found and downloaded on

the website at icr.advantech.cz/download address.

We, Advantech Czech s.r.o., declare that the radio equipment type ICR-3211 (WiFi

version), ICR-3211, and ICR-3231 comply with Directive Radio Equipment Regula-

tions 2017 (S.I. 2017 No. 1206). Furthermore, ICR-3201 (non-WiFi version) com-

plies with the Electromagnetic Compatibility Regulations 2016 (S.I. 2016 No. 1091

and S.I. 2016 No. 1101).

We, Advantech Czech s.r.o., declare that the radio equipment type ICR-3211 (WiFi

version), ICR-3211, and ICR-3231 comply with Directive 2014/53/EU. Furthermore,

ICR-3201 (non-WiFi version) complies with the essential requirements and other rel-

evant provisions of Directives 2014/30/EU and 2014/35/EU.

The full text of the EU Declaration of Conformity is available at the following internet address:

icr.advantech.cz/eudoc

QSG-0006-EN, February 28, 2022 6Released in the Czech Republic
