Advantech PCM-4390 Manual de instalación y operación

1 PCM-4390 Startup Manual

PCM-4390 Onboard Intel

Core Duo 4" EPIC

SBC with LCD/LVDS/GIGA LAN/8 GPIO/ 8 USB2.0

Startup Manual

Before installation, please make sure that you have

received the following:

If anything is missing or damaged, contact your distributor

or sales representative immediately.

Note 1: For detailed contents or the PCM-4390, please

refer to the enclosed CD Disc or disc(in PDF for-

mat).

Note 2: Acrobat Reader is required to view any PDF file.

Acrobat Reader can be downloaded at:

http://www.adobe.com/products/acrobat/

readerstep2.html(Acrobat is a trademark of

Adobe).

Standard SBC Functions

• CPU: Embedded Intel Core Duo Processor, up to 1.66

GHz

• System Chipset: Intel 945GM GMCH/ICH7M Chipset

• BIOS: AWARD®4 Mbit Flash BIOS

• System memory: 200-pin SODIMM socket Rate II

(DDR2) 128 MB to 1 GB, accept 128/256/512/1 G

(DDR2) 400/533/667 DRAM

• Power Management: APM1.2, ACPI support

• SSD: USB-DOM

• Watchdog: Timer Single chip Watchdog 255-level inter-

val timer, setup by software

• Expansion: Interface PCI-104

• Battery: 2-pin wafer box for external Battery on board I/

• I/O Interface: 1 x EIDE (UDMA 33),

1 x K/B (optional), 1 x KB/mouse, 3 x RS232,

1 x RS232/422/485, 1 x LPT

• USB: 8 x USB 2.0 compliant Ports

(2 ports on board connector, 6 ports pinhead)

• Audio: ICH7M AC97 3D surround stereo sound Sup-

ports Line -in, Line-out, Microphone-in (with PCM-410

option)

• IrDA: N/A

• GPIO: 8-bit general purpose input/output

Ethernet

• Chipset: BroadCom BCM5721

• Speed: 10/100/1000 Mbps

• Interface: 2 x RJ45

• Standard: IEEE 802.3u 100Base-T

Display

• Chipset: Intel 945GM chip integrated.

(Extreme Graphics 2)

• Memory Size: Optimized Shared Memory Architecture,

supports up to 64 MB frame buffer using system mem-

ory

• Resolution

CRT Display mode: pixel resolution up to 1600 x 1200 at

85-Hz and 2048 x 1536 at 75-Hz LCD

Display mode: Dual channel LVDS panel supports up to

UXGA panel resolution with frequency range from 25

MHz to 112 MHz

• LCD Interface: 2 Dual Channel (LVDS1 x 36-bit, LVDS2

x 48-bit(Optional) ) LVDS

• LV D S : Hirose connector supports up to 2 channel(2 x

18-bit) LVDS LCD Panel

• Dual Independent: CRT + 36-bit LVDS, LVDS +

LVDS(Dual LVDS optional)

Packing List Specifications

• 1 PCM-4390 SBC

• 1 Startup Manual

• 1 Utility CD

• 1 Cable 20P/10P 10CM EPIC

AT X P o w e r

p/n: 1700002055

• Flat cable 44P IDC 44P/44P/

40P Keyed 50cm

p/n: 1701440504

• Keyboard/Mouse Connector p/n: 1700060202

• FLAT Cable 50P 20CM 3Com

& LPT 1.27mm to D-sub

p/n: 1700002034

• Cable Serial ATA 7P/7P100cm p/n: 1700071000

• Wire RS-422/485 W/D-SUB

COM 4P 15cm

p/n: 1703040157

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/epc

For technical support and service, please visit our

support website at:

http://service.advantech.com.tw/eservice/

This manual is for the PCM-4390 Series Rev. A1.

Part No. 2006439000 1st Edition

May 2007.

PCM-4390 Onboard Intel®

Core Duo 4" EPIC SBC with LCD/LVDS/GIGA LAN/8 GPIO/ 8

2 PCM-4390 Startup Manual

Mechanical and Environmental

• Dimensions: 115 x 165mm(4.5" x 6.6")

• Power supply Type: AT X

• Power supply Voltage: ATX, +5 V ± 5%, +3 V ± 5%, 5VSB

± 5%, ±12 V ± 5% (Optional) (12 V optional for PC/104 add

on card and LCD inverter)

• Power Consumption: (Core Duo 1.2 GHz with 512 MB

DDR2 memory) Typical: 3.75 A @ 5 V, 0.49 A @ 3.3 V, 1.08

A @ 5 VSB, 0.48 A @ 12 V

• Operating Humidity: 0%~90% relative humidity, non-con-

densing

• Operating Temperature: 0~60°C(32~140°F)

• Weight: 340g(with Heatsink)

• Storage Temperature:

• Storage Relative Humidity:

The board has a number of jumpers that allow you to configure

your system to suit our application.

The table below lists the function of each of the jumpers and

connectors.

Standard products(0~60°C)

Storage temperature: -20~70°C

Phoenix products(-20~80°C)

Storage temperature: -20~80°C

Platinum Phoenix products(-40~85°C)

Storage temperature:-40~85°C

Standard products(0~60°C)

Relative Humidity:95%@60°C

Phoenix products(-20~80°C)

Relative Humidity:95%@60°C

Jumpers and Connectors

Jumpers

Label Function

J1 Clear CMOS

S2 COM2 Setting

J2/J4 LCD Power

J5 PCI-104 VIO Select

S1 Reset Button

PCM-4390 Connector List

Label Function

CN2

FAN1 CPU fan

CN4 DDRII Connector

CN5 RTC Battery Connector

CN6 GPIO

CN7 ATX Power

CN8 Power Switch

CN9 /CN10 LAN Connector

CN11/CN12 SATA Connector

CN13 Primary IDE

CN14 HD LED & Power LED

CN15/CN17 LVDS Connector

CN16/CN26 Inverter Power

CN18 CRT Connector

CN19 USB MIO Connector

CN20 USB 2Ports Connector

CN21 KB/MS Connector

CN22 ACi97/USB Connector

CN23 COM1

CN24 Print/COM Port

CN25 RS485 TX/RX Pin Header

CN27 PCI-104

CN28 USB Connector

CN29

J1 Clear CMOS

Setting Function

(1-2) Normal

(2-3) Clear CMOS

S2 COM2 Setting

Setting Function

S2(1 ON) RS232

S2(2 ON) RS485

S2(3 ON) RS422

J2/J4 LCD Power

Setting Function

(1-2) +5V

(2-3) +3.3V

J5 PCI-104 VIO Select

Setting Function

(1-2) +5V

(2-3) +3.3V

S1 Reset Button

Setting Function

Push Button to reset system

PCM-4390 Connector List

Label Function

PCM-4390 Startup Manual 3

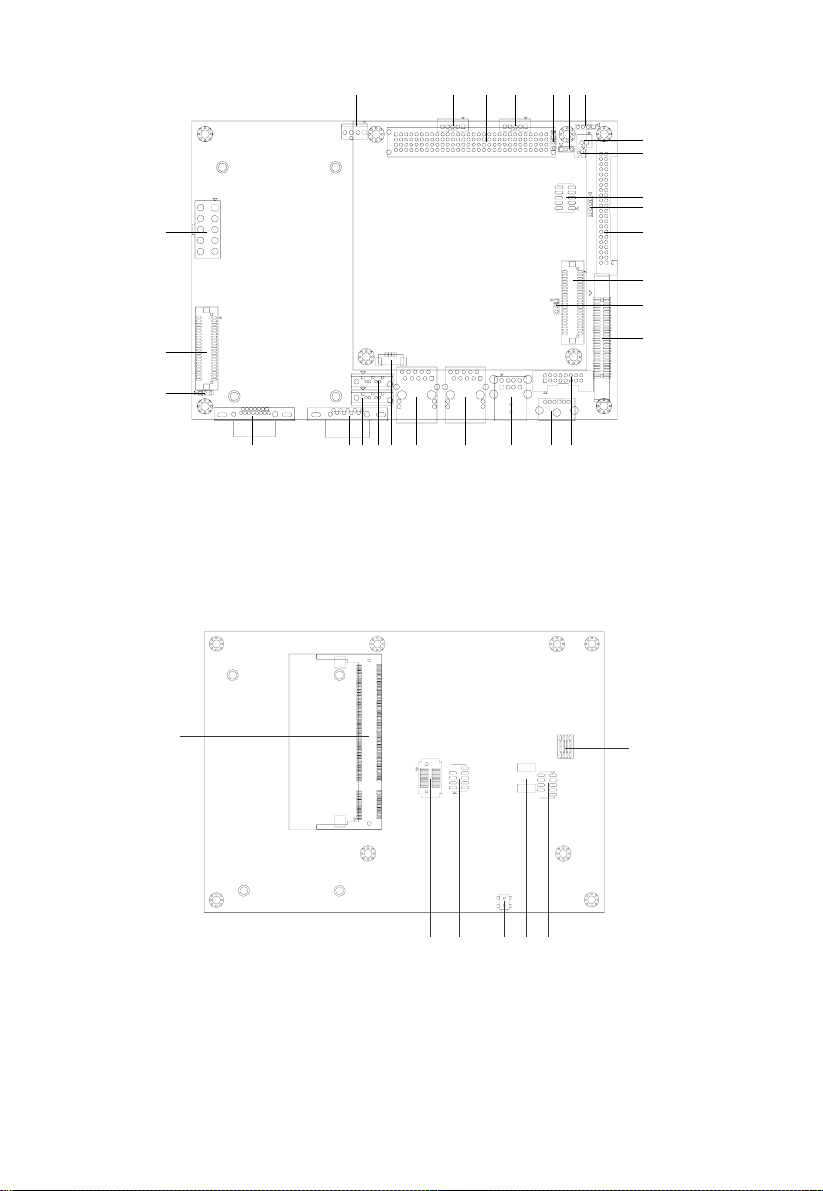

PCM-4390 Connectors(component side)

PCM-4390 Connectors(solder side)

CN18

CN23

CN12

CN11

CN2

CN10

CN9

CN20

CN21

CN22

CN24

CN17

CN13

CN25

CN6

CN5

CN8

CN14

CN16

CN26

CN3

CN15

CN7

CN27

CN29

CN4

CN19

CN28

4 PCM-4390 Startup Manual

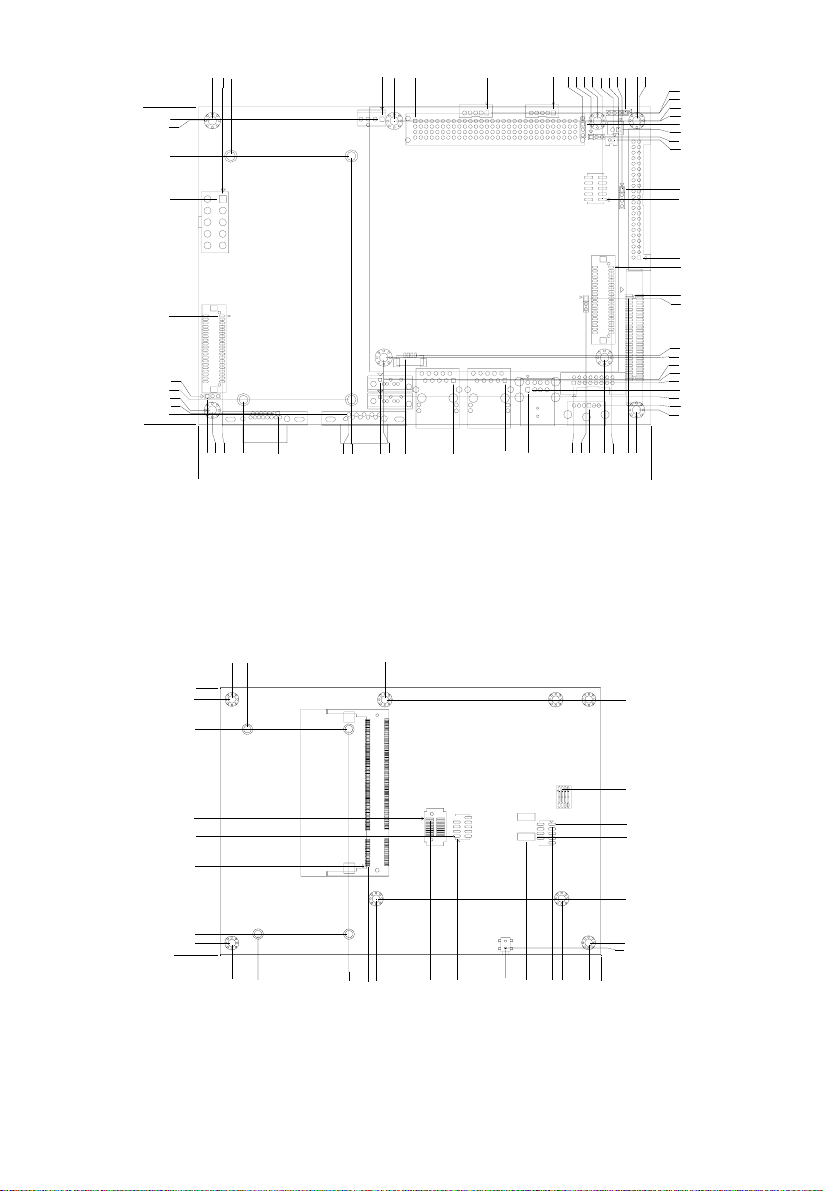

PCM-4390 Mechanical Drawing(component side)

PCM-4390 Mechanical Drawing(solder side)

0.00

28.82

16.33

55.47

54.53

65.91

92.41

111.13

119.41

136.08

141.57

158.80

147.19

164.00

74.83

156.04

149.71

0.00

5.08

10.16

3.17

5.03

8.92

8.61

39.23

4.01

3.53

81.58

97.18

109.98

115.00

5.08

11.76

66.55

70.99

78.61

104.52

128.65

144.65

158.93

154.81

152.21

150.30

142.29

139.32

146.46

153.54

159.75

5.18

6.82

12.47

15.00

15.85

16.13

9.91

24.16

46.69

56.93

60.38

85.04

81.41

102.98

104.06

106.67

109.98

112.78

108.71

109.88

112.78

25.02

45.59

140.46

110.55

8.82

67.18

16.33

55.47

158.80

147.19

164.00

0.00

5.08

5.03

8.92

97.18

109.98

115.00

5.08

11.76

70.99

5.18

24.16

109.88

67.18

63.57

38.17

90.26

101.97

132.00

143.09

58.72

51.12

56.20

71.45

50.86

122.99

2.87
