Advantech PCE-5133 Manual de instalación y operación

PCE-5133/5033 Startup Manual 1

Packing List

Before you begin installing your card, please make sure that

the following items have been shipped:

1. PCE-5133/5033 PICMG 1.3 single host board

2. PCE-5133/5033 startup manual P/N: 2041513300

3. Serial ATA HDD data cables P/N: 1700003194

4. COM cable with bracket P/N: 1701090401

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: For detailed contents of PCE-5133/5033, please

refer to user manual on the Advantech Website.

Note 2:  AcrobatReaderisrequiredtoviewanyPDFle.

Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

PCE-5133/5033 - LGA1700 Intel®CoreTM i9/i7/i5/i3/

Pentium®ECC/non-ECC PICMG 1.3 Single Host

Board with DDR5/M.2 (2280)/Dual 2.5GbE LAN

Startup Manual

General

• LGA1700 12th Intel®Core™ i9/i7/i5/i3/Pentium®

• BIOS: AMI 256 Mb SPI BIOS

• Chipset:

- PCE-5133: Intel R680E

- PCE-5033: Intel H610E

• System memory:

- PCE-5133: Supports dual channel DDR5 4800

32GB per DIMM with ECC/non-ECC; Max. capacity is

up to 64GB

- PCE-5033: Supports dual channel DDR5 4800 32GB

per DIMM without ECC; Max. capacity is up to 64GB

Note: Please select Intel ECC supported processor to

enable ECC function.

Warning:Powermustbeturnedo󰀨beforeplugging/un-

plugging memory stick to avoid system crash or

damage of memory stick.

• SATA Ports:

- PCE-5133: 6 x SATA3.0 ports with SW Raid 0,1,5,10.

- PCE-5033: 4 x SATA3.0 ports without Raid function.

• M.2 Ports:

- PCE-5133: M.2 2280 type M module and compatible to

PCI Express 4.0

• Serial ports: 2 x RS-232 with pin headers

• Watchdog timer: 255 level timer intervals

• USB 2.0:

- PCE-5133/5033: 6*USB2.0 (USB Type A*1+Rear*1, 4

on backplane)

• USB 3.2:

- PCE-5133: 6*USB3.2 (Gen1) (Pin-header*6), 2*USB3.2

(Gen2) (type A, Rear I/O)

- PCE-5033: 2*USB3.2 (Gen1) (Pin-header*2), 2*USB3.2

(Gen1) (type A, Rear I/O)

• GPIO: One programmable 8-bit GPIO pin-header

• DP1 & DP2: DVI/Displayport/HDMI via optional cable

VGA Interface

• Chipset: Intel®UHD Graphics

• Shared system memory is subject to OS

Ethernet Interface

• Chipset supports:

- LAN 1: I225LM(PCE-5133); I226V(PCE-5033)

- LAN 2: I225LM(PCE-5133); I226V(PCE-5033)

• Connection: 2 x on-board RJ-45 connectors with LED

indicators.

Note:Powermustbeturnedo󰀨beforeinstalling/unin-

stalling any expansion modules.

Specications

For more information on this and other Advantech prod-

ucts, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our sup-

port website at:

https://advt.ch/PCE-5133G2

https://advt.ch/PCE-5033G2

extra warranty for Free at:

http://www.register.advantech.com

This manual is for the PCE-5133/5033

Part No. 2041513300

Printed in China

1st Edition

January 2023

2 PCE-5133/5033 Startup Manual

Mechanical and Enviromental

• Dimensions: (L x W): 338 x 122 mm

• Power supply voltage: +12 V, +5 V, +3.3 V, +5 V

• Power requirements(Idle):

Voltage + 3.3V +5V +12V

Current 8.34A 4.13A 6.86A

Note: Testing conditions:

CPU: Processor: Intel®i9-12900E

Memory: 2 DDR5 4800 32GB

Operating temperature: 0 ~ 60° C (depending on

CPU)

• Weight: 0.5 kg (weight of board)

The board has a number of jumpers that allow you to con-

gureyoursystemtosuityourapplication.Thetablebelow

lists the function of each of the jumpers and connectors.

Connectors

Label Function

COM1 RS-232 (9-pin Box Header)

COM2 RS-232 (9-pin Box Header)

CPU FAN1 4-pin fan power connector for supporting

PWM or DC CPU fan

DP1 & DP2 Display port/DVI/ HDMI via optional

cables

eSPI eSPI expansion pin header for COM

module

HDAUD1 Advantech HD audio module expansion

pin-header

JFP1 Power switch/reset connector

JFP2 External speaker/HDD LED connector/

SMBus connector

JFP3

Power LED

Suspend:fastash(ATX/AT)

Systemon:on(ATX/AT)

Systemo󰀨:o󰀨(ATX/AT)

JPCICLK

PCI clock selection

LAN1 Intel i225LM (PCE-5133)

Intel i226V (PCE-5033)

LAN2 Intel i225LM (PCE-5133)

Intel i226V (PCE-5033)

LANLED1 LAN LED

NVMe M.2 M.2 key 2280 with PCIe Gen. 4

SATA0 &1 Port 0 & 1 (PCE-5133)

SATA4~7 SATA port 4, 5, 6, 7 (PCE-5133/5033)

SPI_TPM1 SPI expansion pin header for TPM

module

Sysfan1 4 PIN fan power connector for support-

ing PWM or DC fan

USB2A1 USB2 port 2

USB2C1 USB2 port1

USB3C1 USB3 port1

USB3C2 USB3 port2

USB3H1 USB3 port 3,4

USB3H2 USB3 port 7, 8 (PCE-5133)

USB3H3 USB3 port 5, 6 (PCE-5133)

VGA1 VGA connector

Jumpers

Label Function

JCMOS1 CMOS clear

JME1 Clear ME data

JPCICLK1

PCI clock selection

JWDT1+

JOBS1 Watchdog timer output and OBS alarm

JPCICLK: PCI clock selection

Closed Pins

Result

1-2

66 MHZ

2-3

*33 MHZ

*Default

66 MHZ 33 MHZ

JESPI1+JESPI2: eSPI-interface COM module setting

Closed Pins Result

JFV1 VGA dummy load setting

JUSB1/

JUSB2 USB power source switch

VGA dummy load setting USB power source switch

JCMOS1/JME1: Clear CMOS/ME data

Closed Pins Result

1-2 Keep CMOS/Enable ME data (Default)

2-3 Clear CMOS/Disable ME data

1 2 3

Specications(Cont.)

Jumpers and Connectors (Cont.)

Jumpers and Connectors

PCE-5133/5033 Startup Manual 3

Jumpers and Connectors (Cont.)

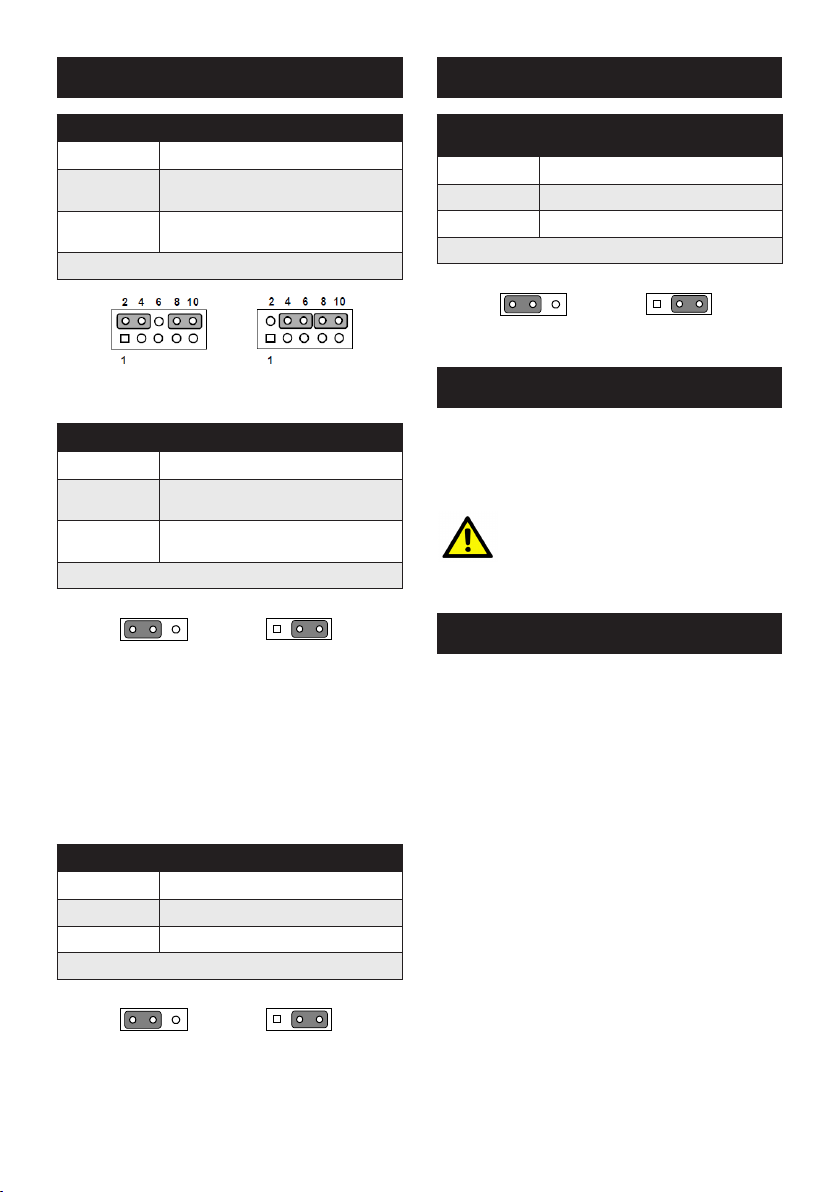

JWDT1+JOBS1: Watchdog timer output and OBS alarm

Closed Pins

Result

2-4, 8-10 Watchdog timer disable (2-4)

OBS beep (8-10)

4-6, 8-10 *Watchdog timer reset (4-6)

OBS beep (8-10)

* Default

Watchdog timer disable (2-4) *Watchdog timer reset (4-6)

OBS beep (8-10) OBS beep (8-10)

JESPI1+JESPI2: eSPI-interface COM module setting

Closed Pins

Result

1-2 Watchdog timer disable (2-4)

OBS beep (8-10)

2-3 *Watchdog timer reset (4-6)

OBS beep (8-10)

* Default

*COM module disabled COM module enabled

Note!

1. Do not change default settings if an eSPI-interface

COM module is not installed; otherwise system will not

turn on.

2. If start to use the COM module, please follow the proce-

dures to prevent system from not to boot up: install the

moduleafterpower-o󰀨,setJESPI1+JESPI2to2-3pins

closed,poweronsystemtoBIOSPOSTscreen,turno󰀨

AC power, then power on.

JFV1: VGA dummy load setting

Closed Pins

Result

1-2 Enable VGA dummy load

2-3 *Disable VGA dummy load

* Default

Enable VGA dummy load *Disable VGA dummy load

Note! It is recommended to leave this function disabled

if you use DVI/DP as your main display.

1 2 3

JUSB_1 & JUSB_2 (onboard USB): USB Power

source switch between +5V and +5V_Dual

Closed Pins

Result

1-2 *USB +5V_DUAL power

2-3 USB +5V power

* Default

*USB +5 V_DUAL power USB +5 V power

The drivers for the PCE-5133/5033 are located on the

Advatecho󰀩cialwebsites.Pleasevisittheo󰀩cialwebsite

for downloading.

https://support.advantech.com/support/new_default.aspx

Caution! The computer is supplied with a battery-powered

real-time clock circuit. There is a danger of explo-

sion if battery is incorrectly replaced. Replace

only with same or equivalent type recommended

by the manufacturer. Discard used batteries ac-

cording to manufacturer’s instructions.

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditons:

1. This device may not cause harmful interference;

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

1 2 3

Jumpers and Connectors (Cont.)

Software Installation

Declaration of Conformity

4 PCE-5133/5033 Startup Manual

Figure 1: Board Layout: Jumper and Connector Locations

Note: *PCE-5033 supports 4 SATA ports (SATA4~7) and one internal USB3.2 pin-header.

*PCE-5033 does not feature NGFF(M.2).

Figure 2: Board Layout - Jumpers and Connector Locations

Preliminary

System FAN1 DIMMA1

CPU1 DP1 PCH GPIO1 HDAUD1

DP2 COM2 COM1 SPI_TPM1

eSPI

M.2 NVMe

USB3H2 SATA0-1

LANLED1

CPU FAN1 DIMMB1

SATA4-7USB3H3

USB2A1

USB2C1

USB3H1

USB3C2

USB3C1

VGA1

LAN12

JFP1 & JFP2

JFP3

JUSB2

JUSB1

JWDT1 & JOBS1

JCMOS1 JME1

JCASE1

GPIO1

JFV1

JESPI1 & 2

ESPI1

Board Layout
