Advanced Bionics Naida CI T-Mic 2 Manual de usuario

029-M516-89 Rev A

T-MIC 2

and EARHOOK

CI-5835

CI-5710

instructions for use

2013

Manufactured by:

Advanced Bionics LLC

California, U.S.A.

+1 661 362 1400

AdvancedBionics.com

Advanced Bionics AG

Laubisrütistrasse 28

8712 Stäfa, Switzerland

+41 58 928 78 00

029-M516-89

English, Français, Deutsch, , Italiano

Labeling symbols and their meanings:

European Community Mark of

Conformity. Authorized to afﬁx CE Marking in

2013

Model

number Date of

manufacture

Serial

Number Manufacturer

Type of

Protection: B Store at temperatures

between -20˚C (-4˚F)

and +55˚C (131˚F)

Fragile Do not get wet

Lot Number See Instructions

for Use

Suitable for atmospheric range between

70kPa and106kPa, which is equivalent to

3000m above sea level to 380m below

sea level.

Suitable for exposure to relative humidity

between 0-95%

Dispose of in accordance with applicable

national and local regulations

Warnings

• CHOKING HAZARD –The Naída CI contains small

parts that pose a hazard of inhalation or choking

• It is recommended to use the T-Mic 2 only when the

T-Mic 2 Cover is properly seated.

Naída CI T-Mic 2 Microphone and Earhook

The Naída CI T-Mic 2 and earhook are intended for

use with the Naída CI sound processor. The T-Mic 2 is

a custom in-the-ear microphone for hearing in noisy

environments and gaining effortless access to cell

phones, consumer audio electronics, and assistive

listening devices while the earhook serves to hold the

processor on the ear when the built-in microphone is

utilized.

Connecting the T-Mic 2 or Earhook

Beginning with the T-Mic 2 or earhook disconnected, align

the T-Mic 2 or earhook ﬂush with the

processor. Hold the T-Mic 2 or earhook ﬁrmly

at the top and push towards the processor

until it meets ﬂush with the processor.

Using the provided T-Mic 2 or earhook tool, place one of

the pins in the small hole on the side of the tool. This will

help to steady the pin as you line it up with the pin hole on

the T-Mic 2 or earhook.

Line up the pin with the hole in the T-Mic 2 or earhook

and gently push it through the hole. The pin will move

from one side of the processor, through the T-Mic 2 or

earhook to the other side of the processor, holding the

T-Mic 2 or earhook in place. The pin should not come out

the other side.

If a small portion of the pin extends beyond the

processor, use the side of the tool to push the pin

inwards so it lies ﬂush with the processor.

Pull the tool away from the processor, leaving

the pin inside the Naída CI.

Removing the T-Mic 2 or Earhook

Remove the power source. Align the pointed end of

the 2 tool with the hole on the processor that

contains the pin holding the T-Mic 2

or earhook on the Naída CI.

Gently press the tool in the hole, pushing

the pin out the other side.

The pin does not need to be removed from the

processor. As long as the tool was pushed in

ﬂush on one side of the processor, the pin

should be displaced enough to adequately

remove the T-Mic 2 or earhook.

Remove the tool from the Naída CI. Gently grasp

the T-Mic 2 or earhook at the top near where it

connects with the processor and pull forward

until it is separated from the processor.

Attaching the T-Mic 2 Cover*

Hold the T-Mic 2 Cover. In the other hand, hold the T-Mic

2 at the end that houses the microphone. Align the bot-

tom of the T-Mic 2 over the T-Mic 2 Cover.

Gently turn the T-Mic 2 into the T-Mic 2 Cover.

Screw until they meet together ﬂush.

*For use with T-Mic 2 only

Once you feel resistance, stop turning.

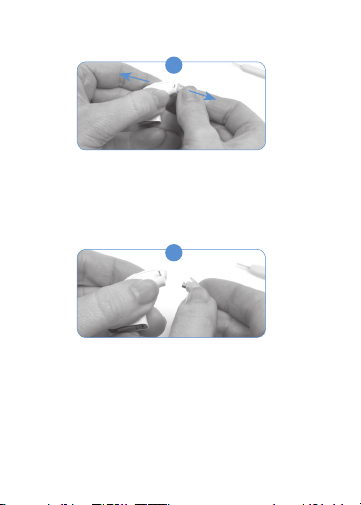

Removing the T-Mic 2 Cover

Grasp the end of the T-Mic 2 where the T-Mic 2 Cover

is located, in one hand. Firmly hold the T-Mic 2

microphone portion in the other hand.

Note: The T-Mic 2 Cover should be replaced at regular

intervals to maintain sound quality.

Turn the hand holding the T-Mic 2 Cover to slowly

unscrew the T-Mic 2 Cover from the T-Mic 2.

Continue turning until the T-Mic 2 Cover

separates from the T-Mic 2.

NOTE: Do not attempt to service or modify the Naida

CI or its accessories. Doing so may compromise system

performance and will void the manufacturer’s warranty.

Products should be serviced only at Advanced Bionics.
