ADTRAN SmartRG SR400ac Manual de usuario

SR400ac

Quick Start Guide

Important Safety Instructions

When using your telecommunications equipment, basic safety precautions should always be followed to reduce the risk of fire, electric

shock and injury to persons, including the following:

1. Use only the power adaptor that is included with the device.

2. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

3. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric

shock from lightning.

4. Do not use the telephone to report a gas leak in the vicinity of the leak.

5. CAUTION - To Reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

The socket-outlet shall be installed near the equipment and shall be easily accessible.

WEEE Statement

The WEEE logo (shown at the left) appears on the product to indicate that this product must not be disposed of or dumped

with your other household wastes. You are required to dispose of your electronic or electrical waste equipment by delivering

it to the specified collection point for recycling of such hazardous waste.

Importantes Mesures de Sécurité

tre prises pendant l’utilisation de matérial télécommunications afin de réduire les risques d’incendie, de choc électrique

Certaines mesures de sécurité doivent et de blessures. En voici quelquesunes:

1. Utilisez uniquement l'adaptateur secteur fourni avec l'appareil.

2. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à laver,

dans un sous-sol humide ou près d’une piscine.

3. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil sans fil) pendant un orage électrique. Ceci peut présenter un

risque de choc électrique causé par la foudre.

4. Ne pas utiliser l’appareil téléphonique pour signaler une fuite de gaz s’il est situé près de la fuite.

5. ATTENTION - Pour réduire les risques d’incendie, utiliser uniquement des conducteurs de télécommunications 26 AWG

au de section supérleure.

le socle de prise de courant doit être installé à proximité du matériel et doit être aisément accessible.

DEEE Statement

Le logo DEEE (illustré à gauche) apparaît sur le produit pour indiquer que ce produit ne doit pas être jeté ou jeté avec

vos autres déchets ménagers. Vous êtes tenu de vous débarrasser de vos déchets d'équipements électroniques ou

électriques en les livrant au point de collecte spécifié pour le recyclage de ces déchets dangereux.

Installation

1. Connect a LAN port on the SmartRG gateway to the network card of your PC using an Ethernet cable.

2. To connect a broadband device:

lConnect one end of an Ethernet cable to the WAN port on the SmartRG gateway and connect the other

end of the cable to the broadband device.

lConnect one end of the cable supplied by your provider to the broadband modem and connect the other

end of the cable to the wall jack installed by your provider.

3. Plug the power adapter to the wall outlet and then connect the other end of it to the Power port of the

gateway.

4. Turn on the unit by pressing the On/Off button on the side of the gateway.

Your gateway is now automatically being set up to connect to the Internet. This process may take a few minutes to

complete before you can begin using your Internet applications (browser, email, etc.).

If you are unable to connect to the Internet, confirm that all cable connections are in place and the gateway’s power is

turned on.

USBLAN WAN DC/

LED Indicators

The LEDs on the top of the SR400ac can assist you

in better understanding the current state of your gateway.

There is also a small LED on the front of the gateway that flickers

when data is being transferred.

Legend: White White blinking Green Green blinking Red

LED Action Explanation

Power Device in CFE mode

Device powered on and ready for use

WAN Gateway online (at 1000 BASE-T)

Gateway online (at 10/100 BASE-T)

Network activity

WAN Ethernet connected (at 1000 BASE-T)

Data being transferred (at 1000 BASE-T)

WAN Ethernet connected (at 10/100BASE-T)

Data being transferred (at 10/100BASE-T)

LED Action Explanation

Internet Gateway online

Data being transferred

Internet authentication / connection has failed

USB / USB 3.0 USB device connected

Data being transferred

2.4 GHz

5 GHz

WiFi enabled

Data being transferred

Locked Wifi

(WPS)

WPS enabled

Data being transferred

1-4

(LAN)

LAN Ethernet connected (at 1000 BASE-T)

Data being transferred (at 1000 BASE-T)

LAN Ethernet connected (at 10/100BASE-T)

Data being transferred (at 10/100BASE-T)

Logging in to your gateway

To change the settings on your gateway, you must log into the gateway's interface. Make sure that you have completed

the steps in "Installation" before you begin.

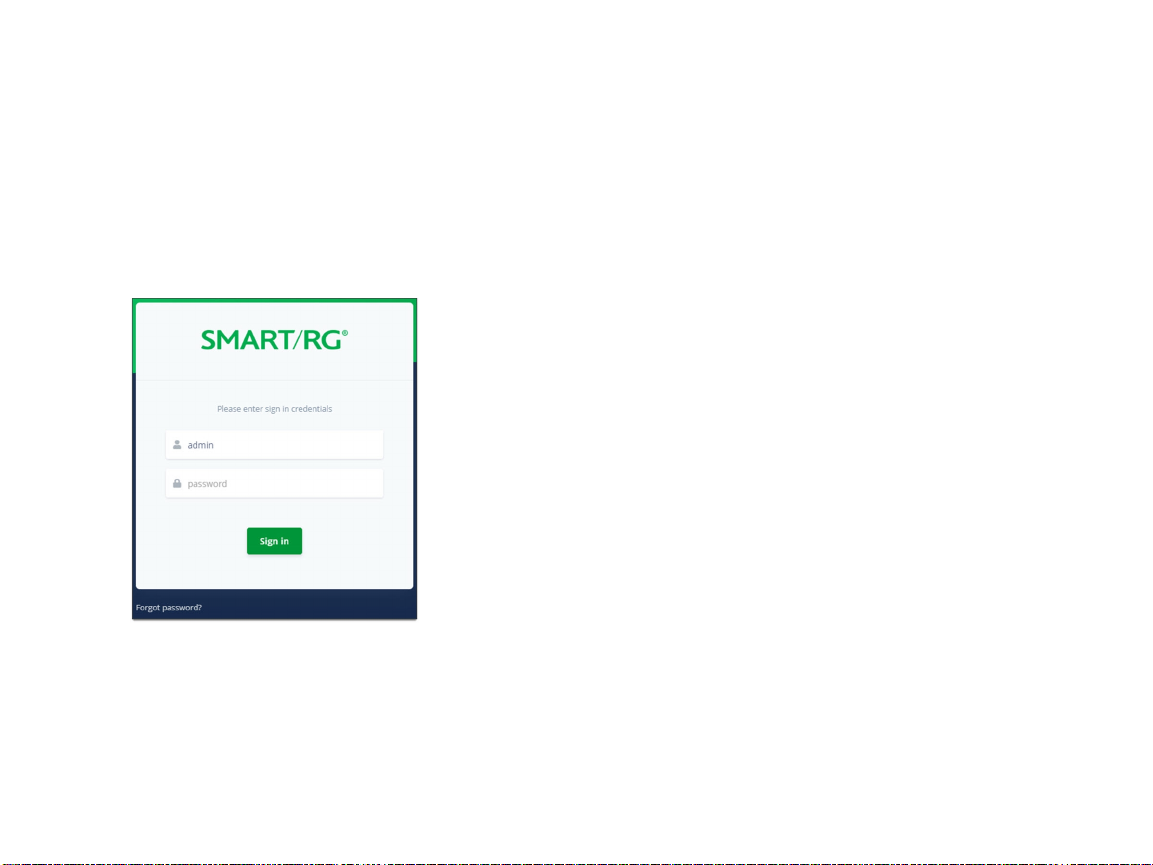

1. Open your internet browser application and type 192.168.1.1 into the address line. The Login dialog box

appears.

2. Enter the credentials shown below and click Sign In. Your service provider may use other settings. If so, contact

your provider for details.

User Name: admin Password: admin

To review the end user license agreement, click the License Agreement link at the bottom right corner of the

browser window. The agreement appears in a separate tab.

Note: If you've forgotten your password, click Forgot password and follow the instructions to reset your gateway to the

factory defaults. Then, enter the credentials provided with the gateway when you first received it.

Configuring the WAN manually

If the automatic connect process is unsuccessful, refer to the Ethernet WAN Configuration section of the SmartRG

SR400AC Gateway User Manual to manually establish a connection.

WiFi Setup

1. In the left menu, click WIFI >Networks. The following page appears, showing information for the primary

wireless network. The dual-band option is enabled by default.
