ADTRAN Atlas 830 Manual de usuario

ATLAS 830 P/N 1200780L1 (AC)/1200781L1 (DC)

For more detailed documentation, visit us online at www.adtran.com

Quick Start Guide

Connecting to the ATLAS 830

Connecting a VT100 terminal (or VT100 terminal emulator) to the CRAFT

interface (on the front panel of the unit) or the ADMIN interface (on the rear panel

of the unit) allows access to the terminal menus and management features of

the ATLAS 830.

Perform Steps Below in the Order Listed:

1. Configure a VT100 terminal (or terminal emulation software) with the

following settings:

If the terminal has a parallel setting, disable it and use serial.

2. Connect the DB-9 male end of the data cable into the ATLAS 830 CRAFT or

ADMIN port. Make the connection to the VT100 terminal as appropriate for

your connection.

3. Initiate a terminal session and the LOGIN screen displays. The default

password is password. (Passwords in the ATLAS 830 are case sensitive.)

Data Rate: 9600 baud Stop Bits: 1

Data Bits: 8 Flow Control: None

Parity Bits: None

ATLAS 830

12345678

STATUS

ONLINE

TEST

MODULES

NE T W O RK

TEST

ERROR

ALARM

TEST

ERROR

ALARM

PO WER

ETHERNET

REMOTE

SYSTEM

CRAFT

ACO

Network Ports LEDs Option Module LEDs

Craft Interface

Controller LEDs

ACO Switch

Craft Pinout

System Status LEDs

The System Status LEDs display the status of the power supply, controller, and

other system parameters for the ATLAS 830. For a more detailed discussion of

the front panel LEDs, refer to Section 2, Engineering Guidelines, of the ATLAS

830 System Manual.

PIN NAME DESCRIPTION

1, 4, 6-9 N/A Not Connected

2 RD Receive Data (output)

3 TD Transmit Data (input)

5 SG Signal Ground

LED Description

Power Indicates the status of the power supply

System Indicates the status of the unit controller and other system parameters.

Ethernet Indicates the status of the ethernet port.

Remote Indicates whether a user (Telnet or VT100) is logged in to the unit.

Reviewing the Front Panel

ATLAS 830 P/N 1200780L1 (AC)/1200781L1 (DC)

For more detailed documentation, visit us online at www.adtran.com

Quick Start Guide

SEE MANUAL BEFORE

REMOVING POWER SUPPLY

OFF

CAUTION: FOR CONTINUED PROTECTION

AGAINST RISK OF FIRE, REPLACE

ONLY WITH SAMETYPE AND RATING

OF FUSE.

12A/125V

48 VDC, 6A

USE COPPER

CONDUCTORS ONLY

Network T1/PRI Ports Optional DC

Power Supply

P/N 1200229L1

T1/PRI Monitor Jacks

Alarm Relay Connection

Admin Interface

Option Module Slots Power Supply Slot

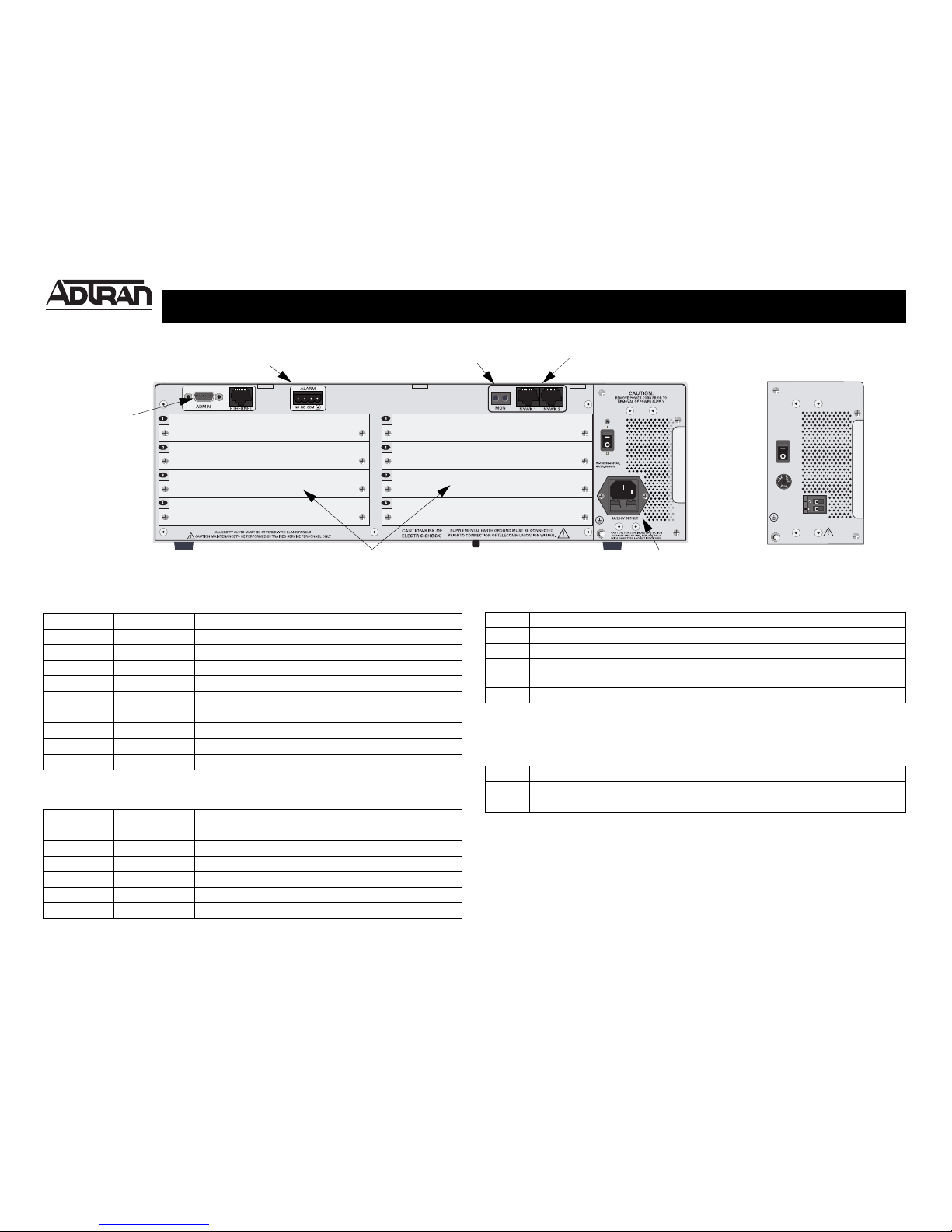

Reviewing the Rear Panel Design

Admin Pinout

10/100BaseT Ethernet Pinout

PIN NAME DESCRIPTION

1 DCD Data Carrier Detect (output)

2 RD Receive Data (output)

3 TD Transmit Data (input)

4 DTR Data Terminal Ready (input)

5 SG Signal Ground

6 DSR Data Set Ready (output) -- not connected

7 RTS Request to Send (input)

8 CTS Clear to Send (output)

9 RI Ring Indicate (output) -- not connected

PIN NAME DESCRIPTION

1 TX1 Transmit Positive

2 TX2 Transmit Negative

3 RX1 Receive Positive

4,5 — Unused

6 RX2 Receive Negative

7, 8 — Unused

Alarm Relay Connection Pinout

DC Power Supply Connection

(Optional P/N 1200229L1)

PIN NAME DESCRIPTION

1 Normaly Closed (NC) Opens when a selected alarm condition is present.

2 Normally Open (NO) Closes when a selected alarm condition is present.

3 Common (COM) Common connection between external circuitry

and NC or NO terminal.

4 Chassis Ground (GND)

PIN NAME DESCRIPTION

1 + Ground (GND)

2--48VDC
