ADEMCO Via30+ Manual de usuario

N7229 7194

via30+, VISTA 10,411lXM

ADEMCO

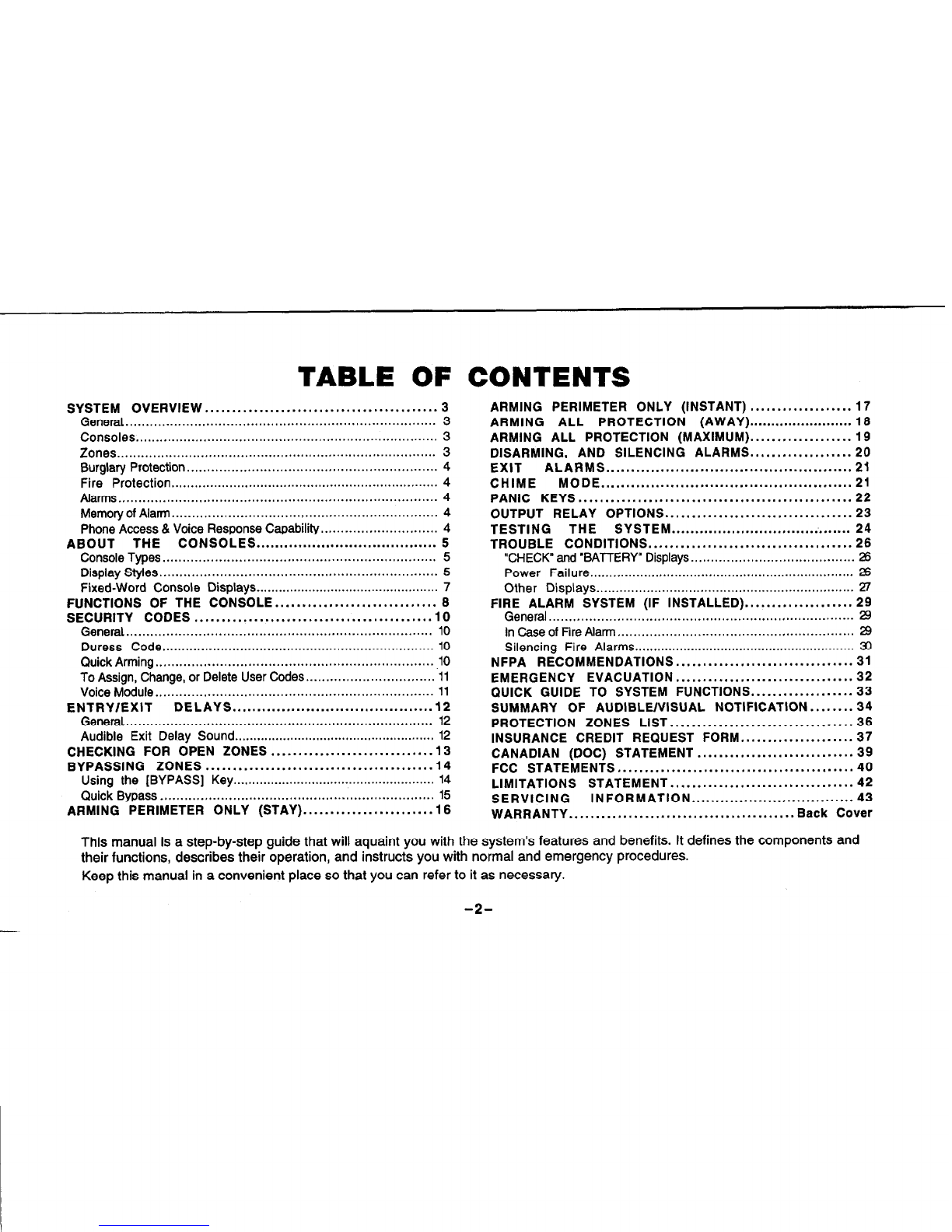

TABLE OF CONTENTS

SYSTEM OVERVIEW ........................................... 3 ARMING PERIMETER ONLY (INSTANT) ................... 17

General ............................................................................. 3 ARMING ALL PROTECTION (AWAY). ....................... 18

Consoles ............................................................................

3 ARMING ALL PROTECTION (MAXIMUM). .................. 19

Zones ................................................................................

3 DISARMING, AND SILENCING ALARMS.. ................. 20

Burglary Protection.. ............................................................ 4 EXIT ALARMS.. ................................................ 21

Fire Protection ..................................................................... 4 CHIME MODE.. ................................................. 21

Alarms., ............................................................................. 4 PANIC KEYS.. ................................................. 22

Memory of

Alarm.. ................................................................

4 OUTPUT RELAY OPTIONS.. ................................. 23

Phone Access 81Voice Response Capability.. ........................... 4 TESTING THE SYSTEM.. ..................................... 24

ABOUT THE CONSOLES ....................................... 5 TROUBLE CONDITIONS.. .................................... 26

Console Types.. .................................................................. 5 “CHECK” and ‘BATTERY” Displays.. ....................................... 26

Display Styles ..................................................................... 5 Power Failure.. ................................................................... 26

Fixed-Word Console Displays ................................................. 7 Other

Displays.. ................................................................. 27

FUNCTIONS OF THE CONSOLE.. ............................ 8 FIRE ALARM SYSTEM (IF INSTALLED). ................... 29

SECURITY CODES

............................................ 10

General.. .......................................................................... 29

General ............................................................................ 10 In Case of Fire Alarm ........................................................... 29

Duress Code.. .................................................................... 10 Silencing Fire Alarms ........................................................... 30

Quick Arming ..................................................................... 10 NFPA RECOMMENDATIONS.. ............................... 31

To Assign, Change, or Delete User Codes.. .............................. 11 EMERGENCY EVACUATION.. ............................... 32

Voice Module ..................................................................... 11 QUICK GUIDE TO SYSTEM FUNCTIONS.. ................. 33

ENTRY/EXIT DELAYS ......................................... 12 SUMMARY OF AUDIBLE/VISUAL NOTIFICATION ........ 34

General ............................................................................ 12 PROTECTION ZONES LIST.. ................................ 36

Audible Exit Delay Sound.. .................................................... 12 INSURANCE CREDIT REQUEST FORM.. ................... 37

CHECKING FOR OPEN ZONES ............................. .13 CANADIAN (DOC) STATEMENT ............................. 39

BYPASSING ZONES .......................................... 14 FCC STATEMENTS ............................................ 40

Using the [BYPASS] Key ...................................................... 14 LIMITATIONS STATEMENT .................................. 42

Quick Bypass .................................................................... 15 SERVICING INFORMATION.. ................................ 43

ARMING PERIMETER ONLY (STAY). ....................... 18 WARRANTY .......................................... Back Cover

This manual is a step-by-step guide that will aquaint you with the system’s features and benefits. It defines the components and

their functions, describes their operation, and instructs you with normal and emergency procedures.

Keep this manual in a convenient place so that you can refer to it as necessary.

-2-

SYSTEM OVERVIEW

GeneraI

Zones

Burglaty Protection

Congratulations on your ownership of an Ademco Security System. You’ve

made awise decision in choosing it, for it represents the latest in security

protection technology today, including microcomputer technology to monitor all

system status. Ademco is the world’s largest manufacturer of security systems

and millions of premises are protected by Ademco systems.

Basically, this system offers you three forms of protection: burglary, fire and

emergency. Your system may consist of at least one console which provides full

control of system operation, various sensors such as motion detectors and door

and window sensing devices, plus aselected number of strategically placed

smoke or combustion detectors designed to provide early warning in case of

fire. Your system may also have been programmed to automatically transmit

alarm or status messages over the phone lines to acentral alarm monitoring

station.

All system functions are controlled by your console(s), which are described in

the next section, ABOUT THE CONSOLES.

Your system’s sensing devices have been assigned to various “zones”. For

example, the sensing device on your Entry/Exit door may have been assigned

to zone 06, sensing devices on windows in the master bedroom to zone 10, and

so on. These zone numbers will appear on the display when an alarm or trouble

condition occurs.

The burglary protection portion of your system must be turned on or “armed”

before it will sense burglary alarm conditions and sound an alarm. Your system

can be armed in one of four modes: STAY, AWAY, INSTANT and MAXIMUM.

Refer to the ARMING THE SYSTEM sections for instructions in using these

modes of operation.

Your system also provides aCHIME mode for alerting you to the opening and

closing of doors and windows while the system is disarmed.

-3–

...—.

SYSTEM OVERVIEW

Fire Protection The fire protection portion of your security system (if used) is always on and will

sound an alarm if afire condition is detected. Refer to the F/RE ALARM

SYSTEM section for important information concerning fire protection, smoke

detectors and planning emergency exit routes from your house.

Alarms when an alarmoccurs,boththeconsole and external sounders will sound, and

amessage at the console will identify the zone(s) causing the alarm. In addition,

if your system is connected to acentral monitoring station, an alarm message

will be sent. To stop the alarm sounding, you simply disarm the system.

Memory Of Alarm When an alarm or trouble condition occurs, the console displays the number(s)

of the zone(s) that caused the problem, and displays the type of alarm or trouble

(ex. FIRE, ALARM, CHECK). The display remains until it is cleared by entering

the OFF sequence (security code +OFF key) twice.

Phone Access &If your system includes avoice module it will permit you to access the system via

Voice Response aTouch-tone phone, either on-premises or by call-in when away. The phone

Capability access feature will enable you to determine the status of the system and perform

most system commands (including arming and disarming) over the phone.

-4-

ABOUT THE CONSOLES

General

Console Styles

Console Displays

Your consoles allow you to control all system functions. The consoles feature a

telephone style (digital) keypad and a Liquid Crystal Display (LCD) which

shows the nature and location of all occurrences.

The consoles feature abuilt-in sounder which emits alarm sounds during alarm

conditions and produces warning tones during entry (and exit, if so-

programmable) delay periods. The sounder also provides acknowledgement

tones when keys are pressed, and confirmation tones for successful command

entries.

There are two basic styles of consoles, Aand B, either of which may have been

used in your system (see page 7). Although different in appearance, both styles

are functionally the same. The keypads on style Bconsoles are located behind

aflip-down cover which can be removed, if desired,

There are two basic types of console displays, Alpha and Fixed-Word, either of

which may have been used in your system.

cAlpha Console Displays feature a2-line, 32 character alphanumeric

Liquid Crystal Display (LCD) which can display the nature and location of all

occurrences in friendly English.

.Fixed-Word Console Displays are functionally similar to the Alpha

Consoles, except that their LCD display uses pre-designated (fixed) words to

identify the nature and location of occurrences. Words displayed on all Fixed-

Word consoles are the same, except that their location in the display window

will vary with various models.

Unless stated otherwise, all commands and procedures described herein apply

equally to all consoles.

AWAY

STAY

INSTANT

BYPASS

NOT READY

READY

NO AC

CHIME

BAT

ALARM

CHECK

FIRE

ABOUT THE CONSOLES

Fixed-Word Console Displays

All burglary zones, interior &perimeter,

are armed.

Perimeter burglary zones, such as windows

and doors are armed.

Perimeter burglary zones armed and

entry delay is turned off.

One or more burglary protection zones

have been bypassed.

Appears when burglary portion of the system

is not ready for arming (due to one or more

open protection zones).

AWAY

t?u STAY NO AC

CHIME

ALARM INSTANT BAT

CHECK ‘YPASS

FIRE NOT READY

The burglary portion of the system

is ready to be armed.

Appears when AC power has been cut off.

System is operating on backup battery power.

Appears when AC power is present. E

Appears when the CHIME feature is ON.

Low system battery

(if no zone number is shown), or

Low battery condition in awireless sensor TYPICAL

(if zone number is also shown). FIXED-WORD DISPLAYS

Appears when an intrusion has been detected and the system is armed (also appears

during aFire alarm). Accompanied by the ID #of the zone in alarm.

Appears when amalfunction is discovered inthe system at any time or if afault is

detected in aFIRE zone at any time or in aDAY(Trouble)/NIGHT(Alarm) burglary zone

during adisarmed period. Accompanied by adisplay of zone number in trouble.

Appears when afire alarm is present. Accompanied by adisplay of the zone #in alarm.

–6–

ABOUT THE CONSOLES

SIYLE

A CONSOLES STYLE BCONSOLES

(SHOWN WITH KEYPAD COVER REMOVED)

5137AD ALPHA CONSOLE

4127 4137AD

6139 ALPHA CONSOLE

612716120

6137

FIXED-WORD CONSOLES FIXED-WORD CONSOLES

-7-

FUNCTIONS OF THE CONSOLE

SEE TYPICAL CONSOLE ON NEXT PAGE

DISPLAY WINDOW: Displays protection zone ID and

sstem

status messaaes.

OFF KEY:

Disirms

burglary portion of the system,

silences alarms and audible trouble indicators. and

11.

READY KEY: Displays all open protection zones.

12. #

KEY: “Quick Arm” key permits ARMING of the system

without use of a security code (if so programmed).

13.

KEYS

O-9T:

Used to enter your security code(s).

14. READY INDICATOR: (GREEN) Lit when the system is

ready to be armed (no faults present). While the system is

disarmed, this indicator will go on and off as protection

zones are closed and opened.

•J

10.

clears visual display after problem’s correction.

AWAY KEY: Arms the entire burglary system,

perimeter and interior.

STAY KEY: Arms perimeter portion of burglary

system only. Interior protection is not armed, which

~1s~~

movement within premises without causing

MAXIMUM KEY: Arms in manner similar to AWAY

mode, but without the entry delay feature! thus provid-

ing maximum protection. An alarm

WIII

occur im-

mediately upon opening any protection point, including

the main door.

TEST KEY: Tests the system and alarm sounder if

disarmed. Refer to TESTING THE SYSTEM section for

test procedures.

BYPASS KEY: Removes individual protection zones

from being monitored by the system.

INSTANT KEY: Arms in manner similar to STAY

mode, but without the entry delay feature. Entering

via the entry/exit door will cause an instant alarm.

CODE KEY: Used to assign additional user codes for

other users of the system.

CHIME KEY: Turns CHIME mode on and off. When

on, the opening of windows or doors while the system is

disarmed will sound 3 beeps at the keypad(s).

Note: On some consoles there is, instead, a POWER

INDICATOR (GREEN) which is lit when AC power

is oresent. If the indicator is off, the svstem mav

15.

16.

17.

stili be operating, but on its backup batie

power.

See Power Failure in TROUBLE CON

ITIONS

section.

ARMED INDICATOR: (RED) Lit when the s stem has

been armed (STAY, AWAY, INSTANT or

MAXIMU

INTERNAL SOUNDER: The built-in console sounder

mimics the alarm sounder during alarms, and will also “beep”

durin certain s stem functions (see SUMMARY OF

AUDI LE/

VISLJA

NOTIF~CAT~O~‘I-J.

EMERGENCY (PANIC) KEYS:

Individual keys A, B, and C (key D not used).

On some consoles, these keys are not present and other

keys may be available for emergency functions.

For further information, refer to the PANIC KEYS section.

tNo

te: Keys

through

each perform their associated companion functions (OFF, AWAY, STAY, etc.)

when preceded by an entry of the security code (as described later).

-8-

-69

’

‘0

SHOWN

WITH

KEYPAD COVER

REMOVED

TYPICAL ALPHA CONSOLE

. .

Fixed-Word Consoles are functionally similar, except for screen displays.

SECURITY CODES

General

Duress Code

Quick Arming

At the time of installation, your installer programmed a personal four-digit Master

code, known only to you and yours. This code is used to perform most system

functions, including arming and disarming of the system. As an additional safety

feature, temporary user codes can be assigned (see next page) for use by those

not having a need to know the Master code. Note that the Master code remains

in effect even when other user codes are assigned.

This feature is intended for use when you are forced to disarm or arm the system

under threat. When used, the system will act normally, but can silently notify the

central station of your situation, if that service has been provided.

The Duress code is the same as vour user code. except that the last digit is

increased bv one.

For example: If the normal security code is “1 2 3

4”,

the Duress security code is “1 2 3 5”.

Important:

This code is useful only when connected to a central station.

User codes that end in “9” (ex. 6349) cannot activate a duress

alarm (i.e., 6350 is not a duress alarm code).

If your system supports “Quick Arming”, the

“#”

key can be pressed in place of

the security code when arming the system. The security code is

always

required, however, when disarming the system.

Otros manuales para via30+

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de seguridad de ADEMCO

ADEMCO

ADEMCO 4110DL Manual de usuario

ADEMCO

ADEMCO Vista-128FB Manual de usuario

ADEMCO

ADEMCO VISTA-250BP Instrucciones de montaje

ADEMCO

ADEMCO Security System VISTA-10SE Instrucciones de funcionamiento

ADEMCO

ADEMCO VISTA-128FBP Manual de usuario

ADEMCO

ADEMCO Ademco VISTA-40 Manual de usuario

ADEMCO

ADEMCO Vista-10SEa Instrucciones de montaje

ADEMCO

ADEMCO VISTA-50PEN Instrucciones de montaje

ADEMCO

ADEMCO VISTA-20P Series Instrucciones de funcionamiento

ADEMCO

ADEMCO VISTA-20SE Manual del propietario

ADEMCO

ADEMCO TI110B1 Manual de usuario

ADEMCO

ADEMCO LYNX Manual de usuario

ADEMCO

ADEMCO Security System Manual de usuario

ADEMCO

ADEMCO LYNXR24 Manual de usuario

ADEMCO

ADEMCO Vista Series 4120EC Manual de usuario

ADEMCO

ADEMCO 4150 Manual de usuario

ADEMCO

ADEMCO Security System VISTA-10SE Instrucciones de funcionamiento

ADEMCO

ADEMCO Vista-10 Manual de usuario

ADEMCO

ADEMCO LYNX Manual de usuario

ADEMCO

ADEMCO ALERT III Manual de usuario

ADEMCO

ADEMCO 4140XMPT2 Manual de usuario

ADEMCO

ADEMCO N7227V5 Manual de usuario

ADEMCO

ADEMCO RapidEye plus Instrucciones de montaje

ADEMCO

ADEMCO Security System VISTA-10SE Instrucciones de montaje

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario

ADEMCO via30+ Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas
