SECURITY SYSTEM

4110DL

SEE INSIDE COVER FOR IMPORTANT

NEW FEATURES AND INFORMATION!!

Installation Instructions • Installation Instructions • Installation Instructions

N5672V3 10/96

Please Read

INFORMATION CONCERNING NEW FEATURES

Controls with microprocessor part number N7185V3 or higher contain the following new features. These controls

can be identified via the downloader as Rev. 06.

1. This control complies with National Fire Protection Association (NFPA) requirements for temporal pulse sounding of fire notification

appliances. Fire alarms now sound as interrupted pulses consisting of three pulses and a brief pause (i.e. ring, ring, ring, pause -

ring, ring, ring, pause, etc.)

2. Capability has been added for the control to call a pager on the secondary telephone number. This can only be used if the primary

reporting format is Ademco Contact ID. The following entries have been added to program field *49 (Split/Dual Reporting) for the

purpose of paging messages:

Primary Secondary (Paging number)

6 = All reports except Open/Close Alarms/ Open/Close, Troubles

7 = All reports Alarms, Troubles

8 = All reports Alarms, Open/Close, Troubles

Touch-tone codes sent to the pager are:

1911 = Alarm

1001 = Open

1002 = Close

1811 = Trouble

No restore reports are sent to the pager.

3. Three additional user codes have been added (identified as Users 5, 6, and 7).

4. Duress is now User 8 (no longer User code + 1).

5. AC Loss report is now sent at a random time delay up to 1 hour. If AC is restored before the report goes out, no report will be sent.

6. Telephone number entries can now contain *, #, and a 2-second pause.

Enter # + 11 for "*"

Enter # + 12 for "#"

Enter # + 13 for 2-sec. pause

7. Audible Exit Warning option has been added (field *27: 0 = no; 1 = yes [default = 1]). If enabled, beeping will occur during exit time

and will change from slow to rapid beeping during last 5 seconds of exit delay.

8. Master code is now able to change itself in normal operating mode. To change, enter:

[Master code] + [8] + [1] + [new Master code] + [new Master code] again.

9. New Telco Hand-off feature allows the technician at the site to call the downloading facility from the control panel phone line,

initiate a site download (Master Code + # +1), and the control will immediately be on-line with the modem at the downloading

facility.

10. If all power is lost at the control, upon power up, the armed status will be the same as it was before the power loss. Bypasses,

however, are not retained.

11. The control checks for the physical battery connection every two minutes. If connection is lost, a visual and audible trouble is

indicated, and a communicator report will be sent (if programmed). The actual condition of the battery is still checked once every

four hours. To clear the low battery message after the low battery condition is restored, enter Test mode: [User code] + [5];

otherwise it will clear itself the next time the system checks the battery's condition.

–4–

TABLE OF CONTENTS

RECOMMENDATIONS FOR PROPER PROTECTION .............................5

Section 1. GENERAL DESCRIPTION.........................................................................6

FEATURES..........................................................................................6

SPECIFICATIONS ...............................................................................6

COMPATIBLE DEVICES .....................................................................6

ZONE RESPONSE TYPE CHARACTERISTICS.................................7

WIRING GUIDELINES.........................................................................7

Section 2. SYSTEM INSTALLATION AND WIRING ..................................................8

Section 3. PROGRAMMING THE SYSTEM................................................................9

THE MECHANICS OF PROGRAMMING ............................................9

Entering Program Mode.................................................................9

Programming a Data Field.............................................................9

Reviewing a Data Field..................................................................9

Erasing an Entry in a Data Field....................................................9

Downloading..................................................................................9

Clearing All Data Fields .................................................................9

Exiting Program Mode ...................................................................9

Section 4. SYSTEM OPERATION...............................................................................10

USER ACCESS CODES......................................................................10

Adding a Secondary User Code ....................................................10

Deleting a Secondary User Code..................................................10

KEYPAD FUNCTIONS.........................................................................10

System Commands .......................................................................10

Panic Keys.....................................................................................10

Keyswitch LED Indications ............................................................10

Keyswitch Operation......................................................................10

Section 5. TESTING THE SYSTEM ............................................................................11

REGULATORY AGENCY STATEMENTS.................................................12

DOC STATEMENT.....................................................................................13

THE LIMITATIONS OF THIS ALARM SYSTEM .......................................14

SUMMARY OF CONNECTIONS DIAGRAM ............ INSIDE BACK COVER

ADEMCO LIMITED WARRANTY .......................................... BACK COVER

–5–

RECOMMENDATIONS FOR PROPER PROTECTION

The Following Recommendations For The Location Of Fire And

Burglary Detection Devices Help Provide Proper Coverage For

The Protected Premises.

Recommendations For Smoke And Heat Detectors

With regard to the number and placement of smoke/heat detectors, we subscribe to the

recommendations contained in the National Fire Protection Association's (NFPA) Standard #72

noted below.

Early warning fire detection is best achieved by the installation of fire detection equipment

in all rooms and areas of the household as follows: For minimum protection a smoke detector

should be installed outside of each separate sleeping area, and on each additional floor of a

multi-floor family living unit, including basements. The installation of smoke detectors in

kitchens, attics (finished or unfinished), or in garages is not normally recommended.

For additional protection the NFPA recommends that you install heat or smoke detectors in

the living room, dining room, bedroom(s), kitchen, hallway(s), attic, furnace room, utility and

storage rooms, basements and attached garages.

In addition, we recommend the following:

• Install a smoke detector inside every bedroom where a smoker sleeps.

• Install a smoke detector inside every bedroom where someone sleeps with the door partly

or completely closed. Smoke could be blocked by the closed door. Also, an alarm in the

hallway outside may not wake up the sleeper if the door is closed.

• Install a smoke detector inside bedrooms where electrical appliances (such as portable

heaters, air conditioners or humidifiers) are used.

• Install a smoke detector at both ends of a hallway if the hallway is more than 40 feet (12

meters) long.

• Install smoke detectors in any room where an alarm control is located, or in any room

where alarm control connections to an AC source or phone lines are made. If detectors are

not so located, a fire within the room could prevent the control from reporting a fire or an

intrusion.

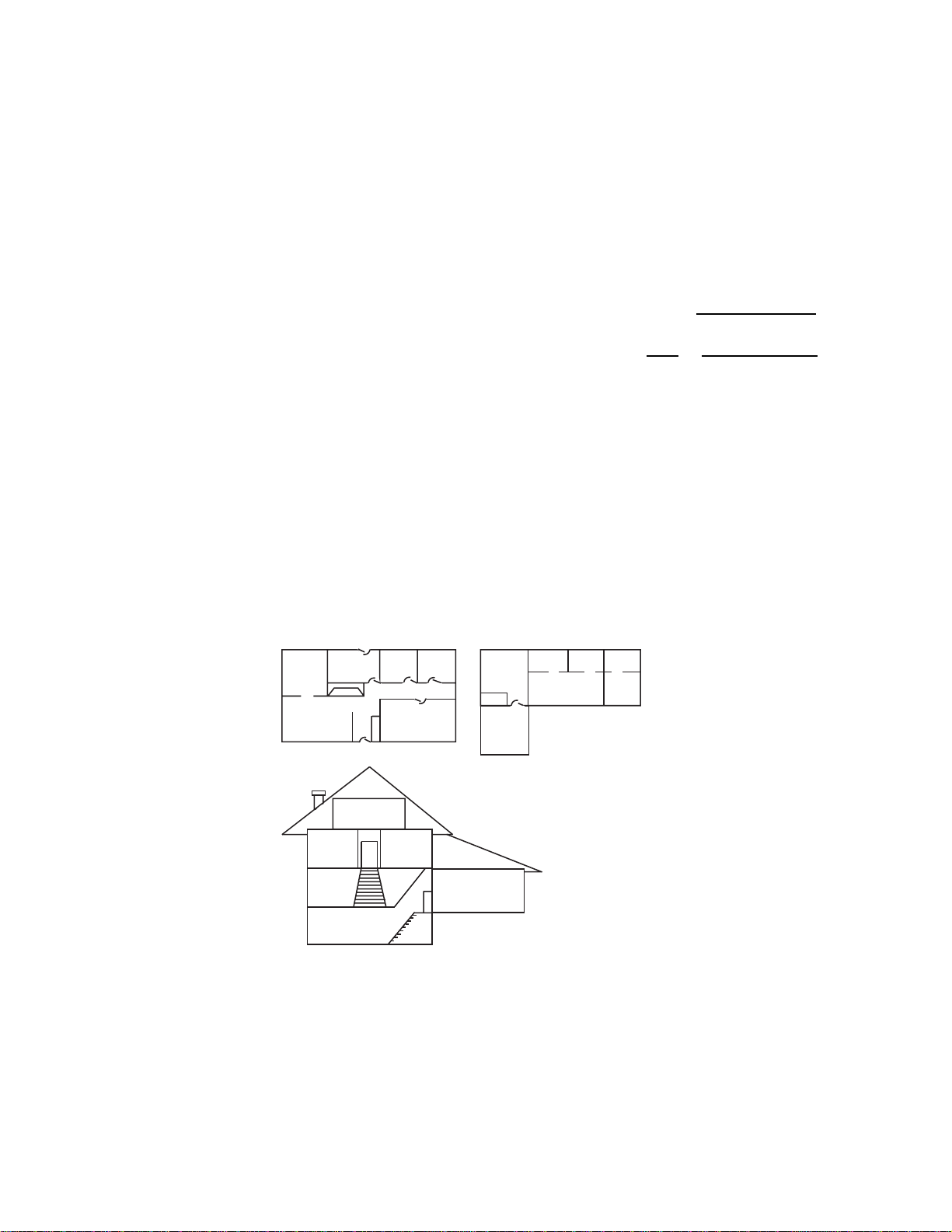

DINING KITCHEN

BEDROOM

LIVING ROOM

✪

✪✪

✪

▲

BEDROOM

BDRM

DINING

LIVING ROOM

TV ROOM KITCHEN

■■■

✪

✪✪

✪

▲

✪

BEDROOM BEDROOM

■

LVNG RM

BASEMENT

KTCHN

▲

CLOSED

DOOR GARAGE

▲

Smoke Detectors for Minimum Protection

Smoke Detectors for Additional Protection

Heat-Activated Detectors

Recommendations For Proper Intrusion Protection

For proper intrusion coverage, sensors should be located at every possible point of entry to a home or

commercial premises. This would include any skylights that may be present, and the upper windows

in a multi-level building.

In addition, we recommend that radio backup be used in a security system so that alarm signals can

still be sent to the alarm monitoring station in the event that the telephone lines are out of order

(alarm signals are normally sent over the phone lines, if connected to an alarm monitoring station).

-6-

Section 1. GENERAL DESCRIPTION

The 4110DL is a microprocessor-based state-of-the-art security controls intended for wired applications. The

Control Panel supports up to 6 hardwired zones and can be programmed either through the keypad or

remotely using ADEMCO's V-LINK downloading software.

––––––––––––––––––––––––––––––––––– FEATURES ––––––––––––––––––––––––––––––––––––

Zones Supported

• 6 hardwire zones, having the following

characteristics:

◊EOLR supervision supporting N.O. or N.C.

sensors.

◊300-500 msec normal response.

◊Zone 3 programmable for Fast Response to

open (10mS).

Security Codes

• 1 master code for entire system (user 1)

• 3 secondary user codes (users 2-4)

Keypad Panic Keys

• Provides 3 panic key functions

Alarm Output

•Provides a 12VDC, 2 AMP output (assumes a fully

charged battery is connected)

• Steady output for Burglary/Panic, or pulsing

output for Fire

• Output is current limited

Communication Formats

•Ademco Low Speed (Standard or Expanded):

1400Hz ACK/KISSOFF.

•Sescoa/Radionics (Standard or Expanded):

2300Hz ACK/KISSOFF.

•Ademco Express:

DTMF, 1400/2300Hz ACK, 1400Hz KISSOFF.

•Ademco Contact ID:

DTMF 1400/2300Hz ACK, 1400Hz KISSOFF.

–––––––––––––––––––––––––––––––– SPECIFICATIONS ––––––––––––––––––––––––––––––––

4110DL CONTROL

1. Physical:

12-1/2" W x 14-1/2" H x 3" D (318mm x 368mm x

76mm)

2. Electrical:

VOLTAGE INPUT: 16.5VAC from plug-in 25VA

transformer, Ademco No. 1321/TF2 (in U.S.A.),

1321CN (in Canada)

RECHARGEABLE BACK-UP BATTERY: 12VDC,

4AH (Gel type).

CHARGING VOLTAGE: 13.8VDC.

ALARM SOUNDER: 12V, 2.0 Amp output

AUXILIARY POWER OUTPUT: 12VDC, 500mA

max. Interrupts for 4-wire smoke detector reset.

MAXIMUM ZONE RESISTANCE: Zones 1-8 =

300 ohms excluding EOLR

ULIn UL installations, maximum current

draw from the Auxiliary Output and

the Alarm Output combined must not

exceed 500mA total.

FUSE: Battery (3A) No. 90-12

LINE SEIZE: Double Pole

REGULATORY INFORMATION

Ringer Equivalence: 0.7B

FCC Registration No.: AC 398U-68192-AL-E

UL File No. S1632, Guide UXOU

––––––––––––––––––––––––––––– COMPATIBLE DEVICES ––––––––––––––––––––––––––––

Remote Keypads (up to 4)

Model Type

4127, 6127 Fixed English

4137AD, 6137, 6128 Fixed English Addressable

5330 (Select for Vista) Alpha

IMPORTANT

Addressable keypads must be used in

the non-addressable mode (Device

Address 31), which is pre-set at the

factory. Do not set these keypads to

any other addresses.

Smoke Detectors (4-wire only)

Model Type

1412 Ionization Products of Combustion

Detector

2412 Photoelectric Smoke Detector

2412TH Photoelectric Smoke Detector)w/135º F

(57º C) Heat Detector)

Fire Supervisory Module

A77-71601 EOL Relay Module (supervises power for 4-

wire fire zone).

Optional Keyswitch

4116 Keyswitch

-7-

––––––––––––––––– ZONE RESPONSE TYPE CHARACTERISTICS ––––––––––––––––––

Zone Response Type Characteristics

1 – Entry/Exit Burglary • Provides exit delay time when panel is armed in any arming mode.

• Provides entry delay when panel is armed in Away and Stay modes

only.

3 – Perimeter Burglary • Provides an instant alarm when panel is armed in any arming mode.

4 – Interior, Follower • Provides exit delay time when panel is armed in any mode.

• Will only provide entry delay if an Entry/Exit zone is faulted first upon

entry. Otherwise, alarm will be instant.

• Bypassed automatically when panel is armed in the Stay or Instant

mode.

5 – Trouble by Day/Alarm by

Night • Provides a trouble response if panel is not armed when zone is faulted.

• Provides an instant alarm if panel is armed in any mode.

6 – 24-Hr. Silent Alarm • Provides a silent alarm to Central Station whether panel is armed or

disarmed.

7 – 24 Hr. Audible Alarm • Provides an audible alarm at the bell output and keypad whether

panel is armed or disarmed.

8 – 24-Hr. Auxiliary Alarm • Provides an audible alarm at the keypad only. No bell output is

provided.

9 – Fire • Provides a fire alarm when zone is shorted. Causes bell output to

pulse.

• Provides a trouble response when zone is open.

10 – Interior w/Delay • Provides entry and exit delay times.

• Bypassed automatically when panel is armed in the Stay or Instant

mode.

–––––––––––––––––––––––––––WIRING GUIDELINES ––––––––––––––––––––––––––––

Wiring Run Chart For Devices* Drawing Aux Power From

The Control (12V+ & GND)

TOTAL CURRENT DRAWN BY ALL DEVICES CONNECTED TO A SINGLE WIRE

RUN

Wire Size 50 mA or less 100 mA 300 mA 500 mA

#22 500 ft (152m) 250 ft (76m) 80 ft (24m) 50 ft (15m)

#20 750 ft (228.6m) 380 ft (116m) 130 ft (39.6m) 80 ft (24m)

#18 1300 ft (396m) 650 ft (198m) 220 ft (67m) 130 ft (39.6m)

#16 1500 ft (457m) 1000 ft (305m) 330 ft (100.5m) 200 ft (70m)

* Includes Keypads and alarm devices requiring separate power.

Example: If you have two motion detectors that draw a total of 44 mA, and you are using #20 AWG

wire, the distance from the control panel Aux + and - terminals to the last device can be up

to 750 ft.

IMPORTANT

The length of all wire runs for keypads must not exceed 1500 feet (457m)

when unshielded quad conductor

cable is used (750 feet if shielded cable is

used). This restriction is due to the capacitive effect on the data lines when

quad cable is used.

Transformer Wiring Table

Distance of Transformer Wire Gauge

From the Control Panel To Use

Up to 50 feet # 20

50–100 feet # 18

100–250 feet # 16

-8-

Section 2.

SYSTEM INSTALLATION AND WIRING

––––––––––––––––––––––––– INSTALLING THE SYSTEM –––––––––––––––––––––––

Refer to the Summary of Connections diagram on the inside back cover of this manual for terminal

connections when following these procedures.

1. Mount the Control Cabinet.

2. Mount the PC board.

WARNING

BE SURE TO USE THE PLASTIC MOUNTING CLIPS (SUPPLIED) TO

ISOLATE THE CIRCUIT BOARDS FROM THE CABINET. FAILURE

TO DO SO MAY RESULT IN DAMAGE TO THE TRANSFORMER

AND/OR THE CIRCUIT BOARDS.

3. Install Remote Keypads.

4. Install Hardwired Zones.

5. Install Sounding Devices.

UL Use only UL Listed sounding devices for UL installations.

6. Install the Remote Keyswitch.

7. Connect Telephone Line.

IMPORTANT

Make sure telephones on the premises are connected only through the

alarm control panel (disconnect from the incoming phone line at the

telephone jack). This is necessary to have true line seizure.

8. Connect the AC Transformer.

WARNING

DO NOT PLUG THE TRANSFORMER INTO THE AC OUTLET UNTIL

ALL OTHER WIRING TO THE CONTROL IS COMPLETE.

9. Connect the Battery.

IMPORTANT

Do not attach the connector cable to the battery's terminals until

after you have plugged the AC transformer into an uninterrupted

120VAC outlet.

UL1. In UL installations, maximum current draw from the Auxiliary

Output and the Alarm Output combined must not exceed 500mA.

2. Use a 3A battery or larger for UL installations.

11. Connect Earth Ground.

-8-

Section 3. PROGRAMMING THE SYSTEM

––––––––––––––––––– THE MECHANICS OF PROGRAMMING ––––––––––––––––

For actual program fields, refer to the programming form included at the center of this manual.

Entering Program Mode

Use one of the following methods:

• Press both the [*] and [#] keys at the same time within 50 seconds after power is appled to the Control.

• After power-up, enter the [Master Code] + 8 + 0 (default Master Code is 4110)

This method is disabled if you exit the program mode using *98 instead of *99. See "Exiting Program

Mode" later in this section.

Once you have entered program mode, data field *20 will be displayed (this is the first field in the system).

The system will now accept entries for field *20.

Programming a Data Field

↓ Field Number

Press [*] plus [Field No.] (e.g., *20), and then make the required entry. Note the following:

• The keypad beeps three times when the data field has been completely programmed

• The next Field No. is displayed. If you do not want to program this field, press [*] + the Field No. you

want to program.

• If the number of digits that you need to enter in a data field is less than the maximum digits available

(e.g., the phone number field), enter the desired data, then press [*] + the next Field No. to be

programmed.

• If you try to enter a non-existent field, the keypad will display EE or Entry Error. Simply re-enter [*]

plus a valid Field No.

Reviewing a Data Field

Press [#] plus [Field No. ]. Note the following:

• Data will be displayed for that field number, entry by entry (a beep will be heard between entries and

three beeps after the last).

• No changes will be accepted in this mode.

• If you try to enter a non-existent field, the keypad will display EE or Entry Error. Simply re-enter [#]

plus a valid field number.

Erasing an Entry in a Data Field

Applies only to fields *40-*43, and *94.

Press [*] plus Field No. plus [*].

Downloading

*96 resets the Subscriber Account number and CSID in preparation for an initial download. If *97 was

entered previously, *96 must be entered last.

Clearing All Data Fields

*97 clears (zeros) all data fields. The Master Code will now be 0 0 0 0.

WARNING

DO NOT PRESS *97 IF ANY PROGRAMMING HAS BEEN DONE

PREVIOUSLY; DATA ALREADY PROGRAMMED INTO THE SYSTEM WILL

BE DELETED.

Exiting Program Mode

*98 inhibits re-entry into the programming mode with the use of the Master Code.

*99 allows re-entry into the program mode using Master Code + 8 + 0.

-10-

Section 4: SYSTEM OPERATION

–––––––––––––––––––––––––––– USER ACCESS CODES –––––––––––––––––––––––––––

Adding a Secondary User Code

MASTER CODE + [CODE KEY] + USER # ( 2, 3, OR 4) + DESIRED 4-DIGIT ACCESS CODE.

(The system will emit a single beep when a secondary code has been successfully entered.)

Deleting a Secondary User Code

MASTER CODE + [CODE KEY] + USER # (2, 3 OR 4)

Notes:

• All Master and Secondary security codes permit access to the system for arming, disarming, etc.

• If a secondary code is inadvertently repeated for different users, the lower user number will take

priority.

• Opening and closing reports are sent for the Master as No. 1. User codes are sent as Numbers 2, 3,

and 4, respectively.

––––––––––––––––––––––––––– KEYPAD FUNCTIONS –––––––––––––––––––––––––––

System Commands

Before arming, the system must be in the READY condition (all zones must be intact). If the "NOT

READY" message appears, press the READY [*] key to display faulted zones.

SUMMARY OF SYSTEM COMMANDS

MODE HOW TO PERFORM EXIT DELAY ENTRYDELAY PERIMETER

ARMED INTERIOR ARMED

AWAY Security Code + [2] Yes Yes Yes Yes

STAY Security Code + [3] Yes Yes Yes No

INSTANT Security Code + [7] Yes No Yes No

MAXIMUM Security Code + [4] Yes No Yes Yes

DISARM Security Code + [1]

BYPASS Security Code + [6] +

Zone #(s)

QUICK BYPASS

(if enabled) Security Code + [6]

CHIME MODE Security Code + [9]

(toggles on and off)

SITE-INITIATED

DOWNLOAD* Security Code + [#] + [1]

* Initiates phone call to the downloading facility.

Panic Keys

A panic function is activated when:

• Both keys of the appropriate key pair are pressed at the same time, or

• The appropriate lettered key is pressed for at least 2 seconds.

The panic functions are identified by the system as follows:

Keys Displayed as Zone Zone Type

[1] & [*], or [A] 95 24-Hr. Silent

[*] & [#], or [B] 7 Programmable (24-Hr.

Silent, Audible,

Auxiliary, or Fire

[3] & [#], or [C] 96 24-Hr. Audible

Notes:

• Keys [A], [B], [C] are not on all keypads.

• Key [D], if present, is not active here.

Keyswitch LED Indications

RED MEANING

OFF DISARMED & NOT READY

SLOW FLASH ARMED READY

RAPID FLASH ARMED

Keyswitch Operation

• To arm AWAY, turn key and release within a 1/2 second.

• To arm STAY, turn and hold key for longer than 2 seconds.

• To disarm, turn key and immediately release.

Otros manuales para 4110DL

Tabla de contenidos

Otros manuales de Sistema de seguridad de ADEMCO

ADEMCO

ADEMCO VISTA-20PS Manual de usuario

ADEMCO

ADEMCO VISTA-20P Series Instrucciones de funcionamiento

ADEMCO

ADEMCO Security System VISTA-10SE Instrucciones de montaje

ADEMCO

ADEMCO 4110DL Manual de usuario

ADEMCO

ADEMCO 745x3 Manual de usuario

ADEMCO

ADEMCO Vista-128BP Instrucciones de funcionamiento

ADEMCO

ADEMCO VIA-30PSE Manual de usuario

ADEMCO

ADEMCO Vista-2000 Instrucciones de funcionamiento

ADEMCO

ADEMCO Vista-50 Manual de usuario

ADEMCO

ADEMCO 5120XM Manual de usuario

ADEMCO

ADEMCO 5800WAVE Instrucciones de montaje

ADEMCO

ADEMCO Vista Series 4120EC Manual de usuario

ADEMCO

ADEMCO Vista-10P Manual de usuario

ADEMCO

ADEMCO Accord Manual de usuario

ADEMCO

ADEMCO V12C Instrucciones de funcionamiento

ADEMCO

ADEMCO LYNXR24 Manual de usuario

ADEMCO

ADEMCO 4130XM Manual de usuario

ADEMCO

ADEMCO VISTA-128FBP Instrucciones de funcionamiento

ADEMCO

ADEMCO VISTA-100 Instrucciones de funcionamiento

ADEMCO

ADEMCO Vista AT 4140 Manual de usuario

ADEMCO

ADEMCO Ademco VISTA-40 Manual de usuario

ADEMCO

ADEMCO VISTA-15P Series Manual de usuario

ADEMCO

ADEMCO VISTA-128B Manual de usuario

ADEMCO

ADEMCO UVS Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
