ACU-RITE 1604 Manual de usuario

Instruction Manual

CONTENTS

Unpacking Instructions................2

Package Contents.......................2

Product Registration....................2

Features & Beneﬁts: 3-in-1 ..........3

Features & Beneﬁts: Display .......4

Setup ........................................6

3-in-1 Sensor Setup....................6

Display Unit Setup......................7

Set Time, Date & Units ................8

Placement Guidelines .................9

3-in-1 Sensor Installation ..........10

Using the Weather Center.........11

Troubleshooting........................13

Care & Maintenance ................15

Calibration ..............................15

Replace Intelli-Time®Battery......16

Speciﬁcations...........................17

FCC Information.......................17

Customer Support ....................18

Warranty.................................18

Weather Center

model 01604

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Archive~Products

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective ﬁlm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit

2. 3-in-1 sensor

3. Sensor mounting bracket

4. Mounting hardware

5. Power adapter

6. Instruction Manual

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

►

Features & Benets

3-in-1 SENSOR

1. Temperature & Humidity Sensors

(internal)

2. Release Lever for Battery Access

3. Mounting Point

4. Wind Speed Anemometer

5. Mounting Hardware

Includes anchors and screws.

Qty Diameter Length

4 #4 1”

1 #6 or #8 1/4” or 3/8”

6. Mounting Bracket

7. A-B-C Switch (not shown)

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

24 23

Features & Benets

DISPLAY UNIT

1. Current Outdoor Temperature

Arrow icon indicates the direction the

temperature is trending.

2. Seasonal Information

Wind chill will show when

temperatures are below 40oF (4oC),

Dew Point when temperature is 41-

79oF (5-26oC), and Heat Index when

temperature is over 80oF (27oC).

3. Average Wind Speed

Based on all wind speed readings from

the past 2 minutes.

4. Current Wind Speed

5. Learning Mode Icon

Disappears after weather forecast self-

calibration is complete.

6. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls data

from your sensor to generate your

personal forecast.

7. Humidity Level Indicator

Indicates a high or low indoor humidity

level.

8. Current Indoor Temperature

Arrow icon indicates the direction the

temperature is trending.

9. Today Icon

Indicates viewing high/low records

since midnight.

10. Moon Phase

11. All-Time Icon

Indicates viewing All-Time records

12. Icon

Indicates SET mode.

13. Backlight Button

14. Intelli-Time®Clock

Automatically updates itself for

Daylight Saving Time.

15. AUTO DIM Mode Indicator (page 8)

16. Display Low Battery Indicator

17. Date

18. Current Indoor Humidity

Arrow icon indicates the direction

the humidity is trending.

19. Storm Indicator

Indicates a rapid drop in pressure and

probable storms.

20. Barometric Pressure

Arrow icon indicates the direction the

pressure is trending.

21. Peak Wind Speed

Highest speed from past 60 minutes.

22. Current Outdoor Humidity

Arrow icon indicates the direction

the humidity is trending.

23. Outdoor Sensor Signal Strength

24. Sensor Low Battery Indicator

Features & Benets

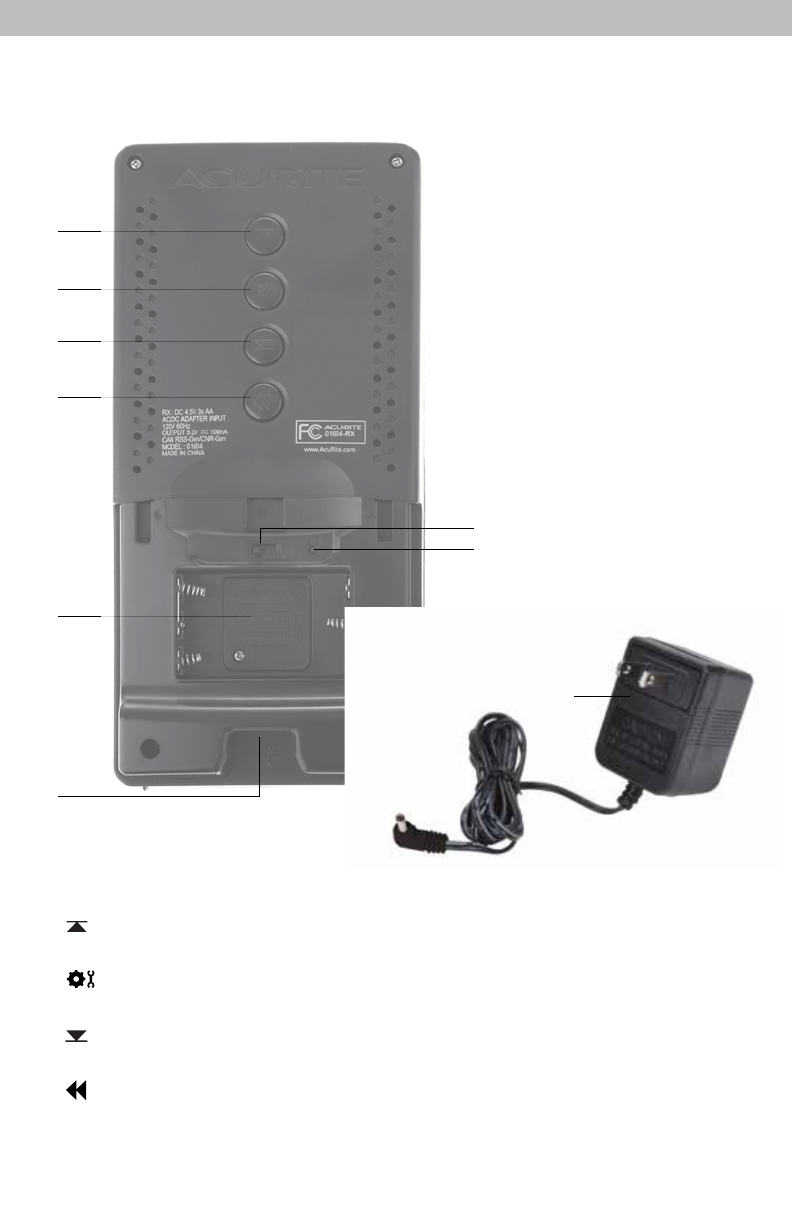

BACK OF DISPLAY UNIT

1. Button

for setup preferences.

2. Button

for setup preferences.

3. Button

for setup preferences.

4. Button

Press to access all-time high and low

records.

5. Battery Compartment

6. Plug-in for Power Adapter

7. A-B-C Switch

ID code that must match sensor’s A-B-C

switch to ensure units synchronize.

8. Reset Button

Full reset to factory defaults.

9. Power Adapter

10. Battery Compartment Cover

(not shown)

•

• Install Batteries

V 4 AA batteries

sWf~~~"It(•P

#1-f

■

__a_ooc:_>_1_5=--8-=---

0-=-F_JI

ALKALINE

BATTERIES [TOOC)

158°F I

SETUP

3-IN-1 Sensor Setup

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can be

set to A, B or C. However, you must

select the same letter choices for

both the sensor and the display unit

in order for the units to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries for the

best product performance. Heavy

duty or rechargeable batteries are

not recommended.

The 3-in-1 sensor requires lithium

batteries in low temperature

1. Press the release lever and pull

off the lower housing of the

sensor.

2. Remove the battery compartment

cover. Take note of the A-B-C

switch setting inside the battery

compartment.

3. Insert 4 x AA batteries into the

battery compartment, as shown.

Follow the polarity (+/-) diagram

in the battery compartment.

4. Replace the battery cover and

lower housing of the sensor.

conditions. Cold temperatures can

cause alkaline batteries to function

improperly. Use lithium batteries in

the 3-in-1 sensor for temperatures

below -4ºF / -20ºC.

A-B-C Switch

set to match

display unit

A B C

•

• •

Display Unit Setup

Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display unit

and the sensor in order for the

units to synchronize.

Install or Replace Backup

Batteries (optional)

1. Remove the battery

compartment cover.

2. Insert 3 x AAA alkaline

batteries into the battery

compartment, as shown.

Follow the polarity (+/–)

diagram in the battery

compartment.

3. Replace the battery cover.

Plug in Power Adapter

For the best performance, plug

in the power adapter as the main

power source for this product.

1 A-B-C Switch

set to match sensor

2 Install Backup Batteries (optional)

3 AAA batteries

A B C

IMPORTANT: Batteries are

a backup power source to

preserve records in the event of

a power outage. Power adapter

is recommended as the primary

power source to enjoy the full

functionality of this product.

3 Plug in Power Adapter

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

:(;j:

Set the Time, Date & Units

Press the “ ” button, located on the front of the display unit, to enter SET

MODE. Once in set mode, the preference you are currently setting will blink on

the display.

To adjust the currently selected (ashing) item, press and release the “ “ or

“ “ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust

the next preference. The preference set order is as follows:

TIME ZONE

DST (Daylight Savings Time ON or OFF)*

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

TEMPERATURE UNITS (ºF or ºC)

PRESSURE UNITS (inHg or hPa)

WIND UNITS (MPH or KPH)

You will automatically exit SET MODE if no buttons are pressed for 10 seconds.

Enter setup mode at any time by pressing the “ ” button.

* If you live in an area that observes Daylight Savings Time, DST should be set

to ON, even if it is not currently Daylight Savings Time.

Display Backlight Settings

This weather station’s color display features three different lighting settings:

High (100%) brightness, Medium (60%) brightness and Low (30%) brightness

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the “ ” button.

When display is powered with the power adapter, backlight remains on

at 100% brightness. Press “ ” button once to dim to 60% brightness;

press again to dim to 30%, press a 3rd time to enter “AUTO DIM” mode.

AUTO DIM appears below time.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day & year.

MARCH 11- NOVEMBER 4 6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 30% brightness

NOVEMBER 5 - MARCH 10 7:30 a.m. - 7:00 p.m.= 100% brightness

7:01 p.m. - 7:29 a.m. = 30% brightness

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display unit and the sensor are critical to the accuracy and

performance of this product.

Display Unit Placement

Place the display unit in a dry area free of dirt and dust. To ensure

accurate temperature measurement, place out of direct sunlight and

away from heat sources or vents. Display unit stands upright for

tabletop use.

3-in-1 Sensor Placement

The 3-in-1 sensor is designed to remain outdoors all year long.

Choose an open location with no obstructions above or around the

sensor for the most accurate measurements.

Important Placement Guidelines

Display unit and sensor must be within 330 feet (100 m) of each other.

MAXIMIZE WIRELESS RANGE

Place units away from large metallic items, thick walls, metal surfaces, or other

objects that may limit wireless communication.

PREVENT WIRELESS INTERFERENCE

Place both units at least 3 feet (.9 m) away from electronic devices (TV, computer,

microwave, radio, etc.).

LOCATE AWAY FROM HEAT SOURCES

Position sensor away from heaters, air conditioners, chimneys, exhaust vents, asphalt

and concrete (surfaces that radiate heat).

LOCATE AWAY FROM HUMIDITY SOURCES

Avoid installing the sensor near pools, spas, or other bodies of water. Water sources

may impact humidity accuracy.

LOCATE AWAY FROM SPRINKLER HEADS

DO NOT install the sensor where it will be sprayed by a sprinkler system. This may

force water inside the sensor.

LOCATE AWAY FROM WIND OBSTRUCTIONS

DO NOT mount the sensor with obstructions around it.

Consider a location that is a wide open area, with few

structures around to ensure accurate wind speed measurement.

Visit us online to view installation photos and

video, or learn more about AcuRite technology:

www.AcuRite.com/3in1 View Video

Top Mount Side Mount

Pipe Mount

Do not install during

electrical storms.

Do not place pipe

or sensor near

electrical lines or

electrical equipment.

3-in-1 Sensor Installation Guidelines

INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters)

off the ground, in an open area. Higher is better for wind measurements - the

National Weather Service recommends 33 feet high!

MOUNTING OPTIONS The included mounting bracket is designed to screw directly

onto wooden posts or surfaces that are 2”x4” or larger. The sensor can also be

mounted directly to 3/4” steel or

PVC pipe (available at hardware

stores and home centers).

LEVEL INSTALLATION Use a

bubble level (not included) to ensure

level installation for accurate wind

measurement.

Top or Side Mount

1. Insert the mounting base into the

hole on the bottom of the sensor.

2. Use one of the screws included

in the hardware bag to fasten

the lower sensor housing to the

mounting base.

3. Fasten mounting base to a post or railing

using 2 screws.

Pipe Mount

1. Insert pipe or similar item all the way into

the hole on the bottom of the sensor. Note:

Mounting base is not used.

2. Use one of the screws included in the

hardware bag to fasten the lower sensor housing securely to the pipe.

The 3-in-1 sensor is now ready to use.

Basic Setup is Complete

The 3-in-1 sensor will now synchronize with the display unit. It may take a few

minutes for synchronization to complete. If both or one of the units appear to be

functioning improperly, please refer to the troubleshooting section.

Tabla de contenidos

Otros manuales de Estación meteorológica de ACU-RITE

ACU-RITE

ACU-RITE 621 Manual de usuario

ACU-RITE

ACU-RITE Iris 06106 Manual de usuario

ACU-RITE

ACU-RITE 01118 Manual de usuario

ACU-RITE

ACU-RITE 250 Manual de usuario

ACU-RITE

ACU-RITE 01500 Manual de usuario

ACU-RITE

ACU-RITE 01201 Manual de usuario

ACU-RITE

ACU-RITE 00821SBDI Manual de usuario

ACU-RITE

ACU-RITE 00621 Manual de usuario

ACU-RITE

ACU-RITE 75108SBDI Manual de usuario

ACU-RITE

ACU-RITE 2007 Manual de usuario

ACU-RITE

ACU-RITE 433981 Manual de usuario

ACU-RITE

ACU-RITE 02016 Manual de usuario

ACU-RITE

ACU-RITE 00639W Manual de usuario

ACU-RITE

ACU-RITE 00821SBDI Manual de usuario

ACU-RITE

ACU-RITE 00215 Manual de usuario

ACU-RITE

ACU-RITE 01181 Manual de usuario

ACU-RITE

ACU-RITE 00832 Manual de usuario

ACU-RITE

ACU-RITE 992 Manual de usuario

ACU-RITE

ACU-RITE 00593W Manual de usuario

ACU-RITE

ACU-RITE 00593W Manual de usuario

ACU-RITE

ACU-RITE 00786 Manual de usuario

ACU-RITE

ACU-RITE 02099 Manual de usuario

ACU-RITE

ACU-RITE 01193M Manual de usuario

ACU-RITE

ACU-RITE 754 Manual de usuario

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

La Crosse Technology

La Crosse Technology C86371 Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

La Crosse Technology

La Crosse Technology WS-2210 Manual de usuario

La Crosse Technology

La Crosse Technology WS-811561 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario
