Weather Center

model 00639W

Instruction Manual

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit with tabletop stand

2. 3-in-1 sensor

3. Sensor mounting bracket

4. Mounting hardware

5. Instruction Manual

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

►

Features & Benets

3-in-1 SENSOR

1. Temperature & Humidity Sensors

(internal)

2. Release Lever for Battery Access

3. Mounting Point

4. Wind Speed Anemometer

5. Mounting Hardware

Includes anchors and screws.

Qty Diameter Length

4 #4 1”

1 #6 or #8 1/4” or 3/8

6. Mounting Bracket

7. A-B-C Switch (not shown)

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

Features & Benets

Display Unit

1211 13 14 15 16

DISPLAY UNIT

1. History Chart Icon

Indicates data is currently displayed

on the History Chart (#4).

2. Current Wind Speed

3. Peak Wind Speed

4. Multi-Variable History Chart

Displays the past 12 hours of data for

temperature, humidity, wind speed,

wind peak, wind average or pressure.

5. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls

data from the outdoor sensor to

generate your personal forecast.

6. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

7. Seasonal Display

Heat index displays when

temperature is 80oF (27oC) or higher.

Dew Point displays when temperature

is between 41oF - 79oF (5oC - 26oC).

Wind Chill displays when temperature

is 40oF (4oC) or lower.

8. Outdoor Sensor Signal Strength

9. Alarm On/Off Indicator

For Selectable Category (#14)

10. Programmable Alarm Settings

11. Alarm On/Off Button

Activate alarm; press and hold to

adjust alarm values.

12.

▼

Button

Press to select Category (shown in

#14) and change settings.

13. SET Button

For setup preferences.

14. Selectable Category

15.

▲

Button

Press to select Category (shown in

#14) and change settings.

16. Records Button

Press for all-time low and date

recorded for current category

selected on display (#14). Press twice

for all-time high and date recorded.

17. Display Stand

18. Record Lows

Shown for current category selected

on the display (#14).

19. Clear Button

Deletes record low (#18) shown.

20. Record Highs

Shown for current category selected

on the display (#14).

21. Clear Button

Deletes record high (#20) shown.

22. Date

23. Clock

24. Current Indoor Humidity

Arrow icon indicates direction

humidity is trending.

25. Current Indoor Temperature

Arrow icon indicates direction

temperature is trending.

26. Moon Phase

27. Barometric Pressure

Arrow icon indicates the direction

the pressure is trending.

28. Current Outdoor Humidity

Arrow icon indicates the direction the

humidity is trending.

29. Current Outdoor Temperature

Arrow icon indicates direction the

temperature is trending.

30. Alarm On Indicator

Indicates alarm activated for category

selected (#14).

31. Average Wind Speed

Based on all wind speed readings

from the past 2 minutes.

BACK OF DISPLAY UNIT

1. CLEAR TODAY Button

Clears data recorded since 12:00am.

2. RESET Button

Full reset to factory defaults.

3. A-B-C Switch

ID code that must match 3-in-1

sensor’s A-B-C switch to ensure

units synchronize.

4. RESET REC Button

Resets all readings except time

& date.

5. Battery Compartment

6. Battery Compartment Cover

Back of Display Unit

SETUP

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display unit in order for the

units to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries for

the best product performance.

Heavy duty or rechargeable

batteries are not recommended.

The 3-in-1 sensor requires lithium

batteries in low temperature

conditions. Cold temperatures

can cause alkaline batteries to

function improperly. Use lithium

batteries in the 3-in-1 sensor for

temperatures below -4ºF / -20ºC.

1. Press the release lever and

pull off the lower housing of

the sensor.

2. Remove the battery

compartment cover.

3. Insert 4 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

4. Replace the battery cover and

lower housing of the sensor.

3-in-1 Sensor Setup

1A-B-C Switch

set to match

display unit

3Install Batteries

4 AA batteries

Remove Battery

Compartment Cover

A B C

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Display Unit Setup

AcuRite recommends high quality alkaline batteries for the best product

performance. Heavy duty or rechargeable batteries are not recommended.

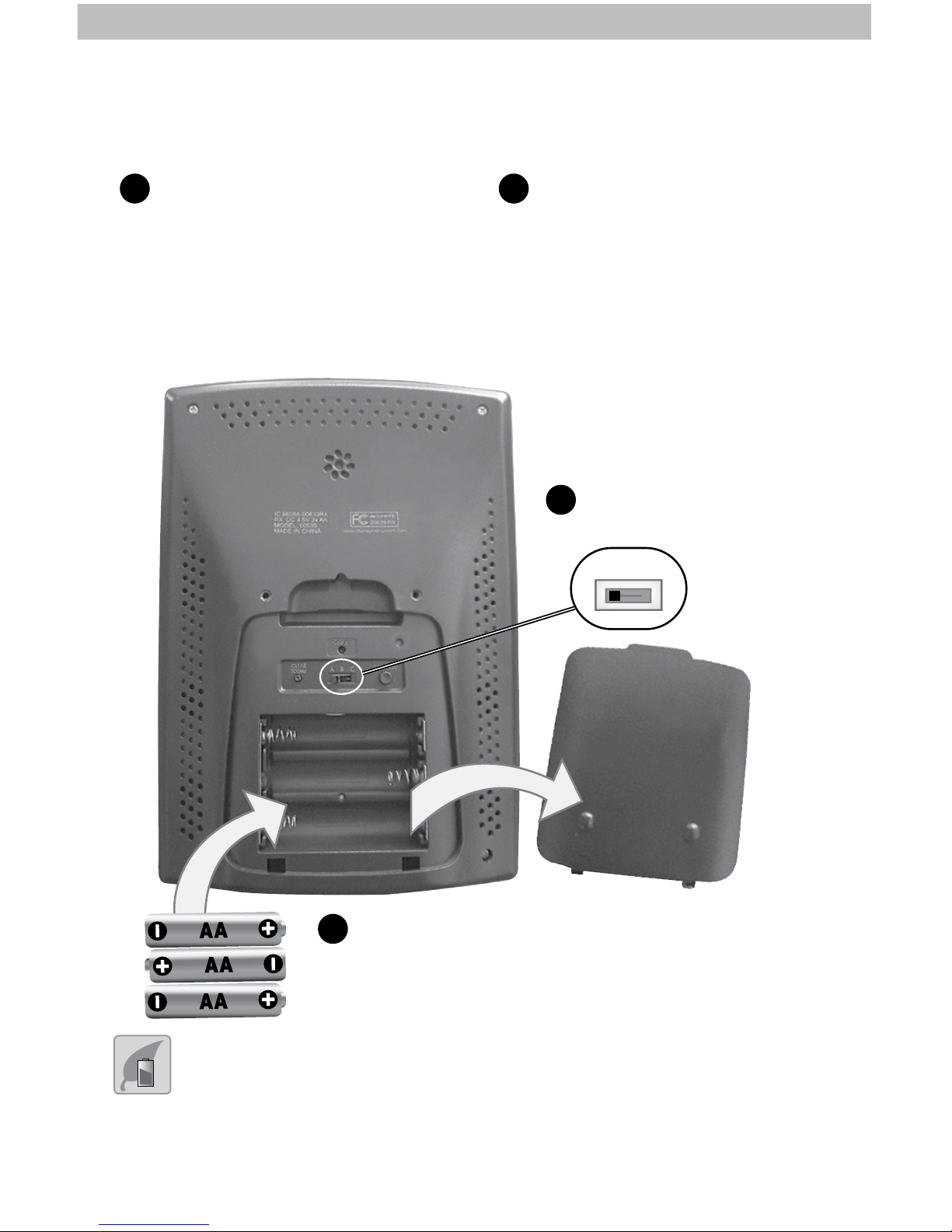

Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display unit

and the sensor in order for the

units to synchronize.

Install or Replace Batteries

1. Remove the battery

compartment cover.

2. Insert 3 x AA alkaline

batteries into the battery

compartment, as shown.

Follow the polarity (+/-)

diagram in the battery

compartment.

3. Replace the battery cover.

2A-B-C Switch

set to match

sensor

A B C

Install Batteries

3 AA batteries

Set the Time & Date

The clock and calendar are utilized to time stamp history records and other

data, so it is important to set the time and date soon after you power on the

display unit.

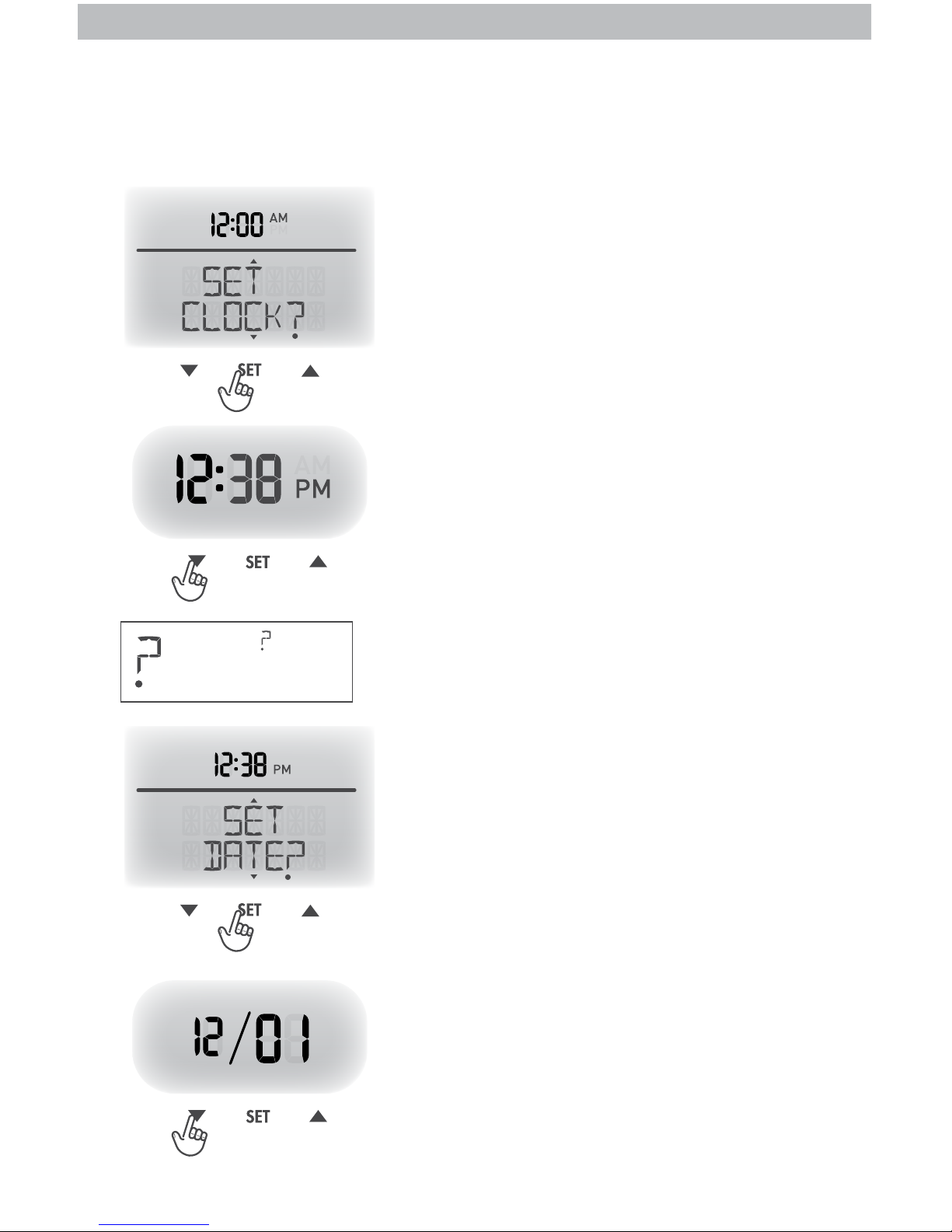

Set the Time

1. Press the “

▲

” or “

▼

” buttons until

“SET CLOCK?” is displayed on the

Selectable Category part of the display unit.

2. Press the “SET” button to set the clock.

3. Press the “

▲

” or “

▼

” buttons to adjust the

hour. Note the “AM” and “PM” indicators.

4. Press the “SET” button to conrm hour

selection.

5. Press the “

▲

” or “

▼

” buttons to adjust

minutes.

6. Press the “SET” button to conrm minute

selection.

The clock is now set.

Set the Date

1. Press the “

▲

” or “

▼

” buttons until

“SET DATE?” is displayed on the

Selectable Category part of the display unit.

2. Press the “SET” button to set the date.

3. Press the “

▲

” or “

▼

” buttons to adjust the

month.

4. Press the “SET” button to conrm month

selection.

5. Press the “

▲

” or “

▼

” buttons to adjust the

day.

6. Press the “SET” button to conrm day

selection.

7. Press the “

▲

” or “

▼

” buttons to adjust the

year.

8. Press the “SET” button to conrm year

selection.

The date is now set.

Note: The “ ” stays in

Selectable Categories,

even after setup.

Select Measurement Units

To select between standard units (mph, ºF, etc.) or

metric units (kph, ºC, etc.):

1. Press the “

▲

” or “

▼

” buttons until

“SET UNITS?” is displayed on the

Selectable Category part of the display unit.

2. Press the “SET” button to set the unit

preference.

3. Press the “

▲

” or “

▼

” buttons to select

“STAND” for standard or “METRIC” for metric

units.

4. Press the “SET” button to conrm your selection.

Units are now set.
