ACTi ACM-1430 series Manual de usuario
IP Outdoor IR Bullet Camera
(with DC 12V / PoE / AC24V)
ACM-1430 series
Ver. 070709
Quick Installation Guide
0-1
0Getting Started
1.1 PACKAGE CONTENTS
ACM-1430 series Power Adaptor (Option)
(DC12V / PoE / AC24V)
Product CD Terminal Block for Power
Warranty Card
1
0-2
1.2 PHYSICAL DESCRIPTION
1. Power Input
If your power input is DC12V. Please follow the description on
the connector to connect to power.
If your power input is AC24V. Please follow the description on
the connector to connect to power.
PIN NAME DESCRIPTION
1 N
2 L
AC Power Input
3 GND E-Ground of power
PIN NAME DESCRIPTION
1 12V DC Power Input
2 GND Ground Pin
0-3
2. Audio Input / Output & Video Output
The IP device supports audio input and output, and video output
with terminal block.
3. Reset Button
Step 1: Switch off IP device by disconnecting the power cable
Step 2: Press and continue to hold the Reset Button. Reconnect
the power cable while continuing to hold the reset button.
Step 3: Keep holding the reset button depressed for a while,
release the reset button. The unit will start up with factory default
settings.
4. Ethernet Port
The IP device connects to the Ethernet via a standard RJ45
connector. Supporting NWAY, this IP device can auto detect the
speed of local network segment (10Base-T/100Base-TX
Ethernet).
5. Power LED Indicator
The LED indicator lights up one time upon power up. It will
lights up again when this IP device is fully booted up.
0-4
1.3 BASIC CONNECTIONS
Follow the procedures below to connect the IP device to the respective
apparatuses.
1. Connect an analog monitor to IP device video out (BNC connector).
2. Connect the power adaptor to IP device
3. Connect IP device’s ethernet port to an Ethernet (RJ45 connectors). If your
IP device has PoE built-in, you can regard it as a PD and connect it
directly to a PSE device like PoE switch.
4. Connect a PC to the Ethernet hub (RJ45 connectors)
1
NOTE: You may find a support package for help you getting familiar
with PoE. Please visit our web site, and get the support document
TS-00040.
0-5
1.4 Installation Procedure
1-6
1Quick Tour
This section guides you with a quick tour on this IP device.
2.1 Configure this IP Device
2.1.1 Make sure network environment
Default IP of this IP device is 192.168.0.100. Please make sure this IP device and
your PC are on the same network segment before running the installation.
2.1.2 Open Internal Explorer with IP address
2
Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255. 0
(NOTE: xxx should be a number
from 1 to 254, but 100 is
excepted.)
1-7
NOTE: If your web browser is earlier than IE6, then download IE6 is
recommended.
NOTE: This IP device default IP address is set to 192.168.0.100
2.1.3 Login with default administrator’s account & password
NOTE: Default administrator account is set to Admin, password is set to
123456, and click button.
2.1.4 Preview the video
1-8

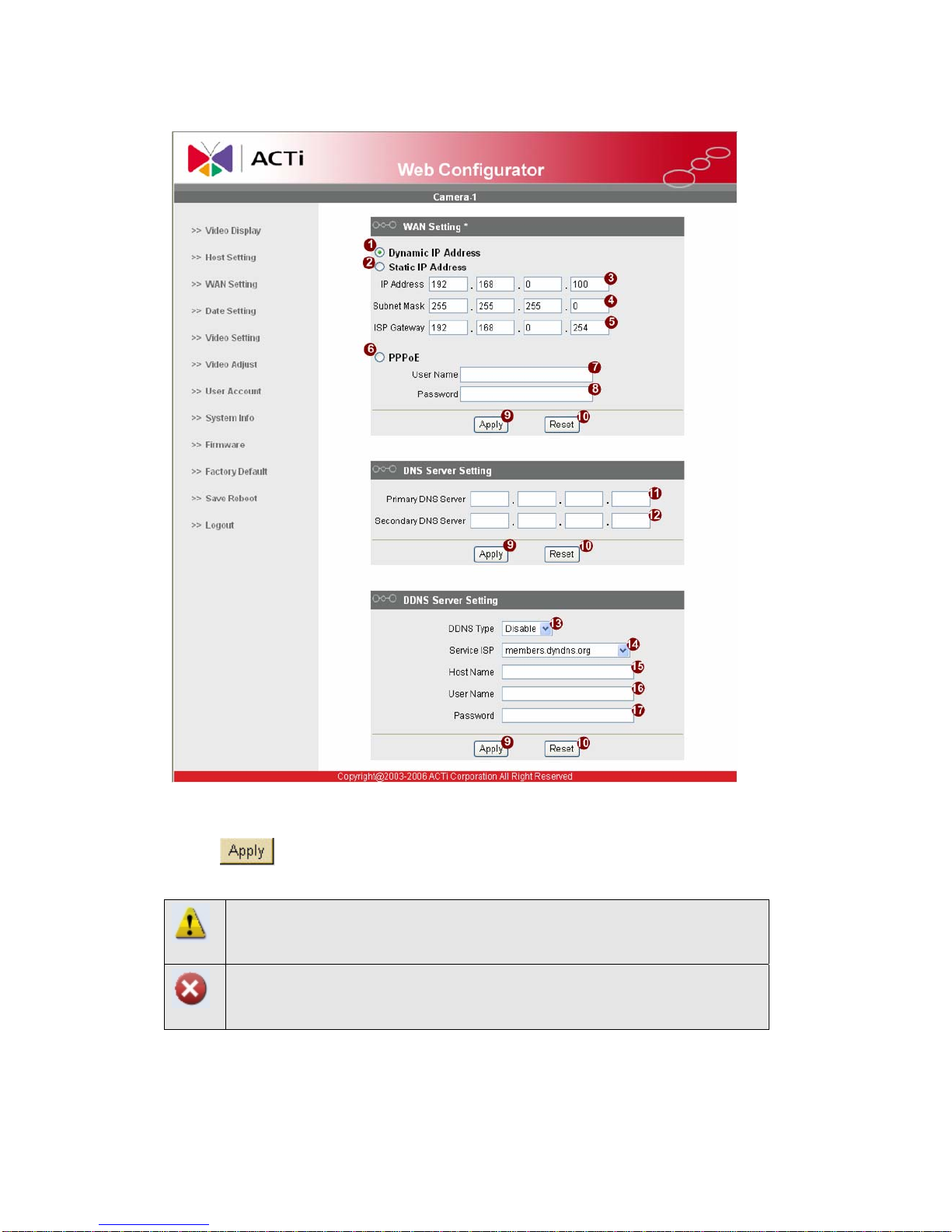

2.1.5 Set the new IP address
*IP Address : The default IP address is 192.168.0.100.
*Subnet Mask : The default subnet mask is 255.255.255.0
*Click button
NOTE: In your Client PC, please make sure the setting of Network
Connections Type is set to Auto Negotation, since this IP device follows
MII standard. Otherwise, you might not see the live image.
IMPORTANT: After the IP address is changed, please record this IP
address. There’s no way to connect to the IP device if user forgets the
new IP address.
