IP IR D/N PoE Bullet Camera

(with DC 12V / PoE)

ACM-1011 series

Ver. 081208

Quick Installation Guide

0-1

0Getting Started

1.1 PACKAGE CONTENTS

ACM-1011 series Power Adaptor (Option)

(DC12V / PoE)

The bracket is not included

Product CD Terminal Block for Power

Warranty Card

1

0-2

1.2 PHYSICAL DESCRIPTION

1. Audio Input / Output

The IP IR D/N PoE Bullet Camera supports audio input and

output with earphone jack

2. Power Input

If your power input is DC12V. Please follow the description on

the connector to connect to power.

3. Ethernet Port

The IP IR D/N PoE Bullet Camera connects to the Ethernet via a

standard RJ45 connector. Supporting NWAY, this IP IR D/N PoE

Bullet Camera can auto detect the speed of local network segment

(10Base-T/100Base-TX Ethernet).

4. Reset Button

Step 1: Switch off IP IR D/N PoE Bullet Camera by

disconnecting the power cable

Step 2: Press and continue to hold the Reset Button. Reconnect

PIN

NAME

DESCRIPTION

1

12V

DC Power Input

2

GND

Ground Pin

0-3

the power cable while continuing to hold the reset button.

Step 3: Keep holding the reset button depressed for a while,

release the reset button. The unit will start up with factory default

settings.

5. Power LED Indicator

The LED indicator lights up one time upon power up. It will

lights up again when this IP IR D/N PoE Bullet Camera is fully

booted up.

0-4

1.3 BASIC CONNECTIONS

Follow the procedures below to connect the IP IR D/N PoE Bullet Camera

to the respective apparatuses.

1. Connect the power adaptor to IP IR D/N PoE Bullet Camera

2. Connect IP IR D/N PoE Bullet Camera’s ethernet port to an Ethernet

(RJ45 connectors). If your IP IR D/N PoE Bullet Camera has PoE built-in,

you can regard it as a PD and connect it directly to a PSE device like PoE

switch.

3. Connect a PC to the Ethernet hub (RJ45 connectors)

1

NOTE: You may find a support package for help you getting familiar

with PoE. Please visit our web site, and get the support document

TS-00040.

0-5

1.4 Installation Procedure

1.4.1 Install the camera onto bracket

1.4.2 Rotate camera box counter-clockwise to remove camera

cover

0-6

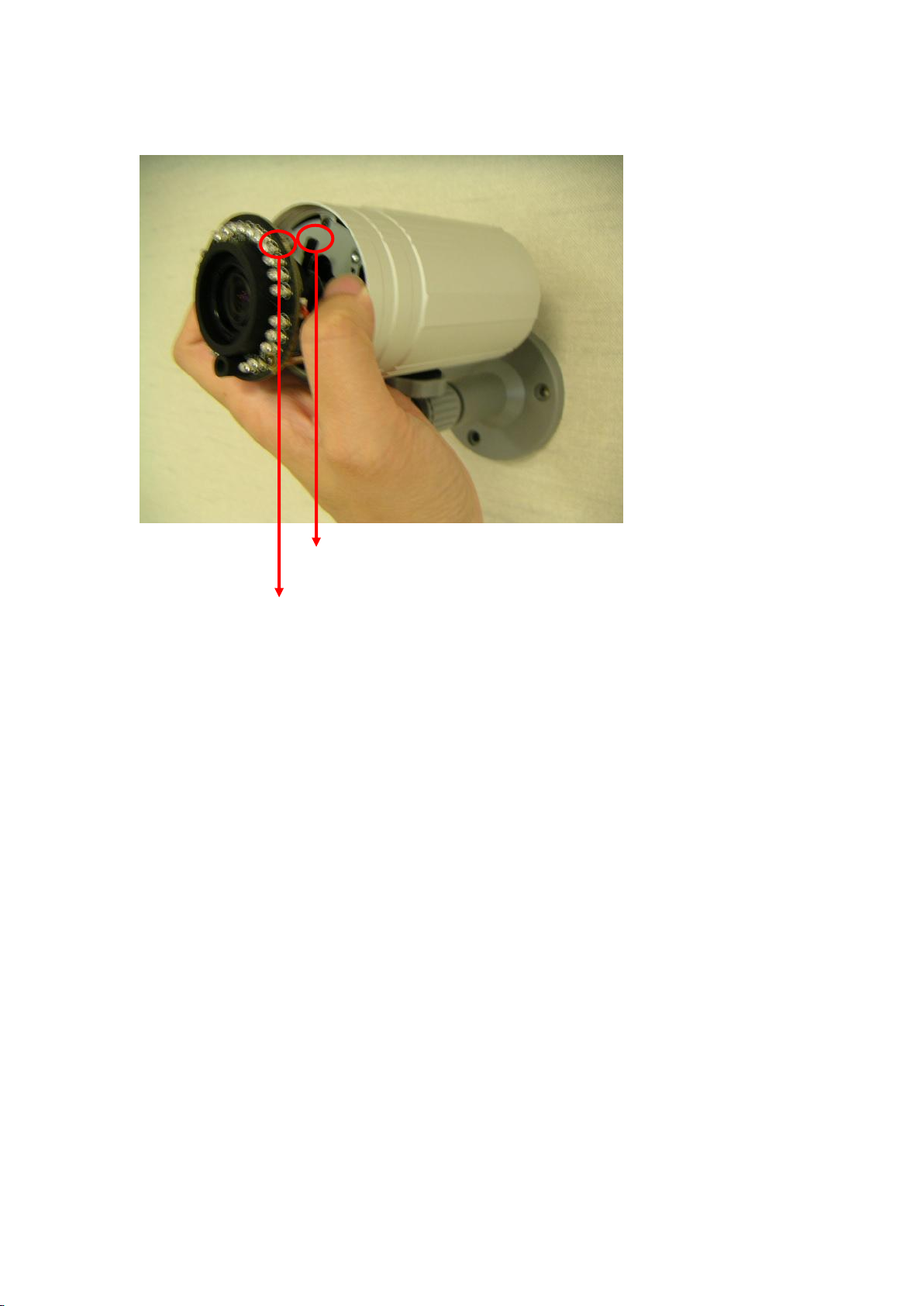

1.4.3 Adjust the focus / zoom

- Zoom adjust lever

- Focus adjust lever

1-7

1Quick Tour

This section guides you with a quick tour on this IP IR D/N PoE Bullet Camera.

2.1 Configure this IP IR D/N PoE Bullet Camera

2.1.1 Make sure network environment

Default IP of this IP IR D/N PoE Bullet Camera is 192.168.0.100. Please make sure

this IP IR D/N PoE Bullet Camera and your PC are on the same network segment

before running the installation.

2.1.2 Open Internal Explorer with IP address

2

Please set the settings as below.

IP address: 192.168. 0.xxx

Subnet mask: 255.255.255. 0

(NOTE: xxx should be a number

from 1 to 254, but 100 is

excepted.)

1-8

NOTE: If your web browser is earlier than IE6, then download IE6 is

recommended.

NOTE: This IP IR D/N PoE Bullet Camera default IP address is set to

192.168.0.100

2.1.3 Login with default administrator’s account & password

NOTE: Default administrator account is set to Admin, password is set to

123456, and click button.

2.1.4 Preview the video
