ACTi CAM-7300 series Manual de usuario

IP Outdoor Rugged Dome

(with DC 12V / PoE / AC24V)

CAM-7300 series

Ver. 070307

Quick Installation Guide

0-1

0Getting Started

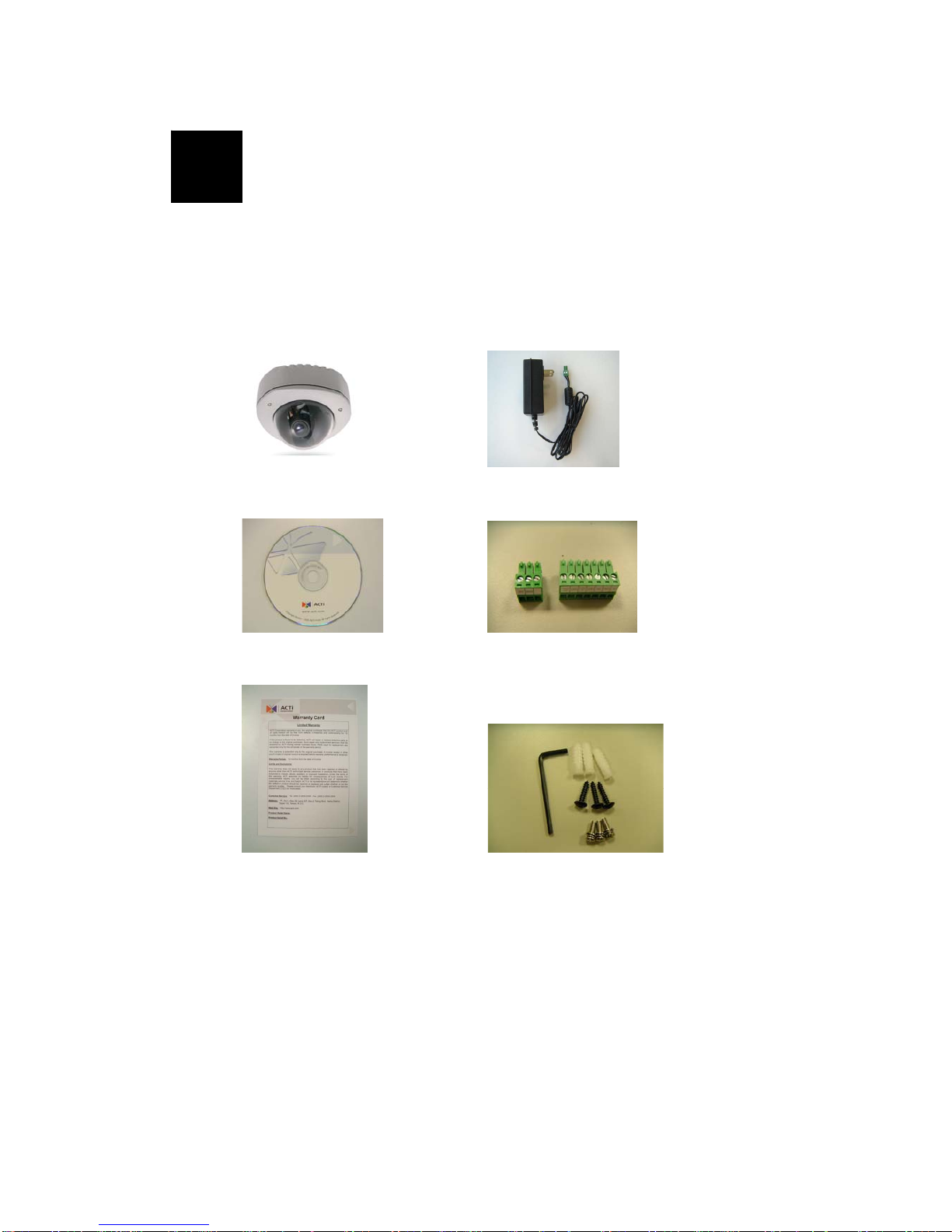

1.1 PACKAGE CONTENTS

CAM-7300 series Power Adaptor (Option)

(DC12V / PoE / AC24V)

Product CD Terminal Blocks for Power, DI/O & Audio

Warranty Card Accessory

0-2

1.2 PHYSICAL DESCRIPTION

0-3

0-4

1. LAN

The IP Camera connects to the LAN (local area network) via a

standard RJ45 connector. Supporting NWAY, this IP outdoor

rugged dome can auto detect the speed of local network segment

(10Base-T/100Base-TX Ethernet).

2. WAN

The IP Camera connects to the WAN (wide area network) via a

standard RJ45 connector. Supporting NWAY, this IP outdoor

rugged dome can auto detect the speed of local network segment

(10Base-T/100Base-TX Ethernet).

3. Power Input

If your power input is DC12V. Please follow the description on

the connector to connect to power.

If your power input is AC24V. Please follow the description on

the connector to connect to power.

PIN NAME DESCRIPTION

1 N

2 L

AC Power Input

3 GND E-Ground of power

4. Analog Video Output

The IP outdoor rugged dome supports one channel analog video

output.

5. DI/O

PIN NAME DESCRIPTION

1 12V DC Power Input

2 GND Ground Pin

0-5

DI: To Trigger Logic Level 0: 0~0.4V; Normal Logic Level 1:

3.3~30V

DO: To Trigger Logic Level 0: 0.1~0.6V; Normal Logic Level1:

2.4~5V

6. Conduit Hole

These conduit holes are used for cables to go through.

7. Zoom Lever

Move this lever to adjust the optical zoom. After adjusting, rotate

it clockwise to fix it.

8. Focus Lever

Move this lever to adjust the Focus. After adjusting, rotate it

clockwise to fix it.

9. Video DC level Adjustment

Rotate it adjust the overall lighting for this camera.

10. CCD Functions DIP-switch

11. Reset Button

Step 1: Switch off IP device by disconnecting the power cable

Step 2: Press and continue to hold the Reset Button. Reconnect

the power cable while continuing to hold the reset button.

Step 3: Keep holding the reset button depressed around 6 seconds,

release the reset button. The unit will start up with factory default

settings.

PIN NAME DESCRIPTION

1 A_Out Audio Output

2 GND Ground Pin

3 A_In Audio Input

4 GND Ground Pin

5 DO Digital Output

6 GND Ground Pin

7 DI Digital Input

Item Description ON OFF

AES Auto Electric Shutter Default

BLC Backlight Compensation Default

AGC Auto Gain Control Default

F.L. Flickerless Default

0-6

1.3 INSTALLATION PROCEDURE

There are three types of installation of this IP outdoor rugged dome series.

Surface mount Flush mount Wall mount

Pictures

Optional Bracket

required

●●

The mounting procedure can be divided into two parts,

1st: Connect the IP outdoor rugged dome series

2nd: Mount the IP outdoor rugged dome series

1.3.1 Connect the IP Outdoor Rugged Dome

1.3.1.1 Remove the cover

Remove the dome cover with special hex wrench in the accessory bag.

1.3.1.2 Insert the cable

There are two conduit holes, one is at the dome bottom and the other one is

at the side of rugged dome with plug. Remove the plug if your cable will go

through the one at the side of rugged dome

0-7

1.3.1.3 Connect cables to connectors

Please follow the instruction at Chapter 2: Physical Description, for how to

connect to each connector.

1.3.1.4 LED Description

There are three LEDs in the system. They are indicators for power, fan and

heater respectively. According to operating temperature, the different LED

will be lighted for different situation.

0-8

NOTE: Temperatures indicate here is spec for internal IC temperature,

not for operating temperature.

0-9

1.4 Mount the IP Outdoor Fixed Dome (Surface)
