ACTi KCM-7911 Manual de usuario

KCM-7911

H.264 4-Megapixel IP D/N PoE Outdoor

Hemispheric Camera with Advanced WDR

(DC 12V / PoE)

Ver. 2015/01/12

www.acti.com

Hardware Manual

Table of Contents

Precautions 4

Safety Instructions ...........................................................................5

Introduction 6

Package Contents.............................................................................6

Physical Description ........................................................................7

Installation Procedures 9

Mounting Solutions ..........................................................................9

Installing the Camera on a Flat Surface........................................ 11

Step 1: Drill the Holes .................................................................. 11

Step 2: Open the Camera Cover..................................................12

Step 3: Prepare for Waterproof Installation..................................13

Step 4: Connect the Cable(s).......................................................13

Step 5: Install the Camera to the Surface ....................................13

Step 6: Close the Cover...............................................................14

Step 7: Access the Camera Live View .........................................14

Waterproof Solutions 15

Waterproof Solution with Naked Cable.........................................15

Waterproof Solution with Conduit.................................................18

Other Connections 21

Connecting a Power Adaptor (Optional).......................................21

www.acti.com

Hardware Manual

Connecting DI/DO Devices (Optional)...........................................23

Connecting Audio In / Out Devices (Optional) .............................26

Accessing the Camera 27

Configure the IP Addresses...........................................................27

Access the Camera.........................................................................31

www.acti.com

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to

follow the safety instruction given may directly endanger people, cause damage to the system

or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your

local office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

FCC/CE Regulation

NOTE: This equipment has been tested and found to comply with the limits for a Class Adigital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the users will be required to correct the

interference at their own expense.

www.acti.com

Hardware Manual

Safety Instructions

Don’t use the power supply with other voltages

This device is likely to be damaged or damage other equipments / personnel, if you use a

power supply with different voltage than the one included with this device. All warranty of this

product will be voided in the situations above.

Don’t open the housing of the product

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may

cause hazards.

Don’t use accessories not recommended by the manufacturer

Install the power supply (if any will be used with the camera) in a dry place protected from

weather.

Servicing

Do not attempt to service this video product yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to

qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in

this manual. Adjust only those controls that are covered by the instruction manual, as an

improper adjustment of other controls may result in damage, and will often require

extensive work by a qualified technician to restore the video product to its normal

operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

www.acti.com

Hardware Manual

Introduction

Package Contents

Camera

Cable Gland

Conduit Gland

Hex Wrench

Screw Plugs

Screws for Surface Mount

Terminal Block

(for Power)

Terminal Block

(for DI/DO)

Terminal Block

(for Audio In/Out)

Warranty Card

Quick Installation Guide

Drill Template

NOTE: The camera screws come with rubber rings on them. If the screws you received do not

have rubber rings, please contact your local sales agents or our Customer Help Desk (CHD)

for support.

Drill Template

www.acti.com

Hardware Manual

Physical Description

DC 12v Power Input

Audio Input / Output

Ethernet Port

Digital Input / Output

Reset Button

Micro SDHC Card Slot

Power Button

1) DC 12V Power Input

In case the camera is connected to a non-PoE (Power over Ethernet) switch, use this

connector to connect the camera to an external power adaptor (not included). See

Connecting a Power Adaptor (Optional) on page 21 for more information.

2) Ethernet Port

The Ethernet port connects to a network using a standard Ethernet cable.

www.acti.com

Hardware Manual

3) Reset Button

The Reset button is used to restore the factory default settings of the camera, including the

administrator’s password.

The reset button can be used for following purposes:

1. The administrator’s password has been forgotten and therefore the camera cannot be

accessed.

2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to

modify these settings.

3. In case of connectivity issues or abnormal video quality.

How to do the reset properly?

Step 1: Disconnect the power supply (e.g. disconnect the power adaptor or a PoE switch /

injector).

Step 2: Press and hold the reset button.

Step 3: Connect the power supply while keeping the reset button pressed. During this time the

Power LED may turn on and turn off several times.

Step 4: Wait for 45 seconds and then release the reset button.

4) Power Button

Press the Power button to reboot the camera.

5) Audio Input / Output

This connector connects to audio input and output devices, such as microphones and

speakers, using the bundled terminal block. See Connecting Audio In / Out Devices

(Optional) on page 26 for more information.

6) Digital Input / Output

This connector connects to digital input or output devices, such as alarm triggers, panic

buttons, etc. Digital Input (DI) and Digital Output (DO) devices are used in applications like

motion detection, event triggering, alarm notifications, etc. See Connecting DI/DO Devices

(Optional) on page 23 for more information.

7) Micro SDHC Card Slot

Insert a Micro SDHC card here for local recording (card not included in the package).

www.acti.com

Hardware Manual

Installation Procedures

There are several mounting options that you can use to install the camera. Select the most

suitable solution for your installation environment.

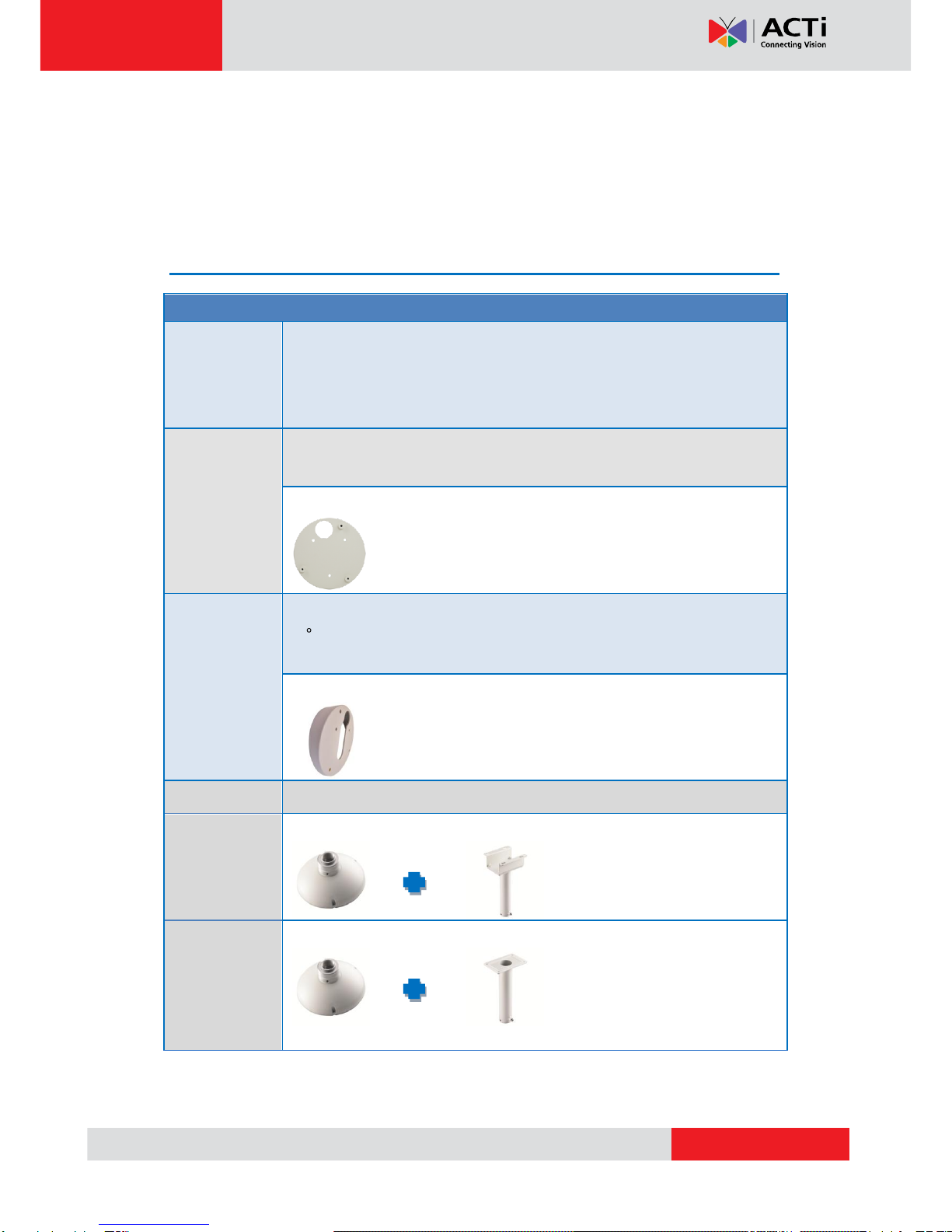

Mounting Solutions

Mount Types

Accessories

Surface Mount

Suitable when mounting the camera on flat and smooth surface, like ceilings

or walls. This solution directly installs the camera to the surface without

additional accessories. See Installing the Camera on a Flat Surface on

page 11 for more information.

Rough Surface

Mount

Suitable when mounting the camera on rough surfaces using an additional

surface mount plate.

PMAX-0802

Tilted Wall

Mount

Suitable when mounting the camera on high walls. The camera can be tilted

10 to capture a larger viewing angle below the camera and less on the

ceiling.

PMAX-0310

Pendant Mount

Suitable when mounting the camera on hard and high cielings.

SMAX-0053

PMAX-0101 PMAX-0103

SMAX-0051

PMAX-0101 PMAX-0102

www.acti.com

Hardware Manual

Vertical Pole

Mount

Suitable when mounting the camera on a vertical pole.

PMAX-0310 PMAX-0503

PMAX-0101 PMAX-0303 PMAX-0503

PMAX-0101 PMAX-0305 PMAX-0503

Horizontal Pole

Mount

Suitable when mounting the camera on a horizontal pole.

PMAX-0101 PMAX-0102 PMAX-0503

Corner Mount

Suitable when mounting the camera on a corner area. The camera can also

be tilted 10 to capture a larger viewing angle below the camera and less

above.

PMAX-0310 PMAX-0402

NOTE:

For more information about the mounting solutions and accessories, please check the

Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).

The mounting accessories are not included in the package. Contact your sales agents

to purchase.
